2.4'' Touch screen LCD with 240RGB*320 3-line SPI interface ILI9341V IC

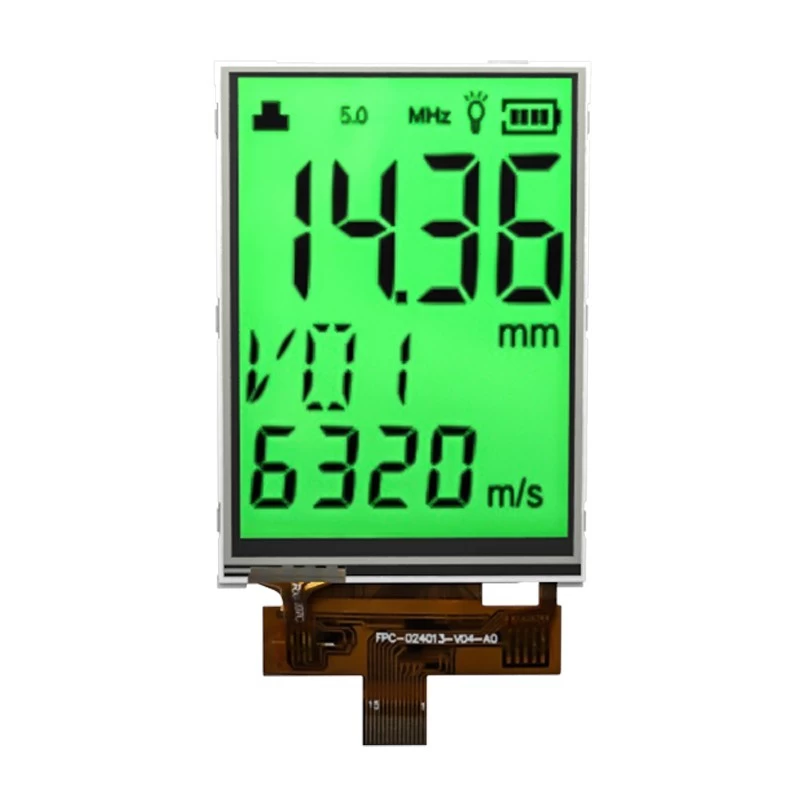

SCT024013-V04 is a 2.4'' TFT LCD Display with 240RGB*320 resolution, it built in with ILI9341V IC, and it supports 3-line SPI interface, 15 PIN, 12 o'clock View direction.

  • Temperature (℃)-20°C~70°C
  • Touch ScreenRTP
  • Brightness (cd/m²)300
  • IC Part No.ILI9341V
  • Interface3-line SPI
  • View Direction12
  • Active Area (mm)36.72*48.96
  • Viewing Area (mm)38.52*53.56
  • Outline Dimension (mm)42.72*60.26*2.30
  • Resolution240*320
Facebook Twitter Pinterest LinkedIn 分享

Basic Information


Resolution:                    240RGB*320

Outline Dimension:        47.72*60.26*2.40

Active Area:                  36.72*48.96

View area:                     40.32*56.26

Interface:                      3-line SPI

Driver IC:                       HX8347I

View Direction:              12 o'clock

PIN:                                15

Backlight:                      White LED

Touch Screen:               RTP





Drawing




General Specification


Item Nominal Dimension Unit
  Dot Matrix 240 x RGB x 320 Dots
  Module Size ( W×H×T ) 42.72 x 60.26 x 3.4 mm.
  Active Area ( W×H ) 36.72 x 48.96 mm.
  Pixel arrangement RGB Stripe mm.
  Dot Pitch ( W×H ) 0.153 x 0.153 mm.
  Color depth 262K(MAX) colors
  Interface 3-line SPI
 -
  Drive IC ILI9341V -
  Operating temperature -20 ~70 ºC
  Storage temperature -30~80 ºC
  LCD Type a-Si TFT -
  LCD Mode TN/Normal White -
  Backlight Type LED x 4 PCS



Interface Definition


Pin No Pin Symbol Level Description
1 CSX 0V Chip select
2 SDA H/L SPI data
3 SCL H/L SPI clock
4 YD - Touch panel bottom electrode
5 XR - Touch panel right electrode
6 YU - Touch panel top electrode
7 XL - Touch panel left electrode
8 VCC 2.8-3.2V Power supply
9 LEDA - LED light, anode
10 LEDK1 - LED light, cathode.
11 LEDK2 - LED light, cathode.
12 LEDK3 - LED light, cathode.
13 LEDK4 - LED light, cathode.
14 RESET H/L Reset signal
15 GND 0V Ground
