2.4Kwh Lithium Ion Lifepo4 Iron Phosphate Battery Cabinet System Base Station 48v 50Ah Battery
1. Brand new class a lithium battery, with a deep cycle of more than 5000 times and a DOD of up to 90%.
2. Compact, equipped with necessary installation cables and accessories.
3. Built in intelligent BMS can perfectly match all solar inverters and solar projects.
4. We accept OEM and your logo design.
Product parameters
Battery type: lithium iron phosphate battery
Product model: 48v50ah-a2
Nominal voltage: 48V
Nominal capacity: 50ah
Maximum voltage: 54.75v
Minimum voltage: 37.5v
Charging current ≤ 50A
Discharge current ≤ 50A
Communication mode: RS485, RS232
Power display：yes
Battery case metal ： black
Temperature range ：0 ~ 50 ° C (charging), - 10 ~ 60 ° C (discharging)
Battery size ：483 * 385 * 133mm (standard 3U chassis)
Battery weight ：24kg (about)
Charger：54.75v10a (optional)
Remarks: it can be customized according to the needs The size, shell, socket, etc. can be adjusted according to the needs
Installation method ：cabinet type
The lithium battery LiFePO4 produced by us is equipped with intelligent BMS system. The four functional protections make the use of lithium iron phosphate battery more safe
1.Temperaturecontrol protection
2.Voltage protection
3.Short circuit protection
4.Overcharge protection

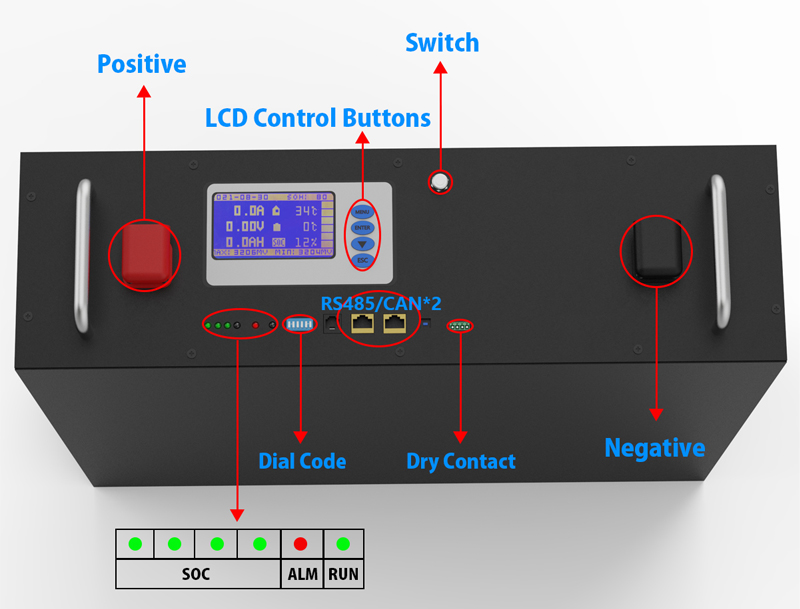

Base station 48v battery Products Button Definition
1.Dual Postive Socket:battery output positive or parallel positive line
2.Dual Negative Socket:battery output negative or parallel negative line
3.Power switch:OFF/ON must be in the ON state when in use
4.Handle:Flexible handle can be flat
5.LCD Screen:can control lcd screen
6.SOC:the number of green lights show the remaining power
7.ALM:red lights flashing when an alarm occurs,always on during portection status
8.Run:green lights flashing during standby and charging model.Green light always on when discharging
9.ADDS:Dip swtich

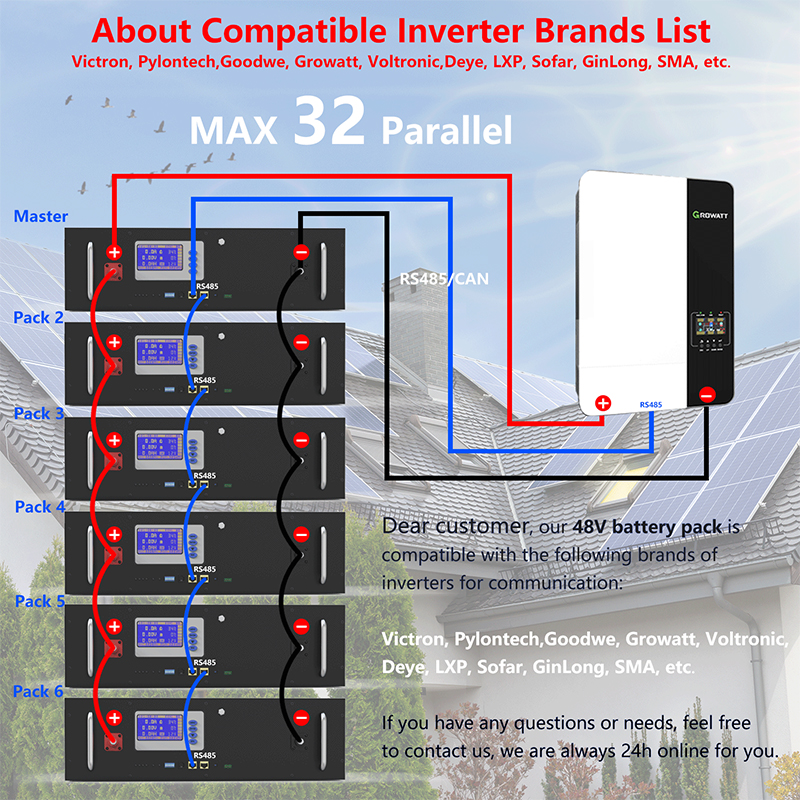

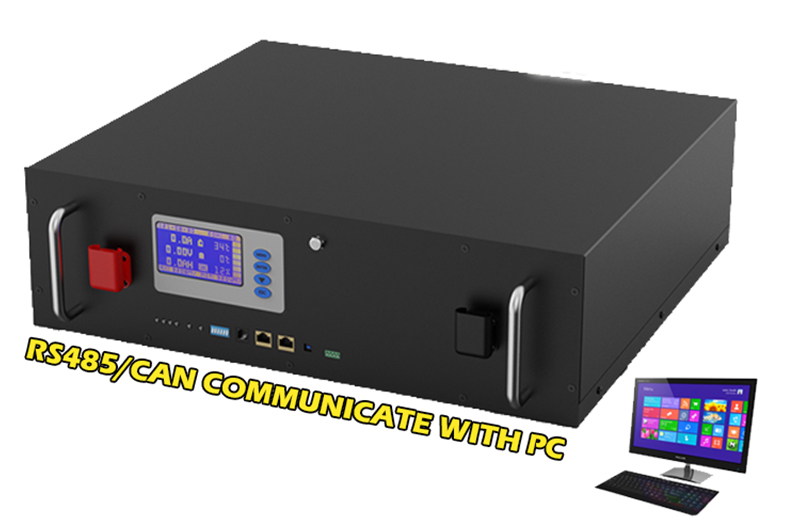

10.CAN/RS485:support CAN/RS485 communication cascade port
11.RST:reset,restore settings
Battery pack 48V is widely used in solar projects, UPS, 5g power stations, military projects, solar hybrid power systems and household energy storage systems.

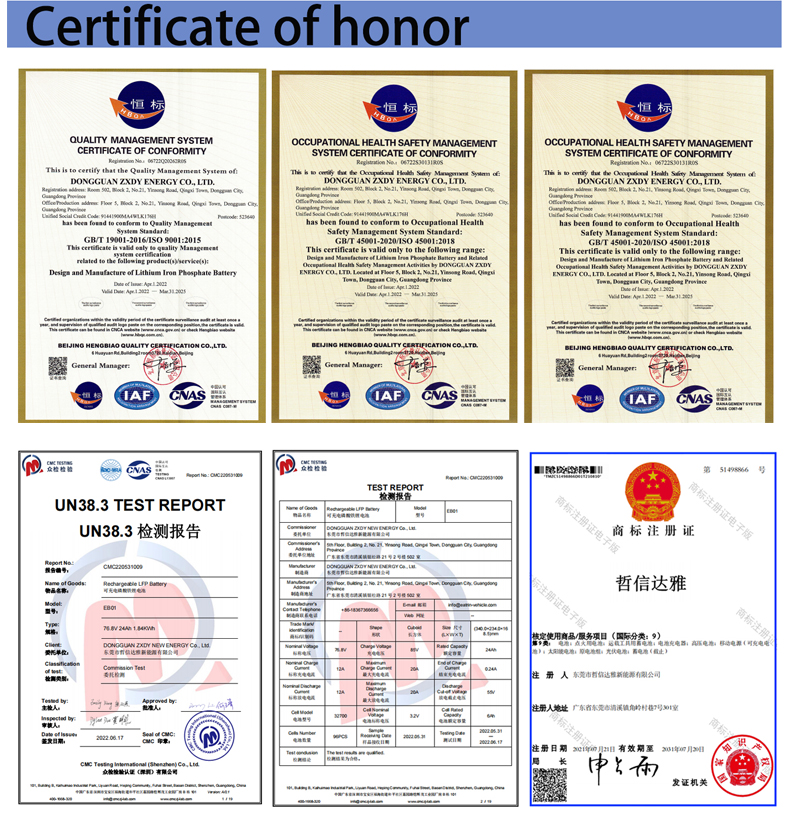

In order to provide more efficient and cost-effective energy storage battery products to meet customers' growing power demand and high quality requirements, we have passed the following certification:
1. GB / T 45001-2020 / ISO 45001 06722s30131r0s 2018 occupational health and safety management system.
2. GB / T 24001-2016 / ISO 14001r 2015 environmental management system 06722e20137r0s.
3. GB / T 19001-2016 / ISO 90012015 quality management system 06722q20262r0s.
4. UN38.3 rechargeable lithium iron phosphate battery cmc220531009.
5. MSDS rechargeable lithium iron phosphate battery cmc220531009m01.
6. Dangerous goods transportation certificate: rechargeable lithium iron phosphate battery seksz202206265622wx83001.
