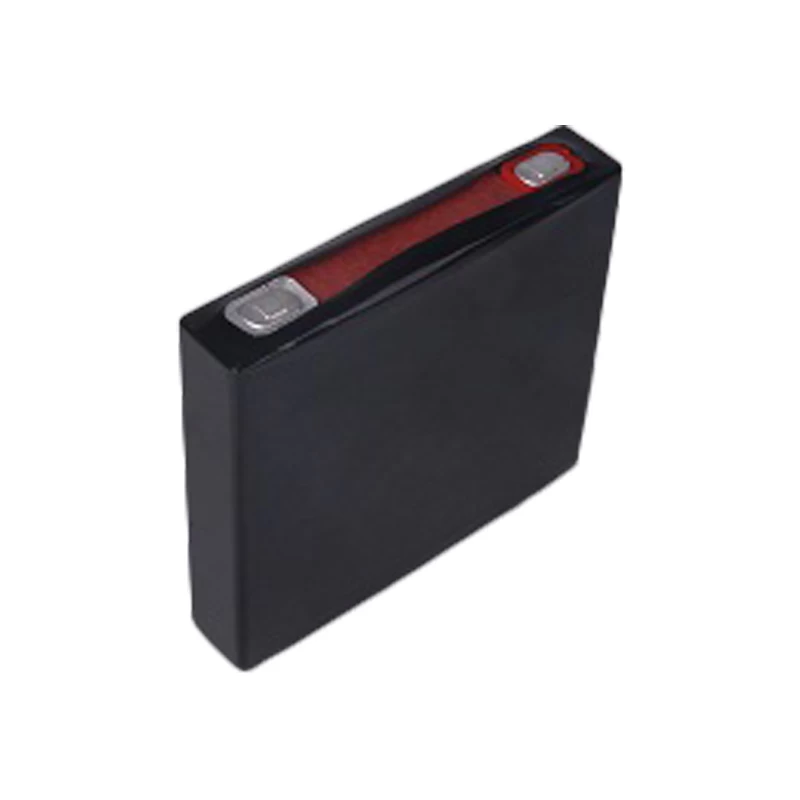

2.4V20Ah LTO Prismatic Battery Cell For EV

-The LTO Prismatic Battery cell 2.3v20Ah has 30000cycles life,fast charge(up to 10C) and wide working temperature range(-50°C ~ 65°C) .

-Size is 116*22*106mm,weight is 505g .

-It has been widely used for electric vehicles, household&industrial solar storage ,car audio&car start ,UPS etc. Applications .

Facebook Twitter Pinterest LinkedIn 分享

Product name

2.4V20Ah LTO Prismatic Battery Cell For EV



We can also assemble battery pack with laser spot welding machine .



Specification


Item

Parameters

Model

           OSN-11622106-LTO20Ah

Materials

LTO

Nominal capacity

20Ah

Nominal voltage

2.4 V

Dimension

                                      W116 × D22 × H106 mm

                                       Cell construction type
                                         Prismatic

Weight

                                         515g

Internal Resistance

≤1mΩ

Operating voltage

Charge cut-off voltage

2.8 V

Discharge cut-off voltage

1.5 V

Maximum charge current

4C

Maximum discharge current

ccucurrentcucurrent

10C

Cycle life

30000 times

Operating Thermal Ambient

Charging

-50℃~ 65℃

Discharging

-50℃~ 65℃

Storage Thermal Ambient

Short term

(within 1 month)

-20℃~ 45℃

Short term

(within 1 year)

-20℃~ 20℃



Highlight


  •   Super long cycle life: over 30,000 times
  •   Faster charge: 10mins fully charged
  •   Higher discharge rate: Up to 10C
  •   Wide working temperature range: -50°C ~ 65°C
  •   High Safety(No fire, explosion,leakage)
