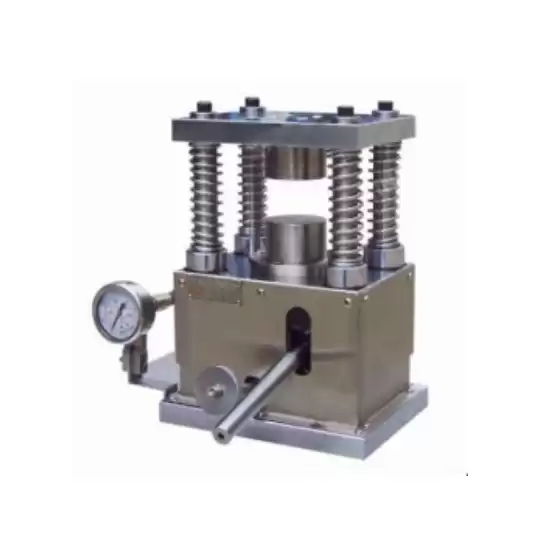

2.5-16T Lab Desktop Manual Hydraulic Press
TMAX-YXY-SY is a desktop dry pressing machine up to optional 2.5-16 metric tons for materials / chemistry research laboratories to prepare the compound ceramic sample. It has built in hydraulic pump with auto return function.
Specification
|
Max. Pressure
|
Optional 2.5, 4, 6, 8, 16 metric tons Max.
Pressure gauge is built in
|
|
Gauge Pressure Value to Force Conversion
|
Notes:
Displayed Pressure Value to Actual Applied Force Conversion: 1 MPa = 0.6 Ton
The actual force applied on the Hydraulic Cylinder (Ton) equal to the force applied on your working piece
For calculating the actual pressure (MPa) applied on your working piece, please follow the equations in below:
P = T/(πr^2) x g x 10
P: Pressure (MPa) applied on your working piece
T: Force (Ton) applied on the Hydraulic Cylinder
g: Standard gravity. g ≈ 9.8 m/s2
π: ~3.14
r: Radius (cm) of the working piece
*1 Metric Ton = 1000 kg; 1 MPa ≈ 10 kgf/cm2
|
|
Pump
|
Build-in Hydraulic Pump
|
|
Warranty
|
Two years limited warranty with lifetime support
|
|
Bottom Hydraulic Cylinder Travel Distance
|
Standard 30mm, opitional other distance
|
|
Dimensions of Machine
|
250mm X 180mm X 350mm
|
|
Compliance
|
CE Certified
|
|
Net Weight
|
about 40 kg
|
|
Press Dies
|
Pressing dies with various diameters are available upon request
|
Product Images
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
