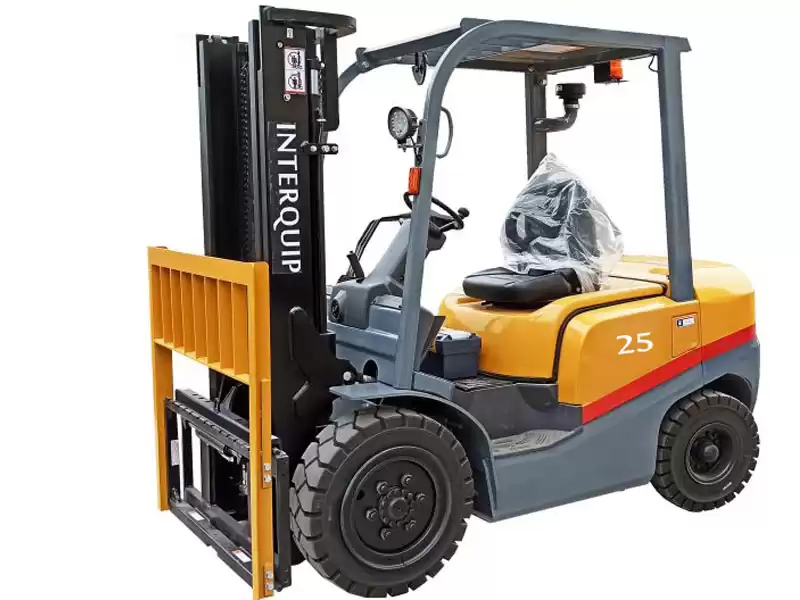

2500kg Diesel Forklift Truck with Original Japan ISUZU C240 Engine
Rated Capacity: 2.5 Ton/ 2500kg
Engine: Xinchai C490/ISUZU Engine C240/ MITSUBISH S4S
Lifting Height: 3-6m (Duplex/Triple)
Tyre: Pneumatic Tyre/Solid Tyre
Details:
Features:
---The most reasonable system matching after repeated verification
---Selection of domestic first-line brands or imported brands parts
---After 400 hours of continuous enhancement test
Specifications:
|
Model
|
UNIT
|
FD25T
|
|
Specifications
|
Power Unit
|
|
Diesel
|
|
Operator Type
|
|
Driver/seat
|
|
Transmission Box Type
|
|
Electronic hydraulic transmission
|
|
Rated Capacity
|
kg
|
2500
|
|
Load Center
|
mm
|
500
|
|
Max.Lifting Height
|
mm
|
3000
|
|
Tire Type
|
|
Pneumatic Tyre
|
|
Tire Number
|
Front
|
|
2
|
|
Rear
|
2
|
|
Tire Size
|
Front
|
|
7.00-12-12PR
|
|
Rear
|
|
6.0-9-10PR
|
|
Performance
|
Lifting Speed
|
Loaded
|
mm/s
|
500
|
|
Unloaded
|
550
|
|
Lowering Speed
|
Loaded
|
mm/s
|
480
|
|
Unloaded
|
450
|
|
Travelling Speed
|
Loaded
|
km/h
|
17
|
|
Unloaded
|
19
|
|
Max.Gradeability (Loaded)
|
%
|
21
|
|
Max.Drawbar Pull (Loaded)
|
kg
|
18
|
|
Mast Tilting Angle (Fwd/Bwd)
|
|
deg
|
6/12
|
|
Free Lifting Height
|
mm
|
150
|
|
Turning Radius
|
|
mm
|
2240
|
|
Dimensions
|
Overall Length (with fork)
|
mm
|
2605
|
|
Overall Width
|
mm
|
1150
|
|
Overhead Guard Height
|
mm
|
2090
|
|
Fork Size (LxWxT)
|
mm
|
1220×122×40
|
|
Mast Height (Fork lowered)
|
mm
|
2090
|
|
Battery (Voltage/Capacity)
|
V/Ah
|
12/90
|
|
Truck Weight
|
kg
|
3680
|
|
Fuel Tank Capacity
|
L
|
70
|
|
Engine
|
Brand
|
|
XINCHAI
|
MITSUBISH
|
ISUZU
|
|
Model
|
|
C490
|
S4S
|
C240
|
|
Rated Power
|
kw/rpm
|
40/2650
|
35.3/2250
|
35.4/2500
|
|
Rated torque
|
n-m/rpm
|
160/1600-2000
|
169/1700
|
137.7/1800
|
|
Number Of Cylinder
|
|
4
|
4
|
4
|
|
Displacement
|
|
2.67
|
2.49
|
2.37
|
