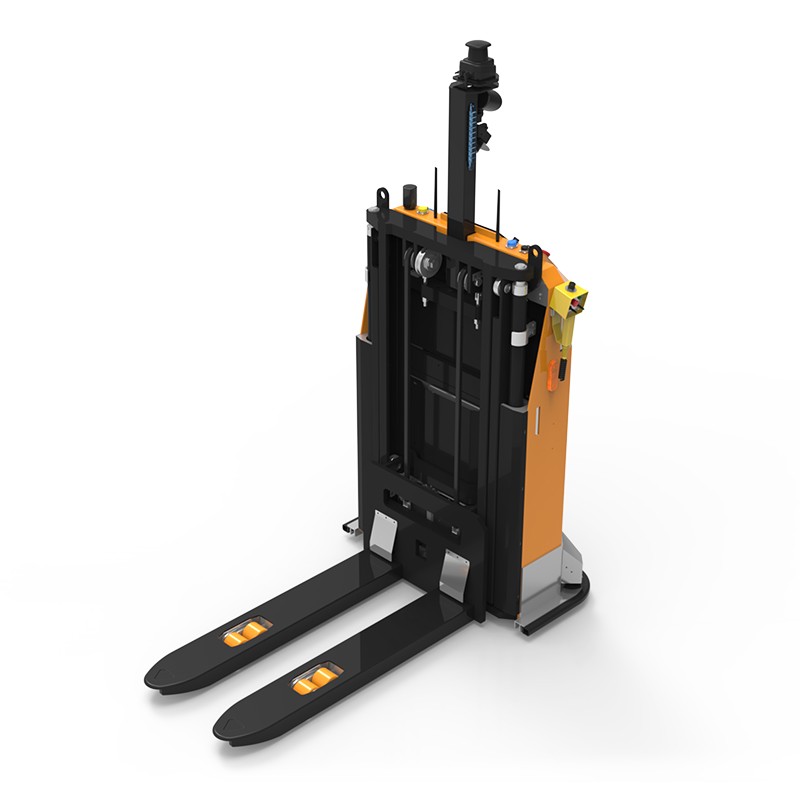

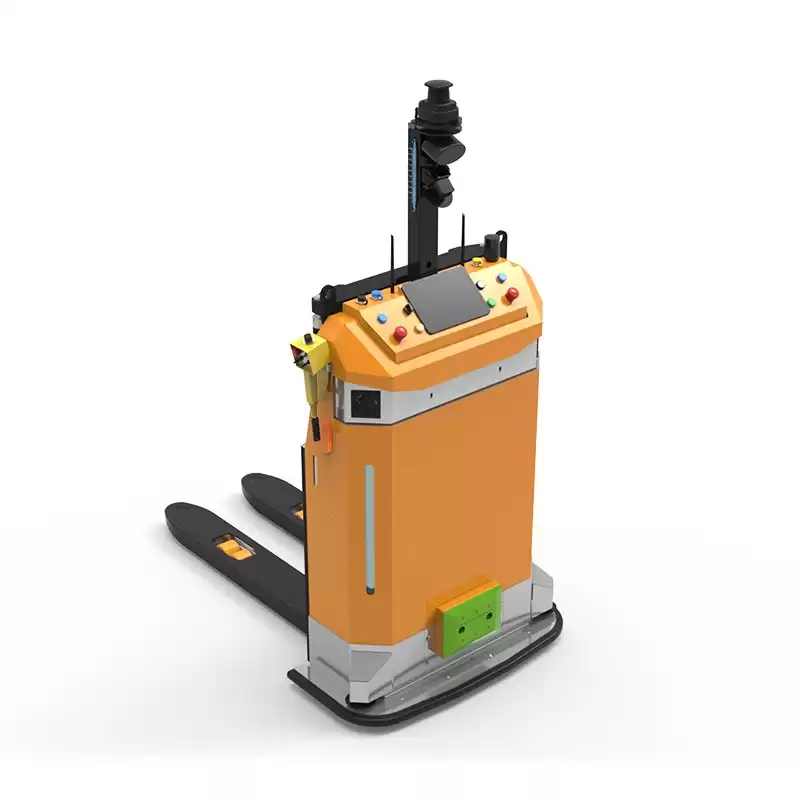

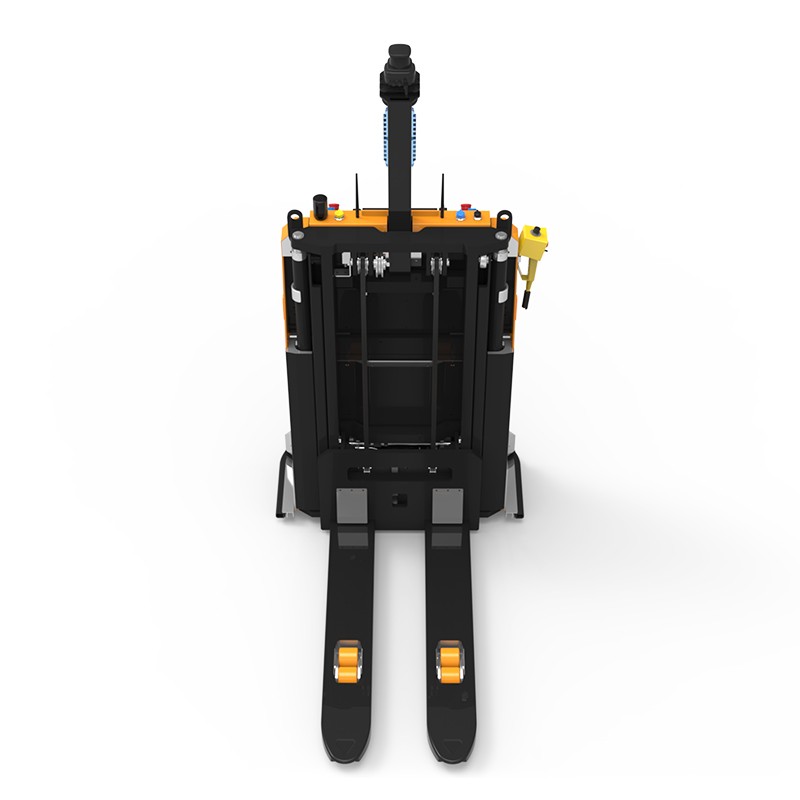

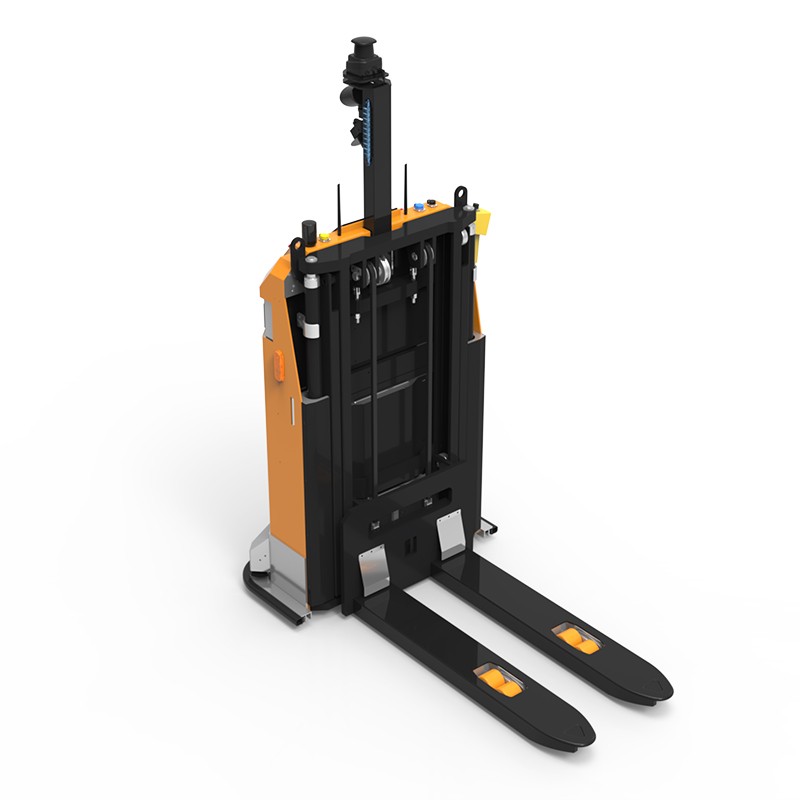

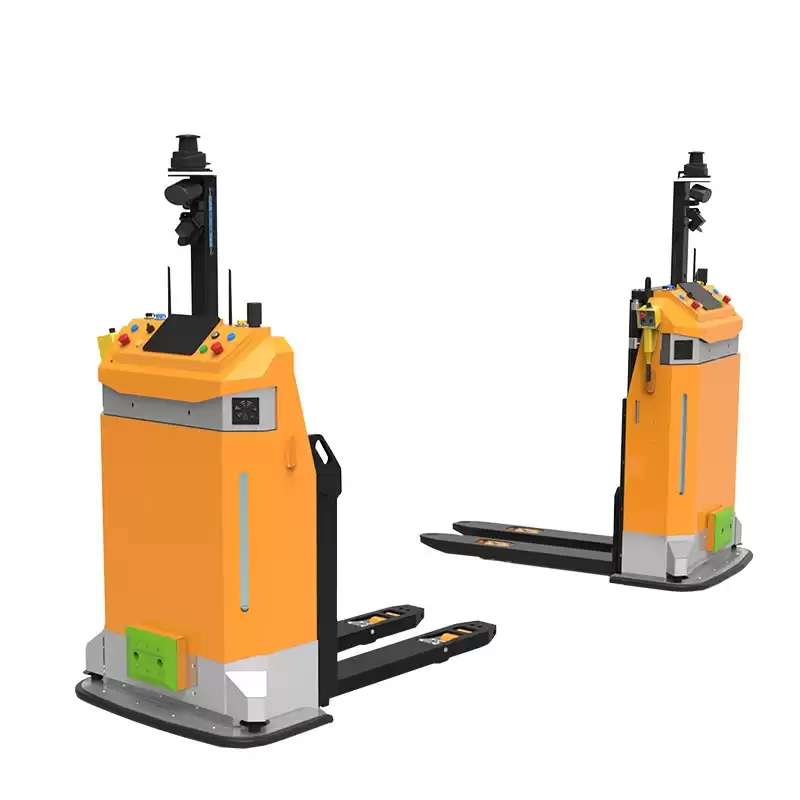

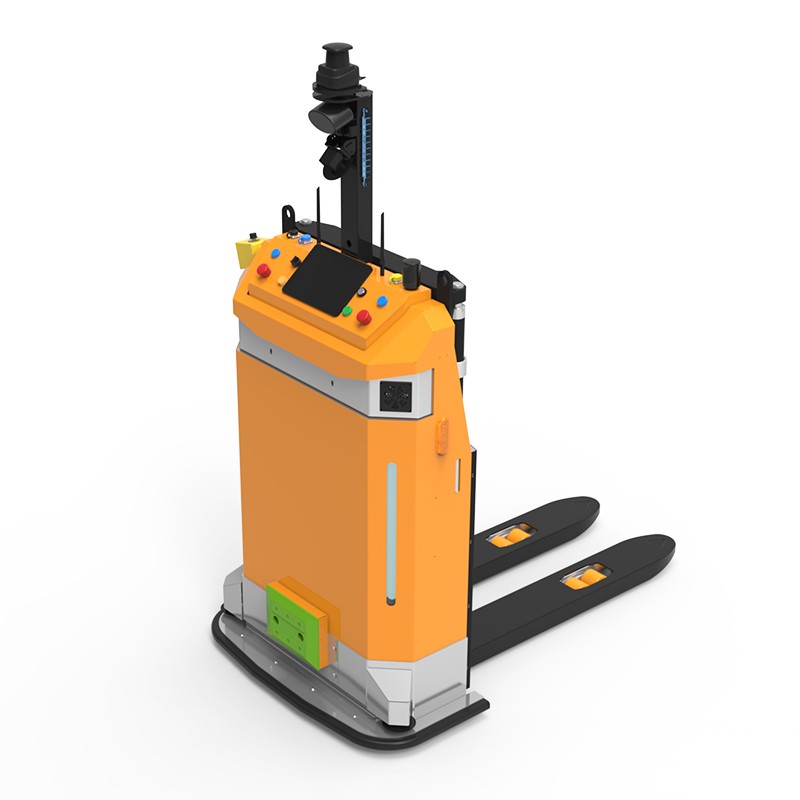

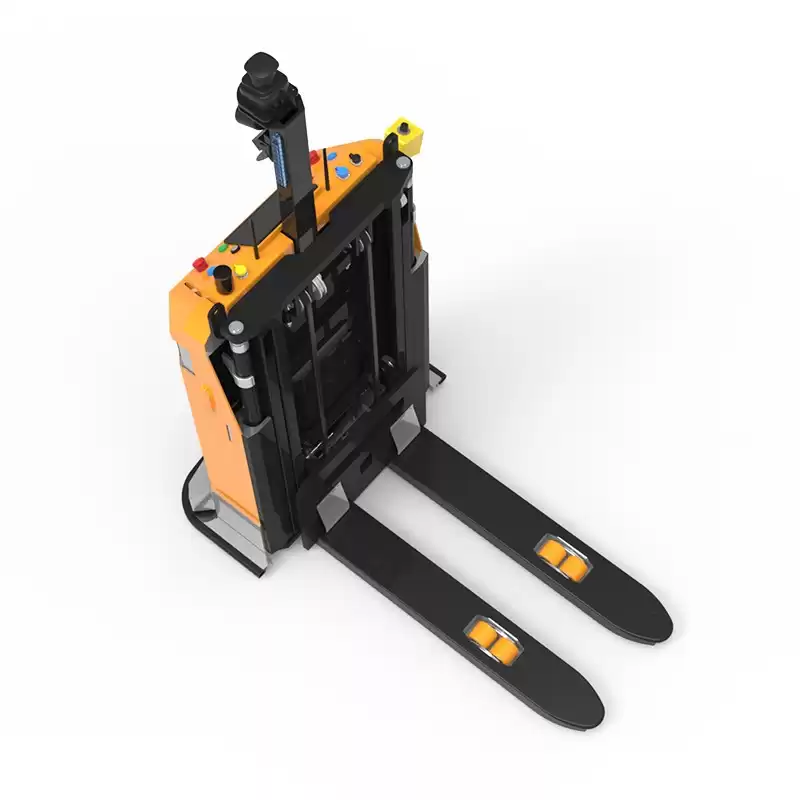

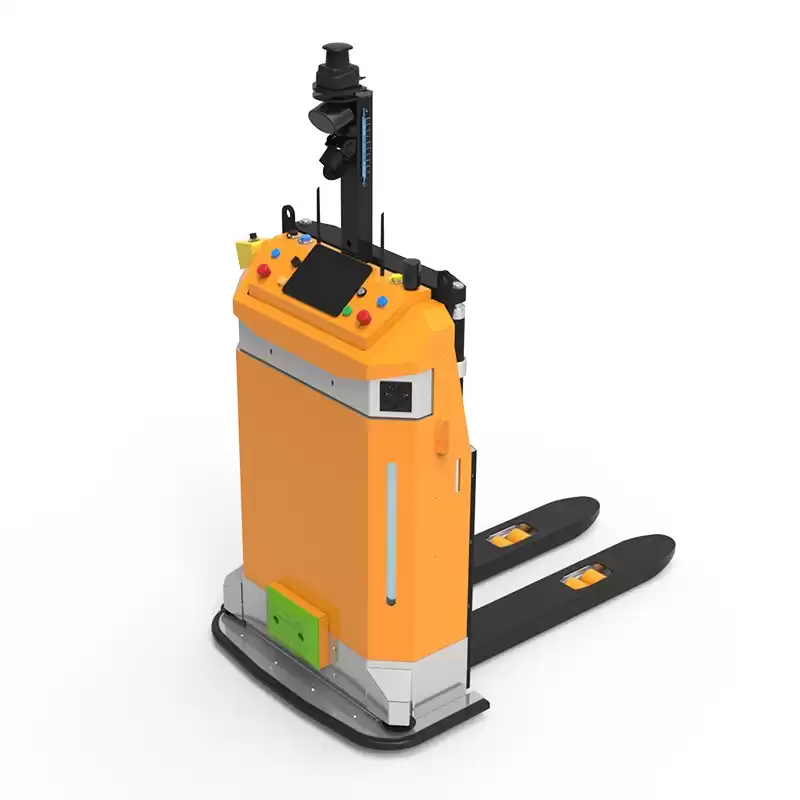

2.5 ton Electric Pallet Truck Automated Guided Vehicle
Features introduction
Small size: thinner, smaller, more dexterous, can operate on floors and elevators
Quick deployment: One-click drawing, support for non-reverse SLAM positioning, fast construction

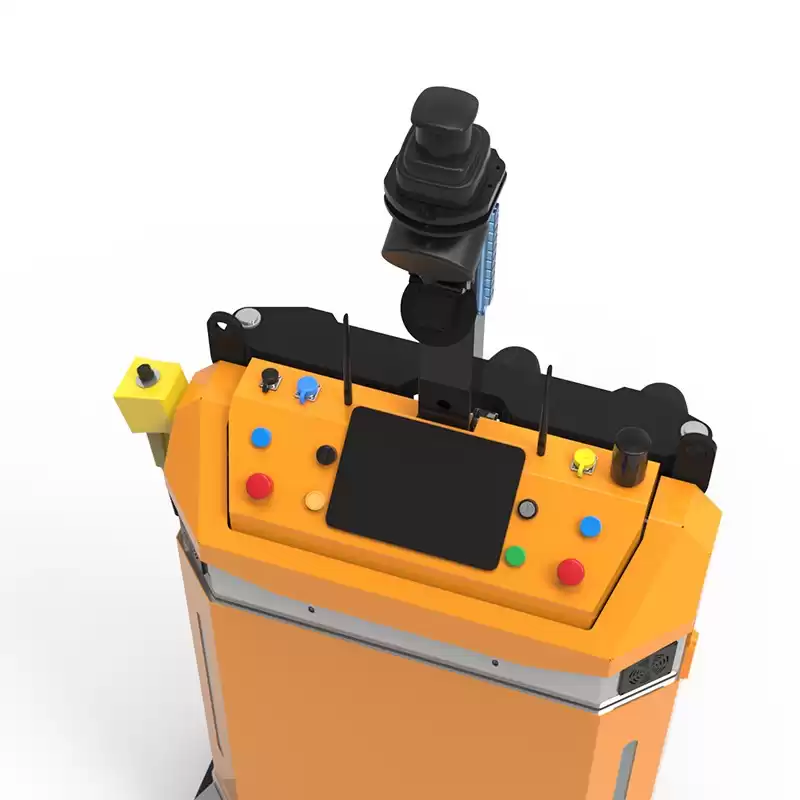

Human-computer interaction: vehicle-mounted system, dispatch system, warehouse management system, simple operation and easy to use
Super fast charge: 24V210AH lithium battery can be configured to support 1 hour fast charge.
Pallet correction system: The pallet is automatically aligned to improve the accuracy of the operation.
Quick customization: modular design, able to quickly respond to customer needs
|
1.1
|
Brand
|
|
Zowell
|
|
1.2
|
Product Model
|
|
M25APE01A
|
|
1.3
|
Power Supply
|
|
Electric
|
|
1.4
|
Operation Type
|
|
Walkie
|
|
1.5
|
Load Capacity
|
Q (t)
|
2.5
|
|
1.6
|
Load Center
|
c (mm)
|
600
|
|
1.9
|
Wheelbase
|
y (mm)
|
1280
|
|
2.1
|
Truck weight(with battery)
|
kg
|
850
|
|
3.1
|
Tyre
|
|
PU
|
|
3.2
|
Driving wheel
|
Ø x w(mm)
|
Ø 230 x 70
|
|
3.3
|
Loading Wheel
|
Ø x w(mm)
|
Ø80 x70
|
|
3.4
|
Support Wheel
|
Ø x w(mm)
|
Ø 125 x 60
|
|
3.5
|
Qty of wheel（x=driving wheel），front/rear)
|
|
1x + 2/4
|
|
4.2
|
Overall Height
|
h1 (mm)
|
1465
|
|
4.3
|
Free Lifting height
|
h2 (mm)
|
114
|
|
4.15
|
Fork height lowered
|
h13 (mm)
|
86
|
|
4.19
|
Overall length (± 5 mm)
|
l1 (mm)
|
1778
|
|
4.20
|
Length to face of forks
|
l2 (mm)
|
628
|
|
4.21
|
Overall width (without touch edge) (± 5 mm)
|
b1/b2 (mm)
|
860
|
|
4.22
|
Fork Dimension
|
s / e / l (mm)
|
62/172/1150
|
|
4.25
|
Fork width
|
b5 (mm)
|
680
|
|
4.32
|
Ground clearance (wheelbase center) (min)
|
m2 (mm)
|
10
|
|
4.35
|
Turning Radius (min)
|
Wa (mm)
|
1582
|
