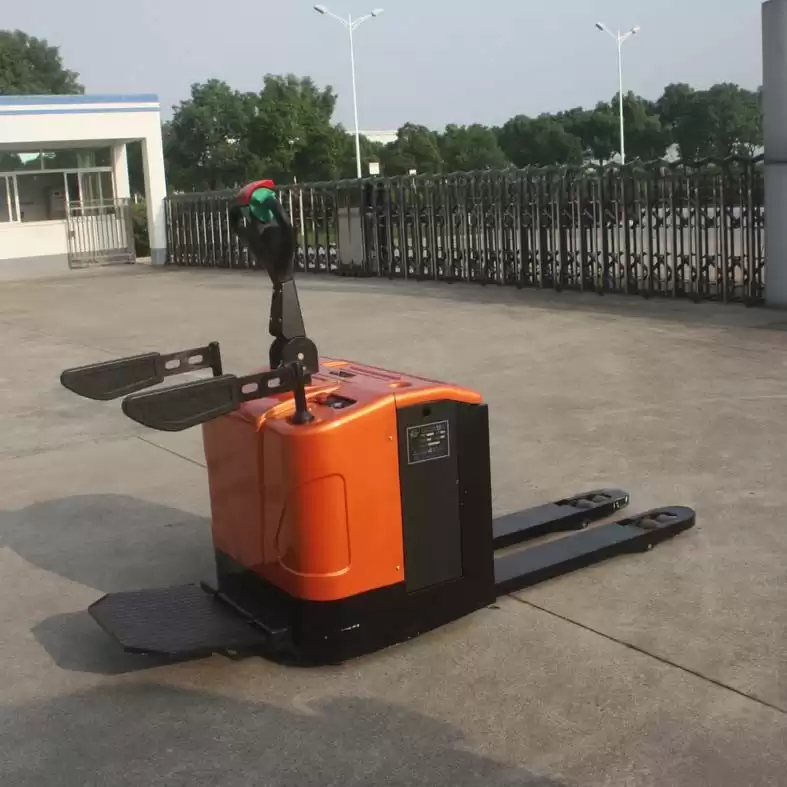

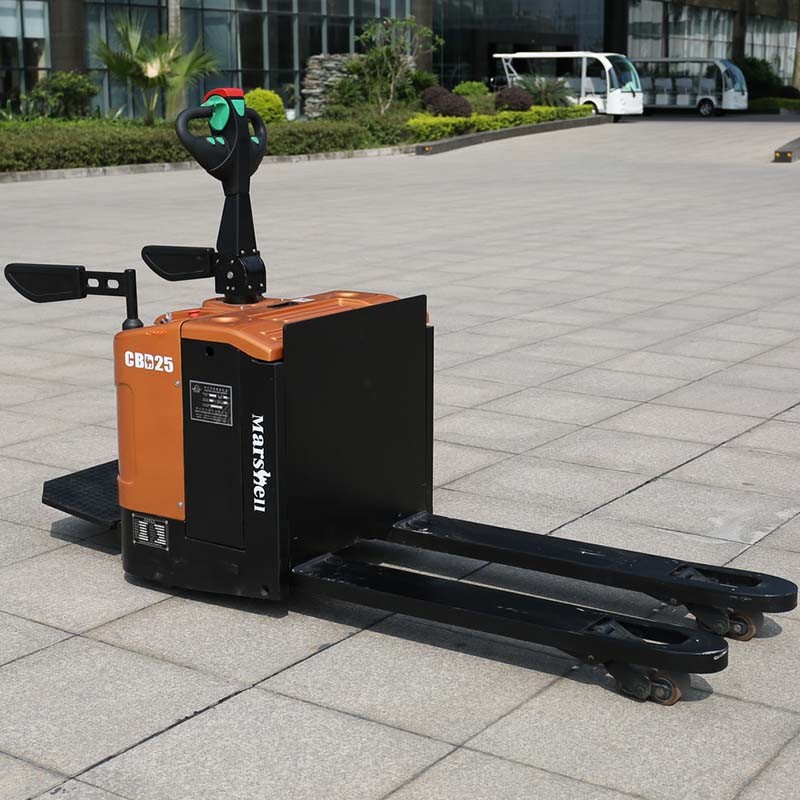

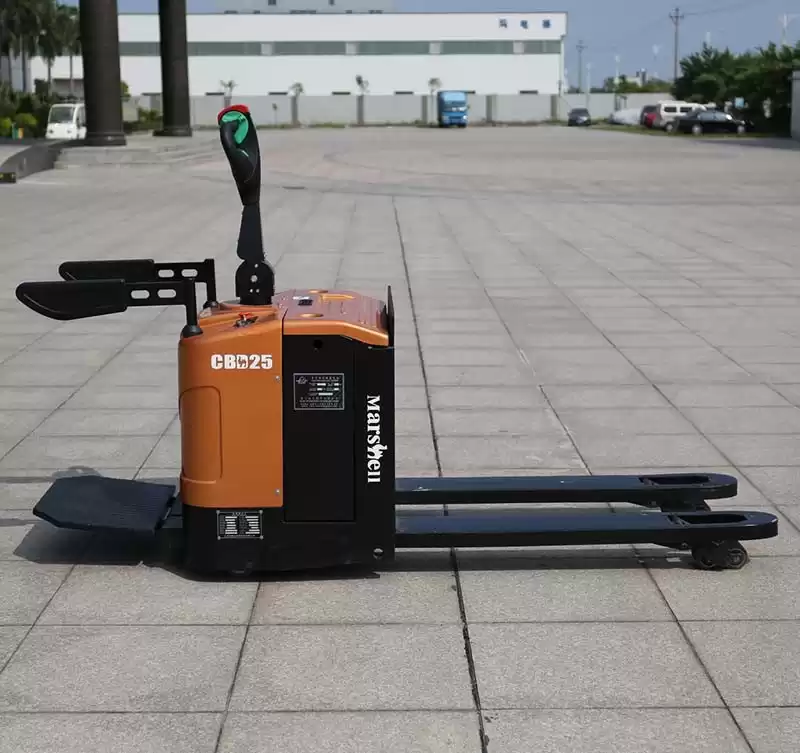

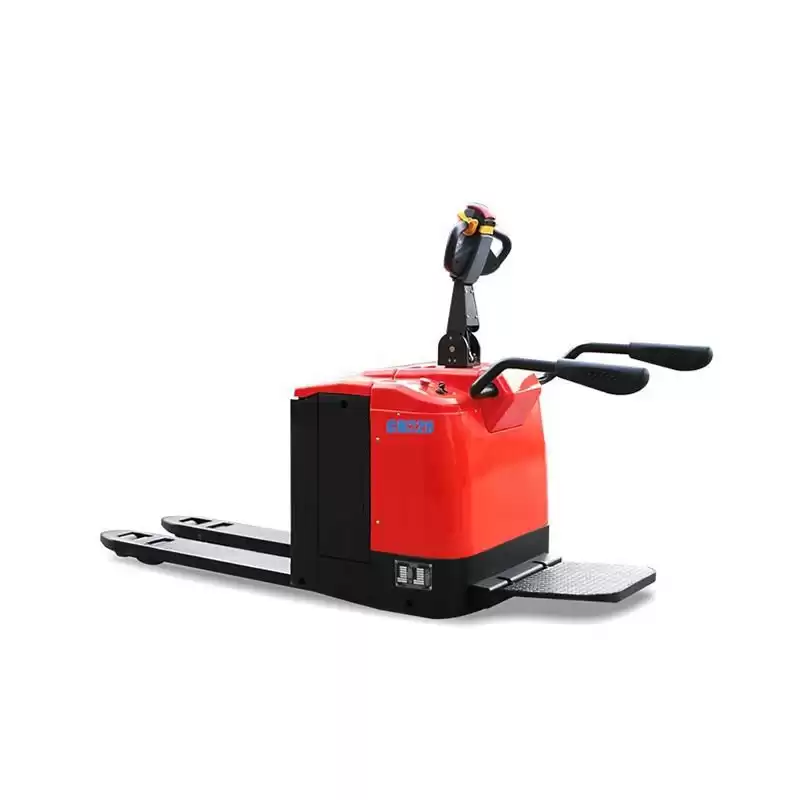

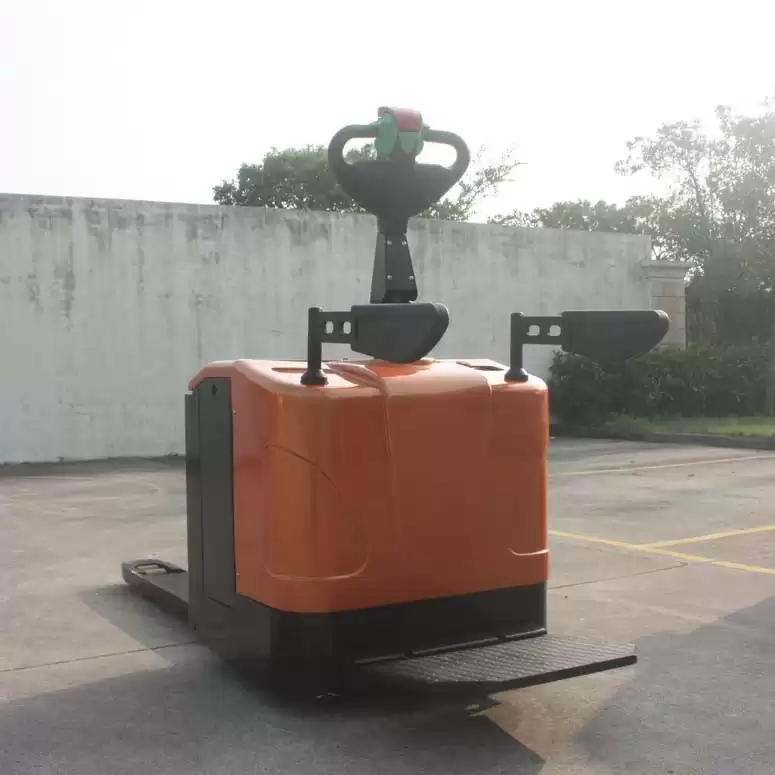

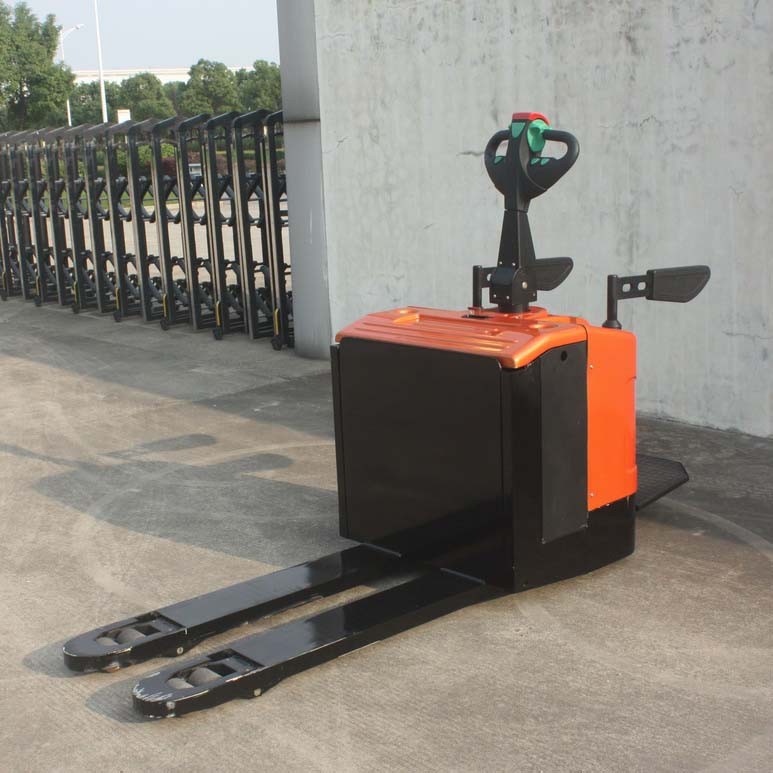

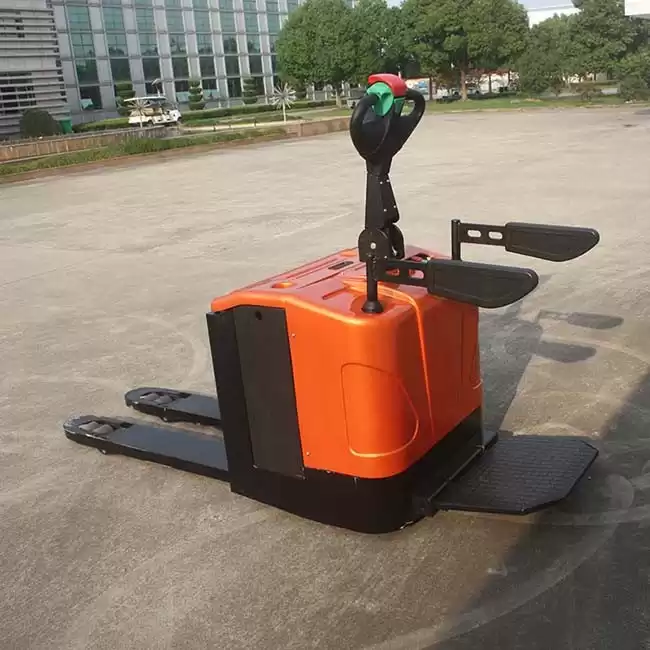

2.5 ton ~ 3.0 ton Series Electric Pallet Truck CBD25

Maintenance-free AC drive system



High quality controller,



Electromagnetic brake,



Concealed damper pedal design, high comfort when driving



Maintenance-free AC drive system

Facebook Twitter Pinterest LinkedIn 分享
Identification 1.1 Manufacture's type designation HOPPER
1.2 Model 　 　 CBD25
1.3 Power Type 　 　 Electric
1.4 Type of operation 　 　 Stand-on
1.5 Steering Mode 　 　 Electric Power Steering
1.6 Load capacity/rated load Q kg 2500
1.7 Load center dista nce C mm 600
1.8 Wheel base y mm 1480
Weight 2.1 Total Weight(with battery) 　 kg 790
2.2 Axle Load(laden):Drive side/Load-bearing side 　 kg 1120/2170
2.3 Axle Load(unladen):Drive side/Load-bearing side 　 kg 660  1
Dimension 3.1 Overal Length(Pedal retracted/expanded) L1/L2 mm 1885/2300
3.2 Overall Width W1 mm 790
3.3 Fork Dimension l/e/s mm 1220×185×50
3.4 Width of Fork b2 mm 550/685
3.5 Min.Fork Height h3 mm 85
3.6 Lift Height h2 mm 205
3.7 Ground Clearance at center of wheelbase m1 mm 45
3.8 Height of Operating Handlebar(Min./Max) h14 mm 0/  14
3.9 Turning Radius(Pedal retracted/expanded) Wa mm 1665/2150
3.1 Aise: width for lengthwayspallet size 1000* 100)(Pedalretracted/expanded Ast mm 41      9
3.11 Aisle width for lengthways(alle size800* 1200)(Pedal retracted/expanded) Ast mm 2320/2800
Tyre 4.1 Tyre Type 　 　 Polyurethane
4.2 Tyre Size(Front) 　 mm φ80x80
4.3 Tyre Size(Auxiliary wheel) 　 mm 115x55
4.4 Tyre Size(DrivingWheel) 　 mm φ230x75
4.5 Wheels Quantity, front/rear (x=driving wheels) 　 　 4/1x+2
Performance 5.1 Drive Damping Method 　 　 Guide column spring damping
5.2 Traveling Speed(laden/unladen) 　 Km/h 6  6
5.3 Lifting Speed(laden/unladen) 　 　 20/25
5.4 Lowering Speed(laden/unladen) 　 mm/s 30  26
5.5 Max. Gradient performance(laden/unladen) 　 % 5月8日
5.6 Service Brake Type 　 　 Electromagnetic/regeneration
5.7 Parking Brake Type 　 　 Electromagnetic
PowerUnit 6.1 Drive Motor rating(AC) S2-60min 　 kW 15
6.2 Lift Motor rating(DC) S3-15% 　 kW 2.2
6.3 Battery Voltage/ Capacity K5 　 V/Ah 24/210
6.4 Battery Weight 　 kg 188
Others 7.1 Controller Brand 　 　 CURTIS
7.2 Controller Model 　 　 1232E
7.3 Sound level at driver's ear according to EN 12053 　 dB 70
