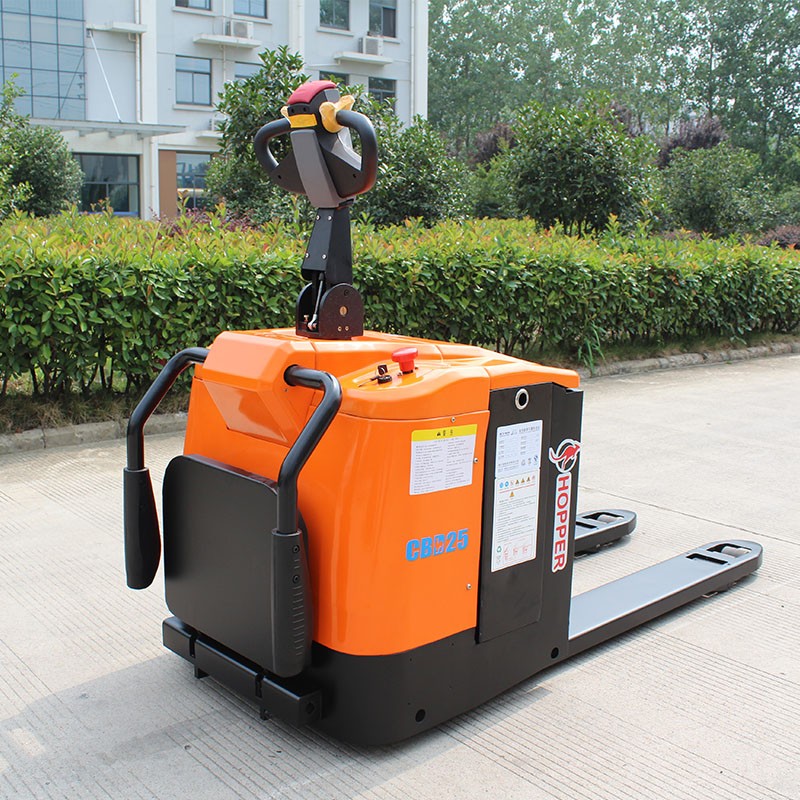

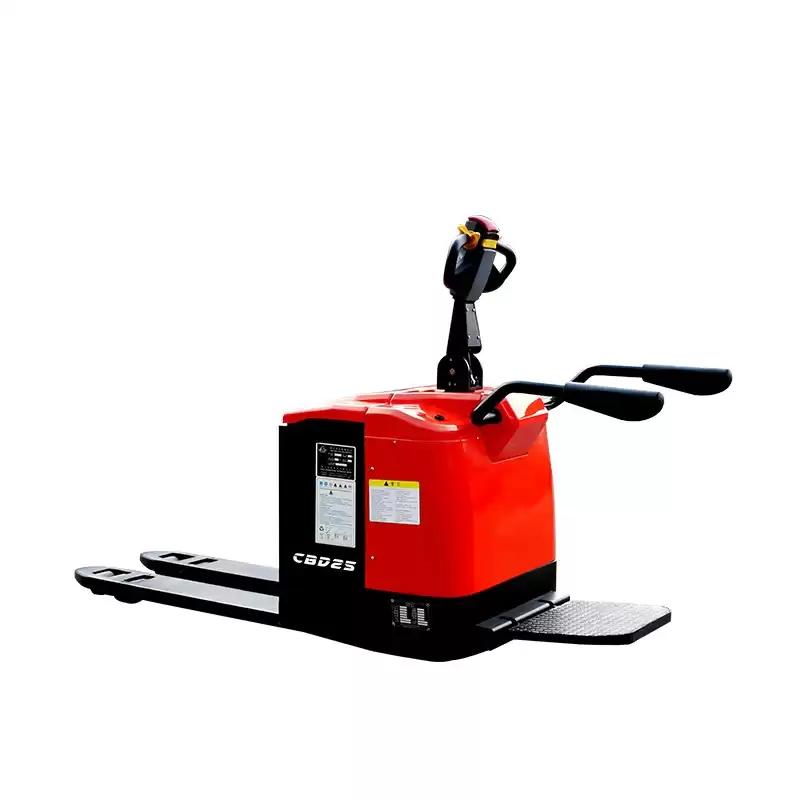

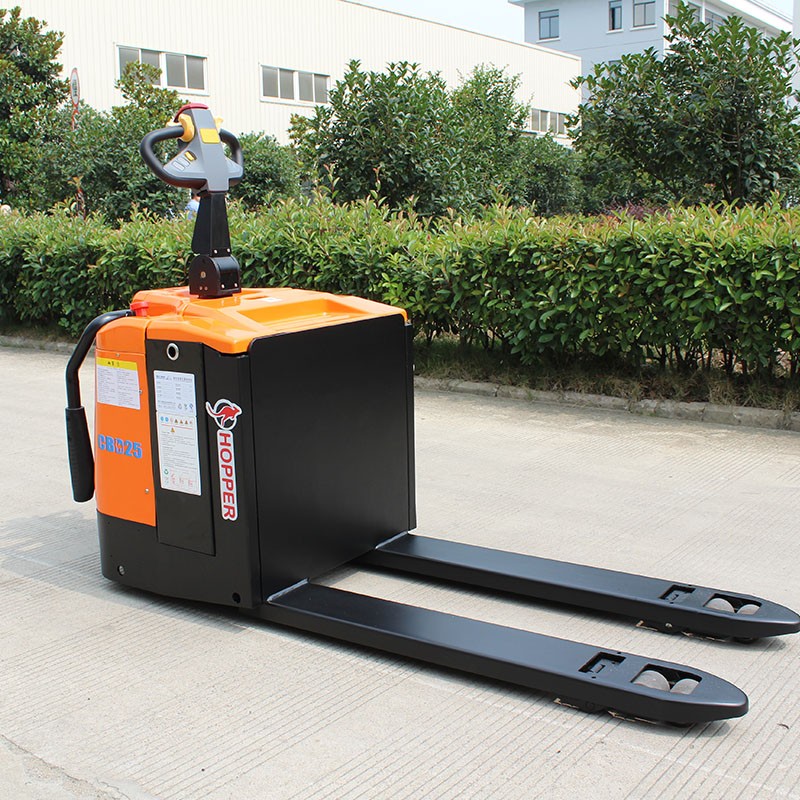

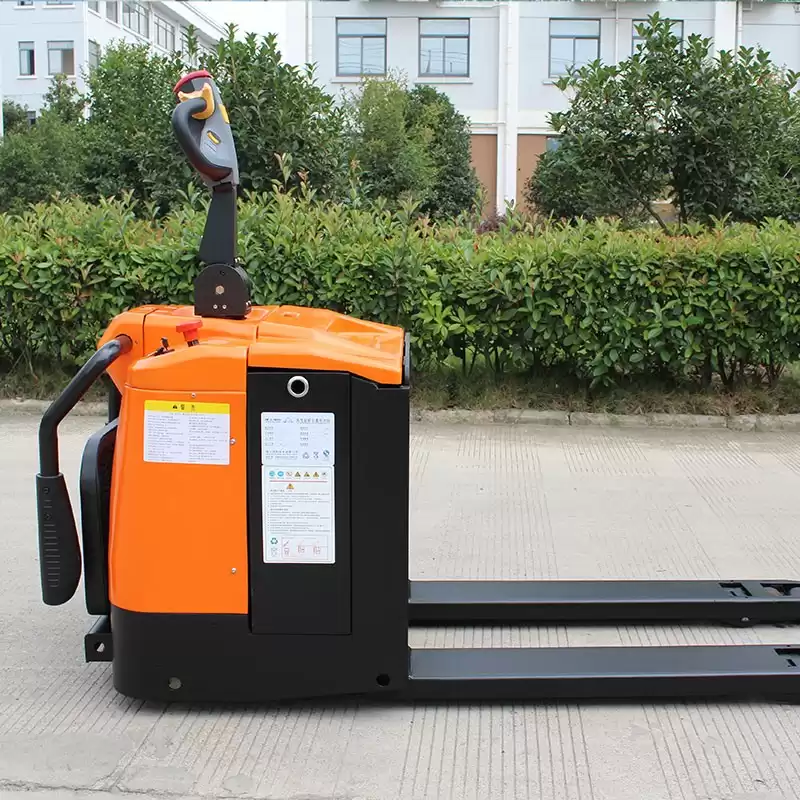

2.5 ton ~ 3.0 ton Series Pallet Truck CBD30M

Maintenance-free AC drive system, more rapid and accurate response,



Curtis controller, stable and safer performance,



AMP waterproof plug-in, greatly reducing the electrical failure rate;



The double auxiliary wheels are arranged on both sides of the driving wheels,

and turning automatically decelerates, more safe and stable driving;



Electromagnetic brake, automatic brake when power off, to ensure that it will not slip when parked;





CBD20M/25M/30M Electric Pallet Truck
Identification 1.1 Manufacture'stypedesignation                                         HOPPER
1.2 Model     CBD20M CBD25M CBD30M
1.3 Power Type                               Electric
1.4 Type of operation                               Stand-on
1.5 Steering Mode                      Electric Power Steering
1.6 Load capacity/rated load Q kg 2000 2500 3000
1.7 L oad center distance C mm 600 600 600
1.8 Wheelbase y mm 1410 1410 1410
Weight 2.1 Total Weight(with battery)   kg 650 650 670
2.2 Axle Load(laden):Drive side/Load-bearing side   kg 900/1750 1070/2080 1245/2425
2.3 Axle Load(unladen):Drive side/Load-bearing side   kg 545/105 545/105 560/110
Dimension 3.1 Overall ength( Pedal retra cte d/exp anded) L1 mm 1800/2265 1800/2265 1800/2265
3.2 Overall Width W1 mm 810 810 810
3.3 Fork Dimension h1 mm 1150×170×55 1150×170×55 1150×170×55
3.4 Width of Fork h2 mm 535/685 535/685 535/685
3.5 Min. Fork Height h4 mm 85 85 85
3.6 Lift Height l/e/s mm 205 205 205
3.7 Ground Clearance at center ofwheelbase b2 mm 55 55 55
3.8 Height of Operating Hand lebar(M in./M ax) h3 mm 1000/1380 1000/1380 1000/1380
3.9 Turning Radius(Pedal retracted/expanded) m1 mm 1660/2100 1660/2100 1660/2100
3.1 Aslewicth for eagflaltsitse 10100peal reatedepanded h14 mm 2400/2840 2400/2840 2400/2840
3.11 Aisle width foenghtayspalle size 800 100)Peal rated/epanded Wa mm 2315/2755 2315/2755 2315/2755
Tyre 4.1 Tyre Type     Polyurethane Polyurethane Polyurethane
4.2 Tyre Size(Front)   mm φ85x70 φ85x70 φ85x70
4.3 Tyre Size(Auxiliary wheel)   mm φ115x55 φ115x55 φ115x55
4.4 Tyre Size(Driving Wheel)   mm φ230x75 φ230x75 φ230x75
4.5 Wheels Quantity, front/rear (x=d riving wheels)     4/1x+2 4/1x+2 4/1x+2
Performance 5.1 Drive Damping Method     Drive frame integral guide rail spring damping
5.2 Traveling Speed(laden/unladen)   Km/h 7.5/8 6.0/7 5.0/7
5.3 Lifting Speed(laden/unladen)   mm/s 22/35 22/30 22/30
5.4 Lowering Speed(laden/unladen)   mm/s 30/26 30/26 30/26
5.5 Max. Gradie nt perfo rman ce(la den/ unladen)   % 44788 44788 44727
5.6 Service Brake Type   Electromagnetic/regeneration
5.7 Parking Brake Type   Electromagnetic
PowerUnit 6.1 Drive Motor ra tin g(AC) S2 -60min   kW 1.5 1.5 1.5
6.2 Lift Motor rating(DC) S3-15%   kW 0.8 0.8 2.2
6.3 Battery Voltage/Capacity K5   V/Ah 24/210 24/210 24/240
6.4 Battery Weight   kg 188 188 210
Others 7.1 Controller Brand     CURTIS CURTIS CURTIS
7.2 Controller Model     1232E 1232E 1232E
7.3 Sound levelat driver's ear according toEN 12053   dB 70 70 70
