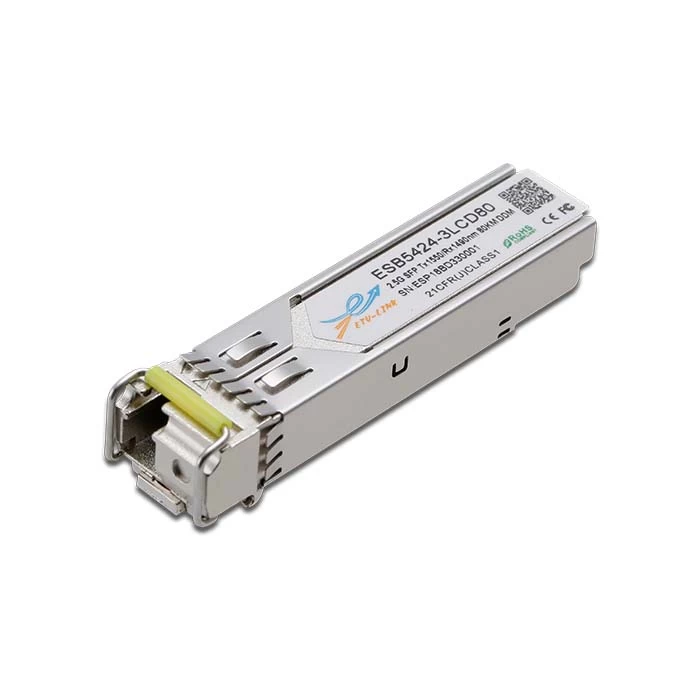

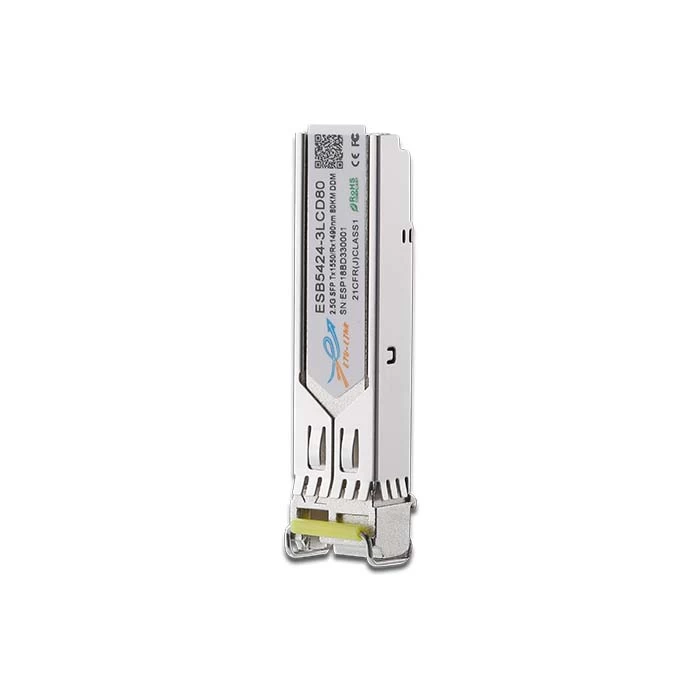

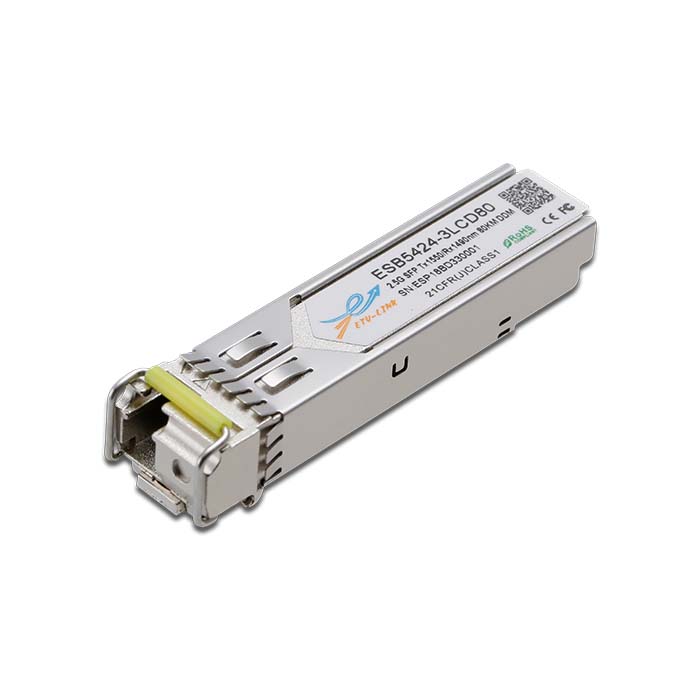

ESB5424-3LCD80
2.488Gbps SFP Bi-Directional Transceiver, 80KM Reach
Tx1550nm/Rx1490nm
Features
Ø Dual data-rate of 2.488Gbps/2.125Gbps operation
Ø 1550nm DFB laser and APD photodetector for 80KM transmission
Ø Compliant with SFP MSA and SFF-8472 with simplex LC or SC receptacle
Ø Digital Diagnostic Monitoring:
Internal Calibration or External Calibration
Ø Compatible with SONET OC-48 system
Ø Compatible with RoHS
Ø +3.3V single power supply
Ø Operating case temperature range of
0°C to +70°C (Commercial)
-40°C to +85°C (Industrial)
Applications
Ø SDH STM-16 and SONET OC-48 system
Ø Fiber Channel
Ø Switch to Switch interface
Ø Switched backplane applications
Ø Router/Server interface
Ø Other optical transmission systems
Description
The SFP-BIDI transceivers are high performance, cost
effective modules supporting dual data-rate of
2.488Gbps/2.125Gbps and 80KM transmission distance with SMF.
The transceiver consists of three sections: a DFB laser
transmitter, a APD photodiode integrated with a trans-impedance preamplifier
(TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source
Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
