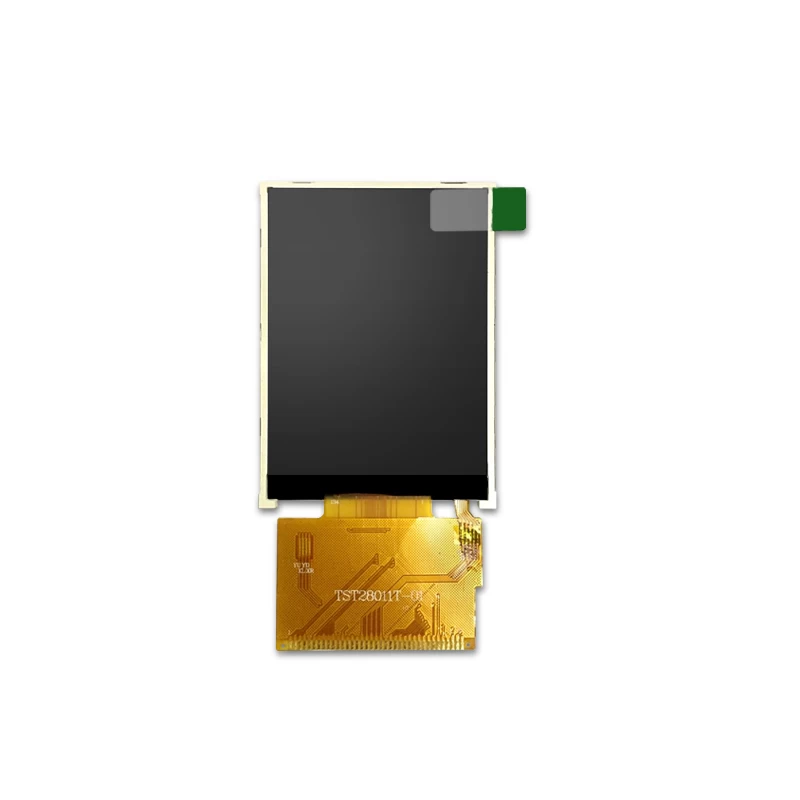

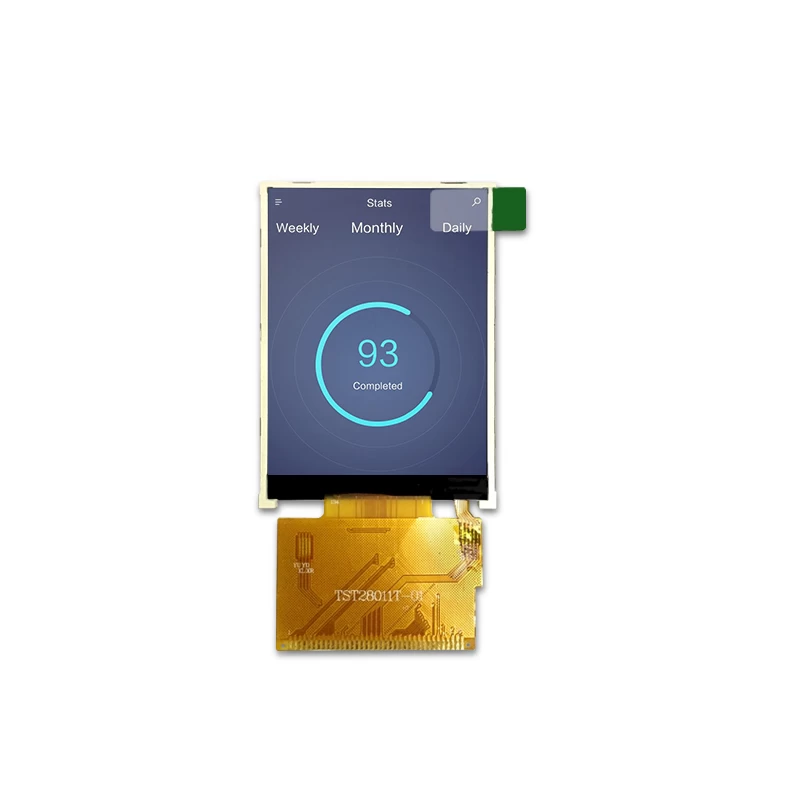

2.8" 240x320 resolution TFT LCD module with ST7789V controller
Specification
|
Specification
|
|
Display type
|
262k color TFT,Transmissive
|
|
Description
|
QVGA 240x320 2.8 tft lcd
|
|
Display Colors
|
16.7M Dithering
|
|
Outline Dimension(mm)
|
50.00x69.20x2.25mm
|
|
A.A.(mm)
|
43.20x57.60mm
|
|
Driver IC
|
ST7789V
|
|
Resolution(dots)_
|
240*RGB*320
|
|
Viewing Direction
|
12H
|
|
Operating temperature(°C)
|
-20-70
|
|
Storage temperature(°C)
|
-30-80
|
|
Number of Pixel(pixels)
|
240(H)x 3RGB x 320(V)
|
|
Dots Pitch
|
0.18x0.18
|
|
Color Configuration
|
RGB stripe
|
|
Backlight
|
4 LEDs, White
|
|
Weight(g)
|
TBD
|
|
Interface
|
8080 system 8/16 bits parallel interface
|
|
Module lifetime(Hours)
|
50,000-100,000
|
