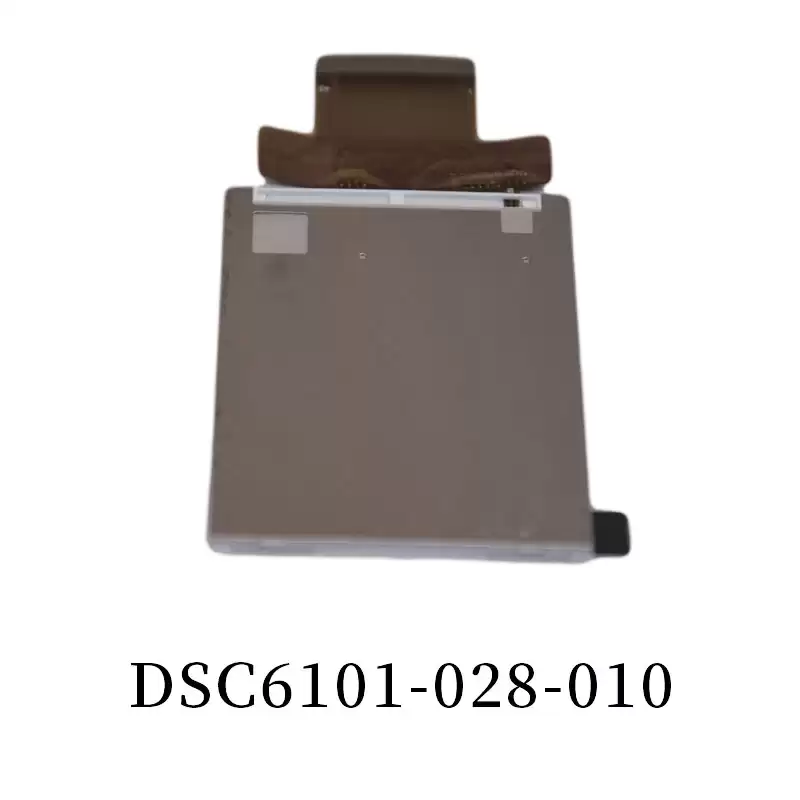

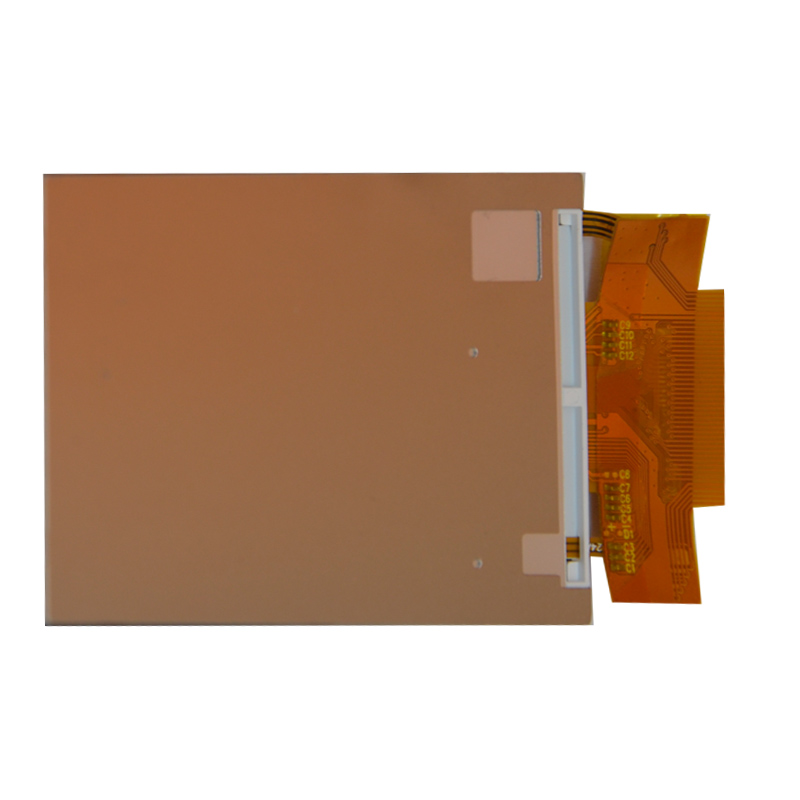

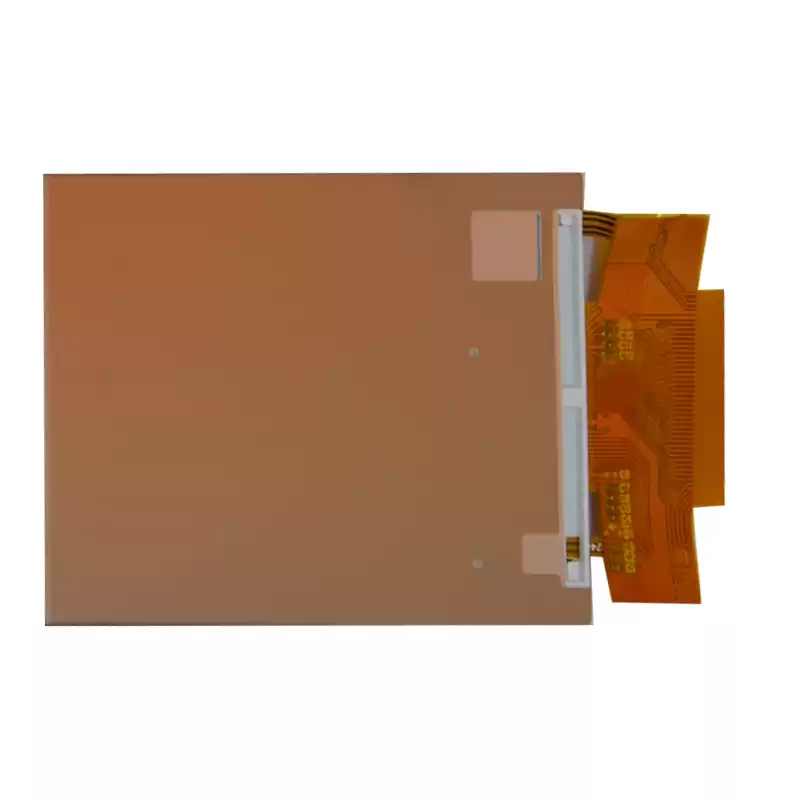

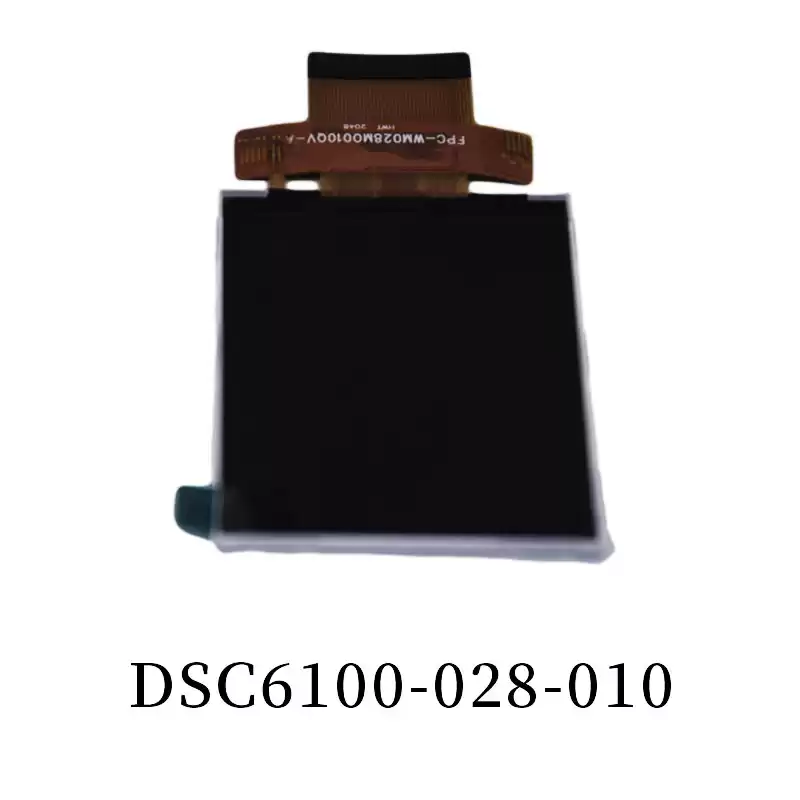

2.8 Inch IPS 240(RGB)*320 LCD module 1000 nits brightness

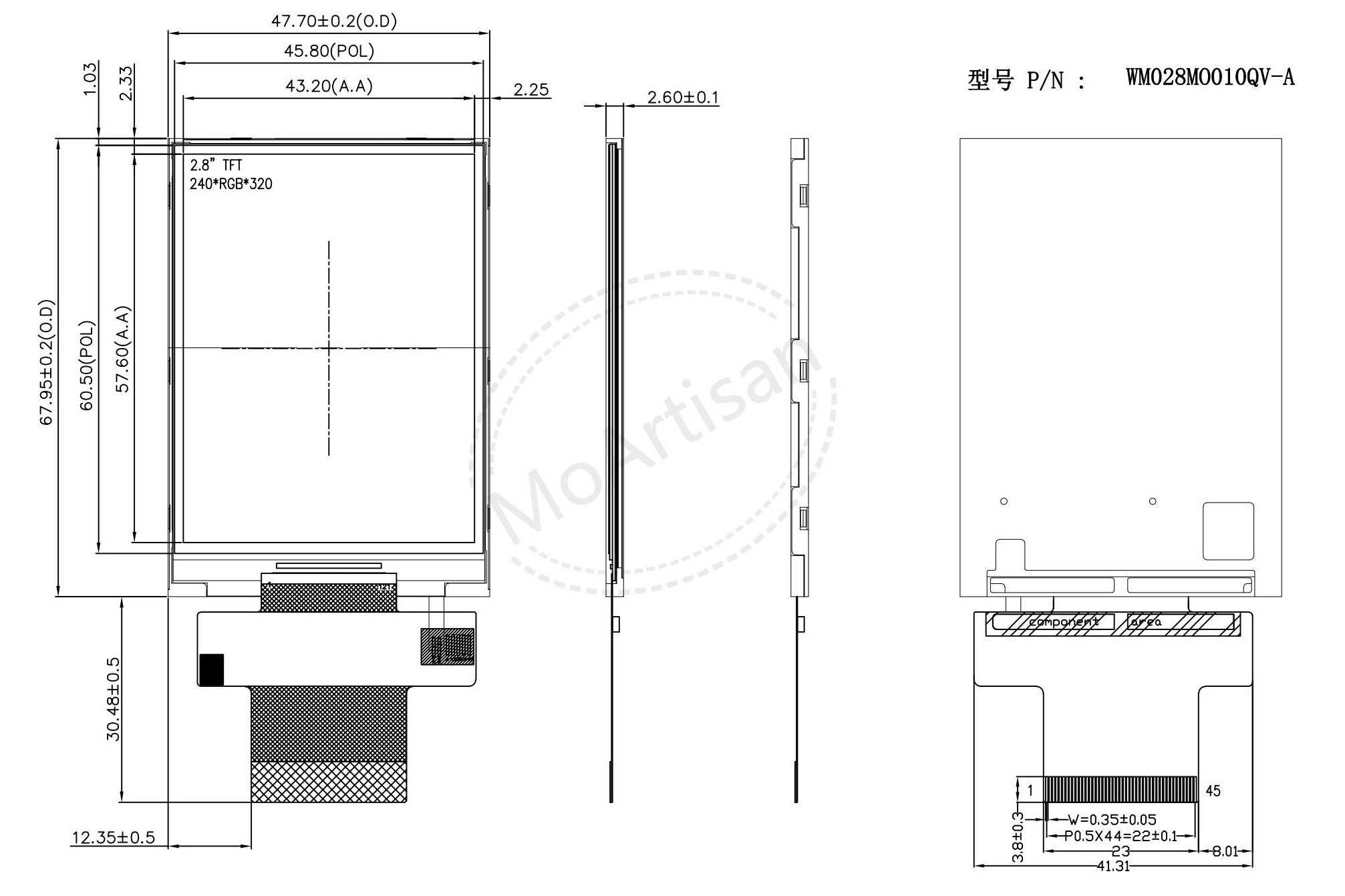

Production drawings
WM028MO010WQ-A Introduction
-
2.8 inch diagonally measured active display area.
-
QVGA (240 horizontal by 320 vertical pixel) resolution.
-
full view angle ips lcd module.
-
lcm surface high brightness with 1000 nits.
-
45 PIN FPC, 18-bit RGB and CPU interface.
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module;
MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…; 001---Serial
Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T
(Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
2.8
|
QVGA, 240*RGB*320, IPS, portrait view LCD screen
|
47.7*67.95*2.6
|
2*3 LED (50K)
|
45 PIN FPC, 18-Bit, RGB/CPU
|
1000 nits/800
|
Topa: -20~+70 Tstg:
-30~+80
|
80/80/80/80
|
WM028MO010QV-A
|
Production Applications
Personal Navigation Device, Multimedia applications and Others AV system
Production Customized
This kind of production can be customized.
Lead time for samples: 3~4 weeks.
FAQ:
How do TN LCD display?
ANSWER:
The liquid crystal molecules of the TN screen are arranged regularly in the glass gap. Through orietation control technology, the liquid crystal molecules rotate exactly 90 degrees. Importantly, these liquid crystal molecules can drive that polarized light follow-rotation.
When a voltage is applied to the corresponding pixels on two layers of glass, the liquid crystal molecules between the pixels will stand up, then the light can not pass through.So the pixels turn black.
