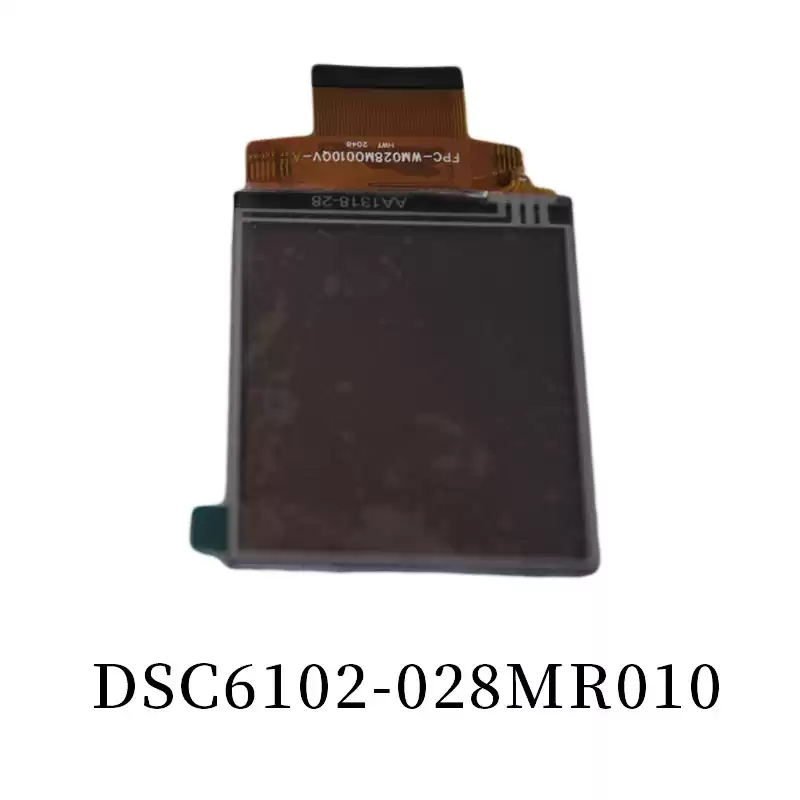

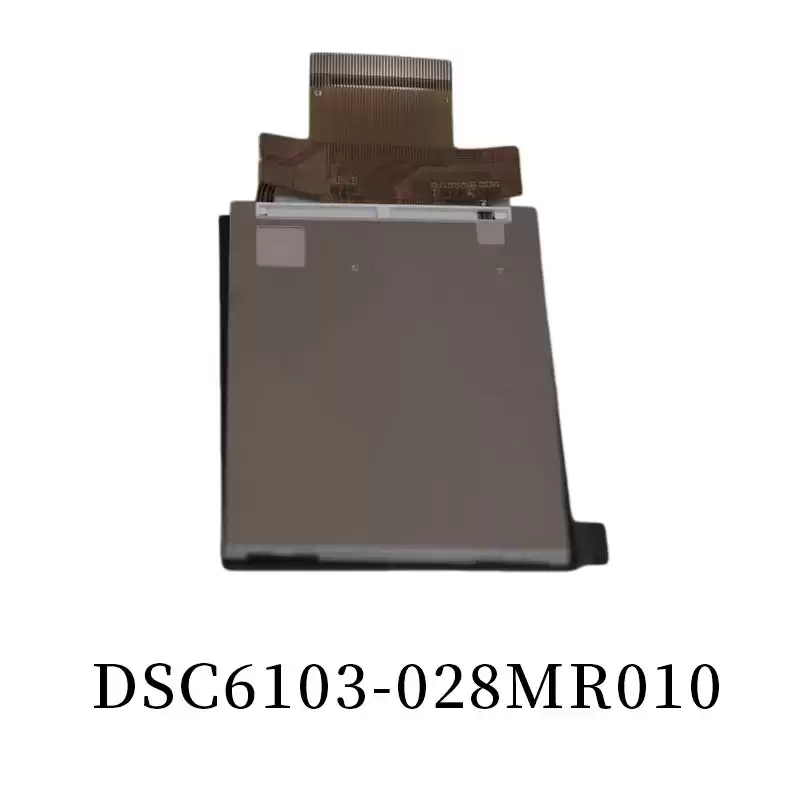

2.8 Inch ips 240(RGB)*320 lcd module with a RTP

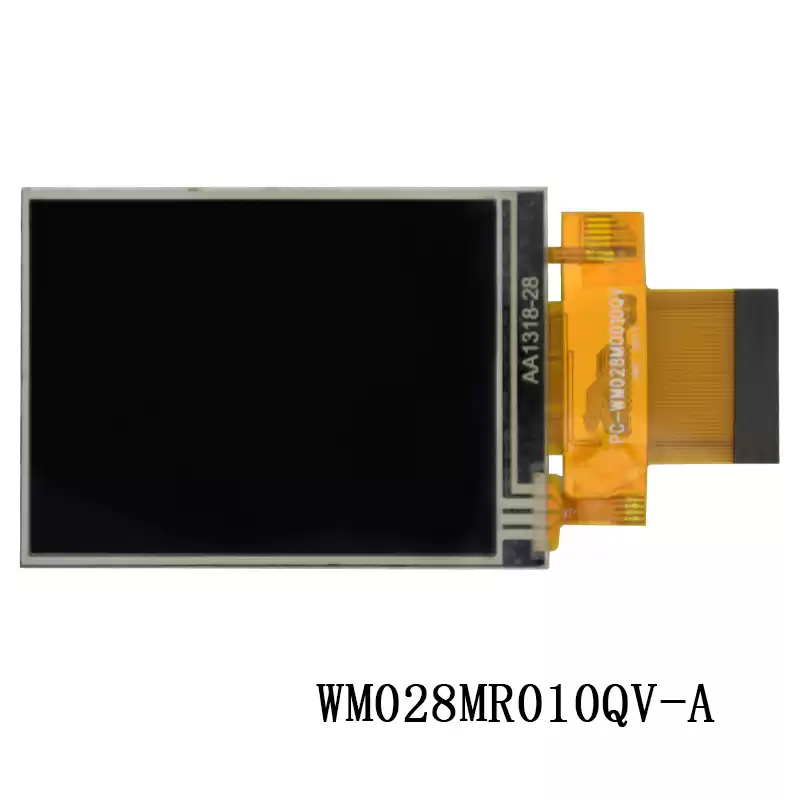

WM028MR010QV-A is a 2.8 Inch IPS QVGA LCD module with a RTP and 800 nits brightness .



2.8 Inch ips 240(RGB)*320  lcd module with a RTP

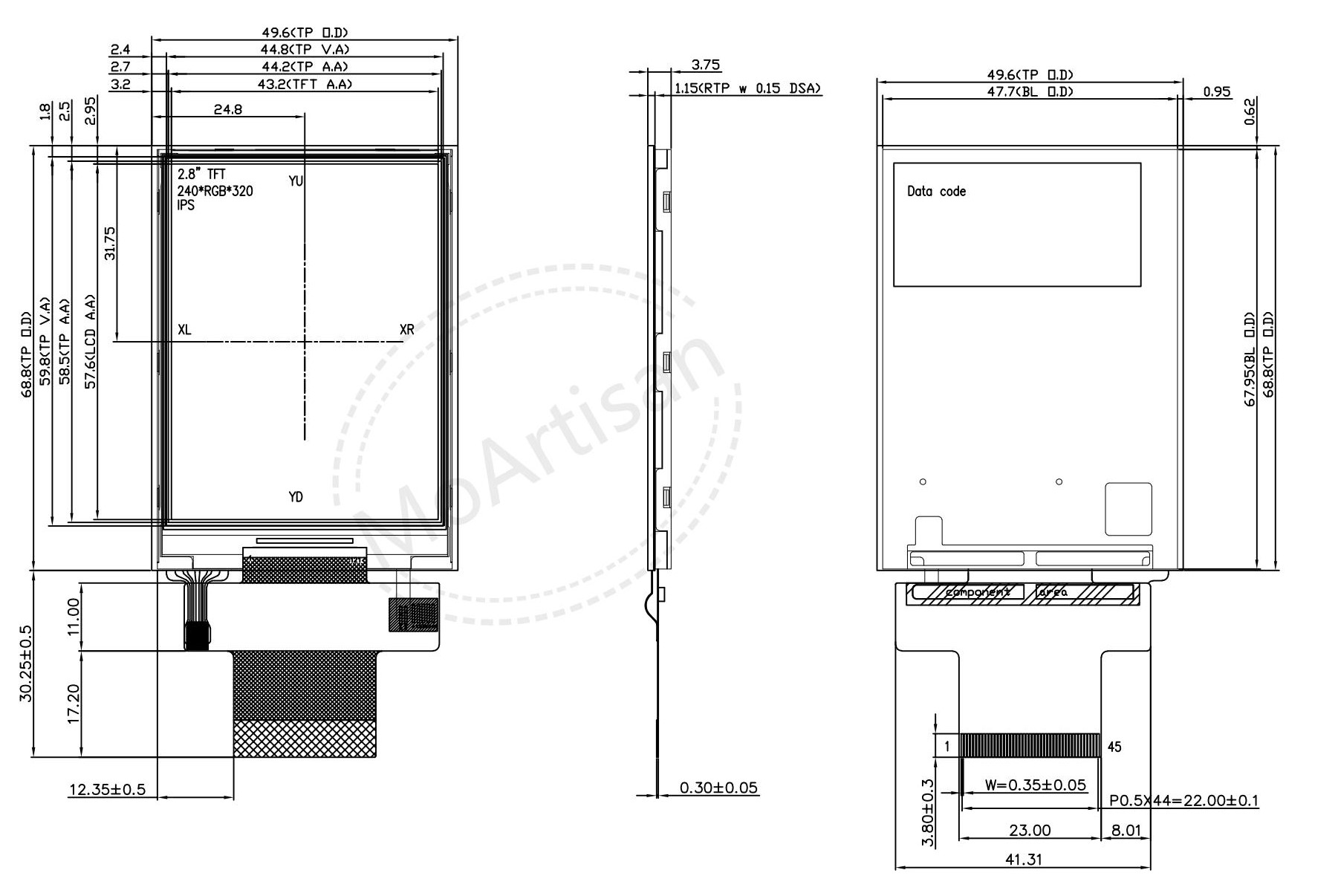

Production drawings

2.8 Inch ips 240(RGB)*320 lcd module with a RTP DRAWINGS

WM028MR010QV-A Introduction


  • 2.8 inch diagonally measured active display area.
  • QVGA (240 horizontal by 320 vertical pixel) resolution.
  • lcm laminated a RTP module with frame double-sided adhere.
  • lcd module surface brightness with 800 nits.
  • 45 PIN FPC, 18-bit RGB and CPU interface.




About Part Number WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module; MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…; 001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions


 Size

Description

LCM Outline

mm

LED L/T

(Hrs)

Interface

Brightness/CR

Temperature Range (°C)

Viewing Angle U/D/L/R

LCM P/N

2.8

QVGA, 240*RGB*320, IPS, portrait LCD screen, RTP

42.72*62.26*3.8

2*3 LED (50K)

45 PIN FPC,18 Bit, RGB/CPU

800 nits/800

Topa:   -20~+70

Tstg:   -30~+80

80/80/80/80

WM028MR010QV-A


Production Applications

Personal Navigation Device, Multimedia applications and Others AV system.

Production Customized

This kind of production can be customized.

lead time for samples: 3~4 weeks.


FAQ:

What type of RTP is this?What are the advantages?

ANSWER:

This is a four-wire RTP.

For conventional use, RTP is very practical, very sensitive to the touch, and inexpensive.
