2.8 inch TFT touch screen display with MCU/RGB interface ILI9341 IC 50 PIN

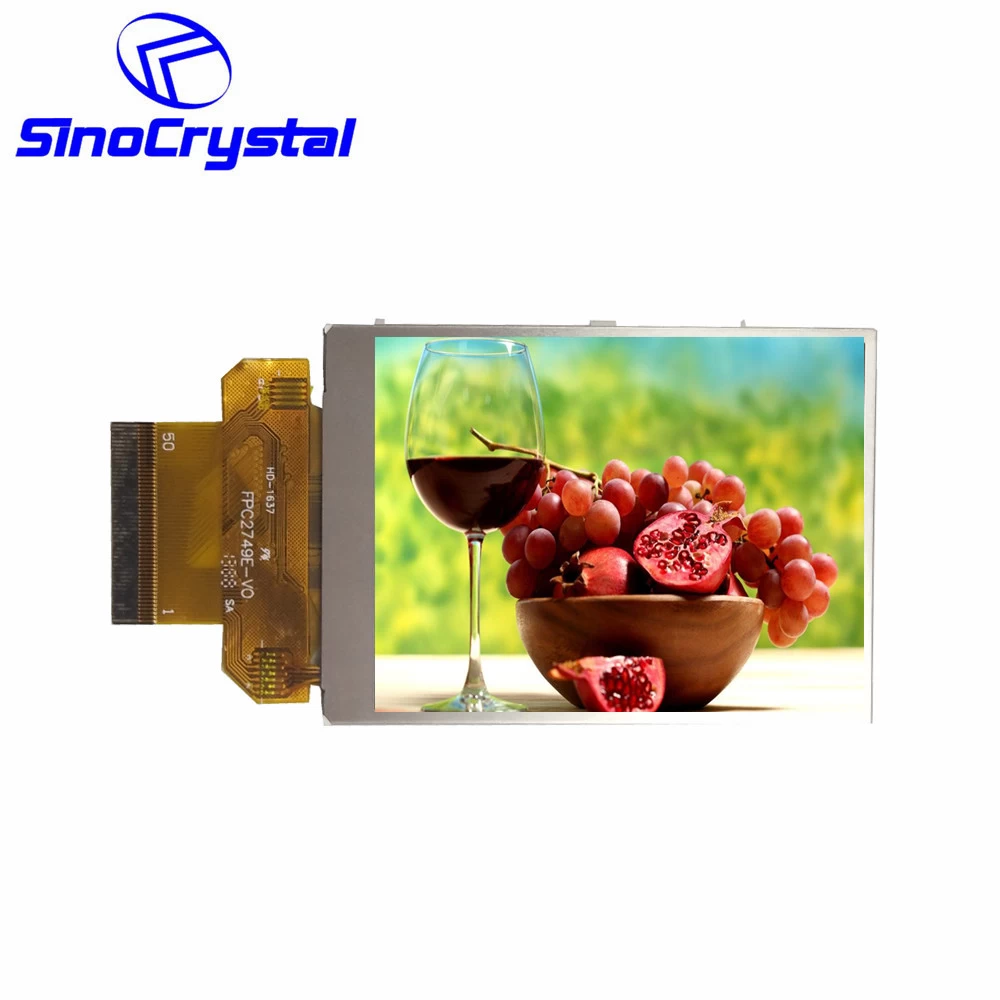

SCT028008-V02 is a 2.8 inch TFT LCD Display with 240RGB*320 resolution, it built in with ILI9341 IC, and it supports MCU/RGB interface, 50 PIN, 6 o'clock view direction

  • IC Part No.ILI9341
  • InterfaceMCU/RGB
  • View Direction6
  • Active Area (mm)44.60*59.00
  • Viewing Area (mm)45.00*59.40
  • Outline Dimension (mm)50.00*69.20*3.80
  • Resolution240*320
  • Brightness (cd/m²)300
  • Touch ScreenRTP
  • Temperature (℃)-20°C~70°C
Facebook Twitter Pinterest LinkedIn 分享

Basic Information


Resolution:                    240RGB*320

Outline Dimension:       50.00*69.20*2.50

Active Area:                  36.72*48.96

View area:                     45.00*59.40

Interface:                      MCU/RGB

Driver IC:                       ILI9341

View Direction:              12 o'clock

PIN:                                50

Backlight:                      White LED

Touch Screen: Resistive Touch Screen

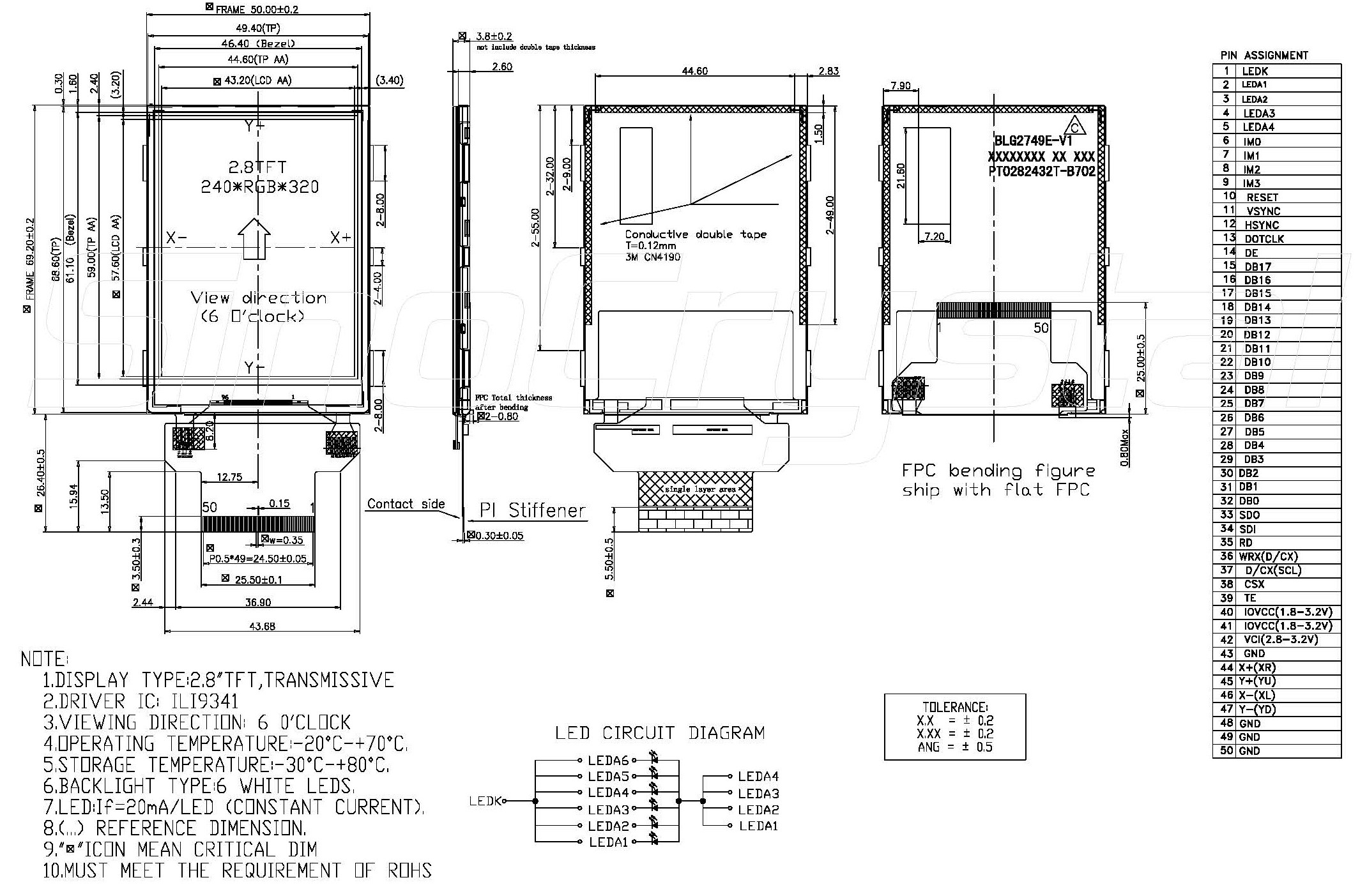

Drawing




General Specification


Item Nominal Dimension Unit
  Dot Matrix 240 x RGB x 320 Dots
  Module Size ( W×H×T ) 50.00 x 69.20 x 2.60 mm.
  Active Area ( W×H ) 43.20 x 57.60 mm.
  Pixel arrangement RGB Stripe mm.
  Dot Pitch ( W×H ) 0.18 x 0.18 mm.
  Color depth 262K(MAX) colors
  Interface MCU , RGB -
  Driving IC Package COG -
  Operating temperature -20 ~70 ºC
  Storage temperature -30~80 ºC
  LCD Type a-Si TFT -
  LCD Mode TN/Normal White -
  Backlight Type LED x 6 PCS



Interface Definition


Pin No Pin Symbol Level Description
1 LEDK - LED light, cathode.
2 LEDA1 - LED light, anode
3 LEDA2 - LED light, anode
4 LEDA3 - LED light, anode
5 LEDA4 - LED light, anode
6 IM0 H/L MCU Interface Mode Select
7 IM1 H/L
8 IM2 H/L
9 IM3 H/L
10 RESET H/L Reset signal
11 VSYNC H/L Vertical Synchronizing Signal in RGB Interface
12 HSYNC H/L Horizontal Synchronizing Signal in RGB Interface
13 DOTCLK H/L Dot Clock Signal in RGB Interface
14 DE H/L Data ENABLE Signal in RGB Interface
15-32 DB17-DB0 H/L Data bus
33 SDO H/L SPI data out
34 SDI H/L SPI data in
35 RD H/L Read Signal
36 WRX(D/CX) H/L Write Signal (selector of command or parameter in SPI mode)
37 D/CX(SCL) H/L selector of command or parameter (SPI clock in SPI mode)
38 CSX H/L Chip Select
39 TE H/L Tearing effect output
40-41 IOVCC 1.65-3.3V Power supply for logic
42 VCI 2.5-3.3V Power supply
43 GND 0V Ground
44 NC -
45 NC -
46 NC -
47 NC -
48-50 GND 0V Ground
