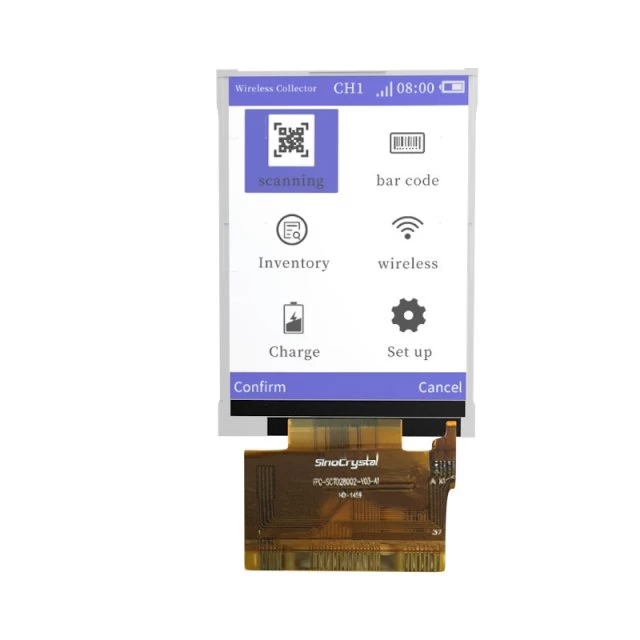

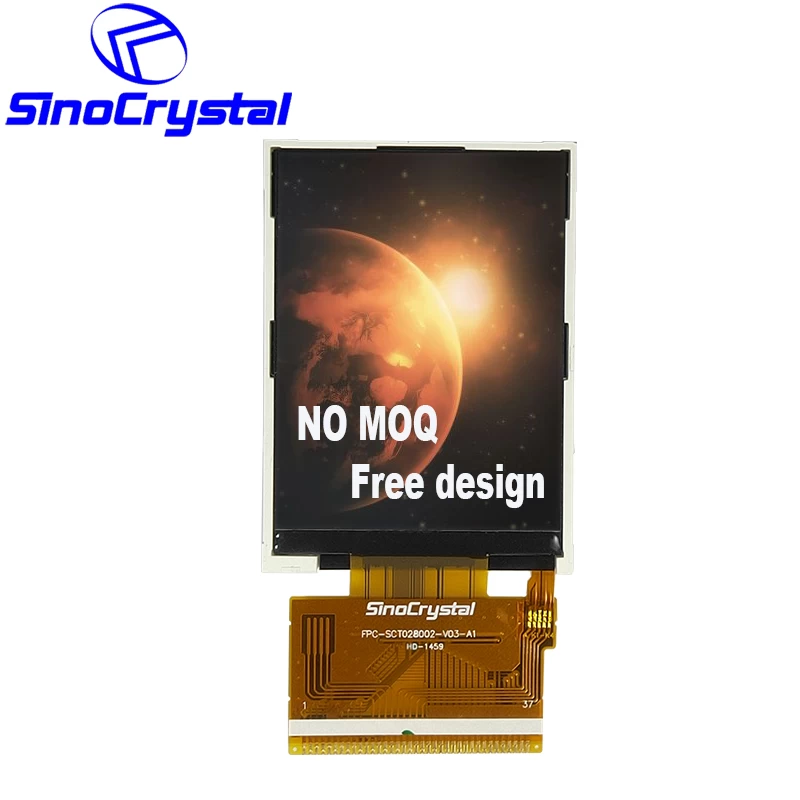

2.8 inch Touch screen display with 16bit MCU interface ST7789S IC

SCT028002-V03 is a 2.8 inch Resist TFT LCD Display with 240RGB*320 resolution, it built in with ST7789S IC, and it supports 8 bit MCU interface, 37 PIN, Full View direction.

  • IC Part No.ST7789S
  • Interface16bit MCU
  • View Direction12
  • Active Area (mm)46.20*64.75
  • Viewing Area (mm)43.80*58.20
  • Outline Dimension (mm)50.00*69.20*2.50
  • Resolution240*320
  • Brightness (cd/m²)300
  • Touch ScreenRTP
  • Temperature (℃)-20°C~70°C
Facebook Twitter Pinterest LinkedIn 分享

Basic Information


Resolution:                    240RGB*320

Outline Dimension:       50.00*69.20*2.50

Active Area:                  36.72*48.96

View area:                     46.20*64.75

Interface:                      16 bit MCU

Driver IC:                       ST7789V

View Direction:              12 o'clock

PIN:                                37

Backlight:                      White LED

Touch Screen:               Resistive Touch Screen

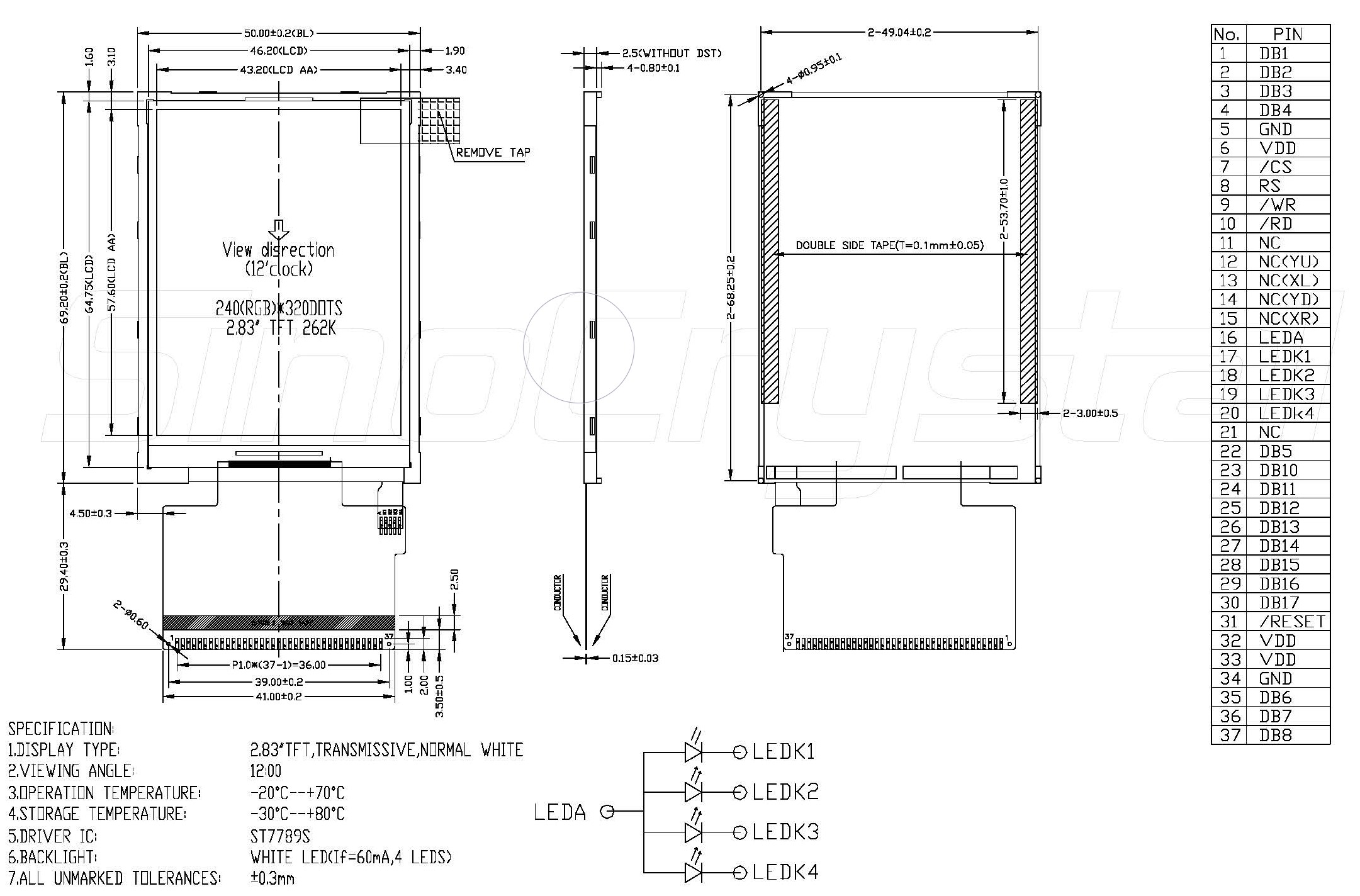

Drawing




General Specification


Item Nominal Dimension Unit
  Dot Matrix 240 x RGB x 320 Dots
  Module Size ( W×H×T ) 50.0 x 69.2 x 2.5 mm.
  Active Area ( W×H ) 43.20 x 57.60 mm.
  Pixel arrangement RGB Stripe mm.
  Dot Pitch ( W×H ) 0.18 x 0.18 mm.
  Color depth 262K(MAX) colors
  Interface 16 bit MCU -
  Driving IC Package COG -
  Operating temperature -20 ~70 ºC
  Storage temperature -30~80 ºC
  LCD Type a-Si TFT -
  LCD Mode TN/Normal White -
  Backlight Type LED x 4 PCS



Interface Definition


Pin No Pin Symbol Level Description
1--4 DB1-DB4 H/L Data bus
5 GND 0V Ground
6 VDD 2.4-3.3V Power supply
7 /CS H/L Chip Select signal
8 RS H/L Register select signal. 0:index register; 1: data register
9 /WR H/L Write signal
10 /RD H/L Read signal
11--15
 NC

16 LEDA
 - LED light, anode
17 LEDK1 - LED light, cathode.
18 LEDK2 - LED light, cathode.
19 LEDK3 - LED light, cathode.
20 LEDK4 - LED light, cathode.
21 NC

22 DB5 H/L Data bus
23-30 DB10-DB17 H/L Data bus
31 /RESET H/L Chip reset signal
32 VDD
 2.4-3.3V Power supply
33 VDD 2.4-3.3V Power supply
34 GND 0V Ground
35-37 DB6-DB8 H/L Data bus
