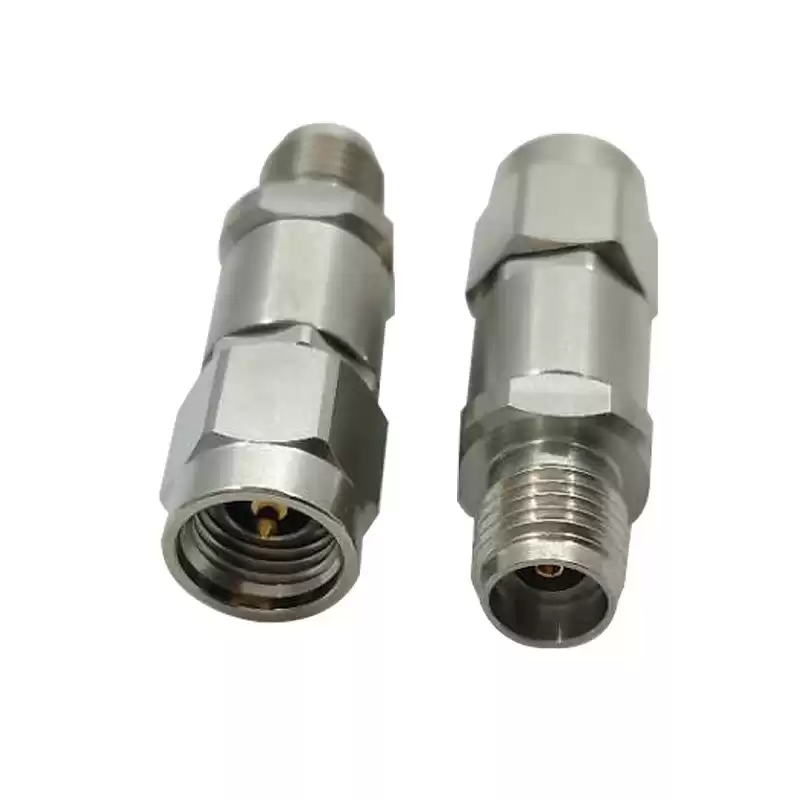

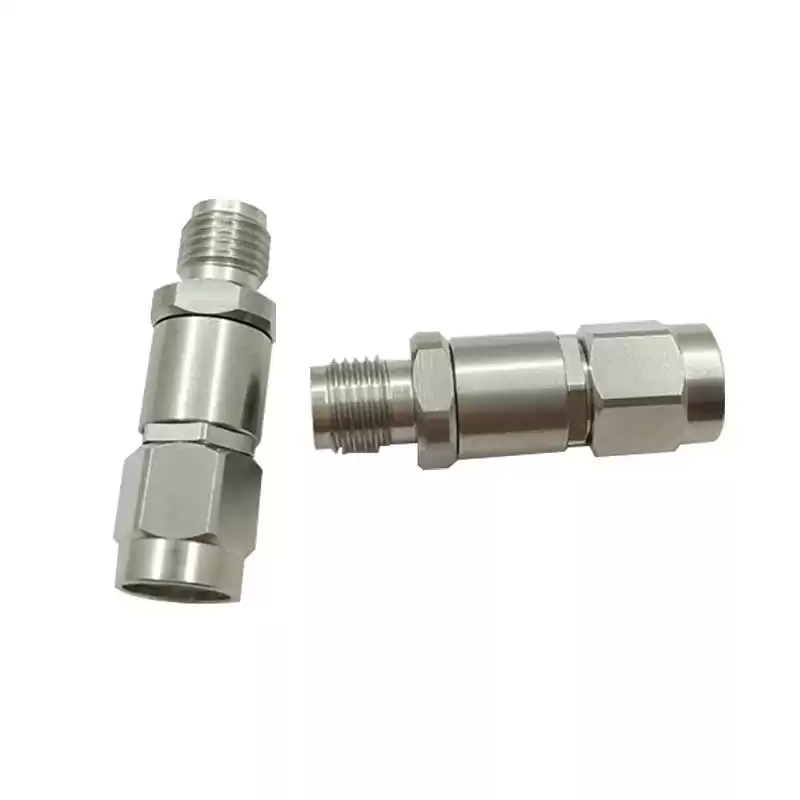

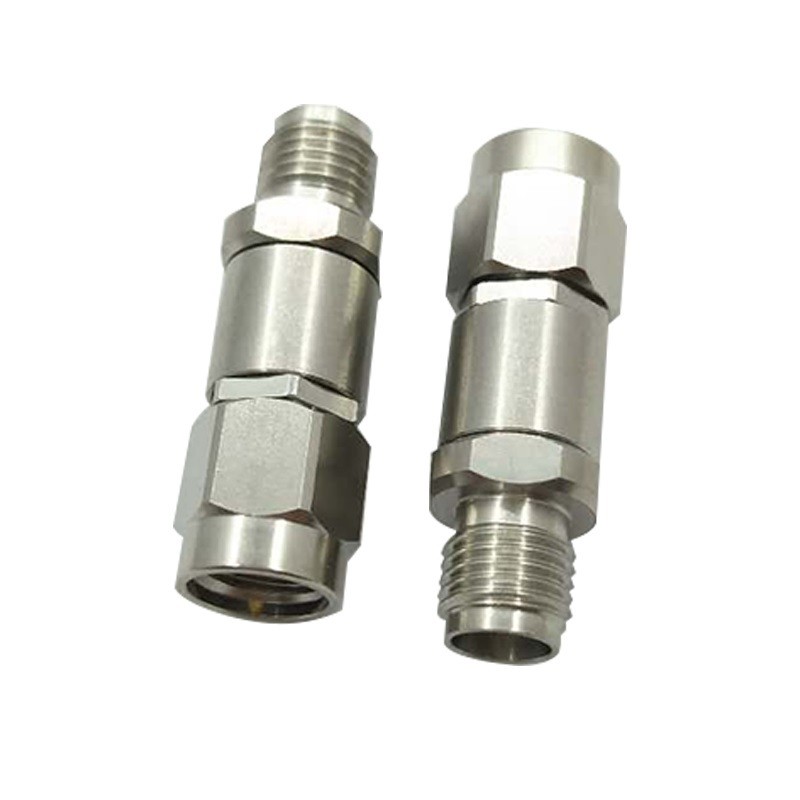

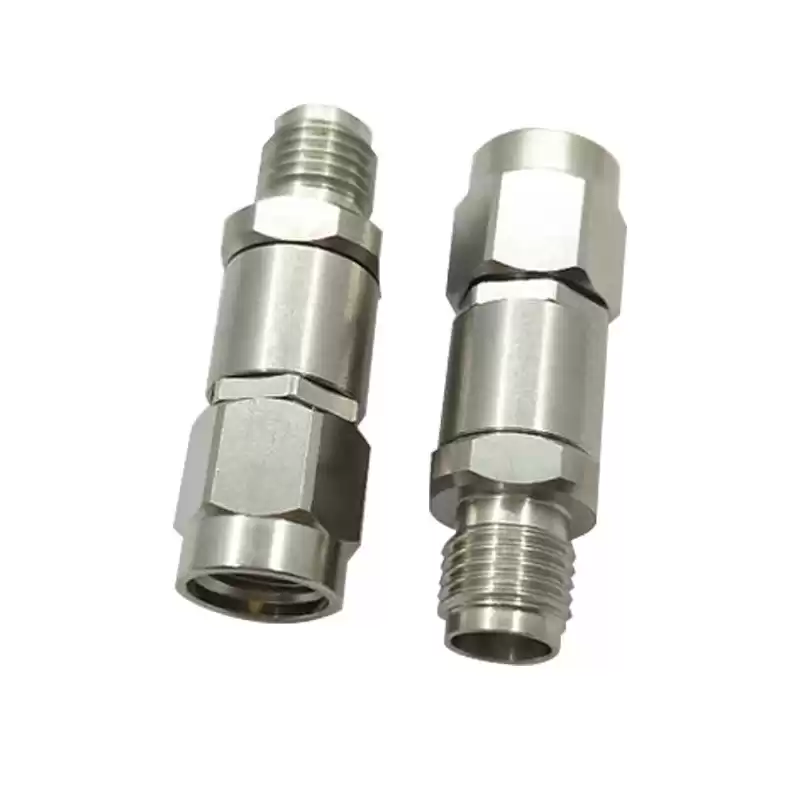

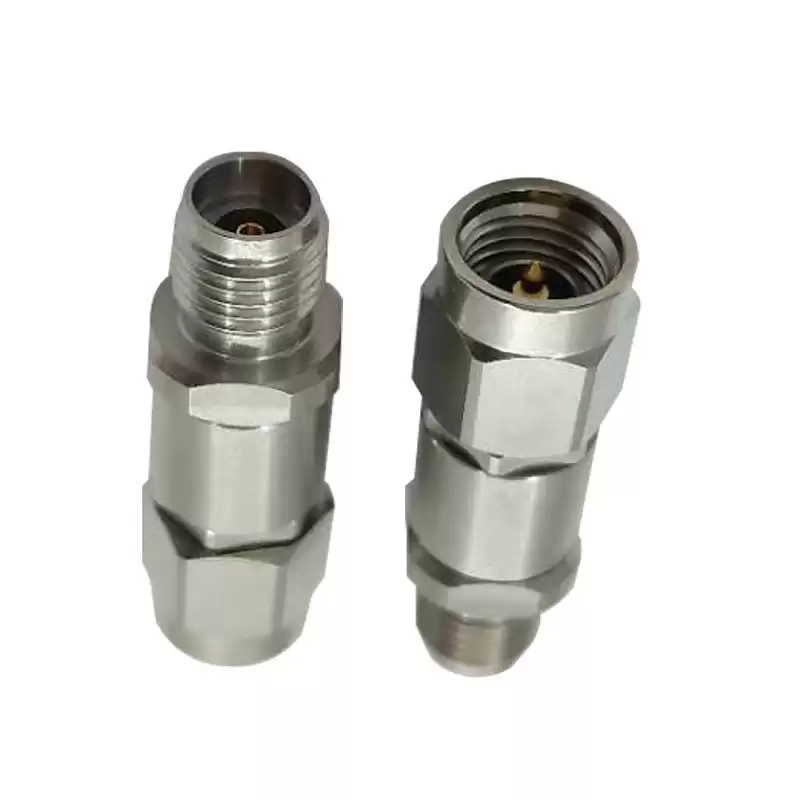

3.5mm Male to 2.92mm Female Stainless Steel Adapter Coax Connector 5G Wireless Communication
The 3.5mm RF Coaxial adapters(also known as 3.5mm, K connector, K Type, SMK adapter) have 3.5mm female, male or sexless (jack, plug or genderless) adapters (sometimes called a 3.5mm cable coupler or gender changer when same genders) are available. These female, male or sexless (jack, plug or genderless) 3.5mm adapter coaxial interconnects are between series or in-series. Our high quality 3.5mm adapter products include 1.85mm, 2.4mm, 2.92mm, 3.5mm, 7mm, Mini SMP, N, SMA, SMP or SSMA side 2 interfaces.
Specifications
| ELECTRICAL DATA |
|
Adapter Side 1 Series
|
3.5mm |
Adapter Side 1 Style
|
Male |
Adapter Side 2 Series
|
2.92mm |
Adapter Side 2 Style
|
Female |
Frequency (Max GHz)
|
40 |
Impedance (Ohms)
|
50 |
Low PIM
|
NO |
Orientation
|
Straight |
| Temp (Max Degrees Celsius) |
165 |
| Temp (Min Degrees Celsius) |
-65 |
| MATERIAL DATA |
|
| Connector Body |
Stainless steel 303 |
| Body Finish |
Passivated |
| Contact Material |
Phosphor Bronze/Beryllium Copper |
| Contact Finish |
Gold/Silver |
| Insulator |
PTFE |
Applications
- 5G Wireless Communication
- Test sets
- High-frequncy products
- Instrumentation cables
