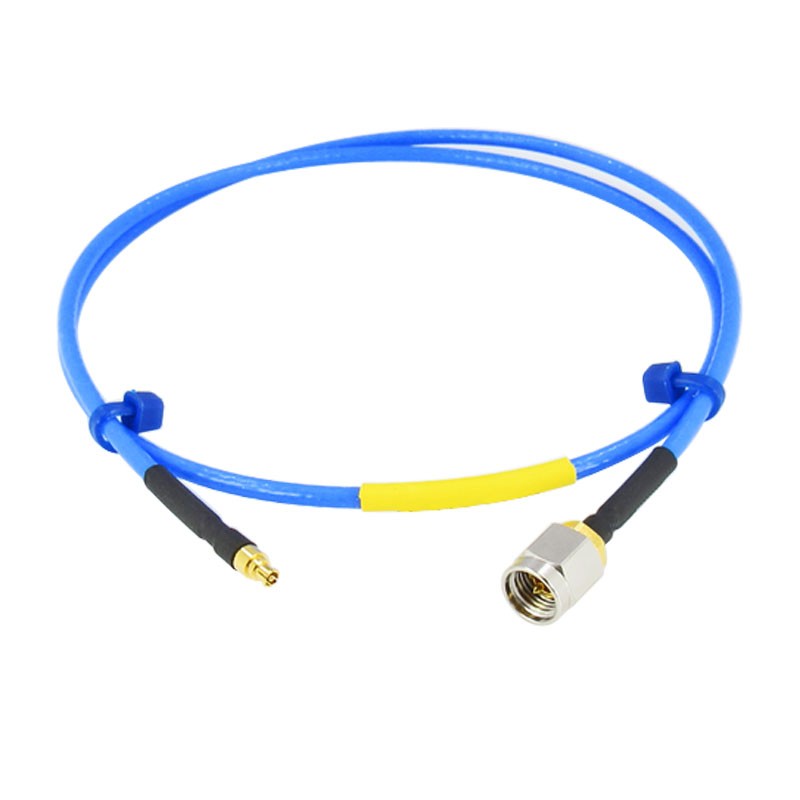

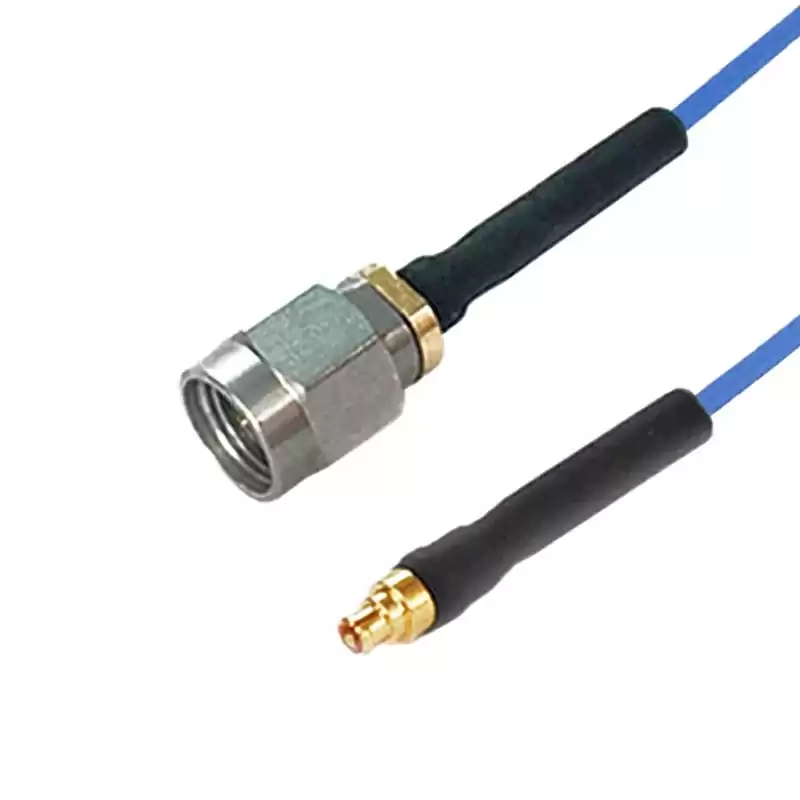

2.92mm Male to Mini SMP Female Connector Cable Assembly .with .047 Semi-Flexible Cable
The 2.92mm cable assembly can use flexible, formable or semirigid coaxial cable such as RG405, RG402 Cable; the body of 2.92mm to mini SMP cable assembly is straight connectors which is female to female, male to female or male to male gender. This 2.92mm male to mini SMP female cable assembly uses a 50ohm straight 2.92mm for connector 1 and a 50ohm straight mini SMP for connector 2, Cable is 50ohm semi-flexible Cable.
Specifications
| ELECTRICAL DATA |
|
| Connector 1 Series |
2.92mm |
| Connector 1 Style |
Str Male |
| Cable Type |
Semi-Flexible Cable |
| Connector 2 Series |
Mini SMP |
| Connector 2 Style |
Str Female |
| Contact Termination |
Solder |
| Shield Termination |
Crimp |
| Impedance (Ohms) |
50 |
| Low PIM |
Yes |
| Max Frequency |
40GHz |
| Working Temperature |
-65°C to +165°C |
| ELECTRICAL DATA |
|
Body Material
|
Stainless Steel |
Body Finish
|
Passivated |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- VNA network analyzer
- RF and microwave test instrument
- production line test
- ATE system
- laboratory
