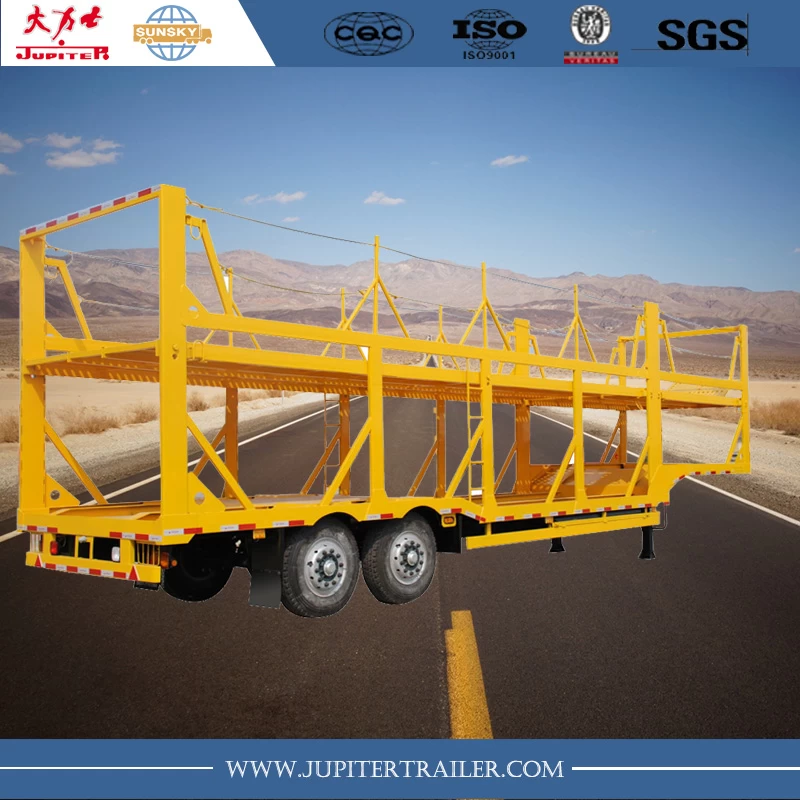

Sunsky brand 2-axle car carrier semi-trailer made in china
Sunsk Brand car carrier, also called car carrier trailer, car hauler, auto transport trailer, etc.,is a type of trailer or semi-trailer designed to efficiently transport passenger vehicles via truck.Like other semi-trailers, most commercial car-carrying trailer attach to the tractor using a fifth wheel coupling. Trailers can either be enclosed, possessing walls like a conventional box trailer,which affords the shipped vehicles more protection at the cost of lower capacity; or open, as in the commonly seen skeletal tube steel design, which exposes the vehicles to the elements but allows for greater carrying capacity.
Features:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
1) Manufacturer, 32 years professional
experience.
2) Two years guarantee term provided freely.
3) Export more than 1000 units to Africa,
Southeastern Asia, and South America.
4) Products can be custom-made according to your design.
Specification:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
|
Car Carrier semi trailer
|
|
Feature:
|
Car Transportion
|
|
Capacity
|
6 Cars
|
|
Dimension(L*W*H):
|
16400*2450*2800mm
|
|
Main frame:
|
Heavy duty and extra durability
design; Opting for high tensible low carbon alloy Q345B steel; I beam welded
by automotive arc-submerge process
|
|
No. of axle
|
2
|
|
Payload(kgs):
|
30000
|
|
Tare weight(kgs):
|
6850
|
|
Kingpin:
|
The
world-famous JOST brand bolt-in/welded type 3.5”/2”
|
|
Landing
gear:
|
JOST brand
two-speed manual operation 19”
|
|
Tire size:
|
11R22.5、12R22.5、315/80R22.5、385/65R22.5
|
|
Rim size:
|
8.25*22.5、9.00*22.5、11.75*22.5
|
|
Axle:
|
Original
BPW-12T/ FUWA-13T
|
|
Suspension
|
Germany type with
12pcs of leafs spring/ Fuwa brand with 8pcs of leafs spring
|
|
Brake
system:
|
Dual line
with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber,
46L air tank
|
|
Electric
system:
|
One unit of
24V 7-pin ISO standard socket; with brake light, turn light, reverse light,
side light, reflector, fog light; one set of 6-pin standard cable
|
|
Up Deck
|
Lifting by hydraulic, cylinder diameter 2.05 inch
|
|
Painting:
|
S.A.2.5standard sandblasting; Two coat of anti-corrosion prime; one coat of finish
painting
|
|
Accessory:
|
One tool
box; one set of standard tool
|

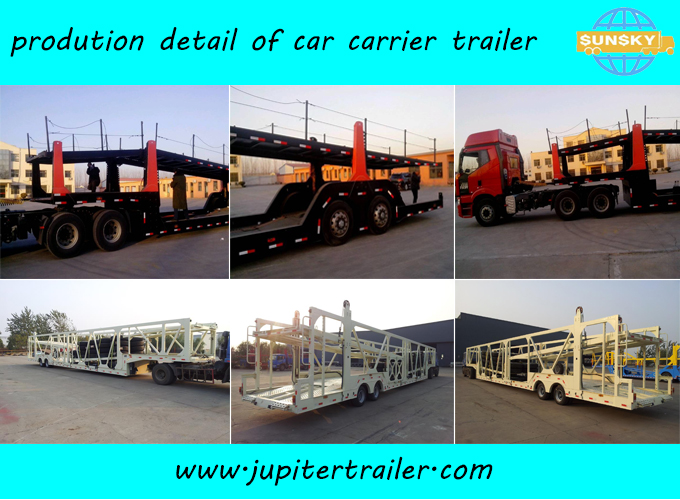

Production detail:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
Producing process:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
Loading and Packing:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
Our advantage and ability:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
What others we can supply:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
FAQ:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
1. Who are we?
Answer: We are a group company; we have three semi-trailer factories in china,
one trading company in china and one company inHong Kong.
We are focus on semi-trailer, trucks and parts.
2. Why choose us
Answer: 1) We have more than 30years experience in the trailer manufacturing.
Our brand”SUNSKY” and”JUPITER” had got high reputation in china and overseas
countries.
2)
We have more than 20 engineers to design the kinds of trailers according to the
requirement from you.
3) We had exported thousands of trailers to Africa, Middle East, Asia,Australia,South America and so on since 2006.
4) We are one of the biggest dealers of SINOTRUK HOWO truck in china, we
can supply kinds of HOWO brand truck with competitive price.
