| DIMENSIONS |
| Tare Weight |
8500kg |
| Payload |
40000kg |
| Total Weight |
48500kg |
| Overall Length |
12000mm |
| Overall Width |
3000mm |
| Overall Height |
3100mm |
| Wheel track |
2160mm |
| Wheelbase |
7400mm+1300mm |
| SPECIFICATION |
| Main Frame |
Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes
500mmHeight, Top Flange 14mm,width 140mm; Middle Flange 8mm ;Bottom Flange 20mm,width 140mm |
| Axle |
2 Units of FUWA(brand) 13Ton axle. |
| Suspension |
A couple of FUWA (brand) mechanical 3-axle suspension |
| Leaf Spring |
4 sets of reliable local brand, 8-piece leaf spring,16x90mm |

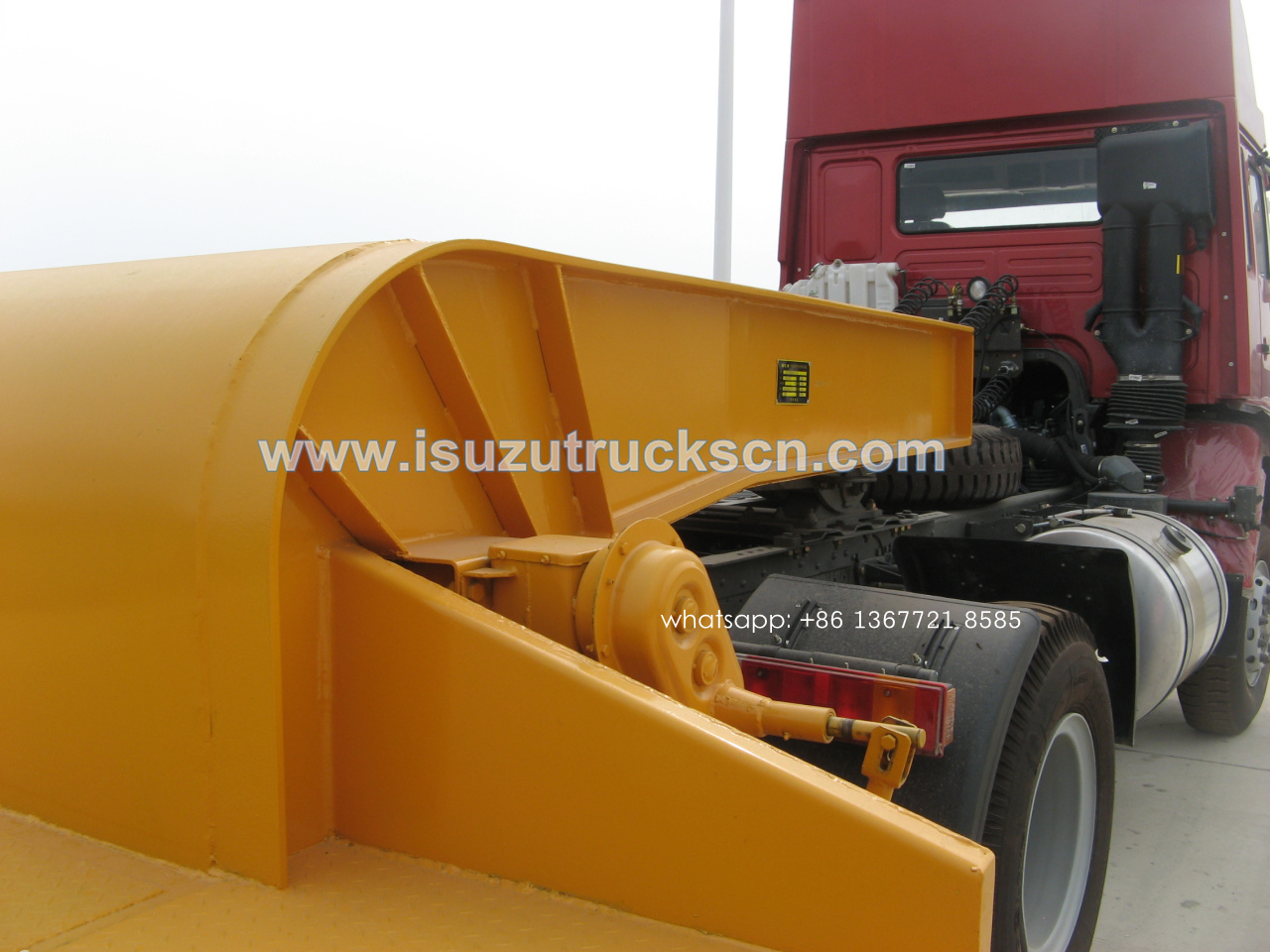

| King Pin |
One unit of SAE 2`` standard kingpin |
| Landing Gear |
Two-speed ,manual operation,heavy duty landing gear |
| Wheel Rim |
9 units 8.25-22.5 rim. |
| Tyre |
9 units 11R22.5 tubeless tyre. |
| Spare Wheel Carrier |
One set of spare wheel carrier including a riser. |

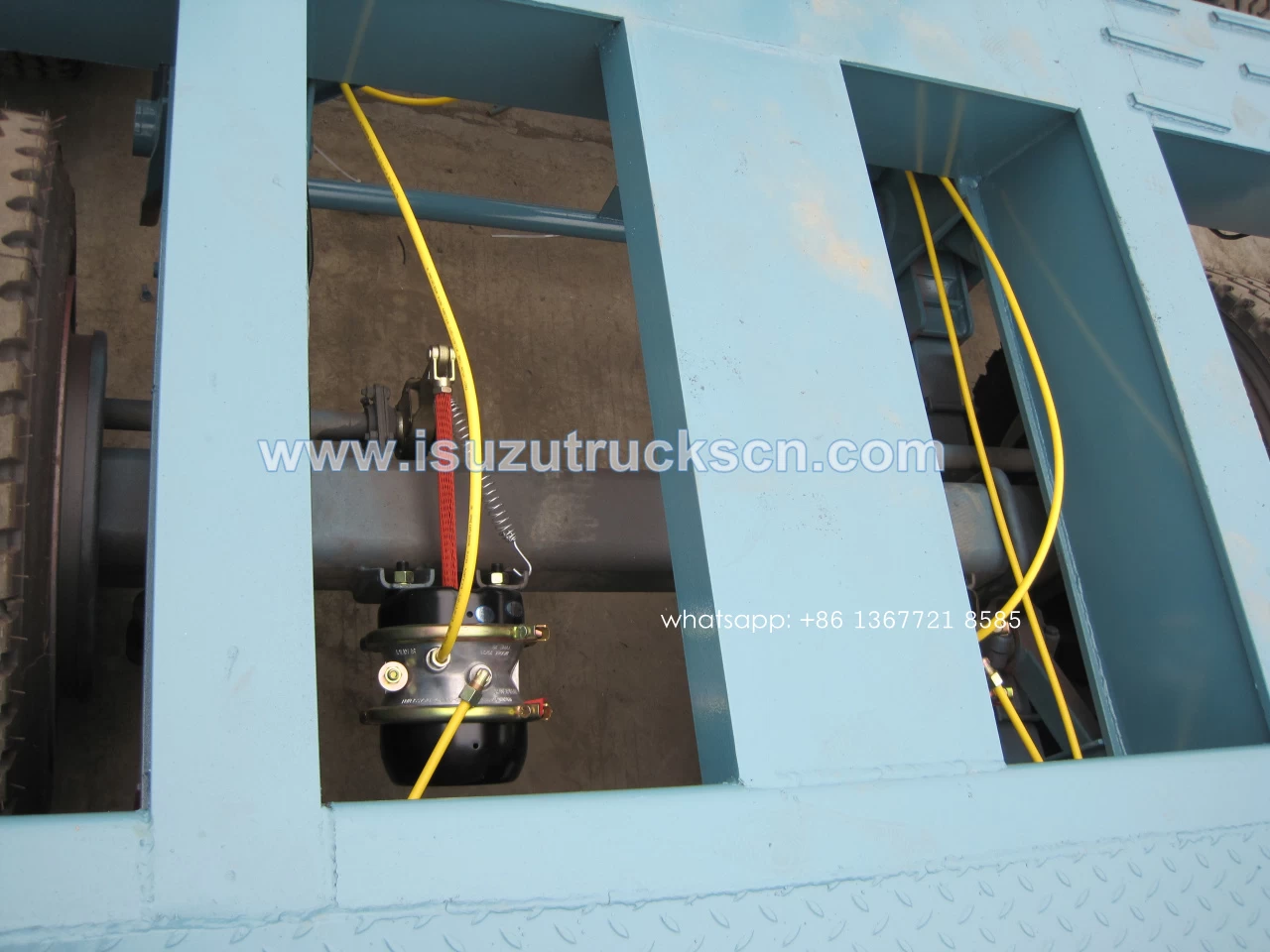

| Pneumatic Braking System |
Two units of WABCO RE 4 relay valve; six units of T30/30 chamber; two units of reliable local brand 40L air tank; two units of reliable local brand standard coppery air-connector. |
| Electrical System |
One unit of JAEGER POWAY,24V 7-pin ISO 1185 socket;two sets of reliable,local brand standard rear light,turn light,rear reflector,side light,side reflector etc.
One set of DAFA(brand ) 6-core standard Cable. |
| Painting |
Sand blasting before painting
Two coats of primer, anti corrosion
One coat of finish painting
Colour advised by client |
| Accessary |
One box with a set of standard trailer tool |

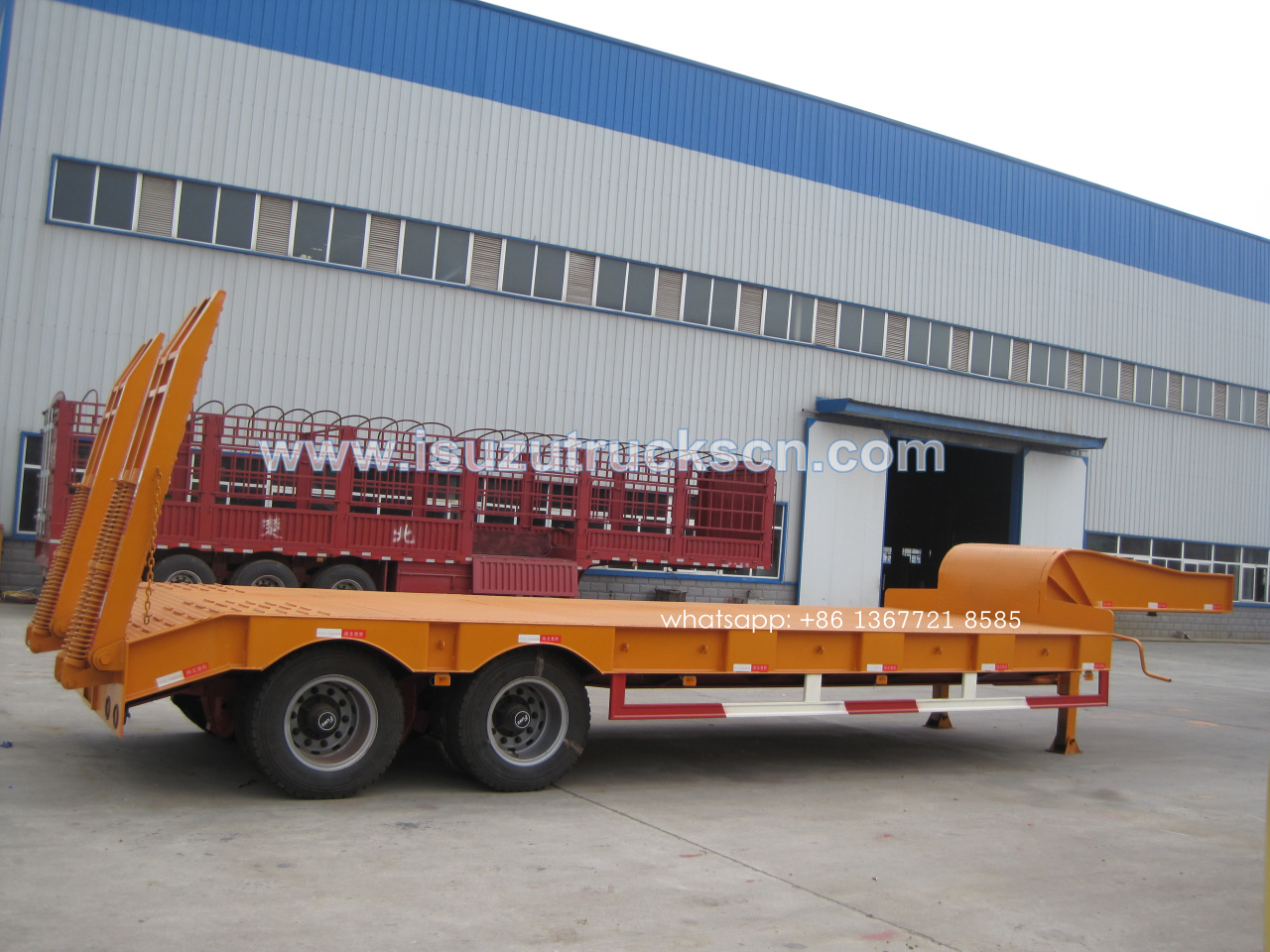

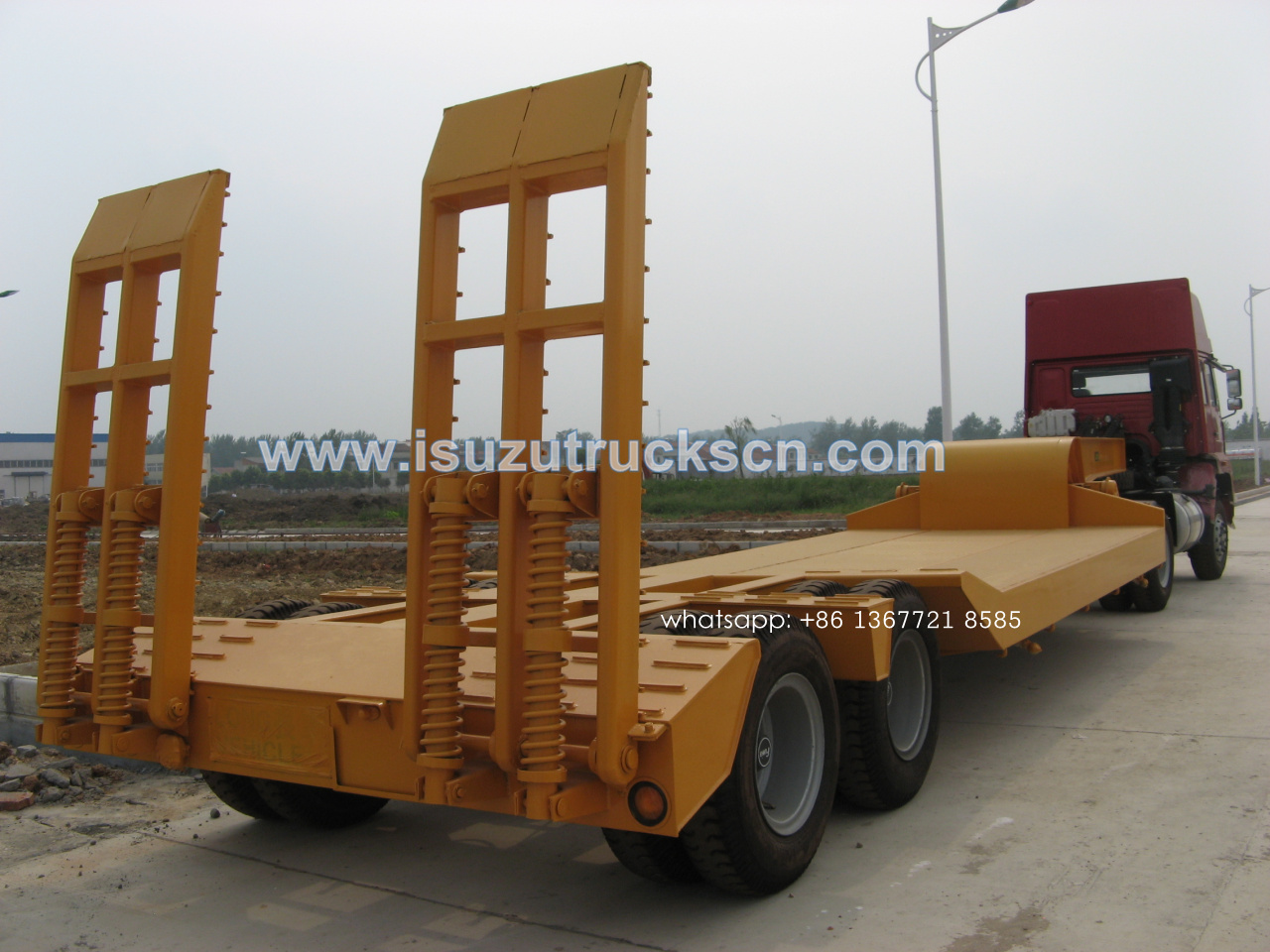

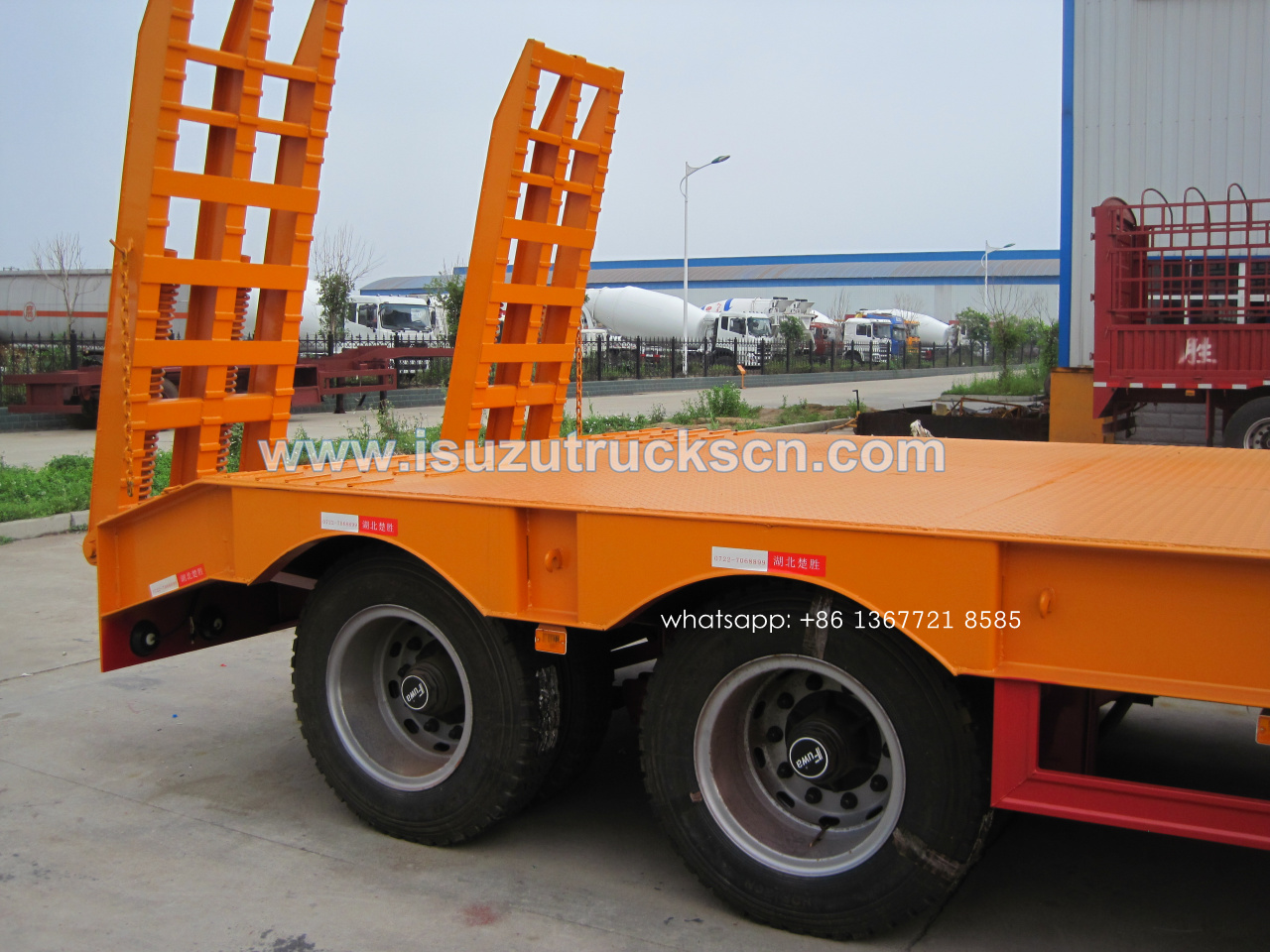

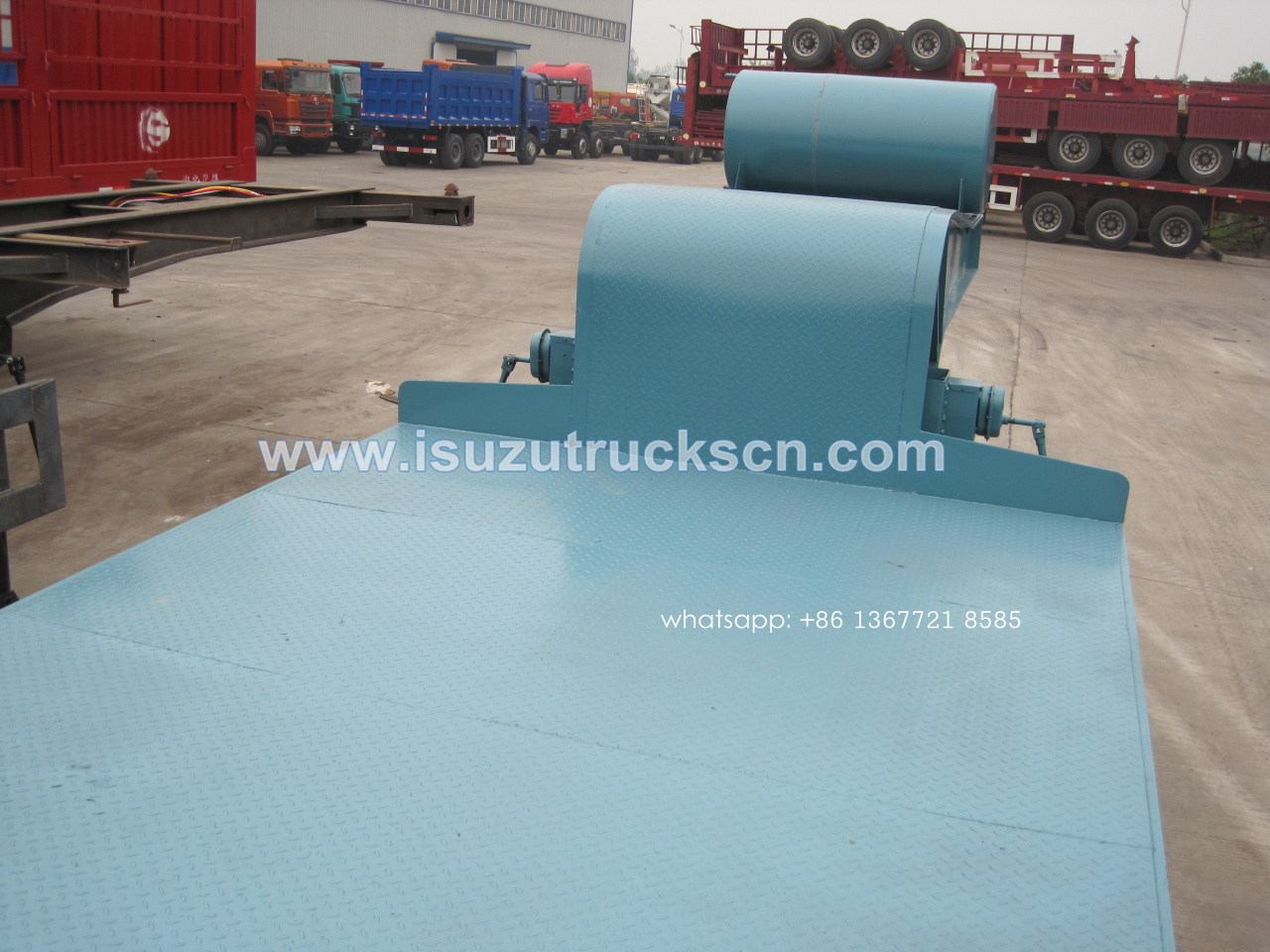

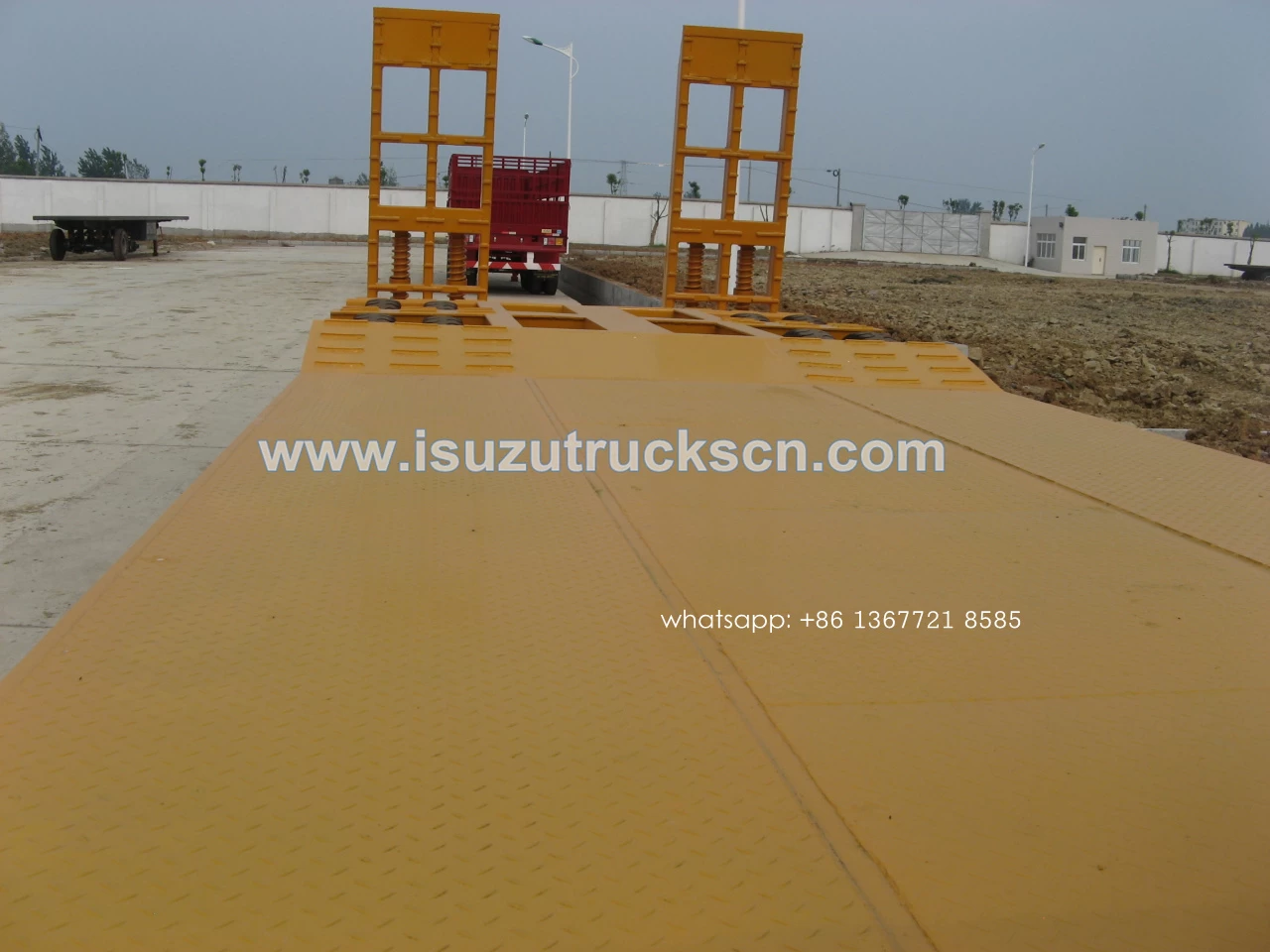

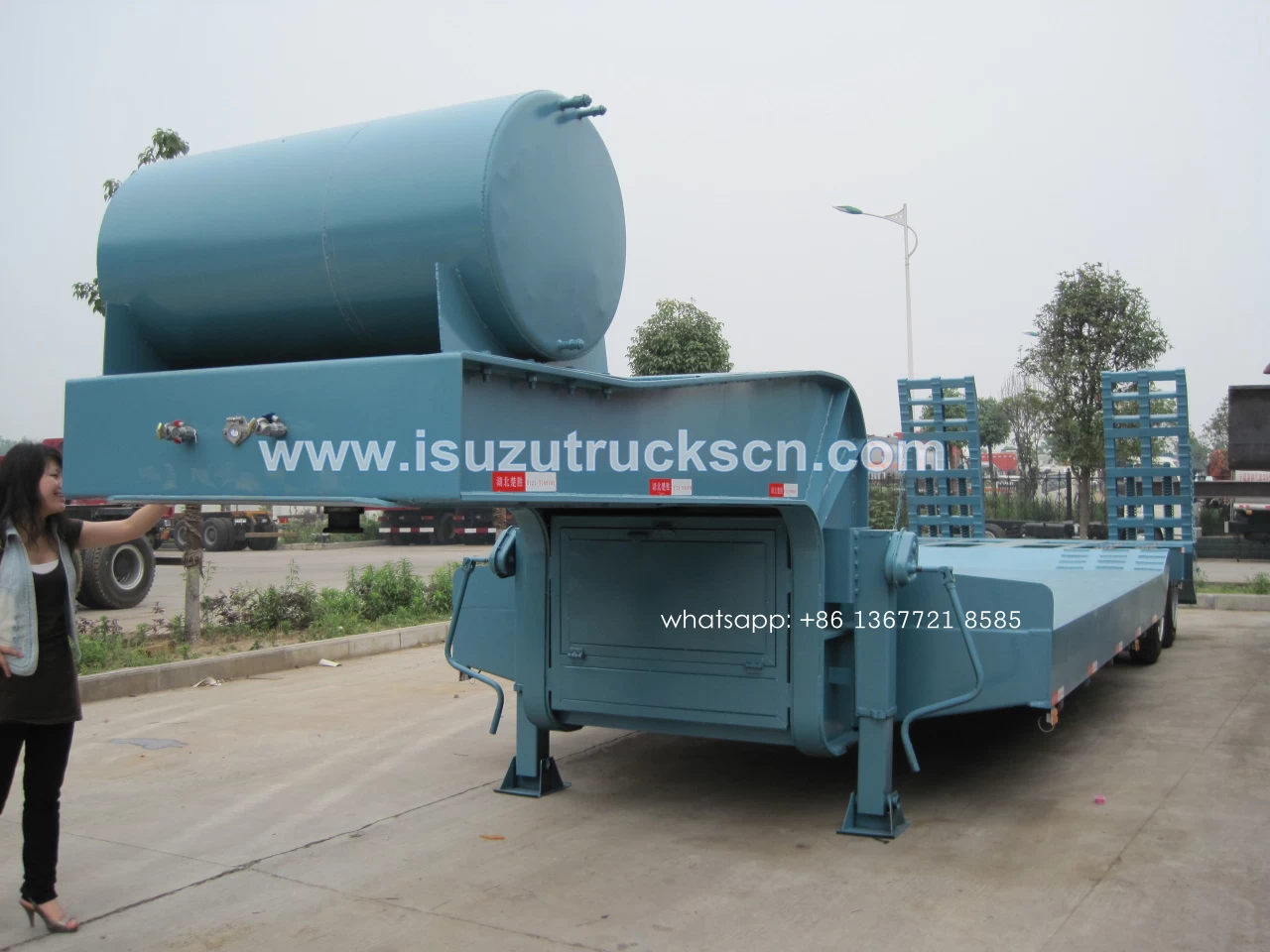

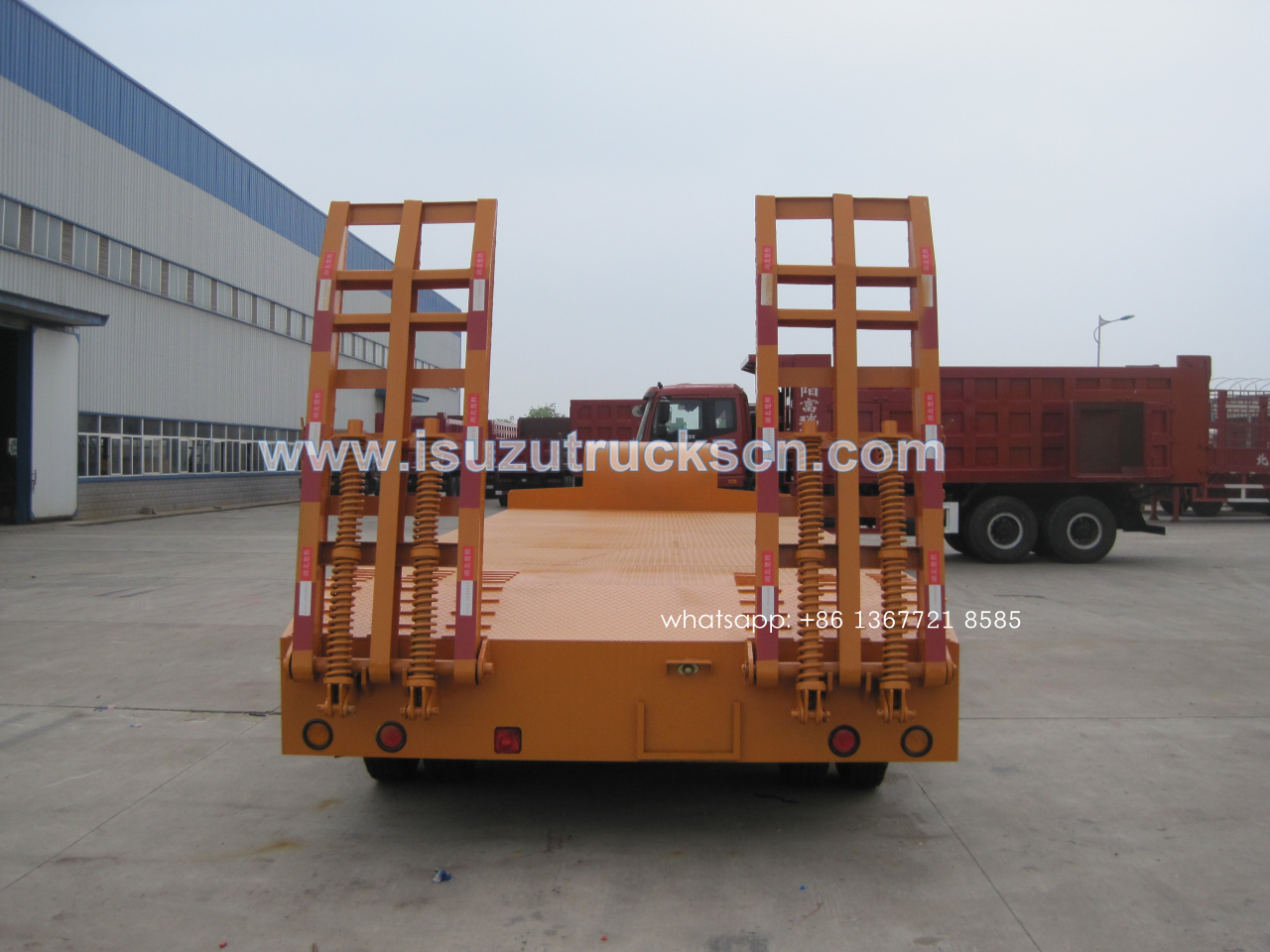

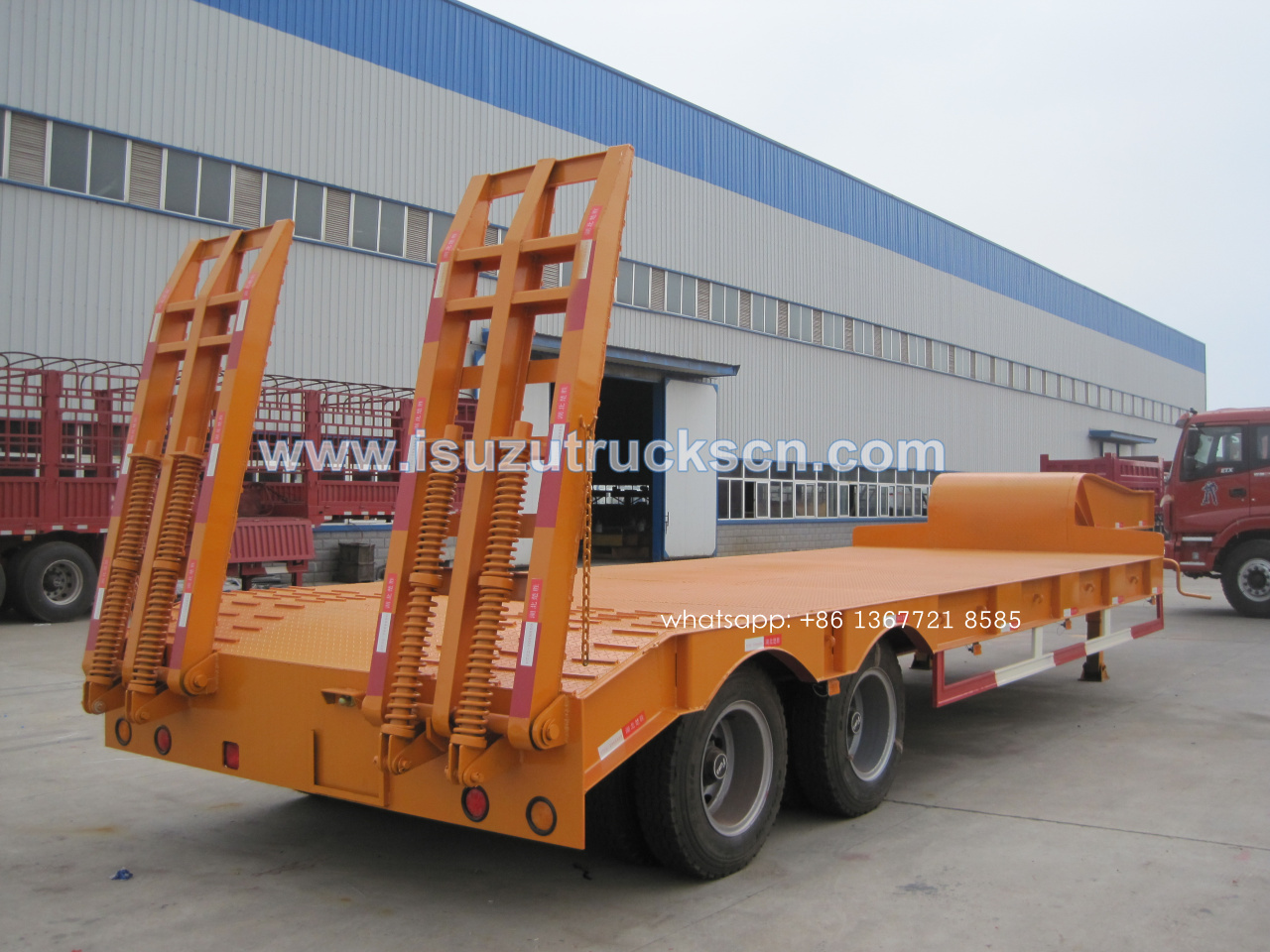

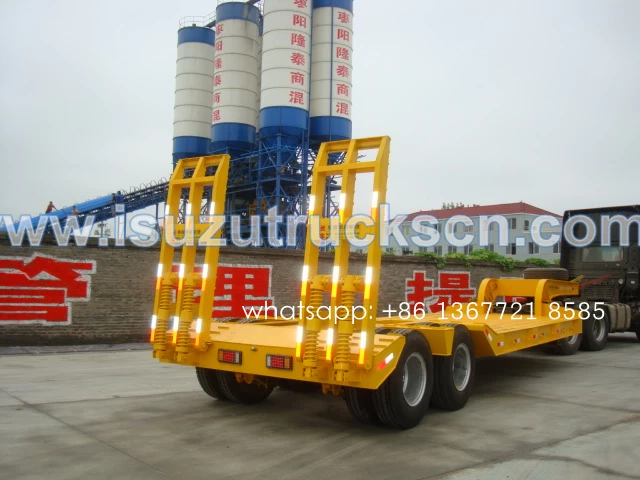

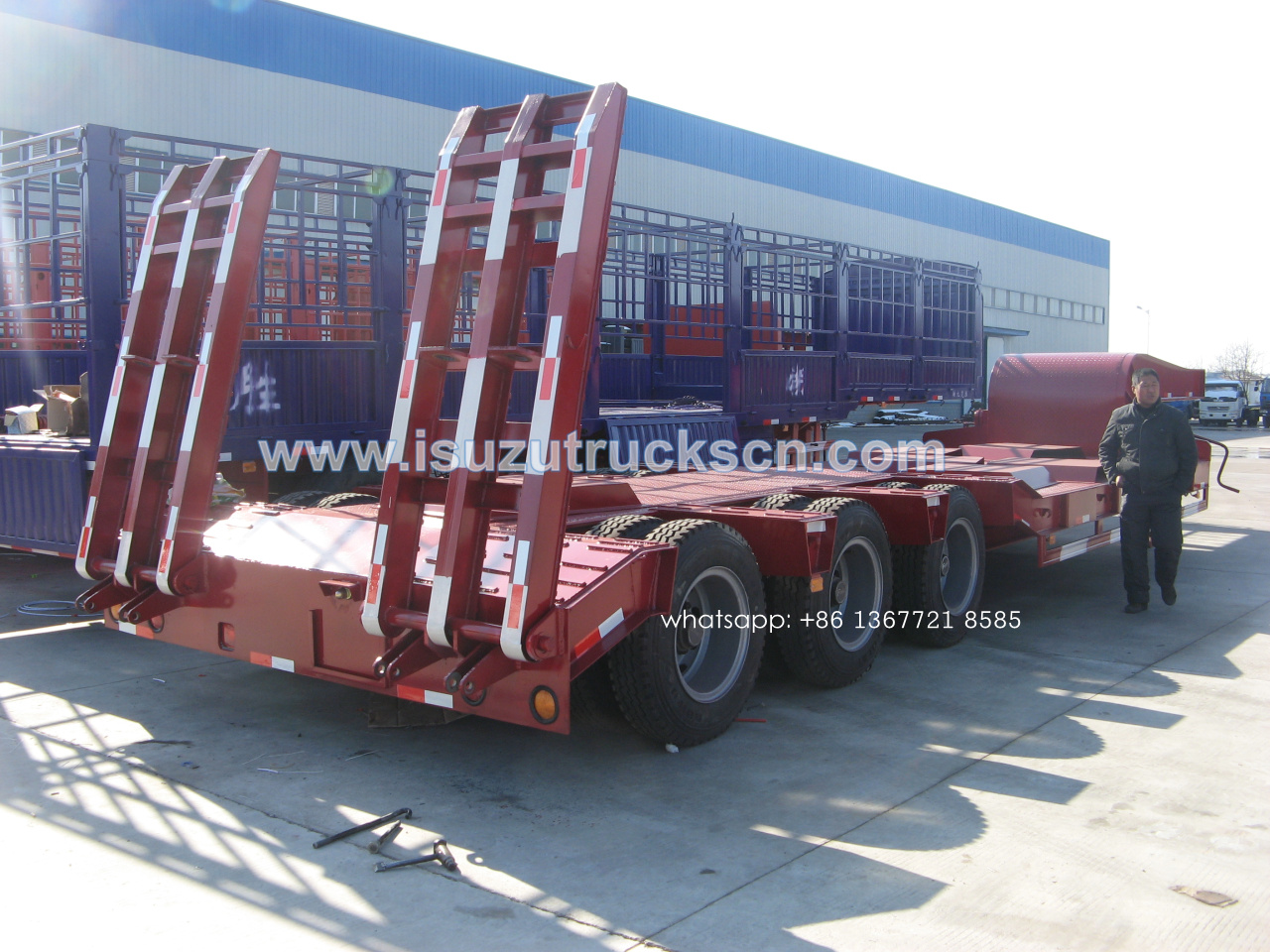

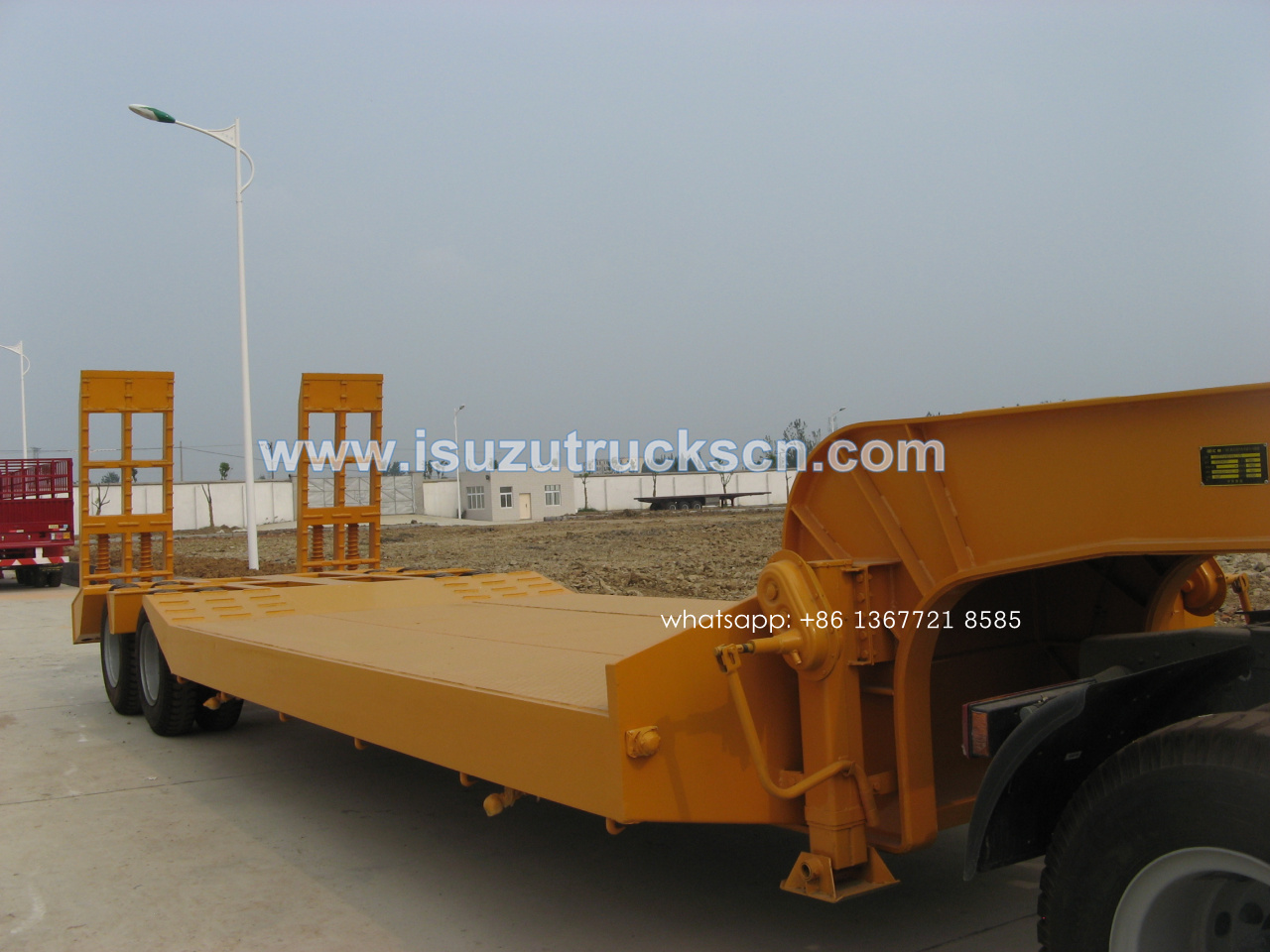

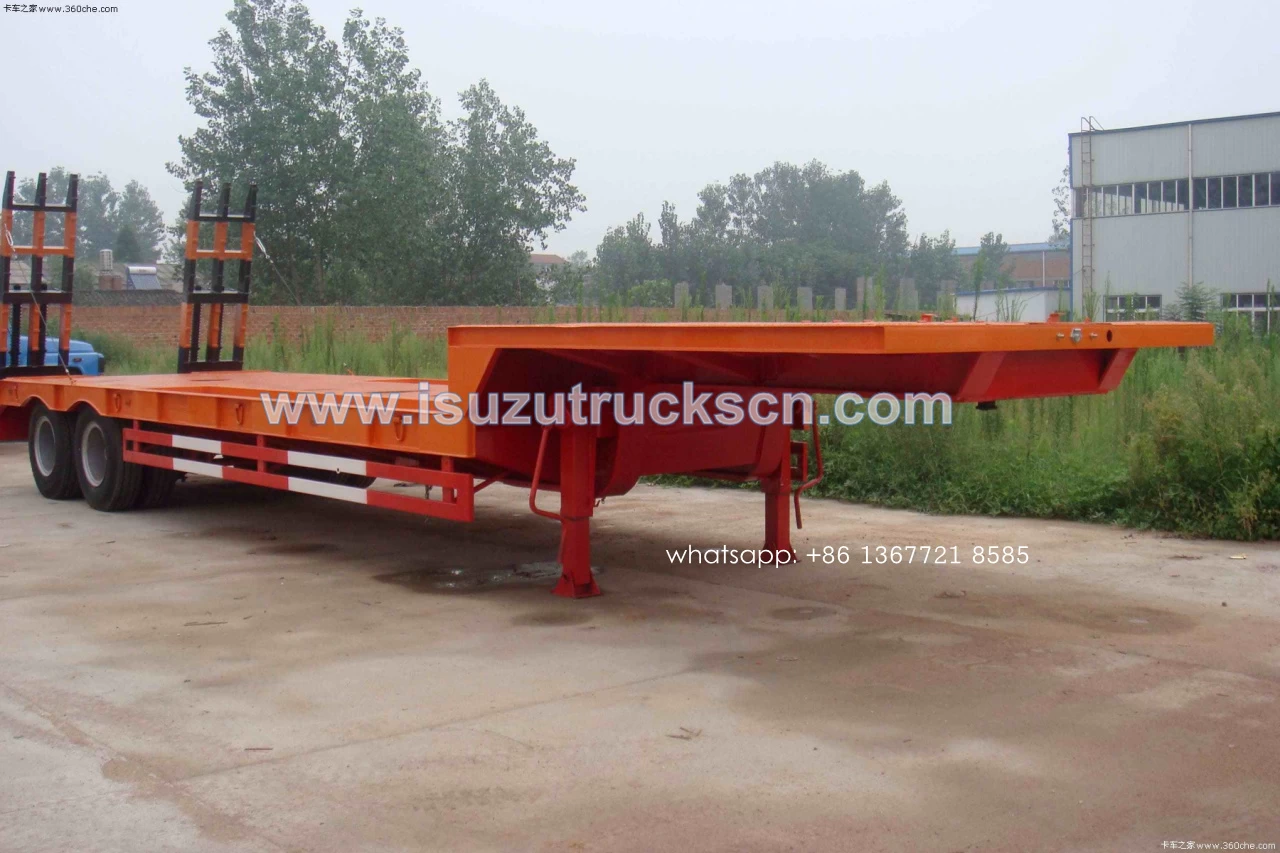

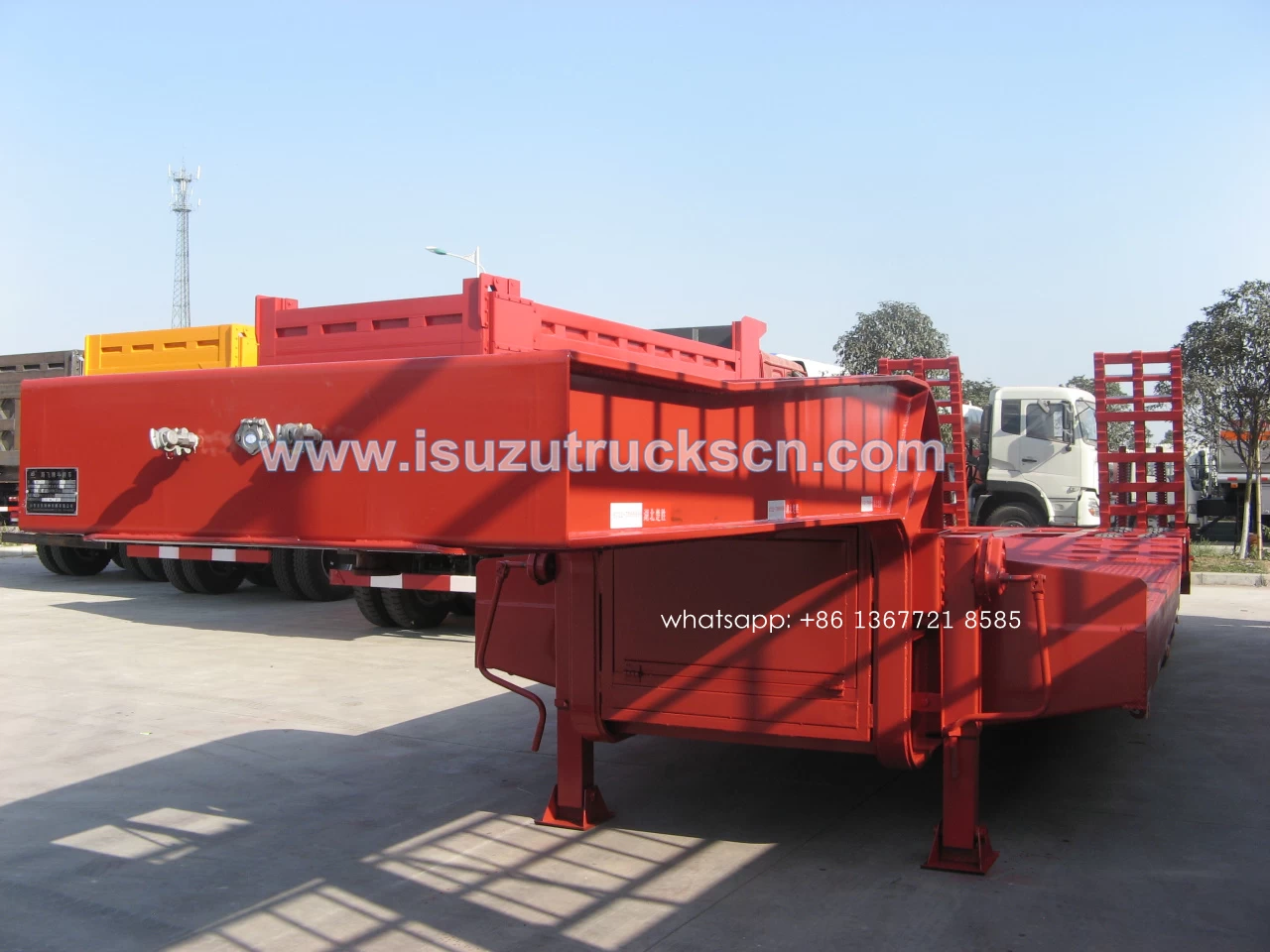

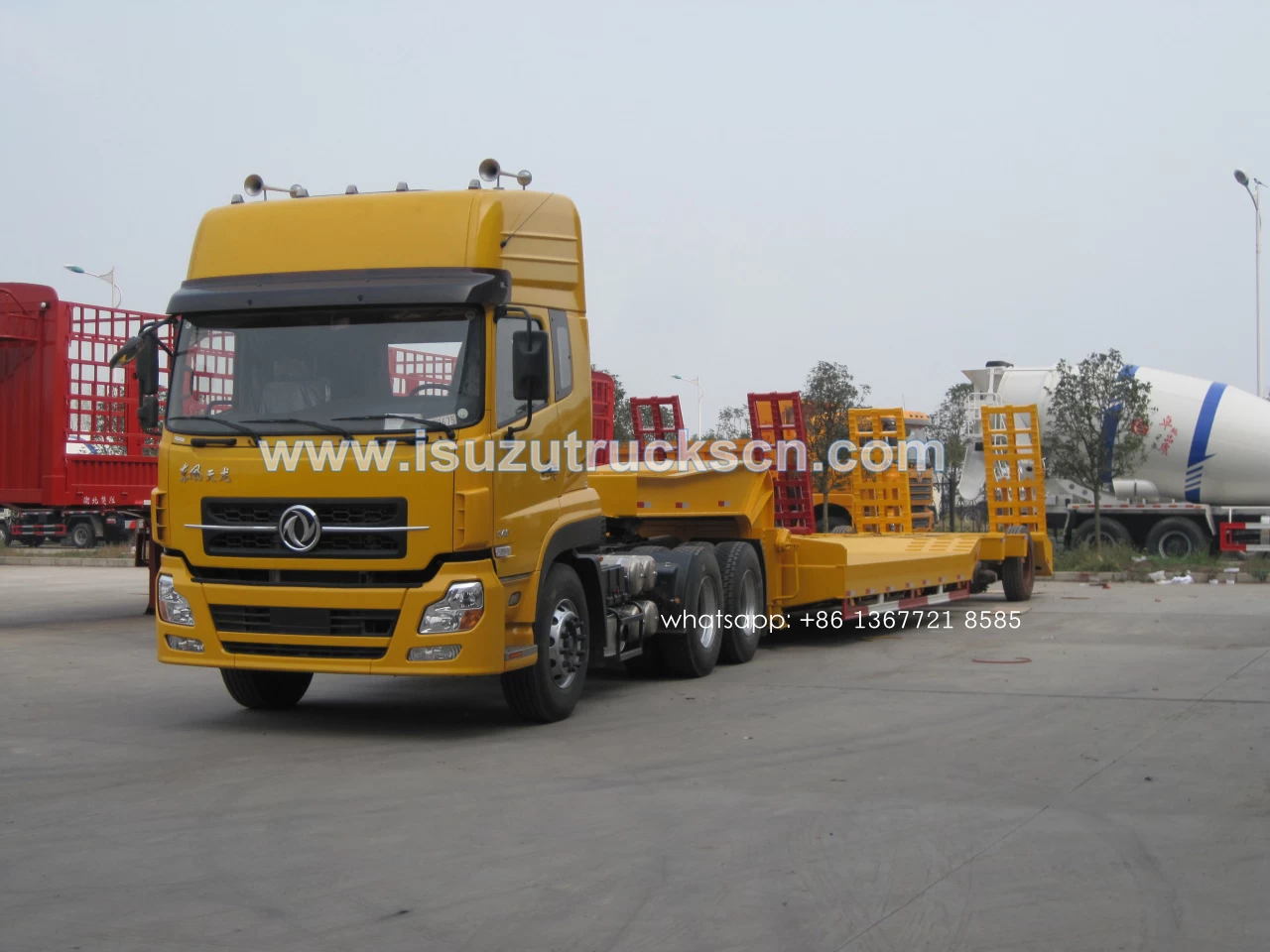

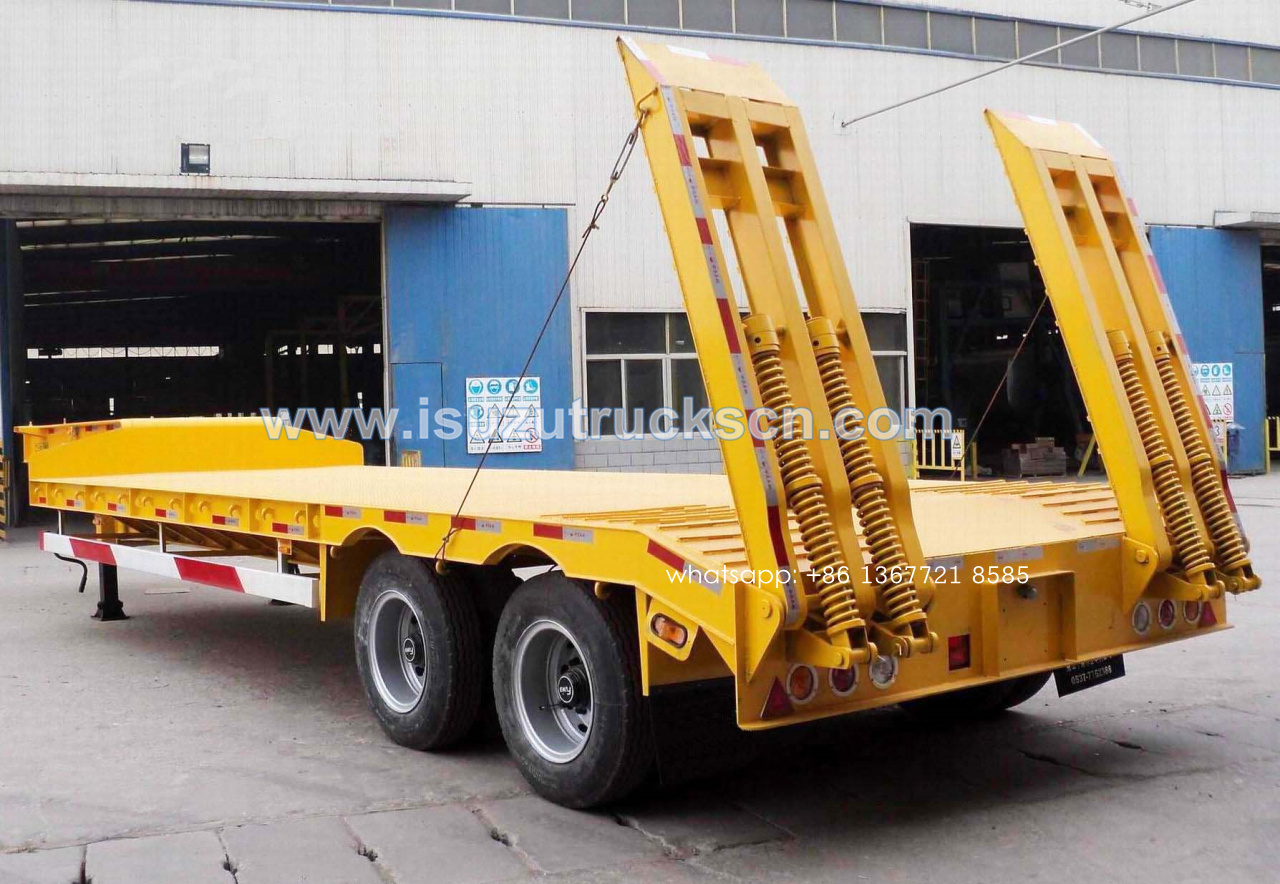

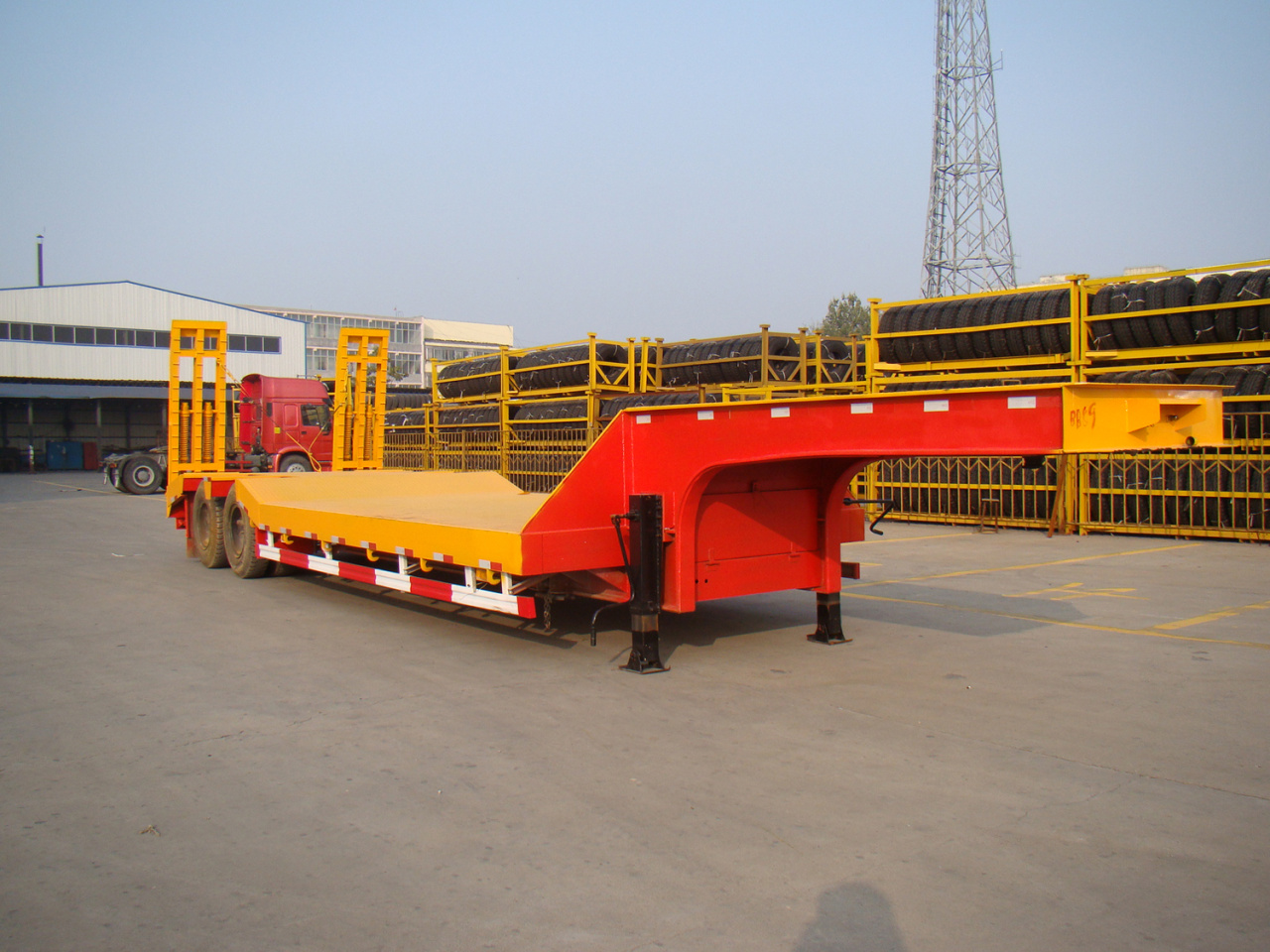

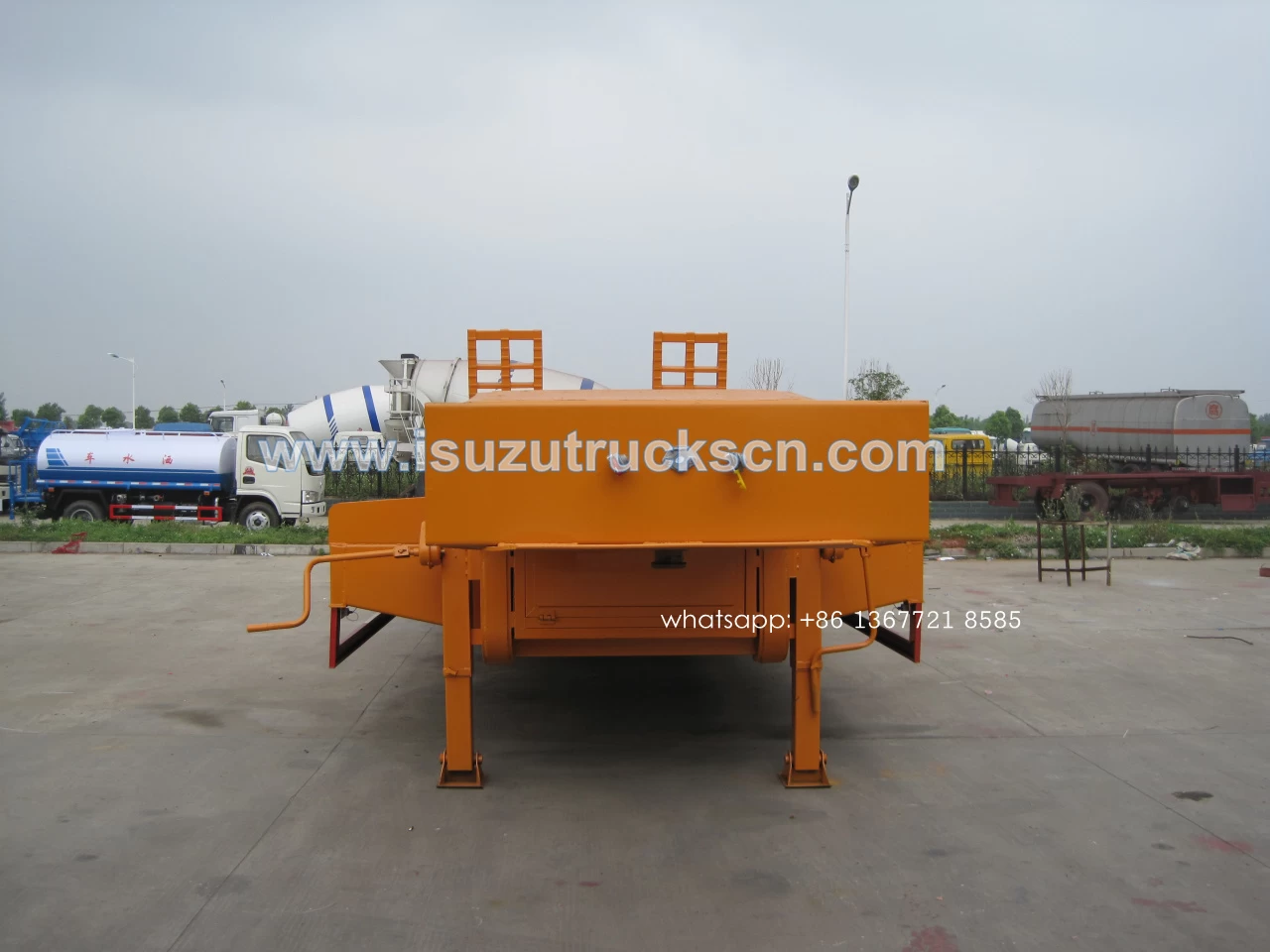

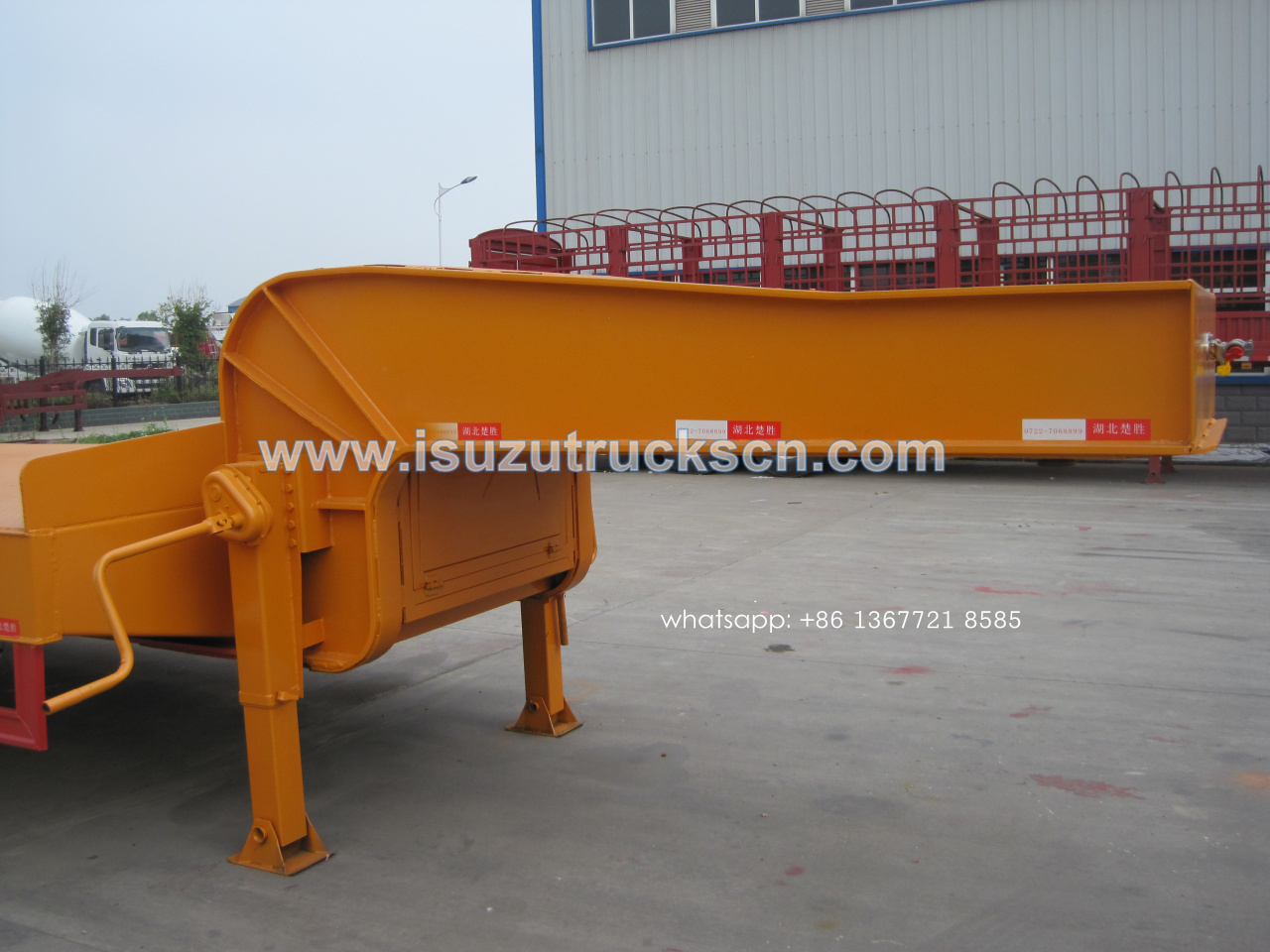

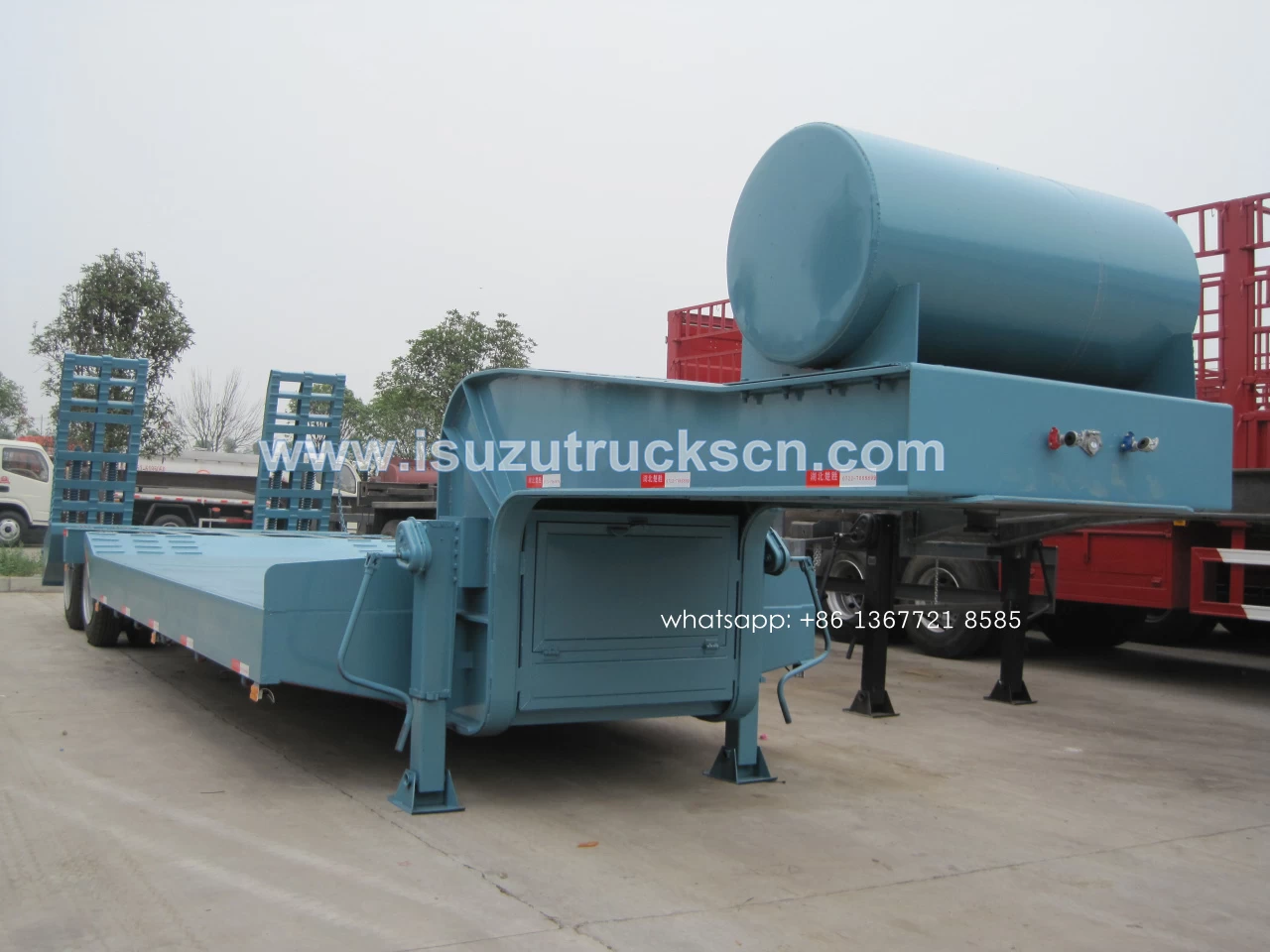

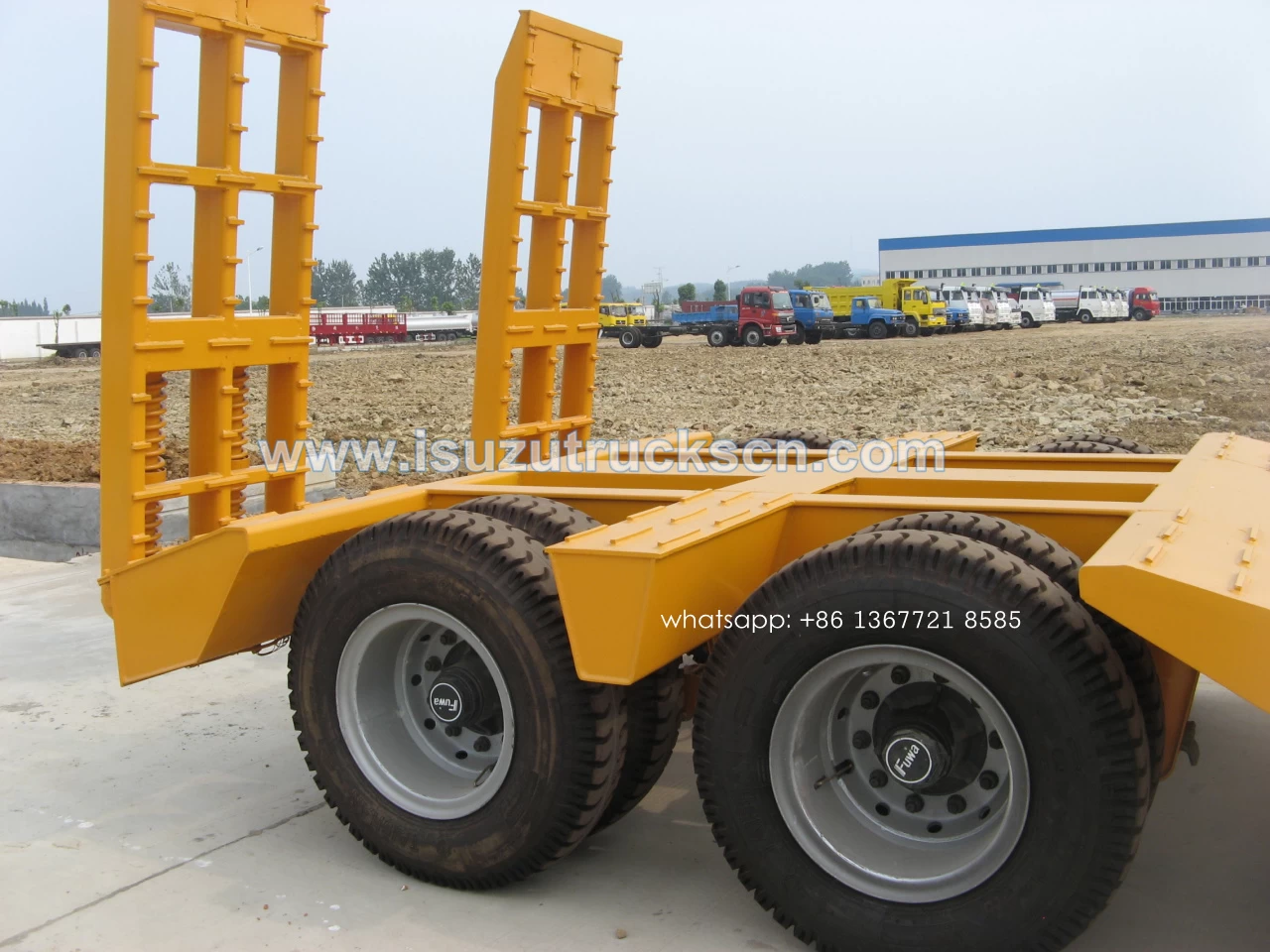

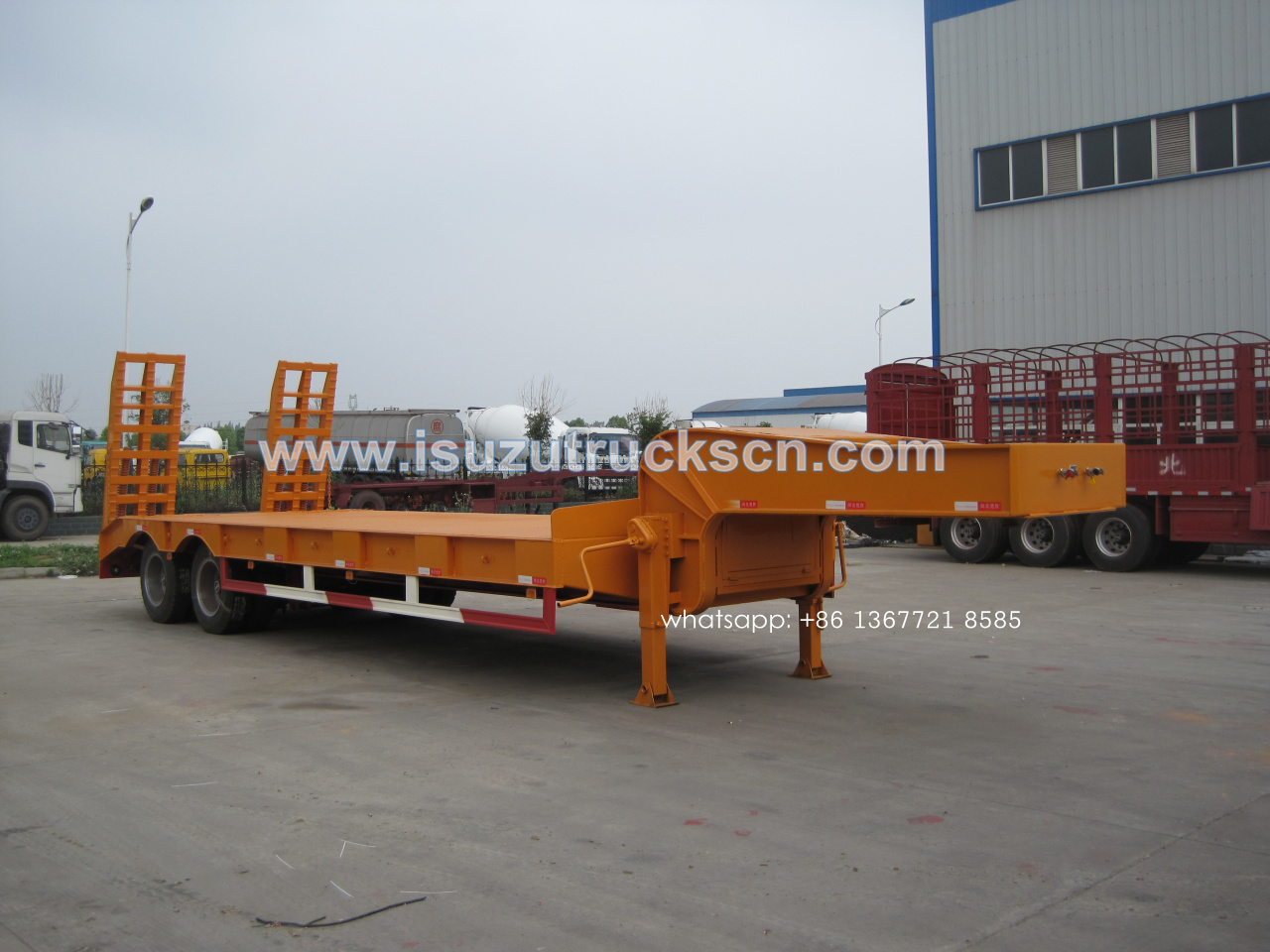

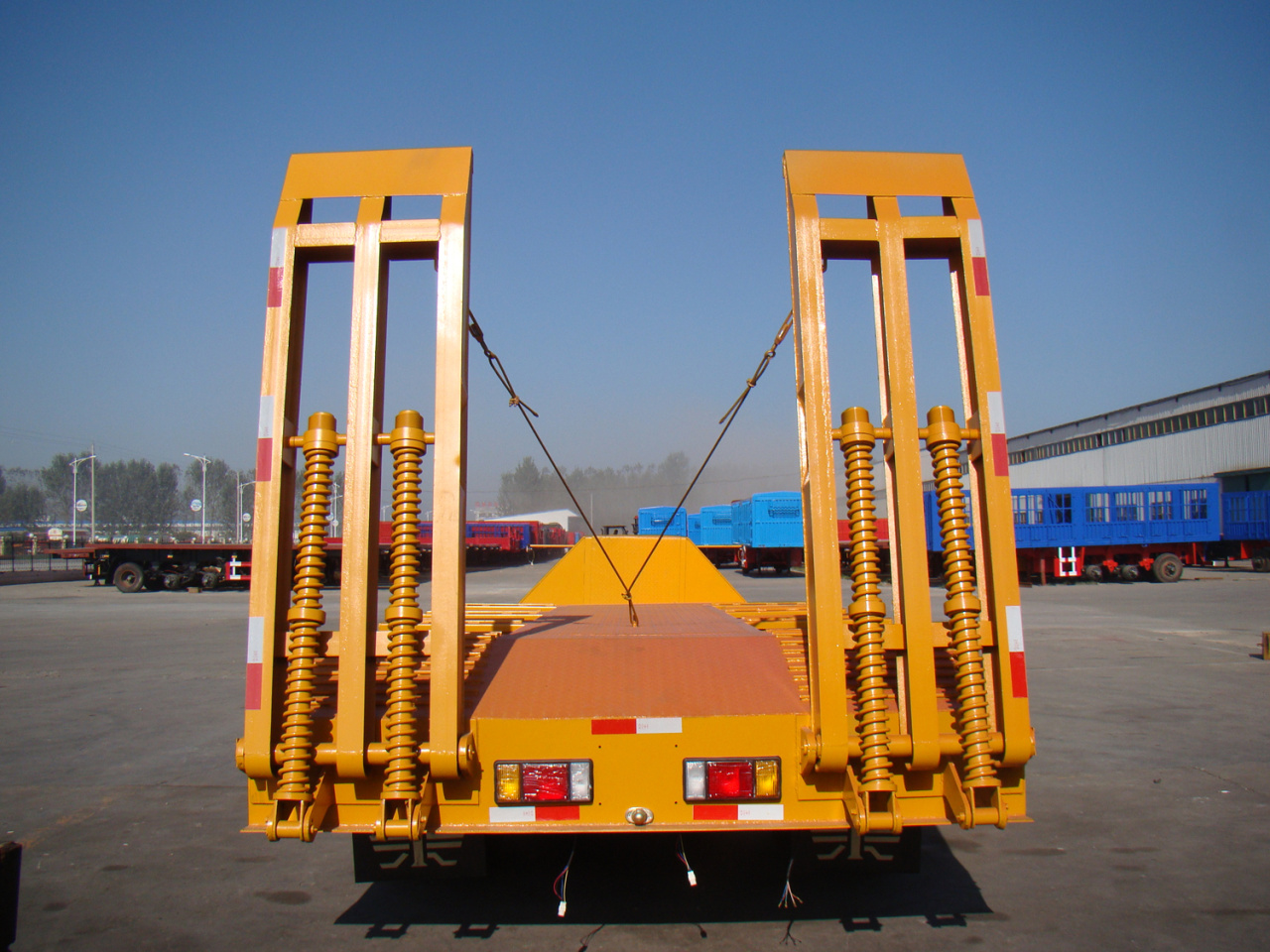

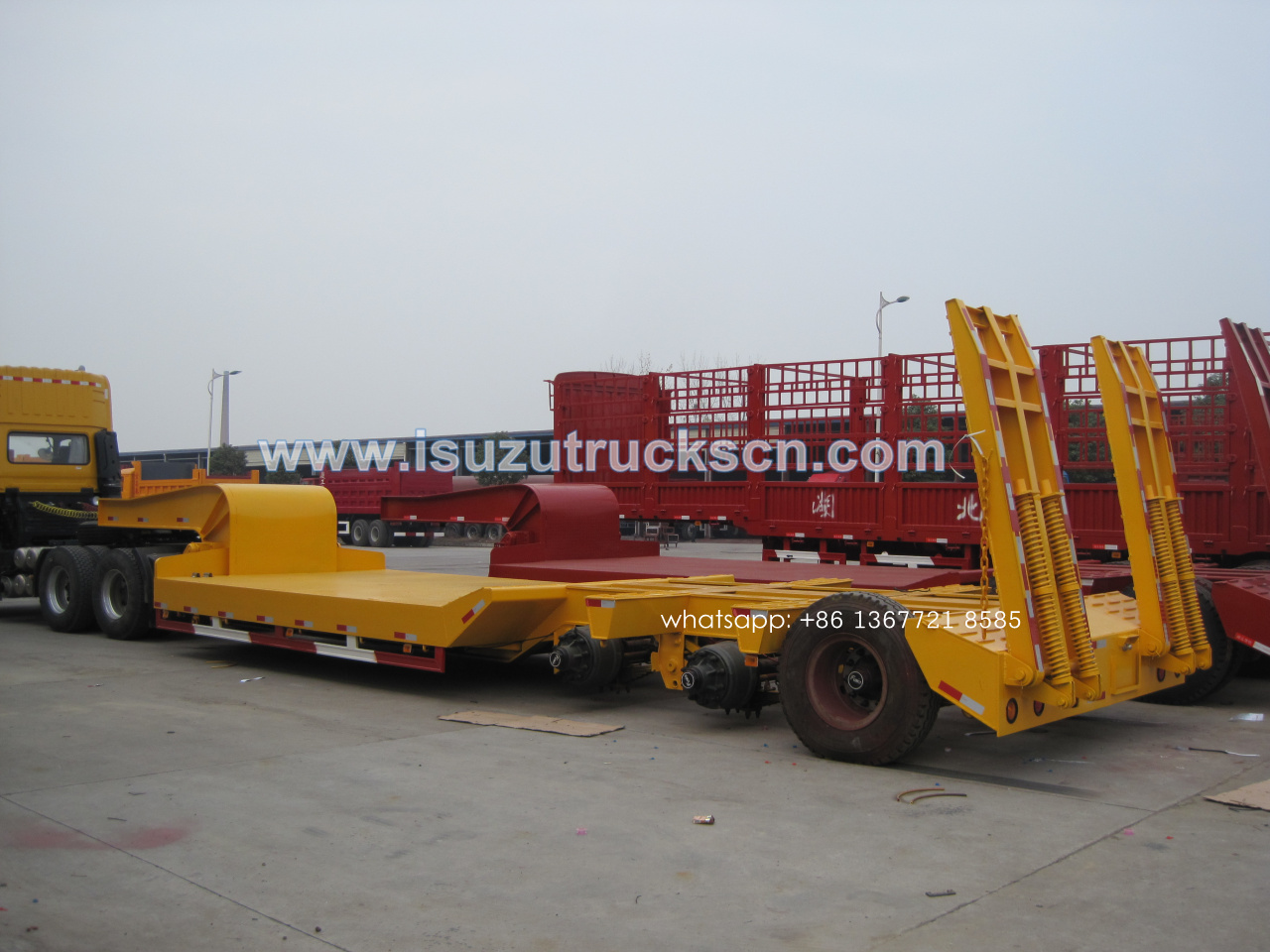

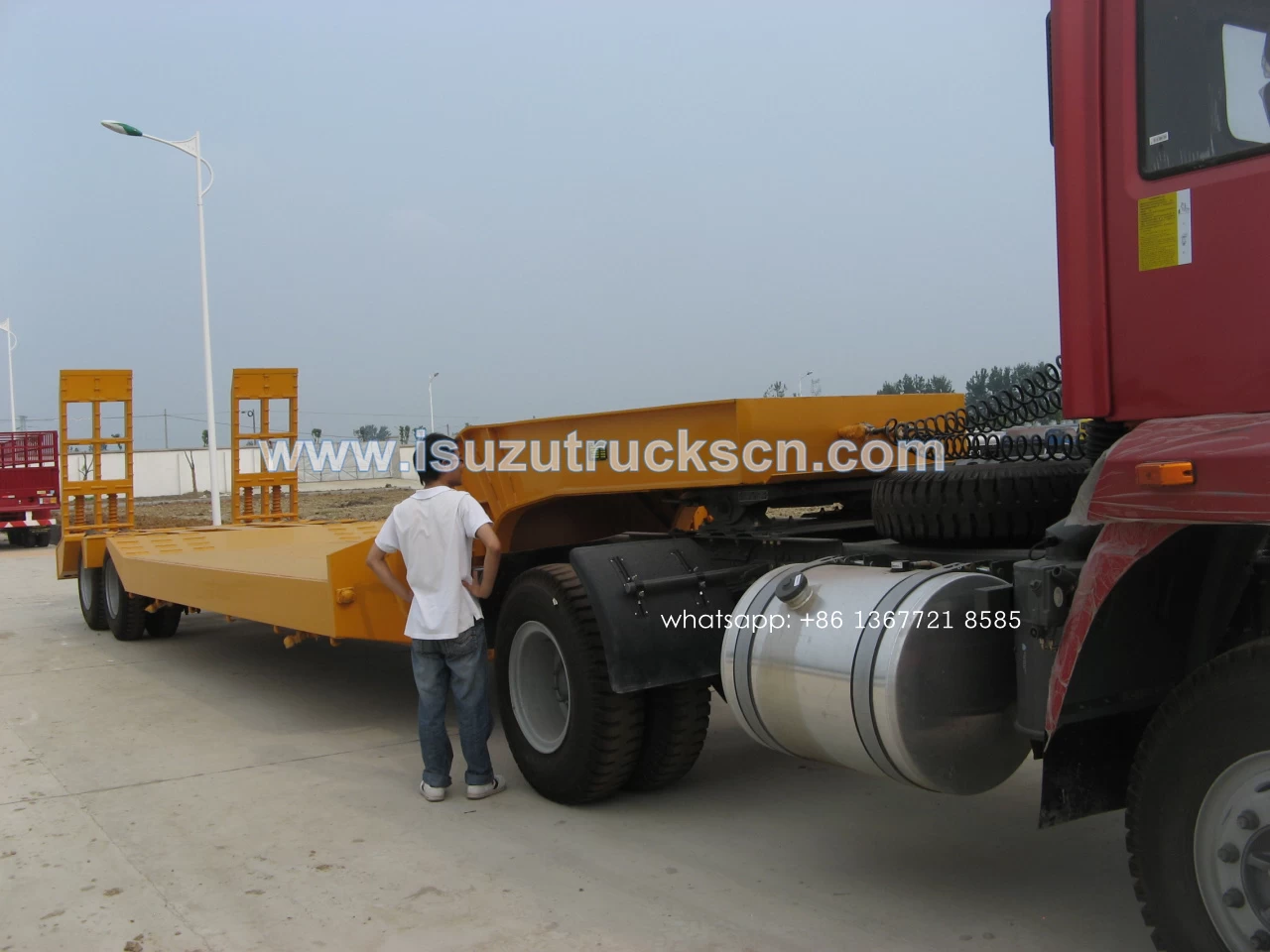

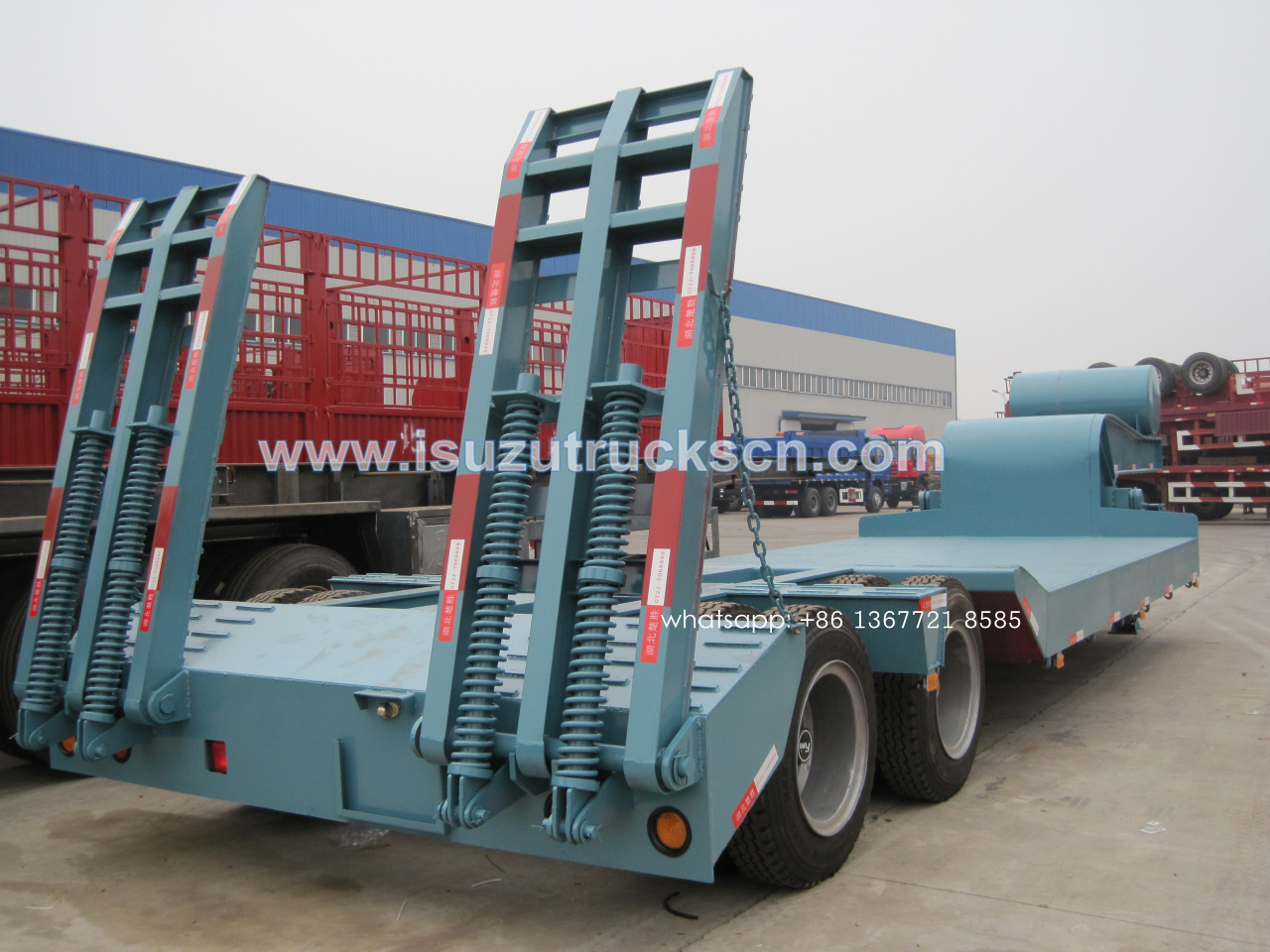

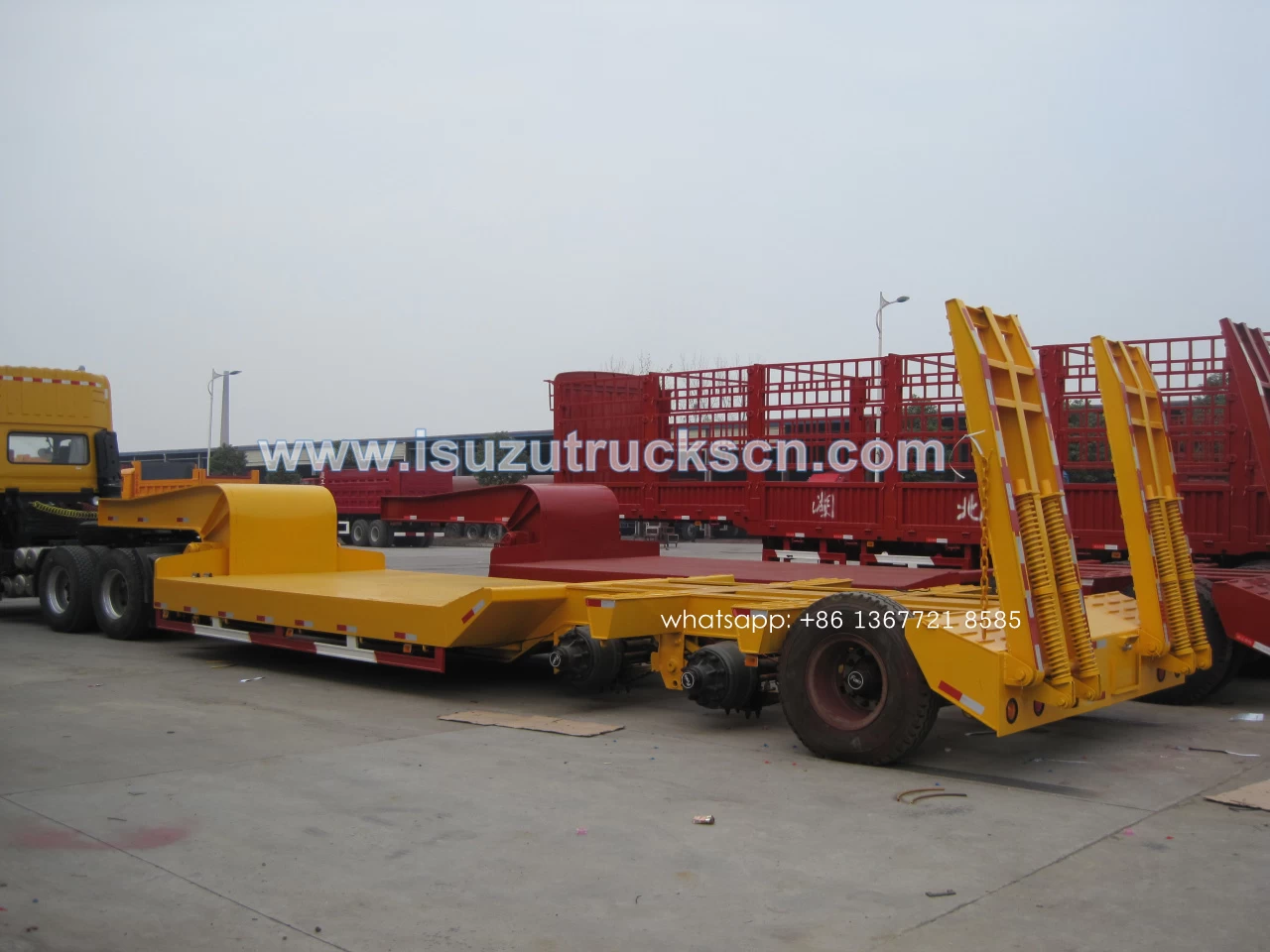

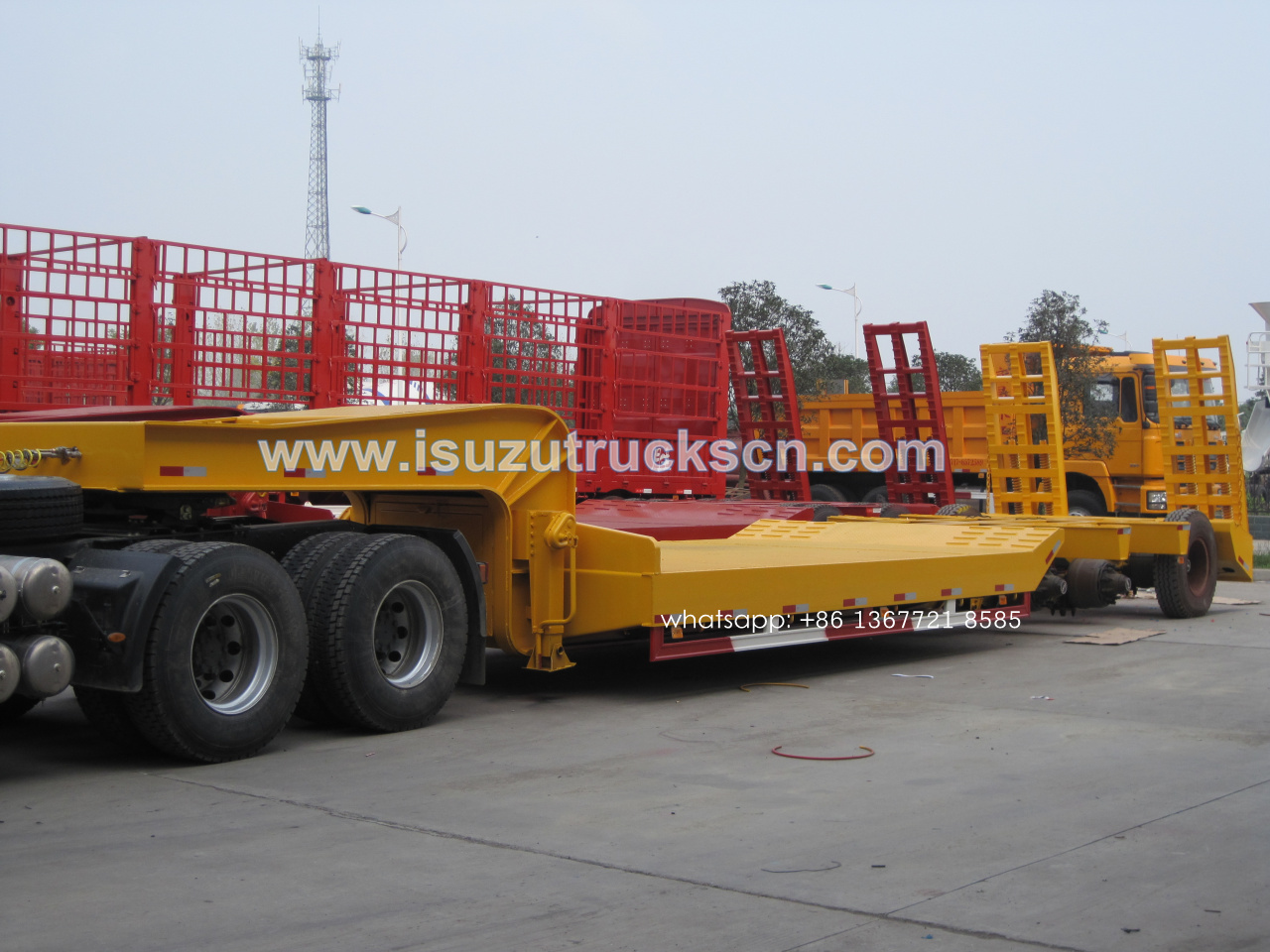

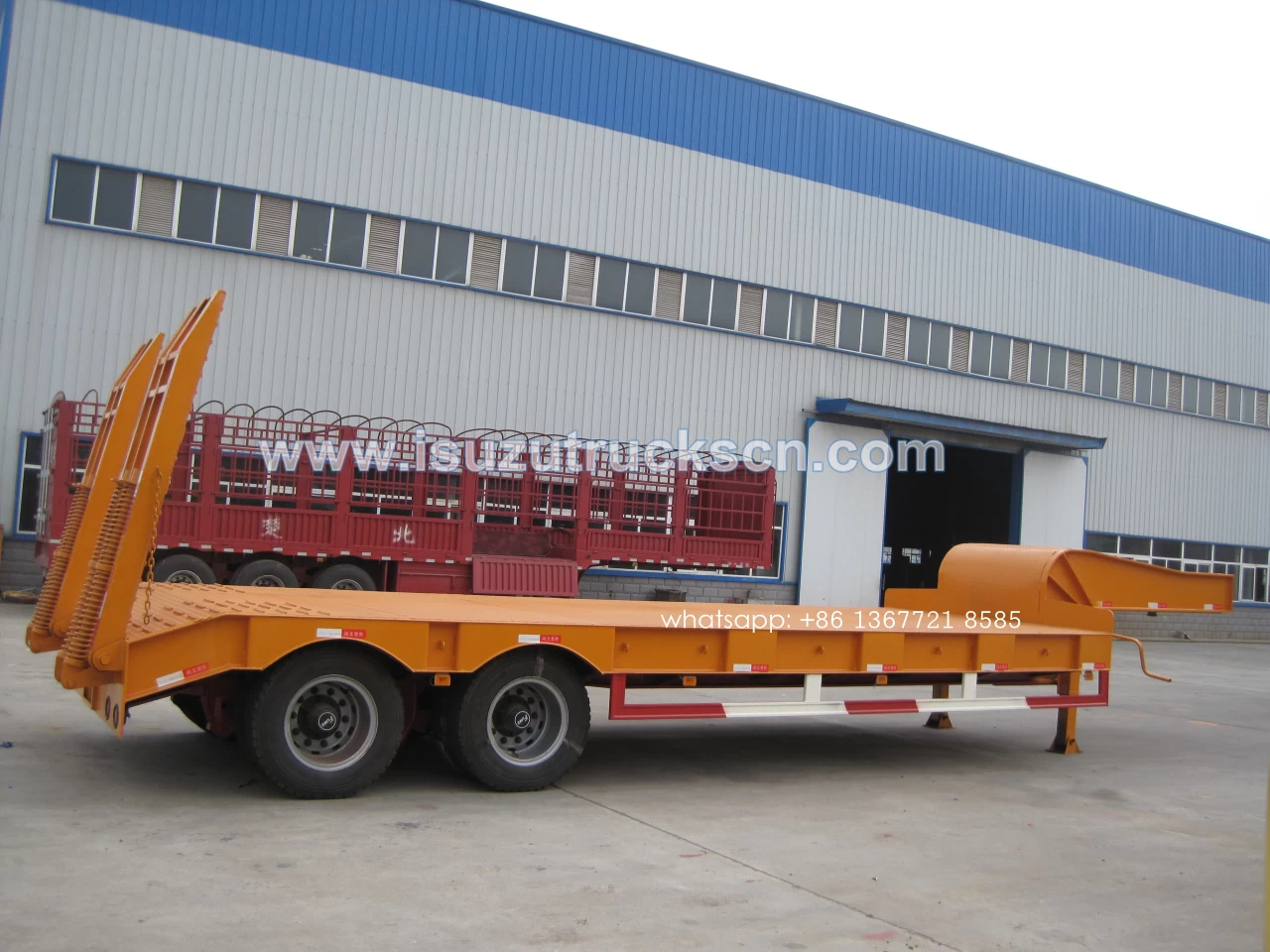

2016 latest Build example:
