2-Bolt Flange Bearing Units NAFLU2

NAFLU  Standard duty,Wider inner ring bearing, Eccentric locking,Cast gray iron housing .

Cast DUCTILE iron housing available upon request.

Facebook Twitter Pinterest LinkedIn 分享

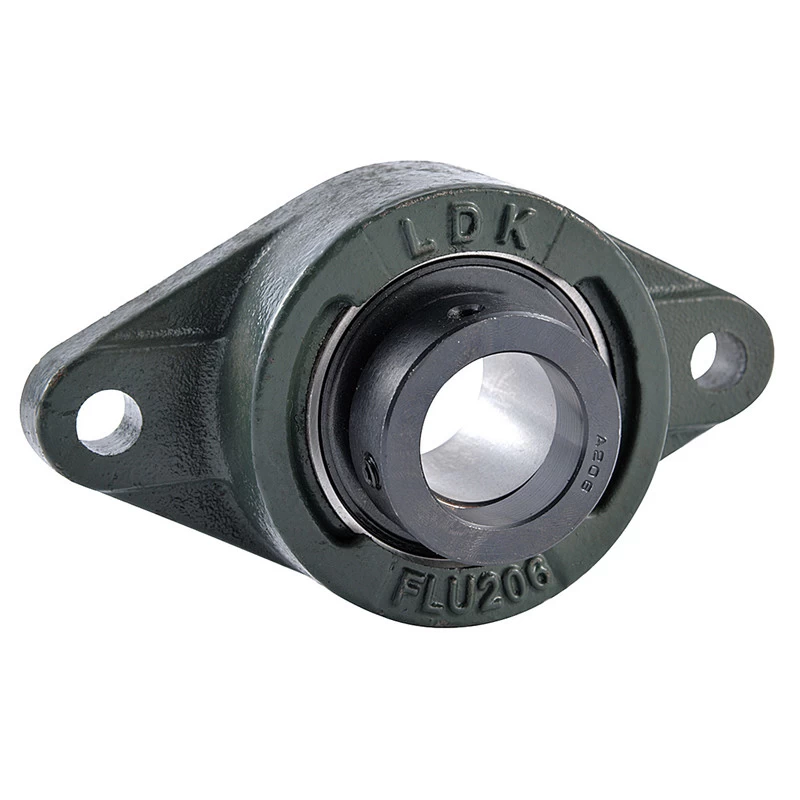

2-Bolt Flange Bearing NAFLU207

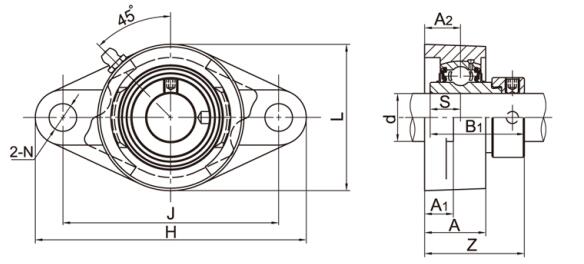

Unit No. Shaft Dia Dimensions (mm) Bolt Size (mm) Weight
d H J L A2 A1 A N B1 S Z (kg)
(in) (mm)
NAFLU201S   12 99 76.5 57 15 11 24.5 11.5 37.3 13.9 38.4 M10 0.66
NAFLU201-8S 1/2   99 76.5 57 15 11 24.5 11.5 37.3 13.9 38.4 M10 0.66
NAFLU202S  15 99 76.5 57 15 11 24.5 11.5 37.3 13.9 38.4 M10 0.66
NAFLU202-10S 5/8   99 76.5 57 15 11 24.5 11.5 37.3 13.9 38.4 M10 0.66
NAFLU203S   17 99 76.5 57 15 11 24.5 11.5 37.3 13.9 38.4 M10 0.66
NAFLU203-11S 11/16   99 76.5 57 15 11 24.5 11.5 37.3 13.9 38.4 M10 0.66
NAFLU201   12 112.5 90 61 19 15 29.5 11.5 43.7 17 45.5 M10 0.73
NAFLU201-8 1/2   112.5 90 61 19 15 29.5 11.5 43.7 17 45.5 M10 0.73
NAFLU202   15 112.5 90 61 19 15 29.5 11.5 43.7 17 45.5 M10 0.73
NAFLU202-10  5/8 112.5 90 61 19 15 29.5 11.5 43.7 17 45.5 M10 0.73
NAFLU203   17 112.5 90 61 19 15 29.5 11.5 43.7 17 45.5 M10 0.73
NAFLU203-11 11/16   112.5 90 61 19 15 29.5 11.5 43.7 17 45.5 M10 0.73
NAFLU204   20 112.5 90 61 19 15 29.5 11.5 43.7 17 45.5 M10 0.73
NAFLU204-12 3/4   112.5 90 61 19 15 29.5 11.5 43.7 17 45.5 M10 0.73
NAFLU205   25 123 99 70 19 15 30 11.5 44.4 17.4 45.9 M10 0.8
NAFLU205-14  7/8    123 99 70 19 15 30 11.5 44.4 17.4 45.9 M10 0.8
NAFLU205-15 15/16   123 99 70 19 15 30 11.5 44.4 17.4 45.9 M10 0.8
NAFLU205-16 1   123 99 70 19 15 30 11.5 44.4 17.4 45.9 M10 0.8
NAFLU206   30 142 116.5 82 20 13 32.5 11.5 48.4 18.2 50.1 M10 1.2
NAFLU206-18  1-1/8    142 116.5 82 20 13 32.5 11.5 48.4 18.2 50.1 M10 1.2
NAFLU206-19 1-3/16   142 116.5 82 20 13 32.5 11.5 48.4 18.2 50.1 M10 1.2
NAFLU206-20 1-1/4   142 116.5 82 20 13 32.5 11.5 48.4 18.2 50.1 M10 1.2
NAFLU207   35 158 130 94 21 17 36 14 51.1 18.8 53.3 M12 1.6
NAFLU207-20  1-1/4    158 130 94 21 17 36 14 51.1 18.8 53.3 M12 1.6
NAFLU207-21 1-5/16   158 130 94 21 17 36 14 51.1 18.8 53.3 M12 1.6
NAFLU207-22 1-3/16   158 130 94 21 17 36 14 51.1 18.8 53.3 M12 1.6
NAFLU207-23 1-7/16   158 130 94 21 17 36 14 51.1 18.8 53.3 M12 1.6
NAFLU208   40 172 143.5 103 24 17 39 14 56.3 21.4 58.9 M12 1.9
NAFLU208-24 1-1/2   172 143.5 103 24 17 39 14 56.3 21.4 58.9 M12 1.9
NAFLU208-25 1-9/16   172 143.5 103 24 17 39 14 56.3 21.4 58.9 M12 1.9
NAFLU209   45 180 148.5 108 24 18 40 16 56.3 21.4 58.9 M14 2.3
NAFLU209-26  1-5/8    180 148.5 108 24 18 40 16 56.3 21.4 58.9 M14 2.3
NAFLU209-27 1-11/16   180 148.5 108 24 18 40 16 56.3 21.4 58.9 M14 2.3
NAFLU209-28 1-3/4   180 148.5 108 24 18 40 16 56.3 21.4 58.9 M14 2.3
NAFLU210   50 190 157 114 28 20 45 18 62.7 24.6 66.1 M16 2.6
NAFLU210-30  1-7/8    190 157 114 28 20 45 18 62.7 24.6 66.1 M16 2.6
NAFLU210-31 1-15/16   190 157 114 28 20 45 18 62.7 24.6 66.1 M16 2.6
NAFLU210-32 2   190 157 114 28 20 45 18 62.7 24.6 66.1 M16 2.6
NAFLU211   55 217 184 128 31 21 48 18 71.4 27.7 74.6 M16 3.8
NAFLU211-32  2   217 184 128 31 21 48 18 71.4 27.7 74.6 M16 3.8
NAFLU211-34 2-1/8   217 184 128 31 21 48 18 71.4 27.7 74.6 M16 3.8
NAFLU211-35 2-3/16   217 184 128 31 21 48 18 71.4 27.7 74.6 M16 3.8
NAFLU212   60 237 202 138 34 21 53 18 77.8 30.9 80.8 M16 4.8
NAFLU212-36  2-1/4    237 202 138 34 21 53 18 77.8 30.9 80.8 M16 4.8
NAFLU212-38 2-3/8   237 202 138 34 21 53 18 77.8 30.9 80.8 M16 4.8
NAFLU212-39 2-7/16   237 202 138 34 21 53 18 77.8 30.9 80.8 M16 4.8
NAFLU213  65 256 210 152 38 22 56 21 85.7 34.1 89.6 M18 6.0
NAFLU213-40 2-1/2   256 210 152 38 22 56 21 85.7 34.1 89.6 M18 6.0
NAFLU214  70 264 216 157 38 23 58 21 85.7 34.1 89.6 M18 6.3
NAFLU214-44 2-3/4   264 216 157 38 23 58 21 85.7 34.1 89.6 M18 6.3
NAFLU215  75 275 225 164 41 24 62 21 92.1 37.3 95.8 M18 7.2
NAFLU215-47 2-15/16   275 225 164 41 24 62 21 92.1 37.3 95.8 M18 7.2
NAFLU215-48 3   275 225 164 41 24 62 21 92.1 37.3 95.8 M18 7.2



Notes:Bearing housing solid base optional,add suffix SB as designation.
