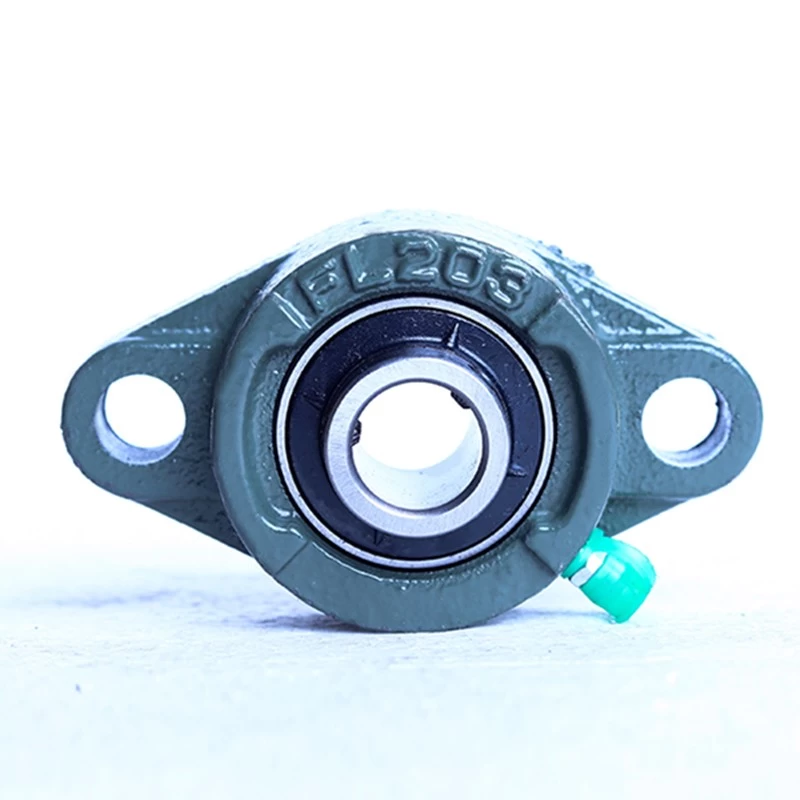

2-Bolt Flange Bearing Units

UCFL series 2-bolts flange bearing unit is one kind of design of mounted ball bearing unit, it consist of UCFL housing and UC, NA, UE, UK, SB type pillow block bearing, Setscrew and Eccentric locking. the material of the FL housing can be cast iron, cast steel, plastic and stainless Steel design, each of the housing and insert bearing can be interchange each other.


Facebook Twitter Pinterest LinkedIn 分享

UCFL series 2-bolts flange bearing unit is one kind of design of mounted ball bearing unit, it consist of UCFL housing and UC, NA, UE, UK, SB type pillow block bearing, Setscrew and Eccentric locking. the material of the FL housing can be cast iron, cast steel, plastic and stainless Steel design, each of the housing and insert bearing can be interchange each other.

Unit No.

Shaft Dia

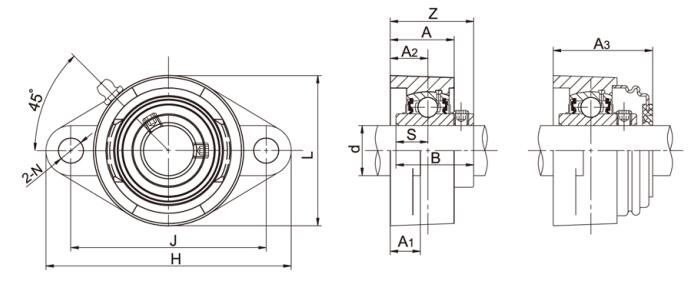

Dimensions(mm)

Bolt Size (mm)

Weight (kg)

d

H

J

A2

A1

A

N

L

B

s

z

A3

(in)

(mm)

UCFL201

 

12

113

90

15

11

25.5

12

60

31

12.7

33.3

-

M10

0.51

UCFL201-8

1/2

 

113

90

15

11

25.5

12

60

31

12.7

33.3

-

M10

0.51

UCFL202

 

15

113

90

15

11

25.5

12

60

31

12.7

33.3

-

M10

0.51

UCFL202-9

9/16

 

113

90

15

11

25.5

12

60

31

12.7

33.3

-

M10

0.51

UCFL202-10

5/8

 

113

90

15

11

25.5

12

60

31

12.7

33.3

-

M10

0.51

UCFL203

 

17

113

90

15

11

25.5

12

60

31

12.7

33.3

-

M10

0.51

UCFL203-11

11/16

 

113

90

15

11

25.5

12

60

31

12.7

33.3

-

M10

0.51

UCFL204

 

20

113

90

15

11

25.5

12

60

31

12.7

33.3

38.2

M10

0.51

UCFL204-12

3/4

 

113

90

15

11

25.5

12

60

31

12.7

33.3

38.2

M10

0.51

UCFL205

 

25

130

99

16

13

27

16

68

34.1

14.3

35.8

40

M14

0.6

UCFL205-14

7/8

 

130

99

16

13

27

16

68

34.1

14.3

35.8

40

M14

0.6

UCFL205-15

15/16

 

130

99

16

13

27

16

68

34.1

14.3

35.8

40

M14

0.6

UCFL205-16

1

 

130

99

16

13

27

16

68

34.1

14.3

35.8

40

M14

0.6

UCFL206

 

30

148

117

18

13

31

16

80

38.1

15.9

40.2

44

M14

0.9

UCFL206-17

1-1/16

 

148

117

18

13

31

16

80

38.1

15.9

40.2

44

M14

0.9

UCFL206-18

1-1/8

 

148

117

18

13

31

16

80

38.1

15.9

40.2

44

M14

0.9

UCFL206-19

1-3/16

 

148

117

18

13

31

16

80

38.1

15.9

40.2

44

M14

0.9

UCFL206-20

1-1/4

 

148

117

18

13

31

16

80

38.1

15.9

40.2

44

M14

0.9

UCFL207

 

35

160

130

19

15

34

16

90

42.9

17.5

44.4

48.5

M14

1.2

UCFL207-20

1-1/4

 

160

130

19

15

34

16

90

42.9

17.5

44.4

48.5

M14

1.2

UCFL207-21

1-5/16

 

160

130

19

15

34

16

90

42.9

17.5

44.4

48.5

M14

1.2

UCFL207-22

1-3/8

 

160

130

19

15

34

16

90

42.9

17.5

44.4

48.5

M14

1.2

UCFL207-23

1-7/16

 

160

130

19

15

34

16

90

42.9

17.5

44.4

48.5

M14

1.2

UCFL208

 

40

175

144

21

15

36

16

100

49.2

19

51.2

55.1

M14

1.5

UCFL208-24

1-1/2

 

175

144

21

15

36

16

100

49.2

19

51.2

55.1

M14

1.5

UCFL208-25

1-9/16

 

175

144

21

15

36

16

100

49.2

19

51.2

55.1

M14

1.5

UCFL209

 

45

188

148

22

16

38

19

108

49.2

19

52.2

57

M16

1.9

UCFL209-26

1-5/8

 

188

148

22

16

38

19

108

49.2

19

52.2

57

M16

1.9

UCFL209-27

1-11/16

 

188

148

22

16

38

19

108

49.2

19

52.2

57

M16

1.9

UCFL209-28

1-3/4

 

188

148

22

16

38

19

108

49.2

19

52.2

57

M16

1.9

UCFL210

 

50

197

157

22

16

40

19

115

51.6

19

54.6

60

M16

2.2

UCFL210-30

1-7/8

 

197

157

22

16

40

19

115

51.6

19

54.6

60

M16

2.2

UCFL210-31

1-15/16

 

197

157

22

16

40

19

115

51.6

19

54.6

60

M16

2.2

UCFL210-32

2

 

197

157

22

16

40

19

115

51.6

19

54.6

60

M16

2.2

UCFL211

 

55

224

184

25

18

43

19

125

55.6

22.2

58.4

63

M16

3.0

UCFL211-32

2

 

224

184

25

18

43

19

125

55.6

22.2

58.4

63

M16

3.0

UCFL211-34

2-1/8

 

224

184

25

18

43

19

125

55.6

22.2

58.4

63

M16

3.0

UCFL211-35

2-3/16

 

224

184

25

18

43

19

125

55.6

22.2

58.4

63

M16

3.0

UCFL212

 

60

250

202

29

18

48

23

140

65.1

25.4

68.7

73.5

M20

4.0

UCFL212-36

2-1/4

 

250

202

29

18

48

23

140

65.1

25.4

68.7

73.5

M20

4.0

UCFL212-38

2-3/8

 

250

202

29

18

48

23

140

65.1

25.4

68.7

73.5

M20

4.0

UCFL212-39

2-7/16

 

250

202

29

18

48

23

140

65.1

25.4

68.7

73.5

M20

4.0

UCFL213

 

65

258

210

30

22

50

23

155

65.1

25.4

69.7

74.5

M20

5.0

UCFL213-40

2-1/2

 

258

210

30

22

50

23

155

65.1

25.4

69.7

74.5

M20

5.0

UCFL214

 

70

265

216

31

22

54

23

160

74.6

30.2

75.4

80

M20

5.6

UCFL214-44

2-3/4

 

265

216

31

22

54

23

160

74.6

30.2

75.4

80

M20

5.6

UCFL215

 

75

275

225

34

22

56

23

165

77.8

33.3

78.5

82.5

M20

6.2

UCFL215-47

2-15/16

 

275

225

34

22

56

23

165

77.8

33.3

78.5

82.5

M20

6.2

UCFL215-48

3

 

275

225

34

22

56

23

165

77.8

33.3

78.5

82.5

M20

6.2

UCFL216

 

80

290

233

34

22

58

25

180

82.6

33.3

83.3

89

M22

7.8

UCFL217

 

85

305

248

36

24

63

25

190

85.7

34.1

87.6

93.1

M22

9.8

UCFL217-52

3-1/4

 

305

248

36

24

63

25

190

85.7

34.1

87.6

93.1

M22

9.8

UCFL218

 

90

320

265

40

24

68

25

205

96

39.7

96.3

102

M22

12.4

UCFL218-56

3-1/2

 

320

265

40

24

68

25

205

96

39.7

96.3

102

M22

12.4
