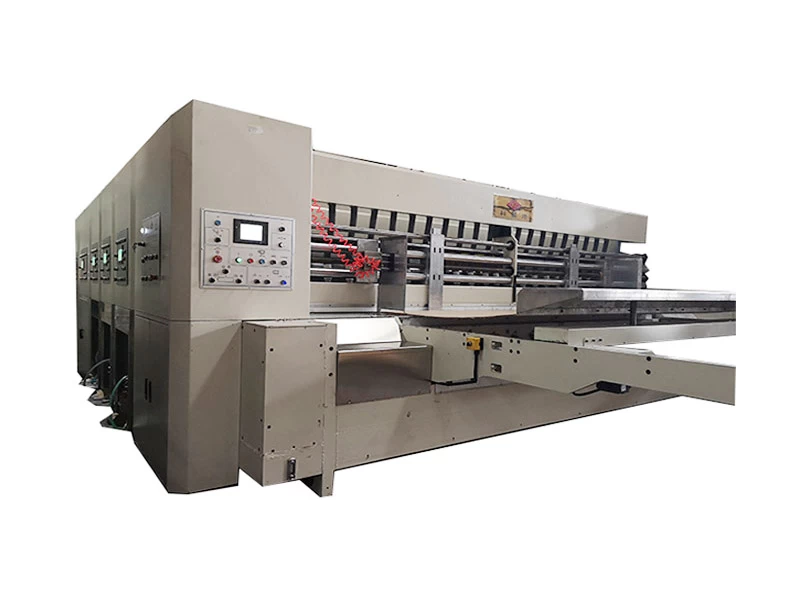

2 Color Flexo Printing Machine from China Factory
Two Color Flexo Printing Machine Features：
·This machine is designed and made to high quality and safety standard,with the advantages of high speed, auto control and quick order shift.
·Auto high quality materials and parts.
·Well hardened and ground transmission gears, hardness more than 60(HRC).
·Auto zero return and auto reset.
·Use expansion sets tight link to reduce abrasion of the shaft,keep precision of the machine for long years.

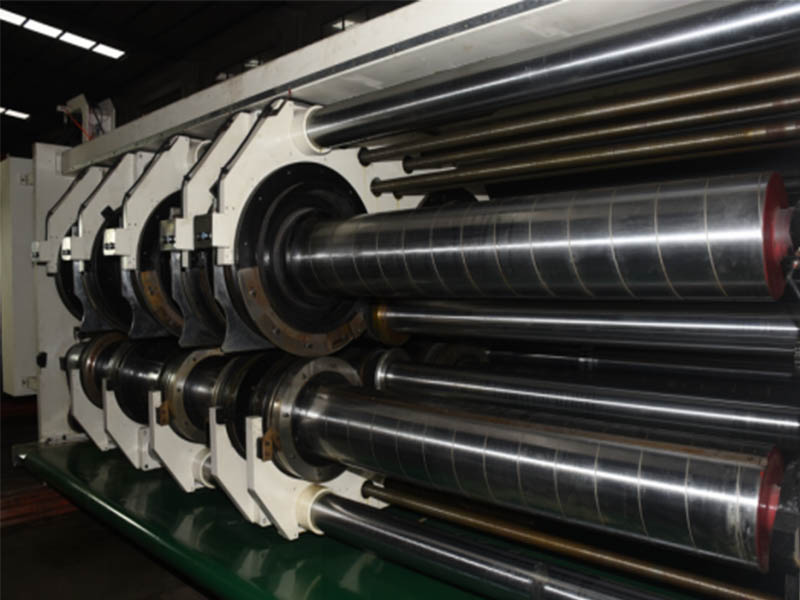

·All cylinders and rollers are chromed plated for ideal hardness.
·PLC control system with touch screen control.
·Able to save order,speed up the order shift.
·All electronic and pneumatic components are with European standards.

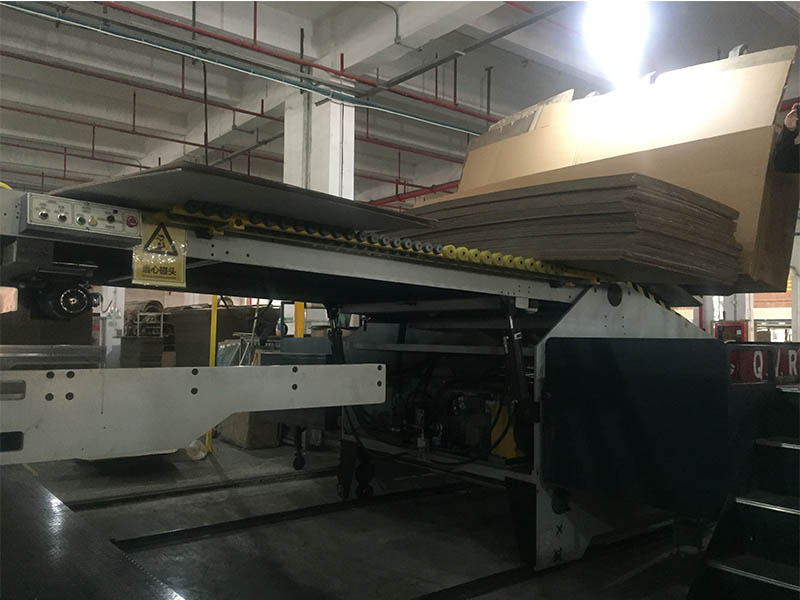

·Lead edge feeder or kick feeder is for choice.
Corrugated Carton Box Flexo Printing Machine Specification：
|
Data/Model
|
1600*3600
|
2200*3600
|
2200*4000
|
2200*4600
|
2200*5300
|
2600*3600
|
2600*4000
|
2600*4600
|
2600*5300
|
|
Printing Speed(m/min)
|
160
|
160
|
160
|
160
|
160
|
160
|
160
|
160
|
160
|
|
Max.Machine Speed(pcs/min)
|
120
|
100
|
100
|
100
|
80
|
80
|
80
|
80
|
80
|
|
Max.Feeding Size(mm)
|
1570x3600
|
2100x3600
|
2100x4000
|
2100x4600
|
2100x5300
|
2500x3600
|
2500x4000
|
2500x4600
|
2500x5300
|
|
Min.Feeding Size(mm)
|
450x760
|
550x900
|
550x900
|
550x900
|
550x900
|
650x900
|
650x900
|
650x900
|
650x900
|
|
Max. Printing Area(mm)
|
1540x3600
|
2080x3600
|
2080x4000
|
2080x4600
|
2080x5300
|
2480x3600
|
2480x4000
|
2480x4600
|
2480x5300
|
|
Thickness of Printing Plate(mm)
|
7.2
|
7.2
|
7.2
|
7.2
|
7.2
|
7.2
|
7.2
|
7.2
|
7.2
|
|
Min. Panel(mm) Slot Type L.
|
280x100x280x100
|
330x110x330x110
|
330x110x330x110
|
330x110x330x110
|
330x110x330x110
|
360x110x360x110
|
360x110x360x110
|
360x110x360x110
|
360x110x360x110
|
|
Max. Slotting Depth(mm)
|
560
|
750
|
750
|
750
|
750
|
850
|
850
|
850
|
850
|
|
Max. Thickness of Sheet(mm)
|
15
|
15
|
15
|
15
|
15
|
15
|
15
|
15
|
15
|
|
Dimension(LxWxH)
T
|
19852x6670x2700
|
21173x6670x2800
|
21173x7070x2800
|
21173x7670x2800
|
21173x8370x2800
|
22495x6670x3000
|
22495x7070x3000
|
22495x7670x3000
|
22495x8370x3000
|
Automatic 2 Color Flexo Printing Machine Advantages:
1.CNC control system (Intelligent Control)
2.Environmental Protection and Energy Saving, use washable ink;
3.Apply to box for big household appliances such as refrigerator, air-conditioner, and heavy industrial box, such as motorbike, auto spare parts.
4.Able to print and make honeycomb box.
FAQ:
Q1: What's the MOQ?
Re: The MOQ of machinery is 1 set.
Q2: What's delivery time?
Re: The general delivery time is 3~5 months after order confirmed, it depends on the order quantity.
Q3: Can you send the video to show how the machine works?
Re: Certainly, we have video of every machine, please feel free to contact us, we will send you machine video.
Q4: What's your payment terms?
Re: 30% in advance, and 70% before shipment.
Q5: What's the payment method?
Re: We accept T/T and L/C payment.
