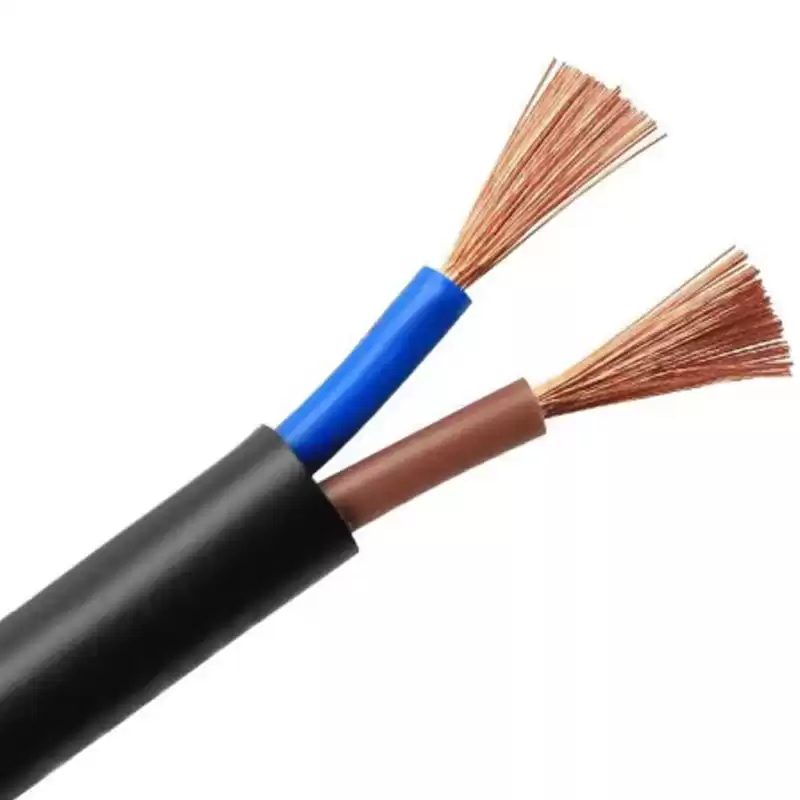

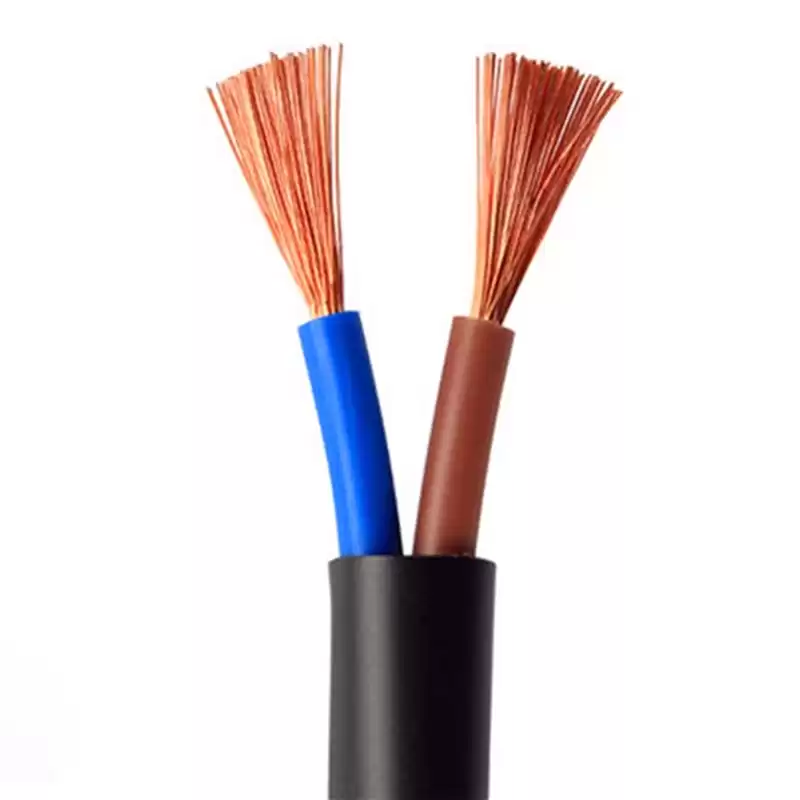

2 Cores RVV H05VV-F PVC Insulated Flexible Wire and Cables
PRODUCTS NAME
2 Cores RVV H05VV-F PVC Insulated Flexible Wire and Cables.
PRODUCTS KEYWORDS
RVV, H05VV-F, 3182Y, 3183Y, 3184Y, 3185Y, flexible cable, tranded copper wire, pvc insulated cable, electrical wire, electric cable, wire and cables.
PRODUCTS APPLICATION
2 Cores RVV H05VV-F PVC Insulated Flexible Wire and Cables, ordinary duty PVC cable for use in domestic appliances, kitchens and offices. For use with light portable appliances such as table lamps and office equipment. Generally unsuitable for outdoor use or industrial applications.
PRODUCTS STRUCTURE
2 Cores RVV H05VV-F PVC Insulated Flexible Wire and Cables:
---Conductor Material
Plain annealed copper wire, stranded Class 5.
---Insulation Material
45P Flexible PVC (polyvinyl chloride).
---Sheath Material
85P Flexible PVC (polyvinyl chloride).
PRODUCTS DIMENSIONS
|
Description of Cable
|
Products Main Technical Sheet
|
|
Products Name
|
2 Cores RVV H05VV-F PVC Insulated Flexible Wire and Cables.
|
|
Conductor Material
|
Plain annealed copper wires, stranded Class 5.
|
|
Conductor Structure
|
2C x 34/0.19 mm.
|
|
Insulation Material
|
45P Flexible PVC (Polyvinyl Chloride).
|
|
Insulation Thickness
|
0.6 mm.
|
|
Insulation Colour
|
Brown, blue, yellow/green; or others.
|
|
Sheath Material
|
85P Flexible PVC (Polyvinyl Chloride).
|
|
Sheath Thickness
|
0.8 mm.
|
|
Sheath Colour
|
Black, white, or others.
|
|
Conductor Cross-section
|
2 x 1.0 mm2.
|
|
Core Number
|
Two cores, 2 cores, 2C.
|
|
Out Diameter
|
7.5 mm.
|
|
Voltage Rate
|
300/500V (U0/U).
|
|
About Net Weight
|
66 kg/km.
|
|
Production Standard
|
JB/T 8734-2016, GB/T 5023-2008, IEC 60227, BS 6500, EN 50525-2-11.
|
|

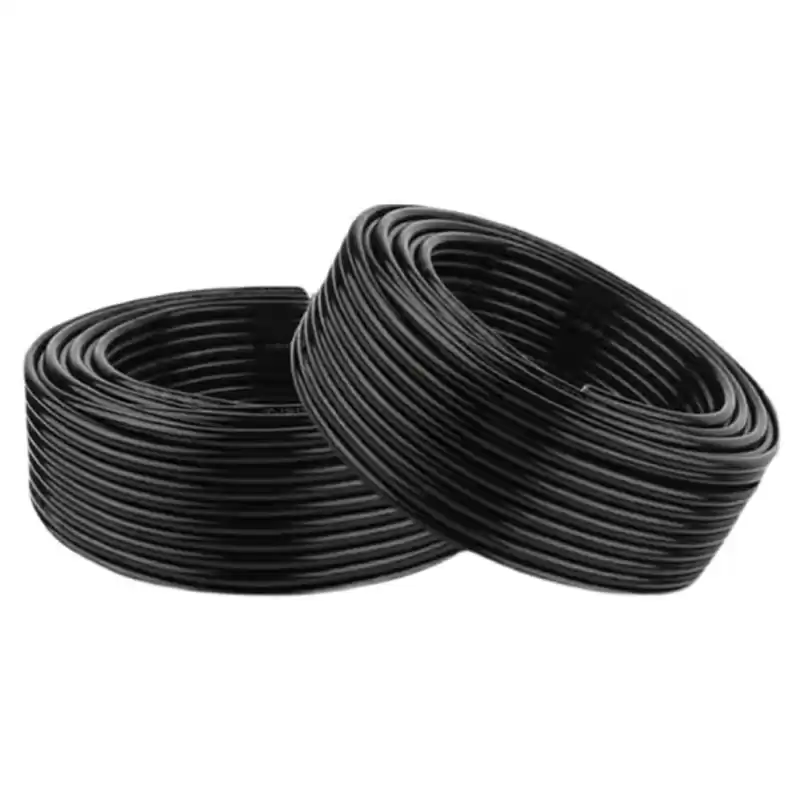

Products Packing
|
100 Meters per roll, or according to the customers requirement.
|
|
Max. Conductor DC
Resistance at 20℃ in Air
|
19.5 Ω/km.
|
|
Min. Insulated
Resistance at 70℃
|
0.010 MΩ.km.
|
|
Max. Ampacity
at 40 ℃ in air
|
16A.
|
