2 Gigabit LAN ports 3.5" motherboard 2LAN 6COM 8USB

ES3-J1900DL268

3.5" embedded motherboard, soldered onboard Intel® J1900 CPU ,  2LAN/6COM/8USB.



2 Gigabit LAN ports 3.5" motherboard 2LAN 6COM 8USB



Product Introduction

Experience exceptional performance with our 3.5" embedded motherboard featuring a soldered-on Intel® Haswell U series 4th generation processor. Elevate your computing capabilities with cutting-edge technology and seamless integration. Unleash the power of innovation with a compact yet powerful solution for your industrial needs.

Product Features

■ Soldered onboard Intel® J1900 CPU

■ 2 Gigabit LAN ports

■ VGA, HDMI, LVDS (or EDP) interface

■ 6COM RS232 (2 support RS485)

■ 7USB2.0, 1USB3.0

■ 8-bit GPIO

■ 1 MSATA, 1 Mini PCIE

■ SIM card holder

■ 1 to 255S reset watchdog

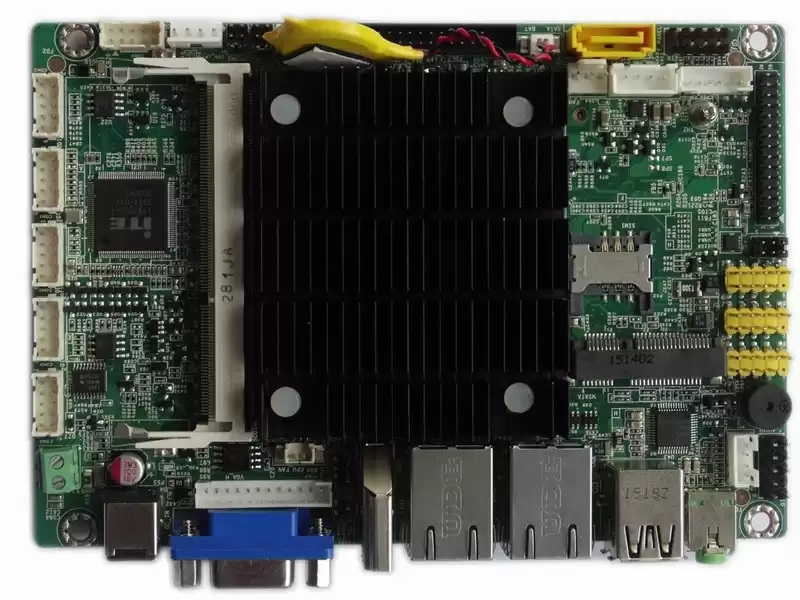

3.5inch Embedded Motherboard ES3-J1900DL268  3.5inch Embedded Motherboard ES3-J1900DL268



Specification
CPU/GPU Soldered onboard Intel® J1900 CPU
Memory 1×DDR3 SO-DIMM laptop slot, up to 8GB SDRAM
Storage 1×SATA, 1M-SATA
Sound Card Realtek ALC6625.1 channel support
NIC 2 gigabit LAN
Display Card CPU integrated gaphic
Display Interface 1×VGA1×HDMI; 1×LVDSEDPoptional
USB2.0 7
USB3.0 1
GPIO 8 bits
COM 6COM RS232COM3 / COM4 support RS485

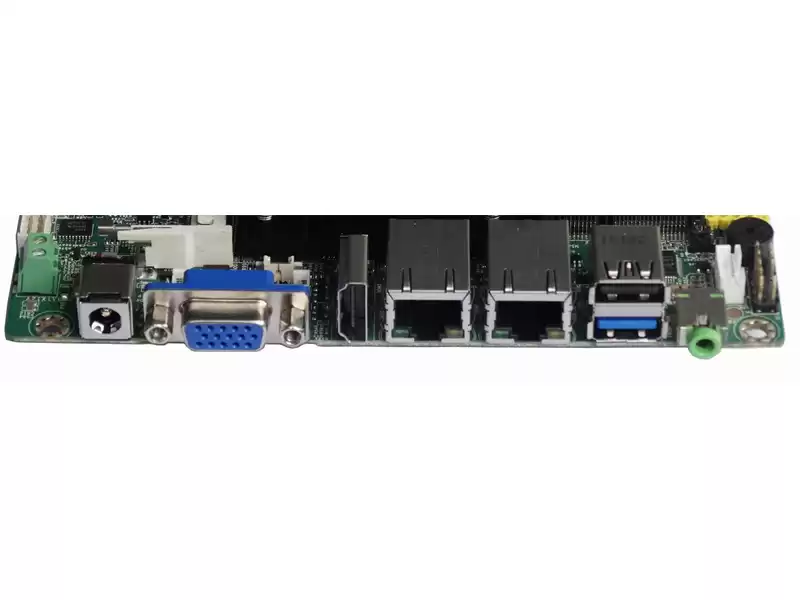

Backplane I / O DC in,  VGA,  HDMI,  2 RJ45 LAN,  USB3.0+USB2.0,  Line-out
Board I / O  6USB ,  6 COM ,  front audio ,  CLR_CMOS ,  CPU fan power ,  System fan power , GPIO
Front panel ,  Speaker,  SIM Socket,   4P DC in,  LVDS,  invert,  Print
Expansion 1MSATA,  1 MINI PCIE
System  Support WindowsWIN 7WIN 10 ...),Linux



Mechanical & Environmental
Power Supply DC 12V Heat Dissipation Heat sink or Fan Size(L×W) 146mm×102mm
Working Temperature -15~55℃ Storage Temperature -40~75℃ Environmental Humidity 0~90% air humidityno condensation
Packing List ES3-J1900DL268 motherboard×1SATA data cable×1SATA power cable×1COM cable×2



Our Advantages

1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.

2.Our products are 100% original and have strict QC inspection before shipment.

3.Professional and efficient sales team to serve for you diligently.

4.Sample order is welcomed and will be delivered within 1-3 days.

6.We support Trade Assurance to ensure On-time shipment and product quality.

7.We provide OEM/ODM service according to your requirements.

8.We provide 2 years maintenance warranty for our products.
