2 piece ball valve flange end

A ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball (called a "floating ball") to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle.[1] The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status

Facebook Twitter Pinterest LinkedIn 分享

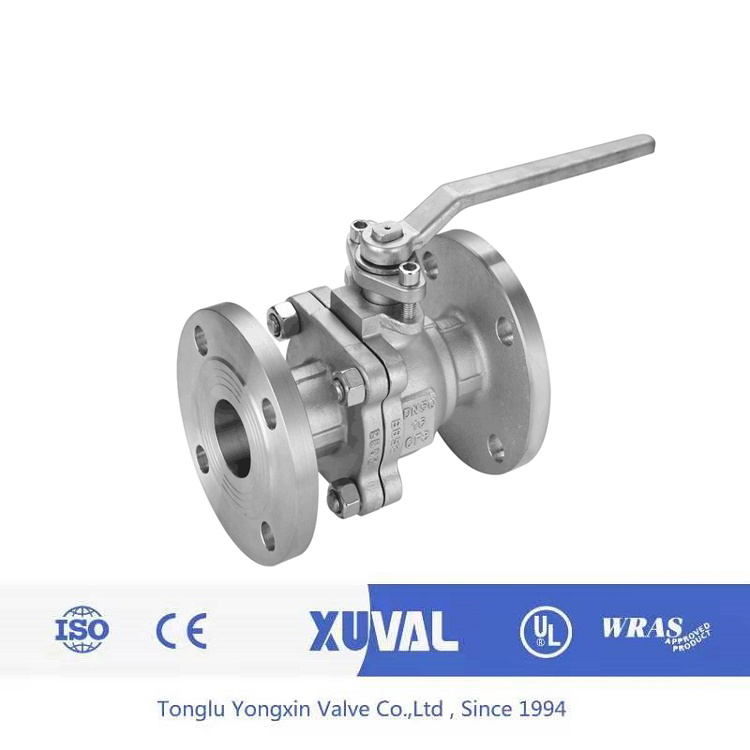

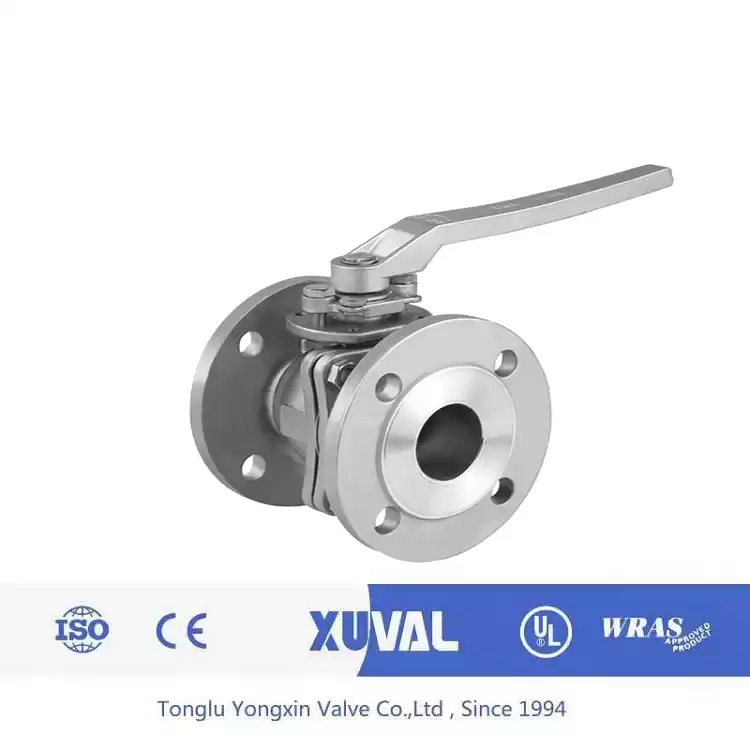

2 pieces ball valve flange end


Q41F ball valve flange end it has the same rotation 90 degrees action, the difference is that the cock body is a sphere with a circular through hole or channel through its axis. Ball valve in the pipeline is mainly used to cut off, distribute and change the flow direction of the medium, it only needs to rotate 90 degrees operation and very small rotation torque to close tight. Q41F ball valve classification: stainless steel Q41F ball valve, wide Q41F ball valve, carbon steel Q41F ball valve, integrated Q41F ball valve, three-piece Q41F ball valve.


DIN Features:

Full port,1/2"-12"(DN15~DN300)

W.P.: PN16/40

W.T.: -20℃-180℃

Investment casting

Blow-out proof stem

Anti-static device (option)

Locking device handle

ISO 5211 Direct mounting pad

Automation accessories (option）

Design: EN1983, EN12516-1

Flange dimension: DIN 2543~2545, EN1092-1 PN16/40

Face to face: DIN3202 Part1-F4(DN15~dn100),DIN3202 Part1-F5(DN125~DN300)

Inspection & testing:DIN3230,EN12266-1


Material List
No. PARTS
 MATERIAL
1 BODY 1.0619
 1.4308
 1.4408
2 BOLT 304
3 NUT 304
4 BALL 1.4308
 1.4308 1.4408
5 SEAT PTFE
6 BODY 1.0619 1.4308 1.4408
7 STEM 304 304 316
8 GASKET PTFE
9 O-RING FPM
10 HEX SOCKET BOLT 304
11 PACKING PTFE
12 BONNET 1.0619 1.4308 1.4408
13 GLAND 304
14 HANDLE WCB/CF8
15 STEM WASHER PTFE+25%GF
16 STEM WASHER PTFE+25%GF

2pieces ball valve PN16 150lb 10K       ball valve flange end

Unit:mm

Dimensions PN16

Nominal

Diameter

L
 d
 D2
 D1
 D
 b
 f
 n-φd1
 H
 h
 W
 Ra
 Rb
 A
 B
 KxK
15
 1/2"
 115 15 45
 65 95 16 2 4-14 55 9 140 3.0 3.5 36 50 9X9
20 3/4" 120 20 58 75 105 18 2 4-14 60 9 140 3.0 3.5 36 50 9X9
25 1" 125 25 68
 85 115 18 2 4-14 67 11 170 3.0 3.5 36 50 11X11
32 1-1/4" 130 32 78
 100 140 18 2 4-18 76 11 170 3.0 3.5 42 50 11X11
40 1-1/2" 140 40 88
 110 150 18 3 4-18 85 14 200 3.5 4.5 50 70 14X14
50 2" 150 50 102
 125 165 20 3 4-18 93 14 200 3.5 4.5 50 70 14X14
65 2-1/2" 170 65 122
 145 185 18 3 4-18 113 17 300 4.5 5.5 70 102 17X17
80 3" 180 80 138
 160 200 20 3 8-18 126 17 300 4.5 5.5 70 102 17X17
100 4" 190 100 158
 180 220 20 3 8-18 141 17 300 4.5 5.5 70 102 17X17
125 5" 325 125 188
 210 250 22 3 8-18 170 25 650 5.5 6.5 102 125 22X22
150 6" 350 150 212 240 285 22 3 8-22 192 30 800 5.5 6.5 102 125 27X27
200 8" 400 200 268 295 340 24 3 8-22 234 35 300 5.5 6.5 102 125 27X27

ball valve flange end

Unit:mm

Dimensions PN40

Nominal

Diameter

L
 d
 D2
 D1
 D
 b
 f
 n-φd1
 H
 h
 W
 Ra
 Rb
 A
 B
 KxK
15
 1/2"
 115 15 45 65 95 16 2 4-14 55 9 140 3.0 3.5 36 50 9X9
20 3/4" 120 20 58 75 105 18 2 4-14 60 9 140 3.0 3.5 36 50 9X9
25 1" 125 25 68 85 115 18 2 4-14 67 11 170 3.0 3.5 42 50 11X11
32 1-1/4" 130 32 78 100 140 18 2 4-18 76 11 170 3.0 3.5 42 50 11X11
40 1-1/2" 140 40 88 110 150 18 3 4-18 85 14 200 3.5 4.5 50 70 14X14
50 2" 150 50 102 125 165 20 3 4-18 93 14 200 3.5 4.5 50 70 14X14
65 2-1/2" 170 65 122 145 185 22 3 8-18 113 17 300 4.5 5.5 70 102 17X17
80 3" 180 80 138 160 200 24 3 8-18 126 17 300 4.5 5.5 70 102 17X17
100 4" 190 100 168 190 235 24 3 8-22 141 22 650 5.5 6.5 102 125 22X22
125 5" 325 125 188 220 270 26 3 8-26 170 25 650 5.5 6.5 102 125 22X22
150 6" 350 150 218 250 300 28 3 8-26 192 30 800 5.5 6.5 102 125 27X27
200 8" 400 200 285 320 375 34 3 12-30 234 35 300 5.5 6.5 102 125 27X27

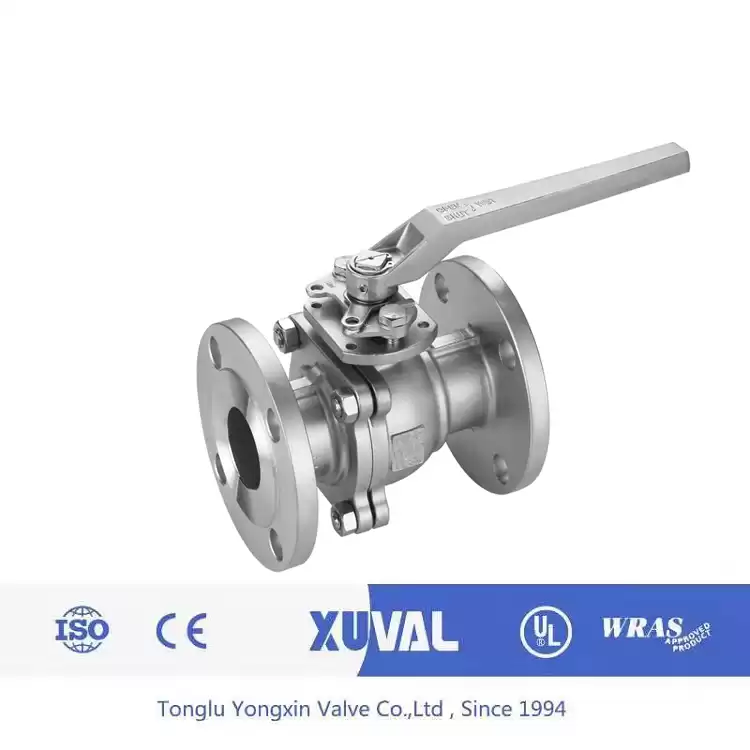

ANSI Features:

Full port, 1/2"-12"(DN15-DN300)

W.P.: CLASS 150/300

W.T.: -20℃-180℃

Investment casting

Blow-out proof stem

Anti-static device (option)

Design: ASME B16.34,API608,API6D

Flange dimension: ASME B16.5

Face to face: ASME B16.10

Inspection&testing: API598


Material List

No. PARTS
 MATERIAL
1
 BODY WCB CF8 CF8M
2
 SEAT PTFE
3 BALL CF8 CF8 CF8M
4 GASKET PTFE
5
 BONNET WCB CF8 CF8M
6
 BOLT 304
7
 NUT 304
8
 STEM 304 304 316
9 STME WASHER PTFE+25% GF
10 O-RING FPM
11 PACKING PTFE
12 WAEA WASHER PTFE+25% GF
13 GLAND CF8
14 STOPPER 304
15
 CIRCLIPS FOR SHAFT 304
16 HANDLE WCB
17
 WASHER
 304
18
 BOLT 304
19 BOLT 304

 Cast steel flange ball valve,ball valve flange end

  Unit:mm

Dimensions CLASS150

Nominal

Diameter

L d
 D2
 D1
 D
 b
 f
 n-φd1
 H
 W A 4-M
 KxK
15
 1/2"
 108 15 35 60.3 90 8 2 4-16 73 133 42 4-M5 9X9
20
 3/4" 117 20 43 70 100 8.9 2 4-16 76 133 42 4-M5 9X9
25
 1" 127 25 51 79.4 110 9.6 2 4-16 92 163 50 4-M6 11X11
32
 1-1/4" 140 32 63.5 88.9 115 11.2 2 4-16 95 163 50 4-M6 11X11
40 1-1/2" 165 40 73 98.4 125 12.7 2 4-16 116 192 70 4-M8 14X14
50
 2" 178 50 92 120.7 150 14.3 2 4-19 123 192 70 4-M8 14X14
65
 2-1/2" 190 65 105 139.7 180 15.9 2 4-19 150 330 70 4-M8 17X17
80
 3" 203 80 127 152.4 190 17.5 2 4-19 165 330 102 4-M10 19X19
100
 4" 229 100 157 190.5 230 22.3 2 8-19 180 330 102 4-M10 19X19
125
 5" 356 125 185 216 255 22.3 2 8-22 217 398 125 4-M12 22X22
150
 6" 394 150 216 241.3 280 23.9 2 8-22 192 30 102 4-M12 27X27
200 8" 457 200 270 298.5 345 27 2 8-22 234 35 102 4-M12 27X27



Dimensions CLASS300

Nominal

Diameter

L d
 D2
 D1
 D
 b
 f
 n-φd1
 H
 W A 4-M
 KxK
15
 1/2"
 140 15 35 66.7 95 12.7 2 4-16 73 133 42 4-M5 9X9
20
 3/4" 152 20 43 82.6 115 14.3 2 4-19 76 133 42 4-M5 9X9
25
 1" 165 25 51 88.9 125 15.9 2 4-19 92 163 50 4-M6 11X11
32
 1-1/4" 178 32 63.5 98.4 135 17.5 2 4-19 95 163 50 4-M6 11X11
40 1-1/2" 190 40 73 114.3 155 19.1 2 4-22 116 192 70 4-M8 14X14
50
 2" 216 50 92
 127 165 20.7 2 8-19 123 192 70 4-M8 14X14
65
 2-1/2" 241 65 105 149.2 190 23.9 2 8-22 150 330 70 4-M8 17X17
80
 3" 282 80 127 168.3 210 27 2 8-22 165 330 102 4-M10 19X19
100
 4" 305 100 157 200 255 30.2 2 8-22 192 398 125 4-M12 19X19
125
 5" 381 125 185 216 280 33.4 2 8-22 170 25 102 4-M12 22X22
150
 6" 403 150 216 269.9 320 35 2 8-22 192 30 102 4-M12 27X27
200 8" 502 200 270 330.2 380 39.7 2 8-22 234 35 102 4-M12 27X27

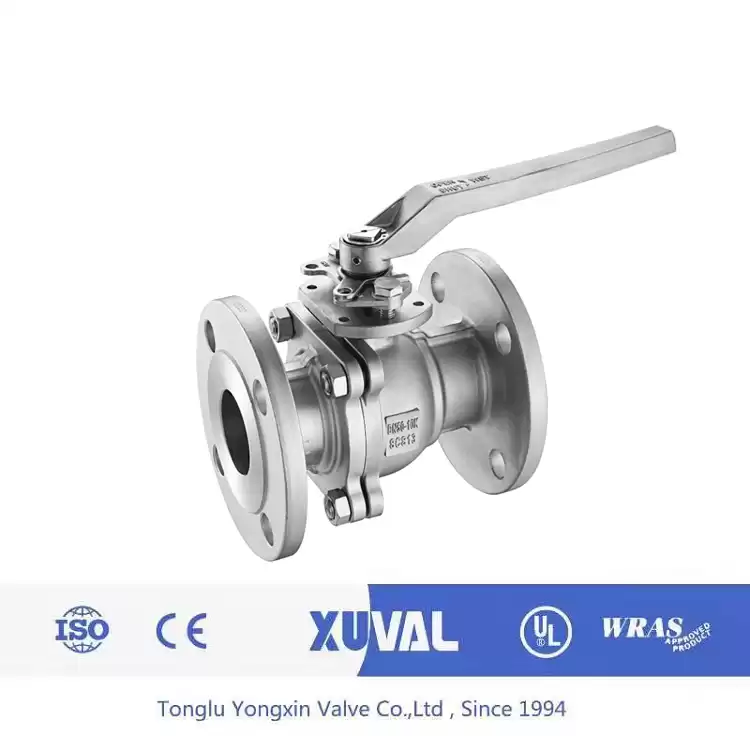

JIS Features:

Full port. 1/2"~6"(DN15-DN150)

W.P.: 10K/20K

W.T.: -20℃-180℃

Blow-out proof stem

Anti-static device (option)

Design: JIS B2071

Flange dimension: JIS B2220

Face to face: JIS B2002

Inspection&testing: JIS B2003


Material List

No. PARTS
 MATERIAL
1
 BODY SCPH2 SCS13 SCS14
2
 SEAT PTFE
3 BALL SCS13 SCS13 SCS14
4 GASKET PTFE
5
 BONNET SCPH2 SCS13 SCS14
6
 BOLT 304
7
 NUT 304
8
 STEM 304 304 316
9 STME WASHER PTFE+25% GF
10 O-RING FPM
11 PACKING PTFE
12 WAEA WASHER PTFE+25% GF
13 GLAND CF8
14 STOPPER 304
15
 CIRCLIPS FOR SHAFT 304
16 HANDLE WCB
17
 WASHER
 304
18
 BOLT 304
19 BOLT 304






                                                                                                                                                                        Unit:mm

Dimensions 10K

Nominal

Diameter

L d
 D2
 D1
 D
 b
 f
 n-φd1
 H
 W A 4-M
 KxK
15
 1/2"
 108 15 51 70 95 12 1 4-15 73 133 42 4-M5 9X9
20
 3/4" 117 20 56 75 100 14 1 4-15 76 133 42 4-M5 9X9
25
 1" 127 25 67 90 125 14 1 4-19 92 163 50 4-M6 11X11
32
 1-1/4" 140 32 76 100 135 16 2 4-19 95 163 50 4-M6 11X11
40 1-1/2" 165 40 81 105 140 16 2 4-19 116 192 70 4-M8 14X14
50
 2" 178 50 96 120 155 16 2 4-19 123 192 70 4-M8 14X14
65
 2-1/2" 190 65 116 140 175 18 2 4-19 150 330 70 4-M8 17X17
80
 3" 203 80 126 150 185 18 2 8-19 165 330 102 4-M10 19X19
100
 4" 229 100 151 175 210 18 2 8-19 180 330 102 4-M10 19X19
125
 5" *356/300 125 182 210 250 20 2 8-23 170 25 102 4-M12 22X22
150
 6" *394/340 150 212 240 280 22 2 8-23 192 30 102 4-M12 27X27
200 8" *457/450 200 262 290 330 22 2 12-23 234 35 102 4-M12 27X27





  Unit:mm

Dimensions 20K

Nominal

Diameter

L d
 D2
 D1
 D
 b
 f
 n-φd1
 H
 W A 4-M
 KxK
15
 1/2"
 140 15 51 70 95 14 1 4-15 73 133 42 4-M5 9X9
20
 3/4" 152 20 56 75 100 16 1 4-15 76 133 42 4-M5 9X9
25
 1" 165 25 67 90 125 16 1 4-19 92 163 50 4-M6 11X11
32
 1-1/4" 178 32 76 100 135 18 2 4-19 95 163 50 4-M6 11X11
40 1-1/2" 190 40 81 105 140 18 2 4-19 116 192 70 4-M8 14X14
50
 2" 216 50 96 120 155 18 2 8-19 123 192 70 4-M8 14X14
65
 2-1/2" 241 65 116 140 175 20 2 8-19 150 330 70 4-M8 17X17
80
 3" 282 80 132 160 200 22 2 8-23 165 330 102 4-M10 19X19
100
 4" 305 100 160 185 225 24 2 8-23 192 398 125 4-M12 22X22
125
 5" *381/356 125 195 225 270 26 2 8-25 170 25 102 4-M12 22X22
150
 6" *403/394 150 230 260 365 28 2 12-25 192 30 102 4-M12 27X27
200 8" *502/457 200 275 305 350 30 2 12-25 234 35 102 4-M12 27X27
