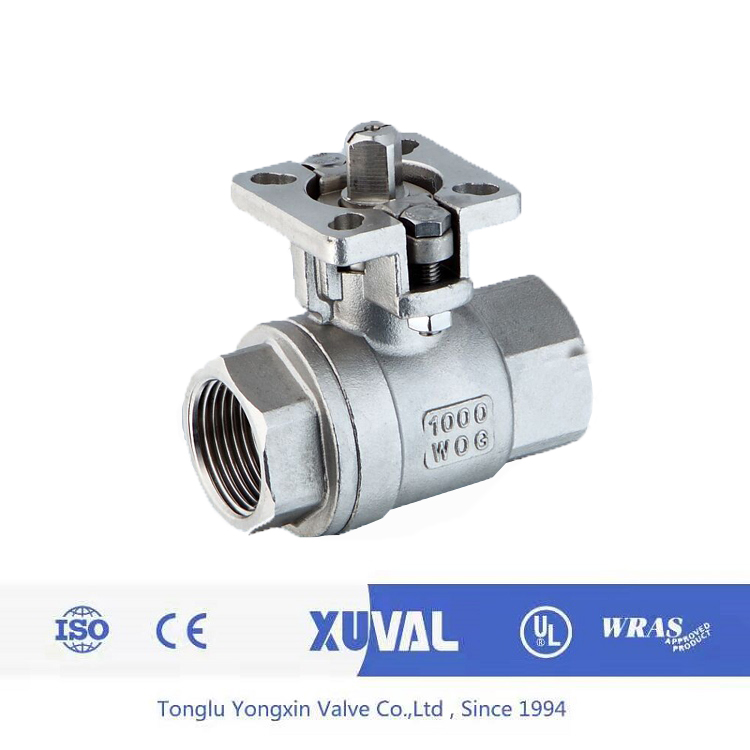

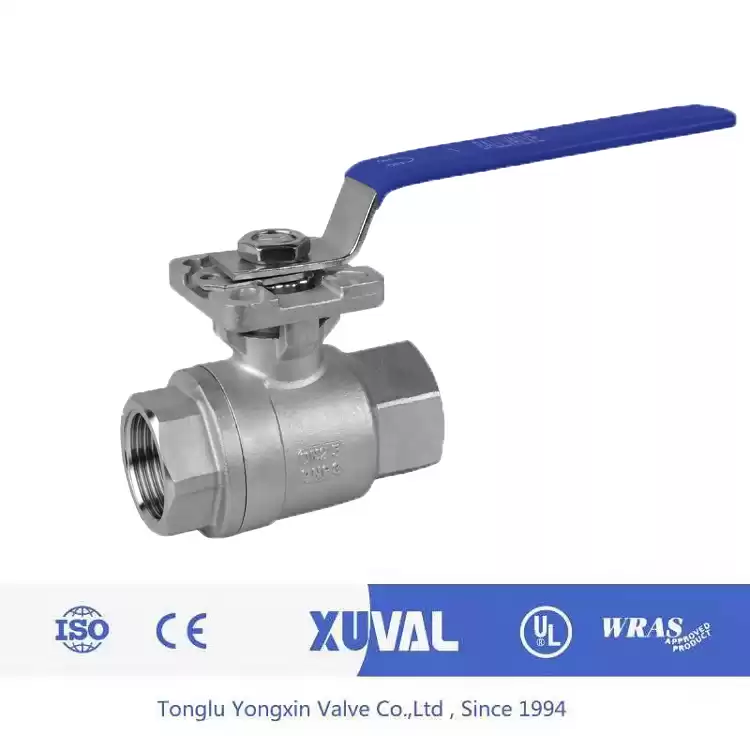

2 pieces ball valve thread end direct mounting pad
Features:
Full port, 1/4"~4" (DN6~DN100)
W.P.: 1000WOG (PN63)
W.T.:-20β-180β
Investment casting
Blow-out proof stem
Live-loading design
Anti-static device (option)
Locking device handle (option)
ISO 5211 Direct mounting pad
Automation accessories(option)
Thread type:ASME B1.20.1(NPT),DIN 259/DIN 2999,BS 21,ISO 288-1,ISO 7-1

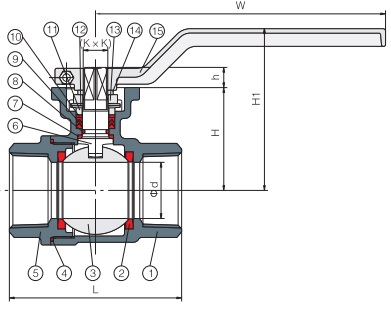

Material List
|
|
No.
|
Parts
|
Material
|
|
1
|
Body
|
WCB
|
CF8
|
CF8M
|
|
2
|
Seat
|
PTFE
|
|
3
|
Ball
|
CF8
|
CF8
|
CF8M
|
|
4
|
Gasket
|
PTFE
|
|
5
|
Bonnet
|
WCB
|
CF8
|
CF8M
|
|
6
|
Stem
|
304
|
304
|
316
|
|
7
|
Stem Washer
|
PTFE+25%GF
|
|
8
|
O-Ring
|
FPM
|
|
9
|
Packing
|
PTFE
|
|
10
|
Wear Washer
|
PTFE+25%GF
|
|
11
|
Gland
|
304
|
|
12
|
Disc Spring
|
304
|
|
13
|
Gland Flange
|
CF8
|
|
14
|
Stopper
|
304
|
|
15
|
Handle
|
WCB/CF8
|
|
16
|
Bolt
|
304
|
|
17
|
Nut
|
304
|
Unit:mm
Dimensions
|
Size
|
d
|
L
|
H
|
h
|
KxK
|
A
|
B
|
Ra
|
Rb
|
W
|
H1
|
|
1/4
|
DN6
|
10
|
61
|
34
|
9
|
9x9
|
36
|
42
|
3.0
|
3.0
|
140
|
66
|
|
3/8
|
DN10
|
12
|
61
|
34
|
9
|
9x9
|
36
|
42
|
3.0
|
3.0
|
140
|
66
|
|
1/2
|
DN15
|
15
|
61
|
34
|
9
|
9x9
|
36
|
42
|
3.0
|
3.0
|
140
|
66
|
|
3/4
|
DN20
|
20
|
72
|
42
|
9
|
9x9
|
36
|
42
|
3.0
|
3.0
|
140
|
74
|
|
1
|
DN25
|
25
|
78
|
53
|
11
|
11x11
|
42
|
50
|
3.0
|
3.5
|
170
|
88
|
|
1 1/4
|
DN32
|
32
|
95
|
57
|
11
|
11x11
|
42
|
50
|
3.0
|
3.5
|
170
|
92
|
|
1 1/2
|
DN40
|
38
|
106
|
68
|
14
|
14x14
|
50
|
70
|
3.5
|
4.5
|
200
|
106
|
|
2
|
DN50
|
50
|
119
|
78
|
14
|
14x14
|
50
|
70
|
3.5
|
4.5
|
200
|
116
|
|
2 1/2
|
DN65
|
65
|
144
|
104
|
17
|
17x17
|
70
|
102
|
4.5
|
5.5
|
300
|
148
|
|
3
|
DN80
|
80
|
169
|
115
|
17
|
17x17
|
70
|
102
|
4.5
|
5.5
|
300
|
159
|
|
4
|
DN100
|
100
|
205
|
129
|
17
|
17x17
|
70
|
102
|
4.5
|
5.5
|
300
|
173
|
Packing & Delivery :
Packing Details : all by seaworthy plywood case and packed strongly by packing belt as below
Delivery Details : Generally it is 5-10 days if the goods are in stock. or15-30 days if the goods are OEM or not enough subject to the order quantity. But anyway, normally, we are able to make sure the delivery will not exceed 45days.
