Tea cake brick pressing machine can used for many kinds tea, such as puer tea, brick tea, cake tea and other tea, DL-6CY2-15 automatic hydraulic tea press machine used for press molding of cake tea, brick tea, bowl tea, etc. make the tea more compact and the shape of the tea is good, this machine has 2 working station, adopts automatic hydraulic control system, which greatly improves tea cake brick production efficiency.
1. The integrated design, the appearance of the large enclosure, with the moving bottom wheel, the overall appearance is beautiful and practical;
2. The main structural steel plate of the whole machine adopts Q345B high-strength steel plate;
3. Stainless steel plates are used in contact with the materials to ensure hygiene compliance;
4. Fully automatic control system and pressure sensing device make operation easier.
|

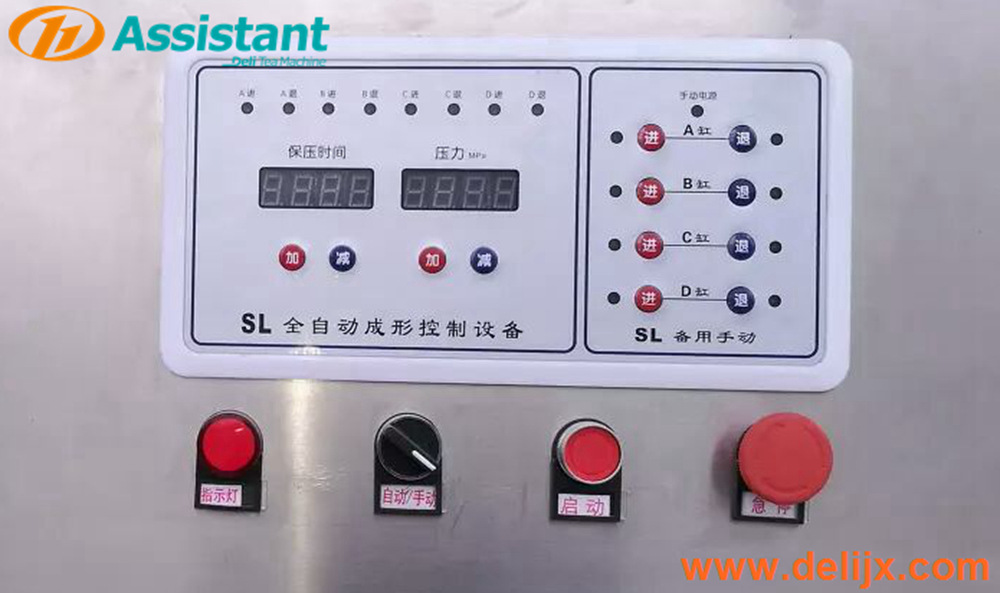

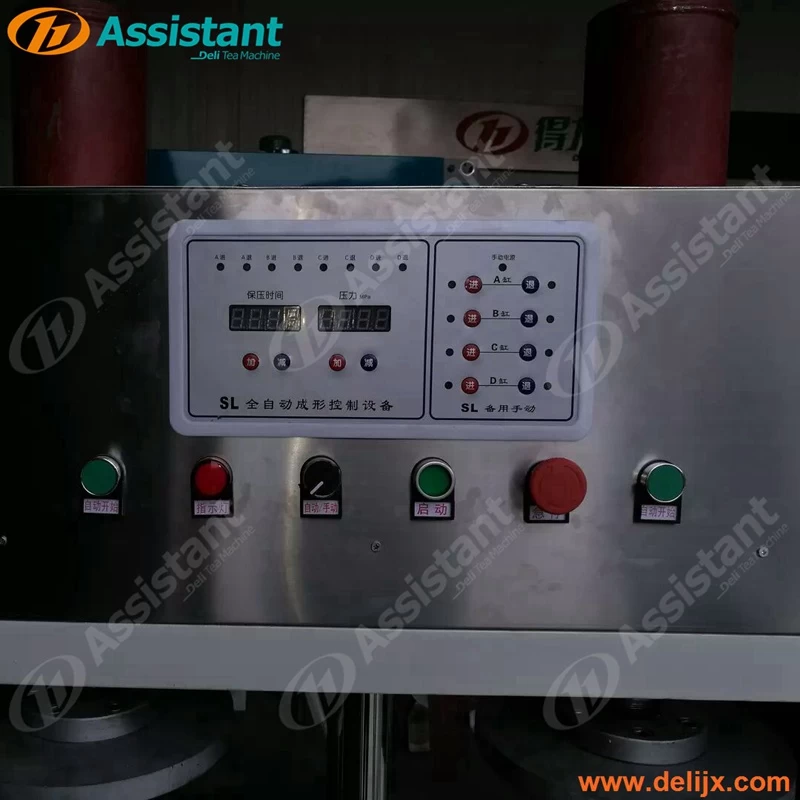

The multi-function control panel can adjust pressure speed, pressure time and dgree of pressure .
The machine has 2 working stations, which greatly improves efficiency and saves cost.
The machine can choose manual mode and automatic mode. The pressure of each cylinder can be adjusted. One machine can make many different types of conpressed tea.
|

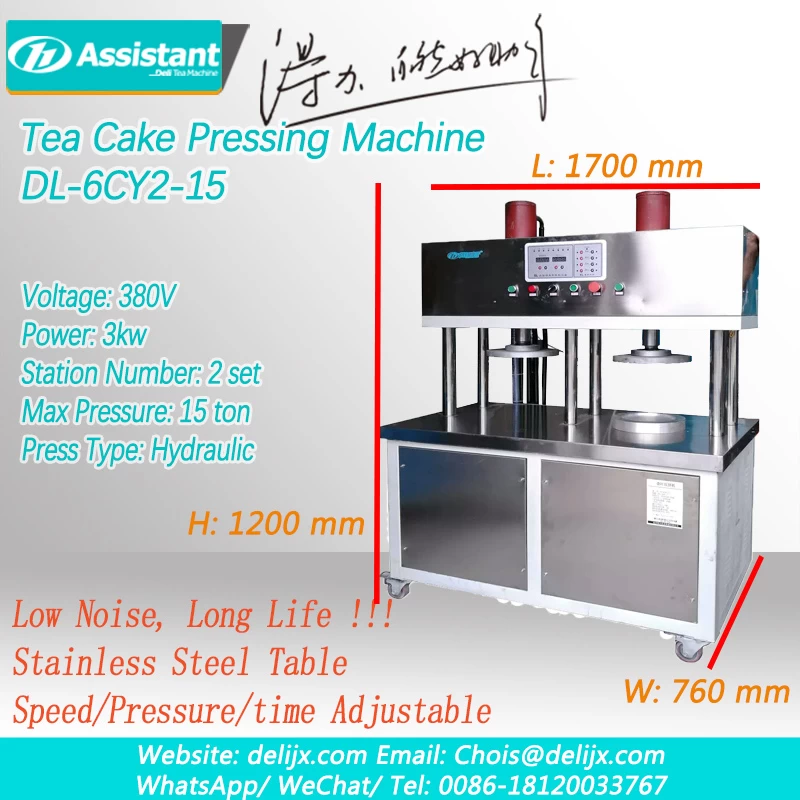

DL-6CY2-15 brick tea cake tea press machine specification:
|
Model
|
DL-6CY2-15
|
|
Dimensions (length × width × height)
|
1200×760×1700 mm
|
|
Input Power(voltage / frequency)
|
380/50 V/HZ
|
|
Pressing work stroke
|
≥200 mm
|
|
Pressurization method
|
Hydraulic
|
|
Number of stations
|
2
|
|
Maximum pressure
|
≥120 kN
|
|
Driving Power
|
3 kW
|
|
Motor Speed
|
1400 r/min
|
|
Rated Voltage
|
380 V
|
|
DL-6CY2-15 press machine for tea cake processing details:
|
|
|
|
Steamed tea
|
Put tea bag in the mold
|
|
|
|
Pressing
|
Tea cake molding
|
|

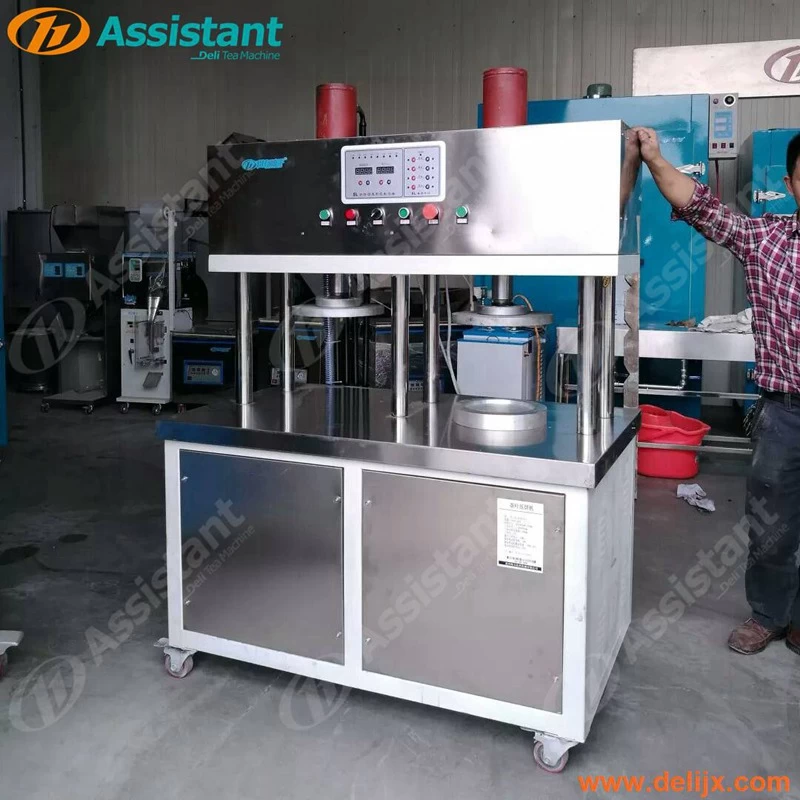

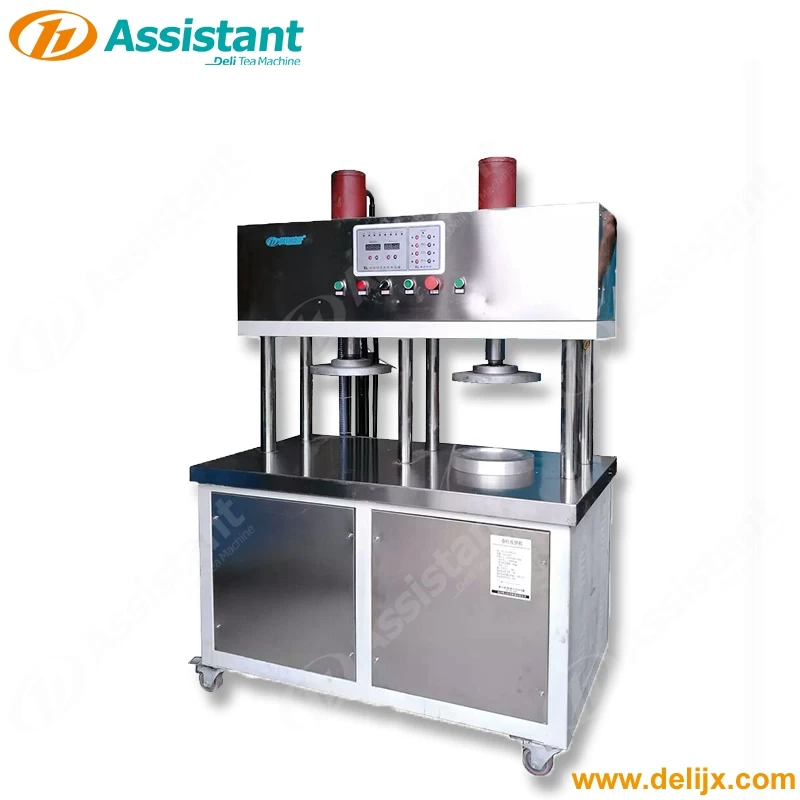

DL-6CY2-15 tea cake tea brick press molding machine photos:
|
