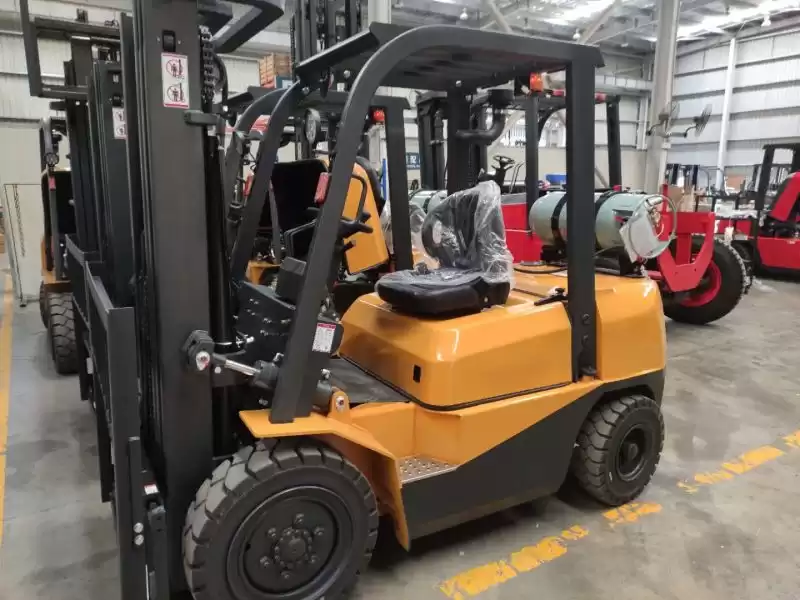

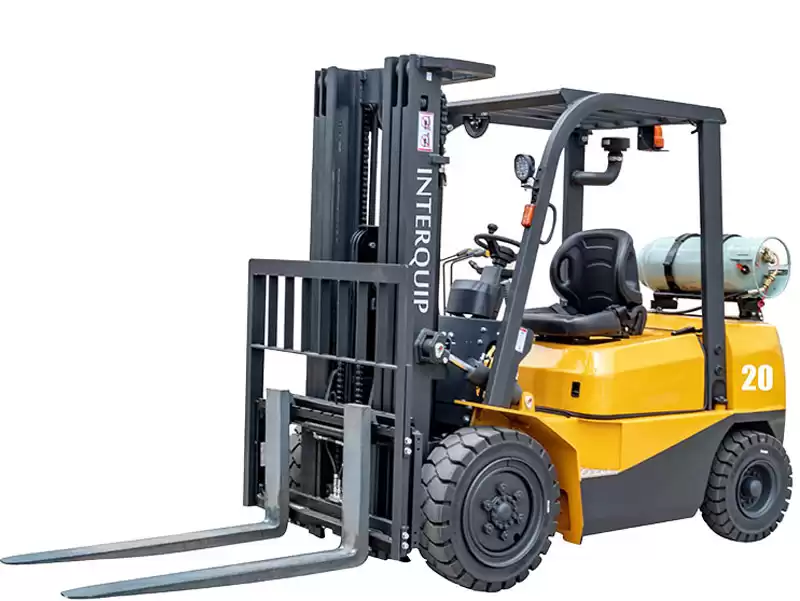

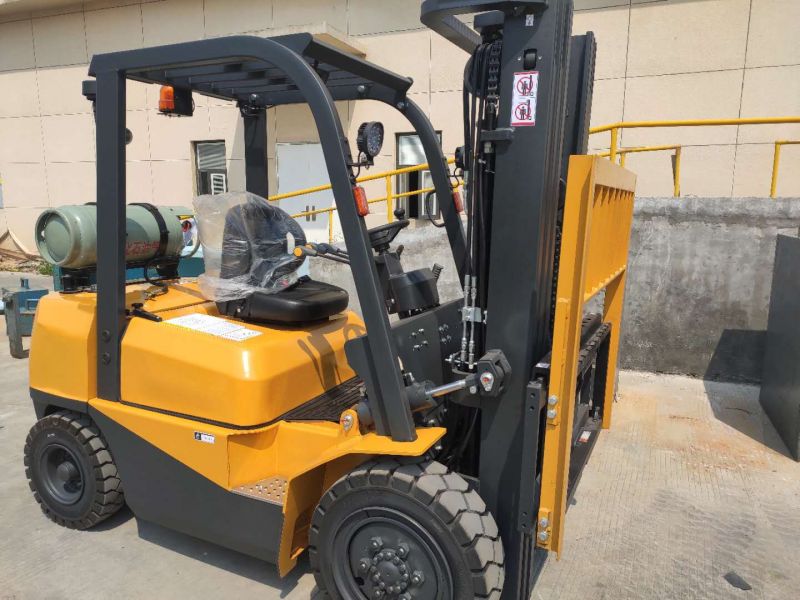

Rated Capacity: 2 Ton/ 2000 kg
Engine: Nissan K21
Lifting Height: 3-6m (Duplex/Triple)
Tyre: Pneumatic Tyre/Solid Tyre
Feature:
High quality
-- Reasonable layout of hose and hard pipe, reduce oil pressure loss;
-- The mature and reliable engine provides plenty of power;
-- The super large capacity aluminum tube belt radiator and optimized heat dissipation channel further improve the heat dissipation capacity of the vehicle;
-- The enhanced transmission system has stronger shock resistance and bump resistance.
High security
-- Wide vision mast provides a good front view, accurate disassembly of goods. The grille roof guard provides good upper visual field for drivers;
-- Standardized LED lamp, high brightness, long life, energy saving and environmental protection.
High comfort
-- Standard small diameter steering wheel, light control, reduce driver fatigue;
-- The combined color instrument has strong human- -machine interaction and timely and accurately feedback the running state of vehicles;
-- Spacious control space, comfortable seats, enjoy the pleasure of riding.
Rich options
-- high exhaust device, air prefilter, fireproof cap, solid tire, two stage free lift mast, three stage free lift mast, widening fork frame, fork sleeve, side shifter, paper roll clamp, bale clamp, carton clamp, block clamp, rotators, drum clamp, push-pull, etc.
Specifications:
|
Model
|
UNIT
|
FG20T
|
|
Specifications
|
Power Unit
|
|
LPG&Gasoline
|
|
Operator Type
|
|
Driver/Seat
|
|
Transmission Box Type
|
|
Automatic Transmission
|
|
Rated Capacity
|
kg
|
2000
|
|
Load Center
|
mm
|
500
|
|
Max.Lifting Height
|
mm
|
3000
|
|
Tire Type
|
|
Pneumatic Tire
|
|
Tire Number
|
Front
|
|
2
|
|
|
Rear
|
|
2
|
|
Tire Size
|
Front
|
|
7.00-12-12PR
|
|
|
Rear
|
|
6.0-9-10PR
|
|
Performance
|
Lifting Speed
|
Loaded
|
mm/s
|
560
|
|
|
Unloaded
|
|
580
|
|
Lowering Speed
|
Loaded
|
mm/s
|
480
|
|
|
Unloaded
|
|
450
|
|
Travelling Speed
|
Loaded
|
km/h
|
20
|
|
|
Unloaded
|
|
21
|
|
Max.Gradeability (Loaded)
|
%
|
20
|
|
Max.Drawbar Pull (Loaded)
|
kn
|
14
|
|
Mast Tilting Angle (Fwd/Bwd)
|
deg
|
6/12
|
|
Free Lifting Height
|
mm
|
140
|
|
Turning Radius
|
mm
|
2150
|
|
Dimensions
|
Overall Length (with fork)
|
mm
|
3640
|
|
Overall Width
|
mm
|
1150
|
|
Overhead Guard Height
|
mm
|
2125
|
|
Fork Size (LxWxT)
|
mm
|
1220×122×40
|
|
Mast Height (Fork lowered)
|
mm
|
2090
|
|
Battery (Voltage/Capacity)
|
V/Ah
|
12/90
|
|
Truck Weight
|
kg
|
3440
|
|
Fuel Tank Capacity
|
L
|
70
|
|
Engine
|
Brand
|
|
NISSAN
|
|
Model
|
|
K21
|
|
Rated Power
|
kw/rpm
|
31.2/2250
|
|
Rated torque
|
n-m/rpm
|
143.7/1600
|
|
Number Of Cylinder
|
|
4
|
|
Displacement
|
|
2.06
|
