Applications:
Truck Mounted Crane (also called XCMG crane, UNIC crane, crane truck, lorry mounted truck, truck cargo with loader, knuckle boom crane on truck chassis, truck with mounted back crane, crane mounted cargo truck, truck with loading crane, boom crane, boom crane truck, articulated crane truck) is used to lift the cargo, load, transport and unload heavy stuff.
There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:
Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton
Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton, 50T, 100T
The Cranes can be of famous brands as Palfinger (Canada), Unic (Japan), XCMG (China top brand), Zoomlion, etc.
Key Features:
---- JAC chassis ensures perfect performance on driving
---- JAC technology engine, super powerful, no overhaul within 100,000 km.
---- High strength cargo body, nice shape and rational structure.
---- Easy operation and easy maintenance.
---- Premium cranes Palfinger (Canada), Unic (Japan), XCMG (China top brand), Zoomlion, etc.
Crane Features:
---- Advanced development & analysis means make sure that the design is very reliable.
---- Higher lifting capacity with four connected bar mechanism.
---- Flange telescopic boom coupling technology.
---- Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation.
---- The more symmetrical center design of hexagon boom make it has bigger anti-bending capacity.
---- Float three-point bridge structure design can lower the accessional stress on the chassis frame when traveling.
Specifications:

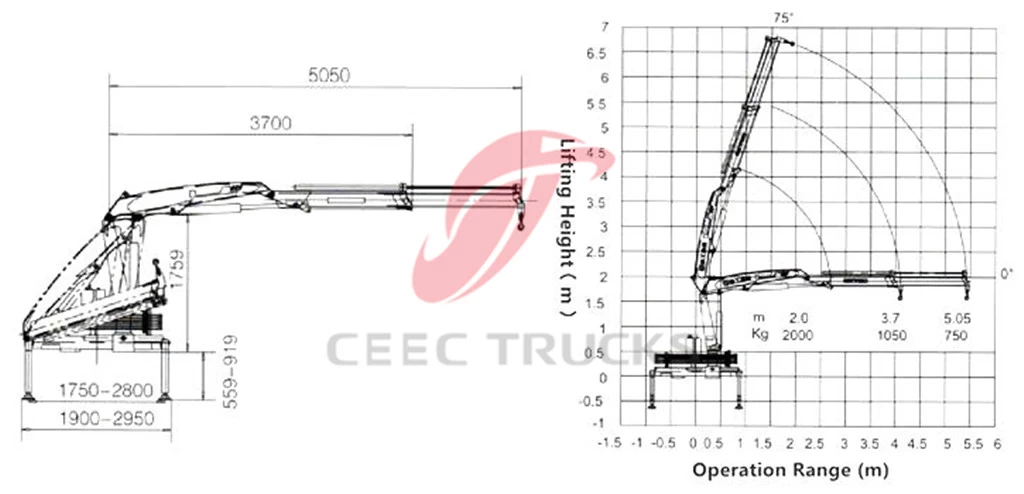

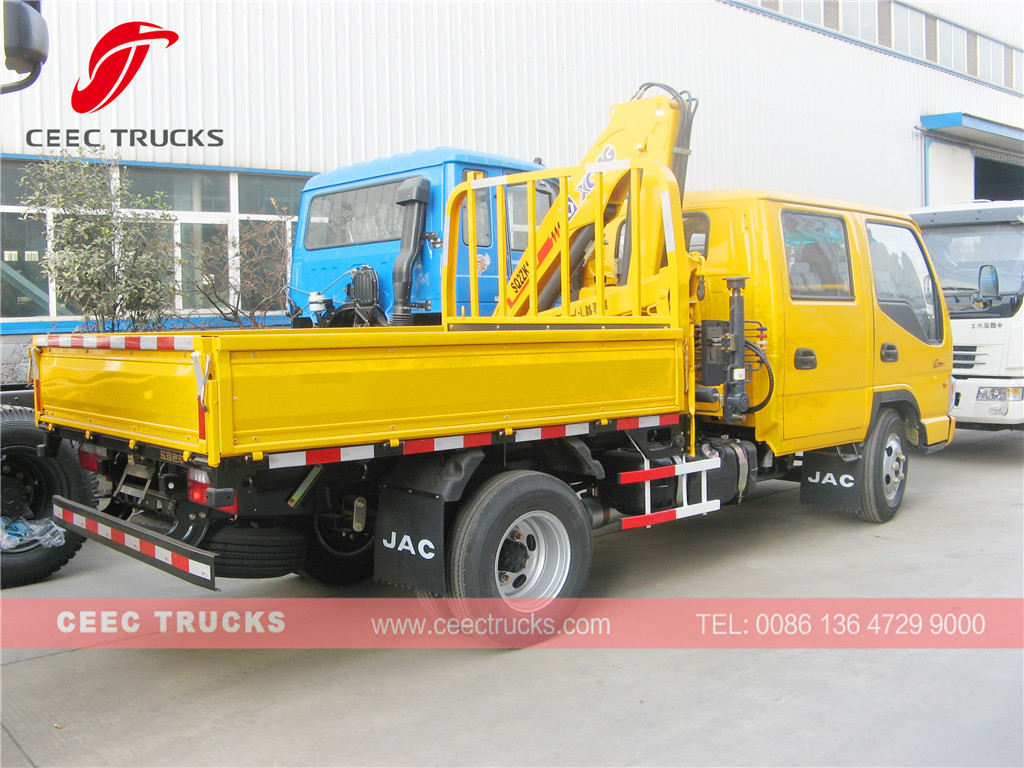

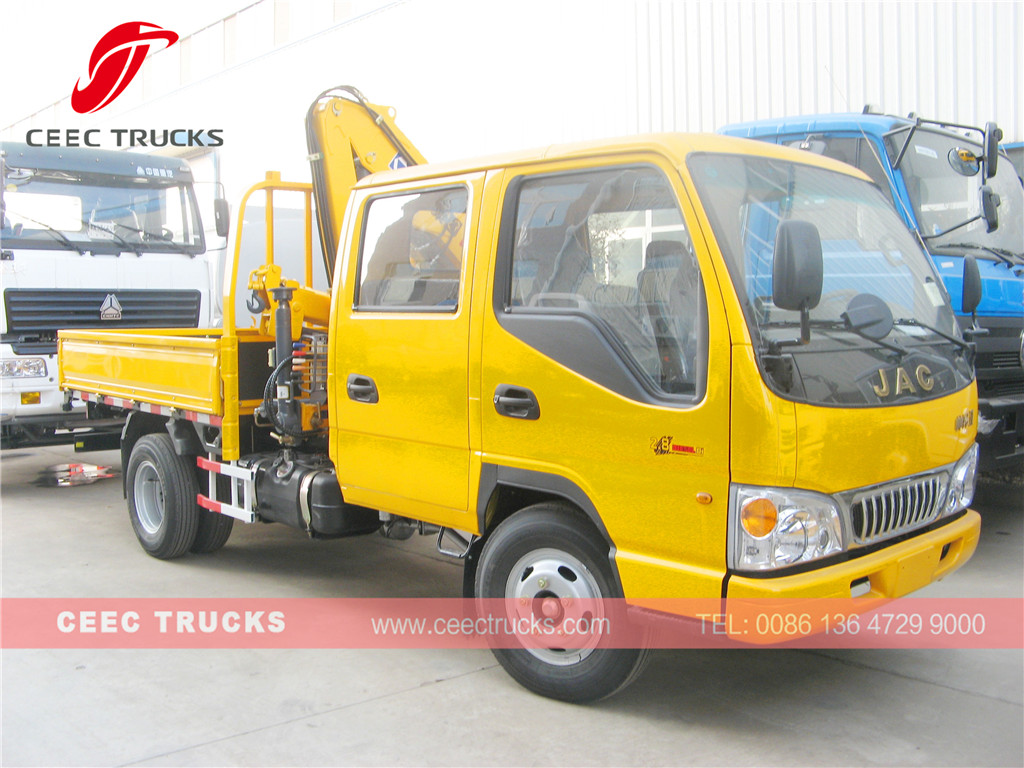

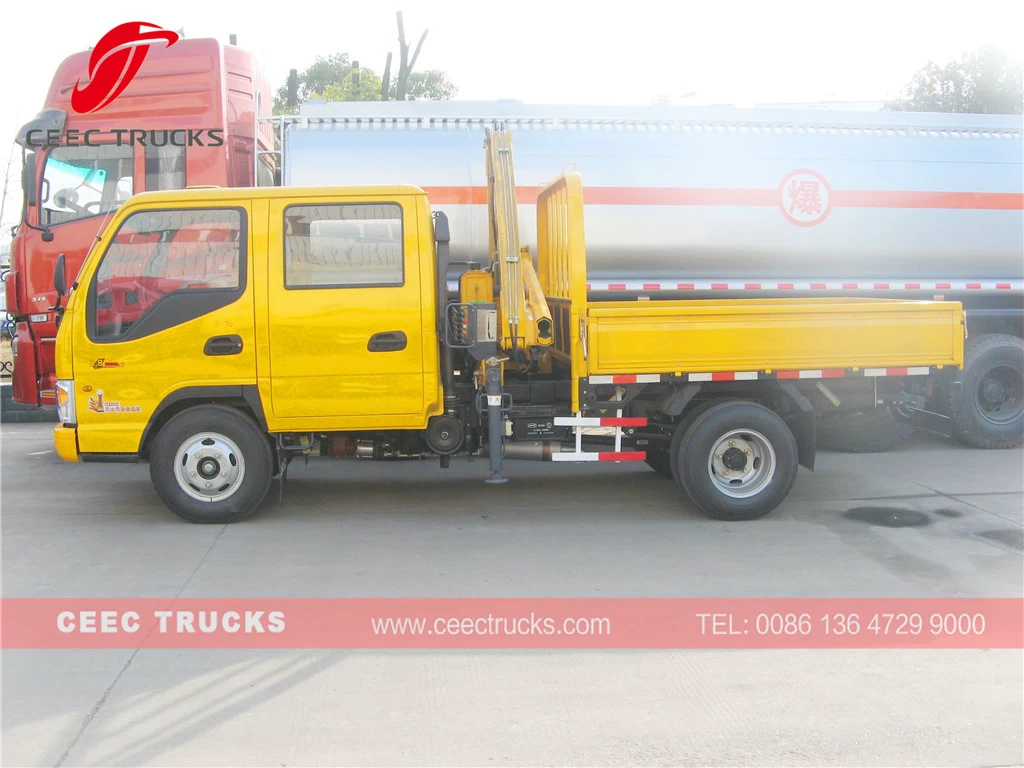

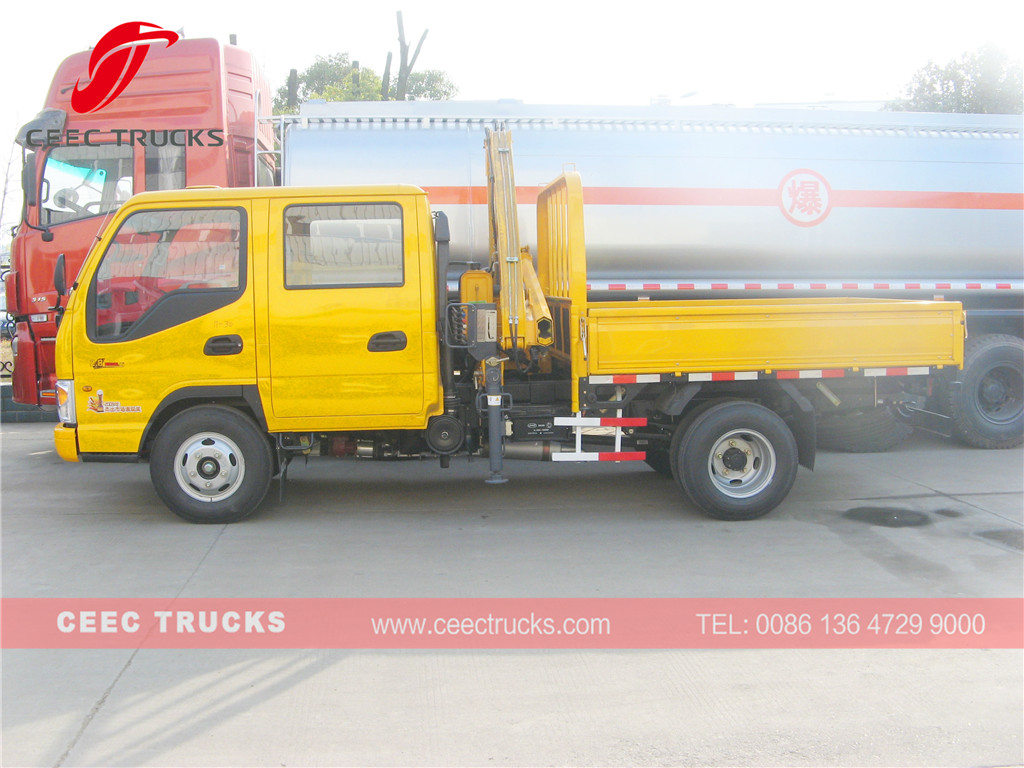

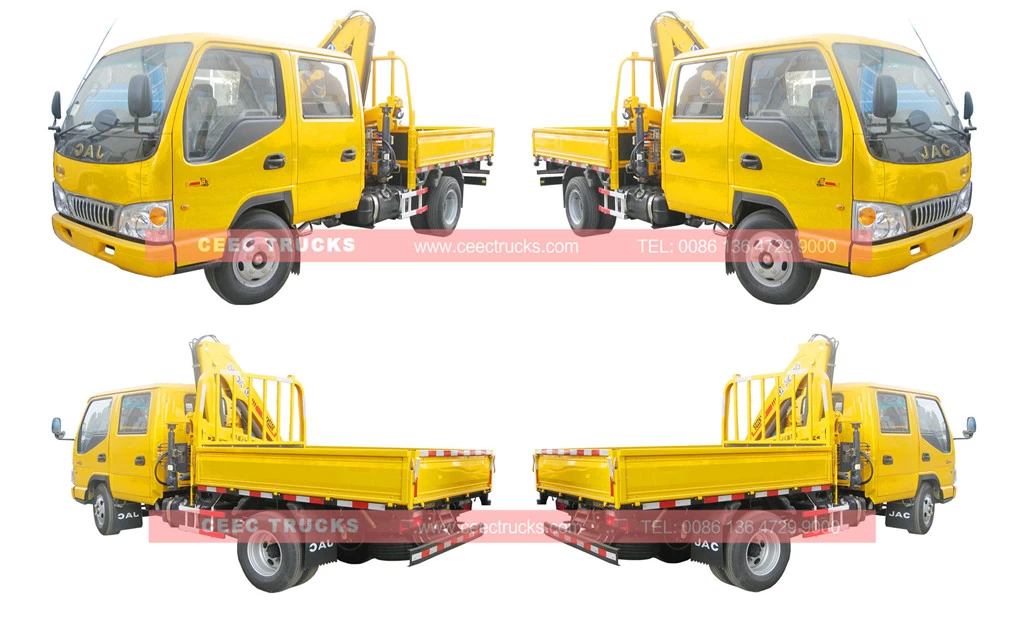

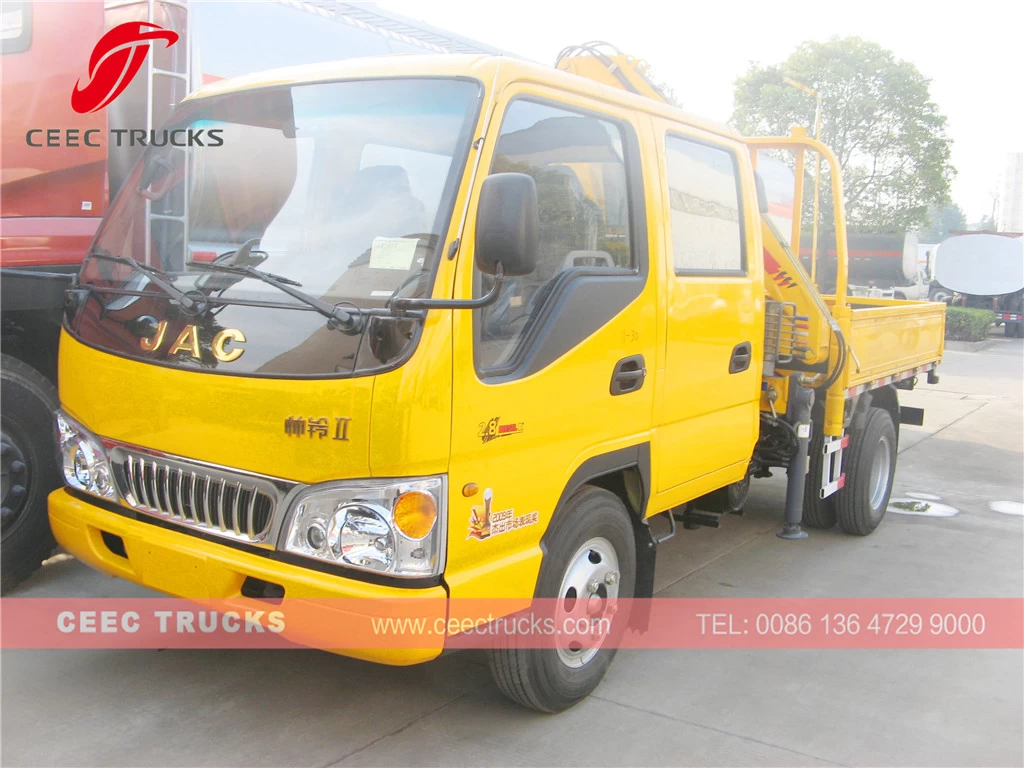

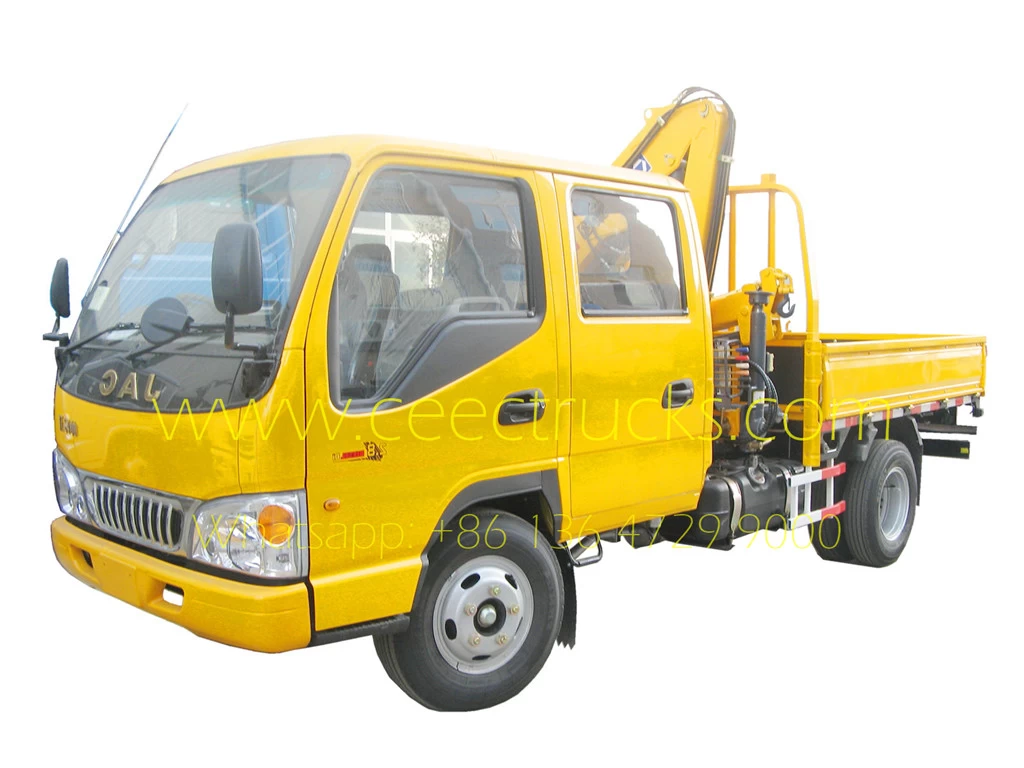

| JAC Knuckle boom Crane truck (2Tons boom crane)
|
| General
|
Vehicle Brand
|
CEEC TRUCKS
|
| Chassis Brand
|
JAC
|
| Overall Dimension
|
5995 * 2000 * 2765 mm
|
| GVW / Kerb Weight
|
6,995kg / 3,350kg
|
| Cab
|
Cab Capacity
|
2 persons allowed
|
| Air Conditioner
|
Heating/cooling air conditioner
|
| Engine
|
Fuel Type
|
Diesel
|
| Engine Brand
|
JAC
|
| Power
|
92 HP (68 KW)
|
| Displacement
|
2771 ml
|
| Emission Standard
|
Euro 3 or 4
|
| Chassis
|
Drive Type
|
4X2, (Left hand drive or Right hand drive)
|
| Transmission
|
Manual 5 speed levers with 1 reverse
|
| Wheelbase/No. of axle
|
3200 mm / 2
|
| Tire Specification
|
7.00-16
|
| Tire Number
|
6 tires and 1 spare tire
|
| Max Speed
|
90 km/h
|
| Paint
|
Metallic paint
|
| Superstructure
|
Cargo Box Dimension
|
3400*1790*400 mm
|
| Crane Type
|
Knuckle boom crane
|
| Max Lifting Capacity
|
2000 kg
|
| Slewing Angle
|
360° All rotation
|
| Crane Weight
|
608 kg
|
| Installation Space
|
680 mm
|
| Control panel
|
English or Your language
|
| All standard accessories: Basic tool kit, English manual……
|
| Optional
|
** Knuckle boom crane.
** Hydraulic tipper box.
** Box thickness according to requirement.
** Box height could be nominated
** Remote Control Box optional
|
