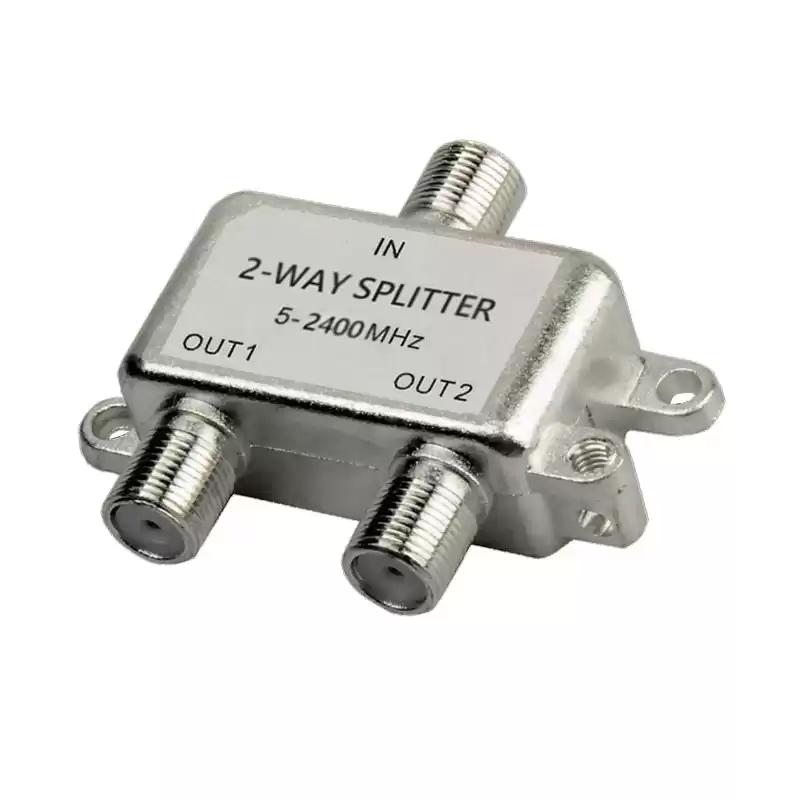

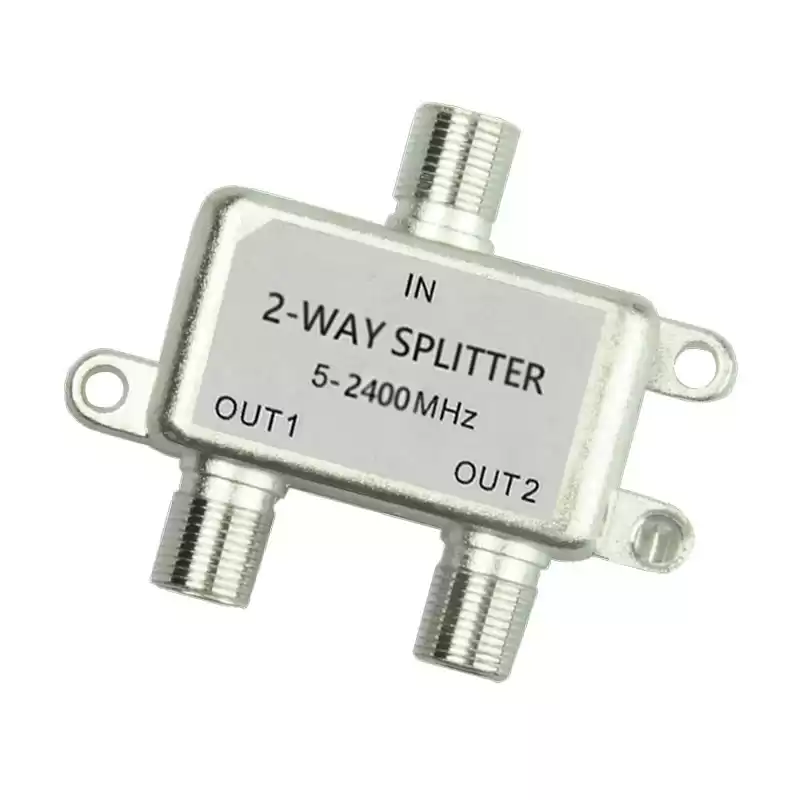

2 way 5-2400MHz TV Satellite splitter for antenna satellite splitter CATV Power Splitter
The CATV Splitters manage connections between one input and multiple outputs. They are very useful for systems where a signal from one device can be shared with multiple devices. Using these splitters, you can enjoy high-fidelity and stunningly realistic audio/video that only superior splitters can deliver;ROHO Manufacturing 1 in 2 out 5-2400MHZ RF Splitter will allow you to transfer data up to 2 output sources from 1 input video source without compromising the strength of the signal. With the F-type connector, the splitter fastens the coaxial cables securely, ensuring that the transmission of information will be continuous. By using our splitter, you will be able to enjoy high-fidelity and stunningly realistic high-definition audio and video through devices throughout the premises.
Specifications
| Frequency Range |
5~2400MHz |
| Inputs |
1 SAT(F connector) |
| Outputs |
2 Receiver(F connector) |
| Insertion Loss[dB] |
5~47MHz |
≦ 4.2 |
| 48~750MHz |
≦ 4.0 |
| 751~1218MHz |
≦ 4.3 |
| 1218~2150MHz |
≦ 4.5 |
| 2151~2400MHz |
≦ 5.2 |
| Return Loss(IN-OUT)[dB] |
5~47MHz |
≥ 18 |
| 48~750MHz |
≥ 20 |
| 751~1218MHz |
≥ 20 |
| 1218~2150MHz |
≥ 18 |
| 2151~2400MHz |
≥ 18 |
| Isolation(OUT-OUT)[dB] |
5~47MHz |
≥ 16 |
| 48~750MHz |
≥ 20 |
| 751~1218MHz |
≥ 20 |
| 1218~2150MHz |
≥ 18 |
| 2151~2400MHz |
≥ 18 |
| Female to Female |
75 |
| F Connector Type |
Female to Female |
Applications
- Used for splits a single digital signal to up to 2 /3/4 devices.
- Designed for use with HD TV signals, satellite TV, and high speed INTERNET modems as well as cable TV, amplified Antennas, amplifiers, and other coaxial devices.
- Compatible with RG59 and RG6 coax cable.
