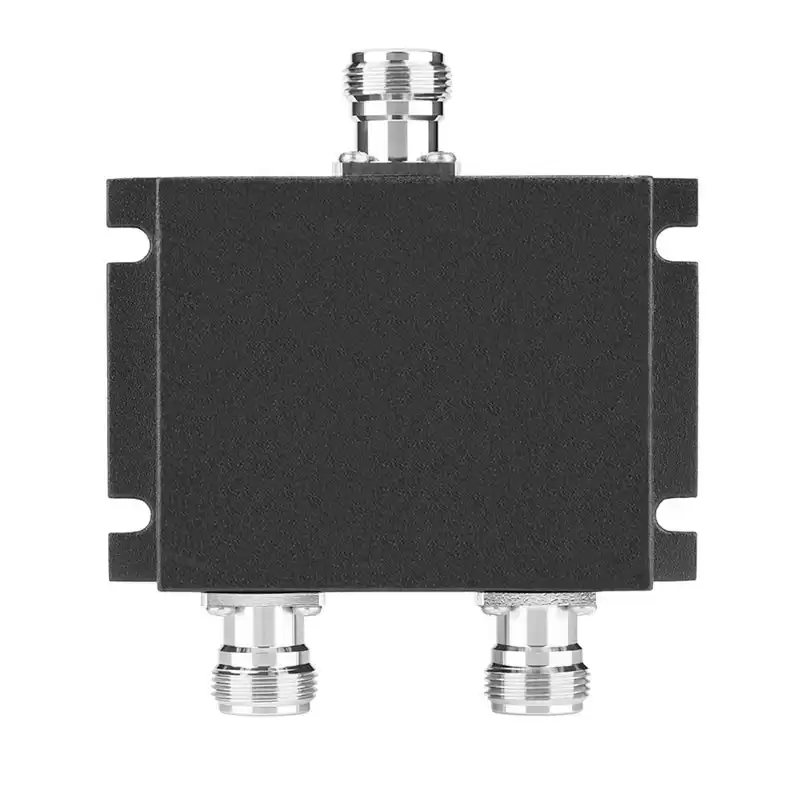

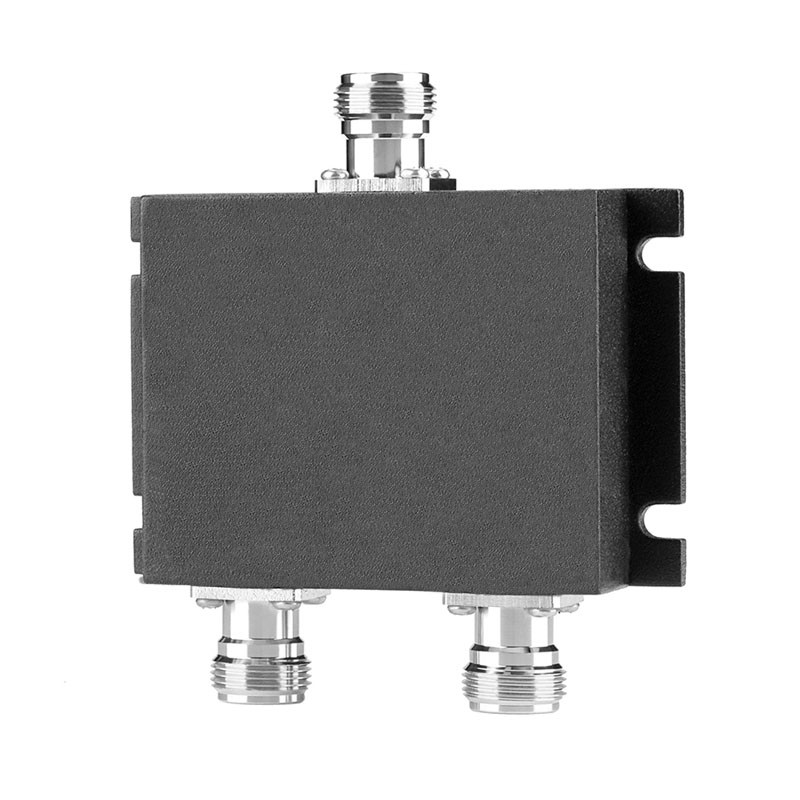

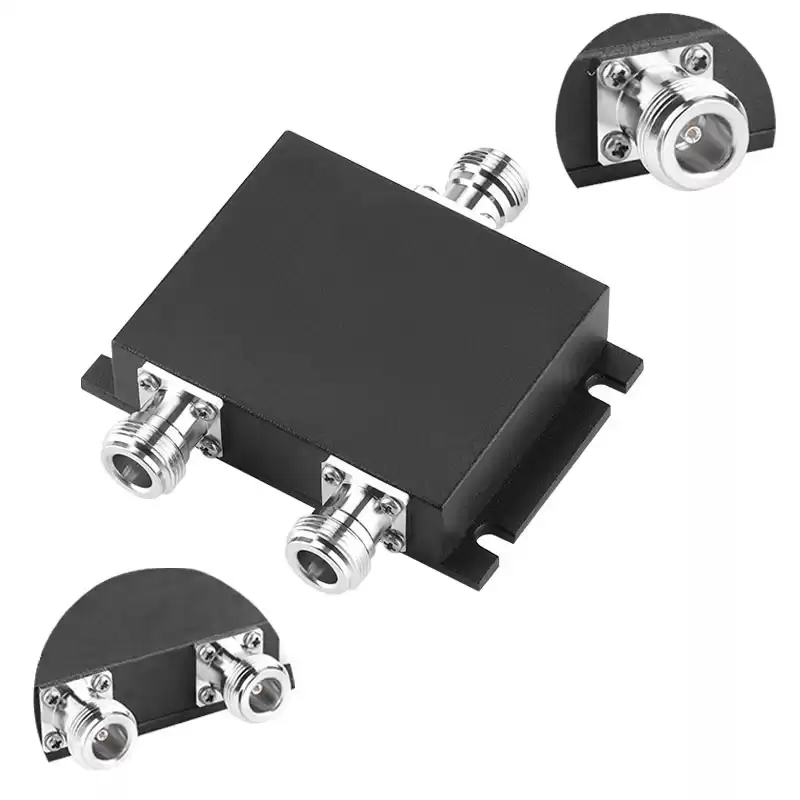

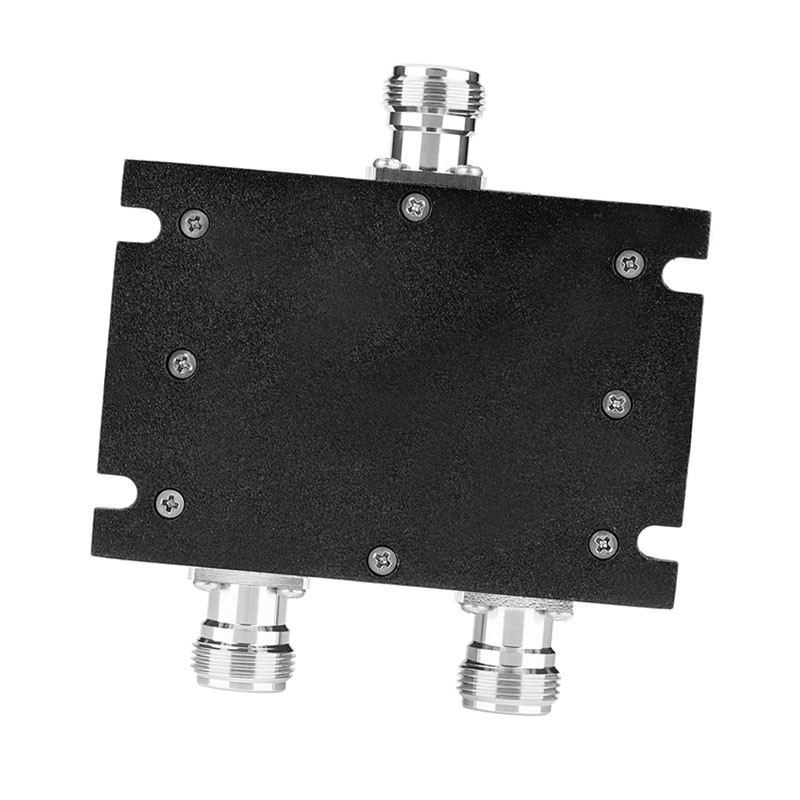

2 Way Wilkinson Power Divider 698-2700MHz N Female connector microwave Splitter
This wilkinson 2 way type N Power Splitter (also known as 2 way type N Power Divider ) is rated for a minimum frequency of 698MHz and a maximum frequency of 2.7GHz. This 2 port type N power divider / coaxial splitter has a 50ohm impedance and a maxium input power of 10W. ROHO's N type coaxial RF splitter / divider has a female type N input and 2 female N type output ports;This 2 way type N RF power divider is a wilkinson design and has a maximum insertion loss of 0. The maximum input VSWR of this type N wilkinson splitter / divider is 1.35:1 and the minimum isolation is 20dB. The 2 port type N power divider is one of RF, microwave and millimeter wave components supplied,ROHO also could do SMA,DIN,4.3-10,N or other Connector for this product,All specification we can be customized customized.
Specifications
|
Product Type
|
2 Way
|
|
Frequency Range
|
698-2700 MHz
|
|
Split Loss
|
3.0dB
|
|
Insertion Loss
|
≤0.4dB
|
|
Isolation
|
≥20dB |
|
VSWR
|
≤ 1.35 dB
|
|
Impedance
|
50ohm |
|
Connector Type
|
N Female
|
|
Average Power
|
50W |
|
Application
|
Indoor or Outdoor
|
|
Temperature
|
-35°C to +70°C
|
Applications
- Mobile Communication Network Optimization and In-door distribution system.
- Cluster communication, satellite communication, shortwave communication and hopping radio.
- Radar, electronic navigation and electronic confrontation.
- Aerospace equipment systems.
