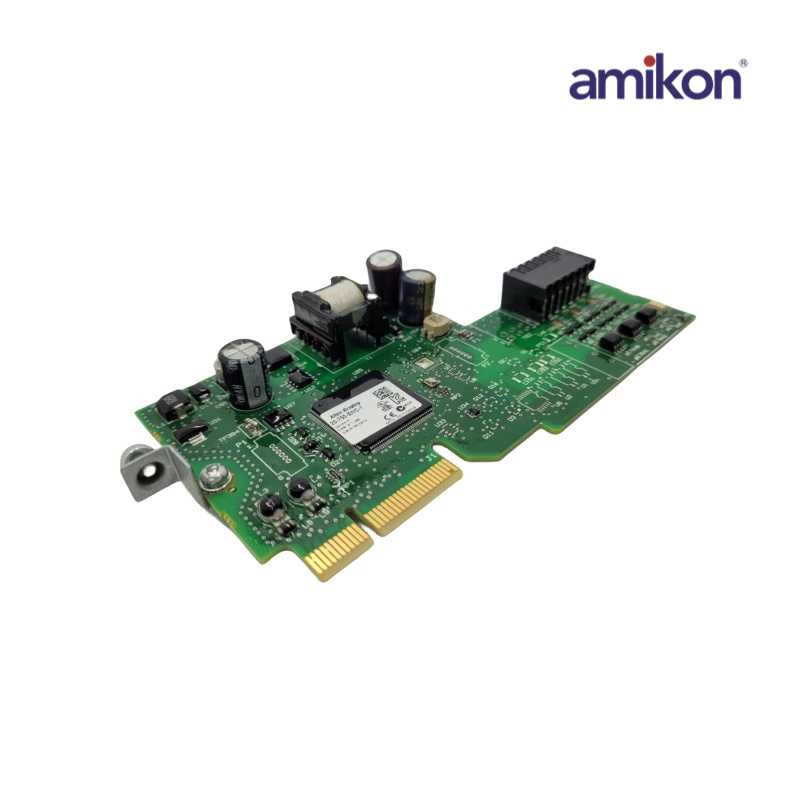

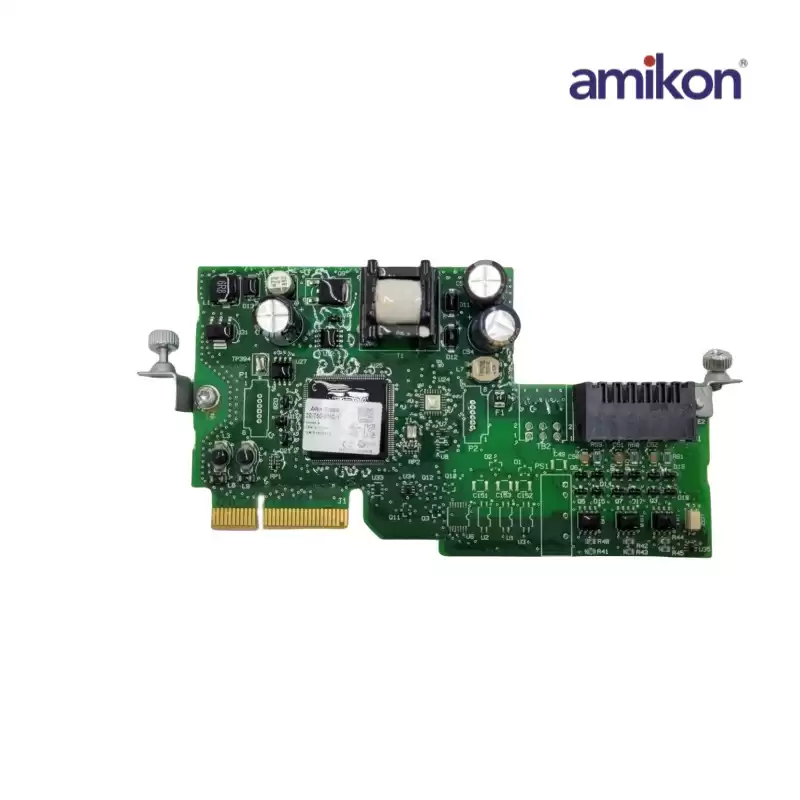

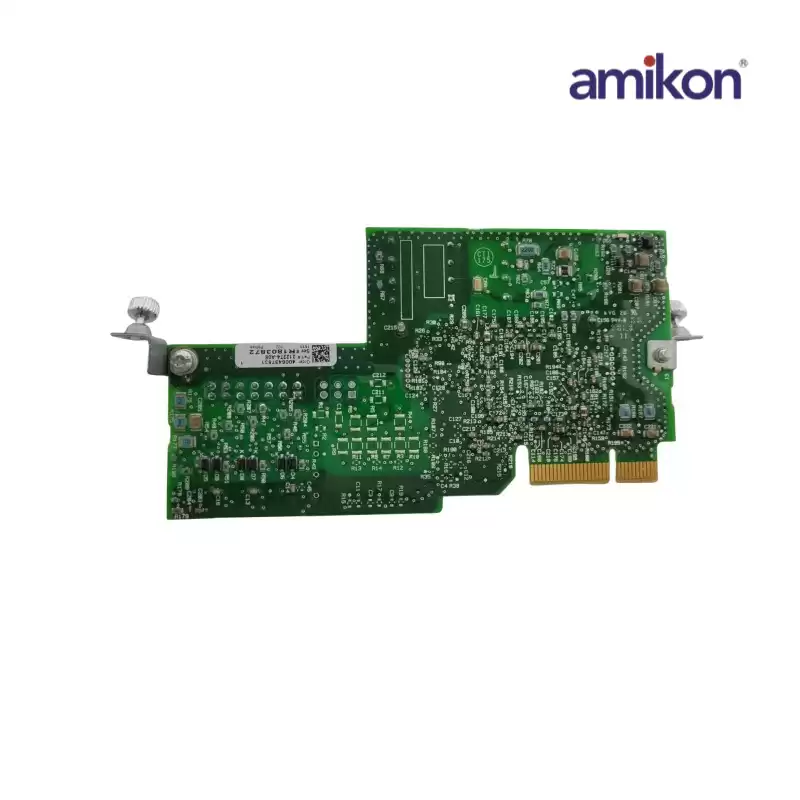

20-750-ENC-1 |
|||
|
Dimensions ： |
21cmx13.4cmx4cm |
Weight： |
0.58kg |
|
The 20-750-ENC-1 supports Single-Ended or differential operation. It has a constant current sink operation with approximate consumption of 10 mA. The modules operates as an input voltage range of 5VDC - 15VDC with sourcing current consumption of 10 mA. The encoder’s channel has a minimum high state voltage of 3.5VDC while the maximum low state voltage is 0.4 VDC. |
|||
|
The 20-750-ENC-1 module supports a minimum of 5 Volts DC to a maximum of 15 Volts DC sourcing voltage at 10 milliamps. The minimum high-state voltage is 3.5 Volts DC and the maximum low-state voltage is 0.4 Volts DC. The maximum cable lengths supported are 30 meters at 5 Volts DC and 183 meters at 12 Volts DC. The maximum input frequency can be 250 kilohertz |
|||
