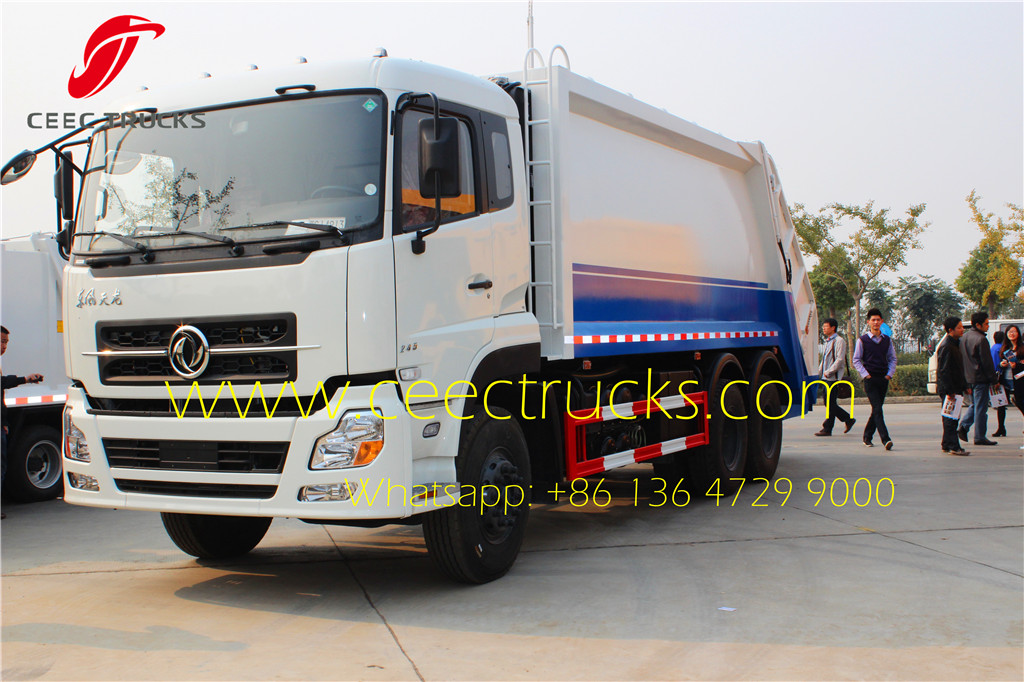

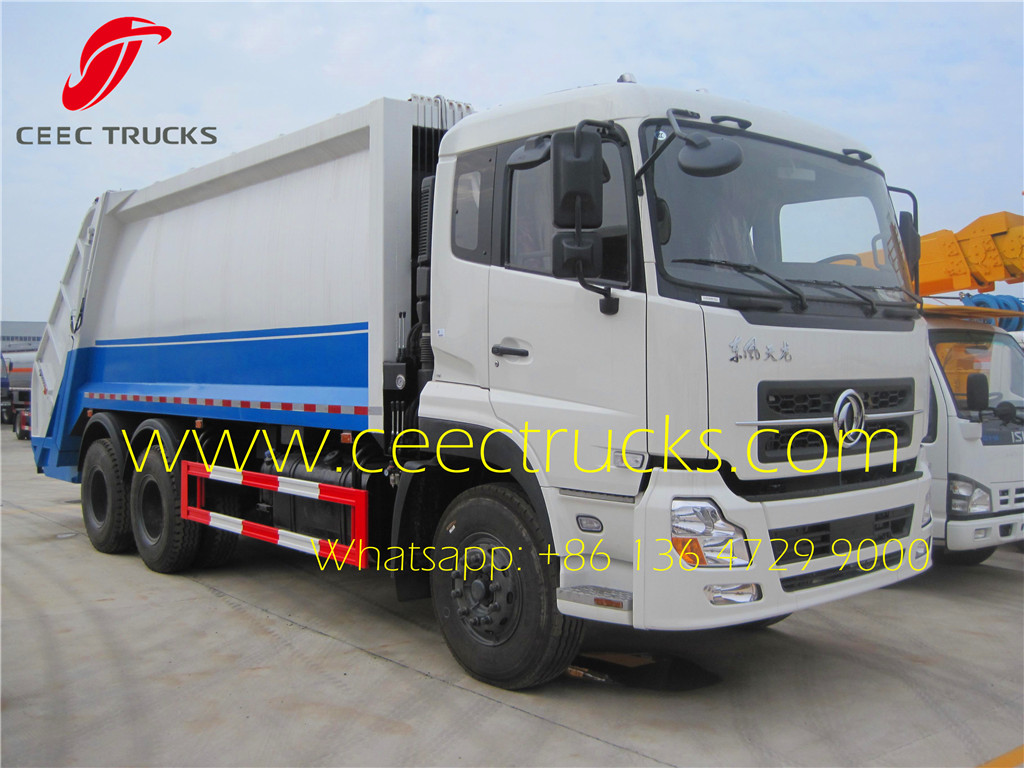

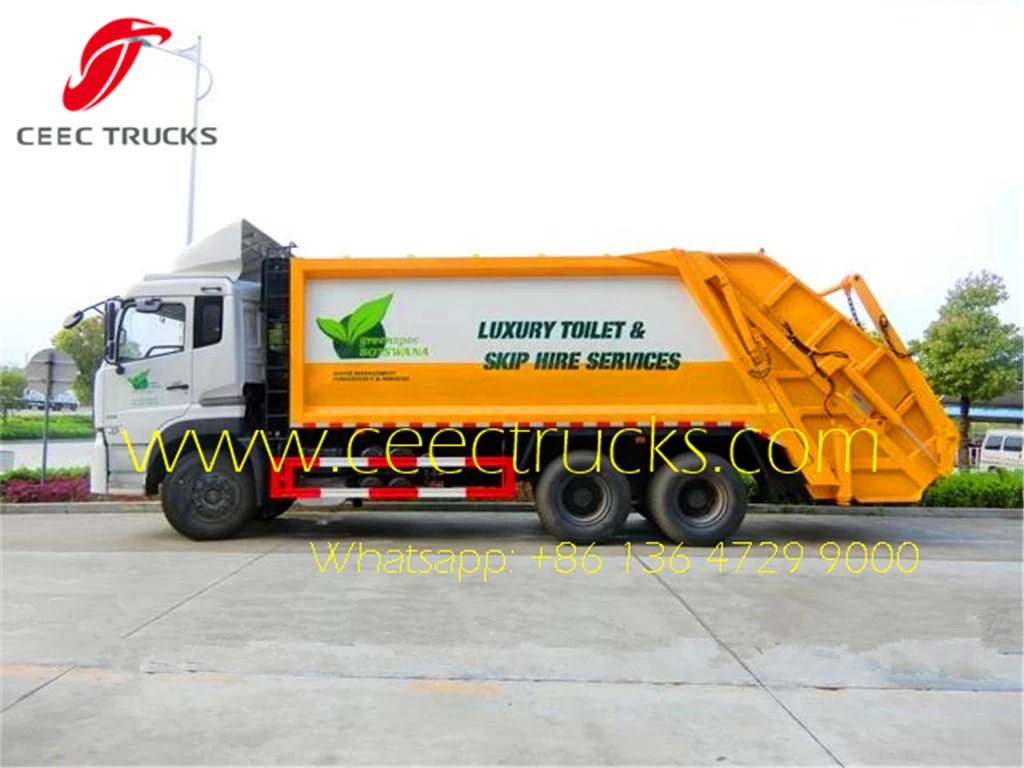

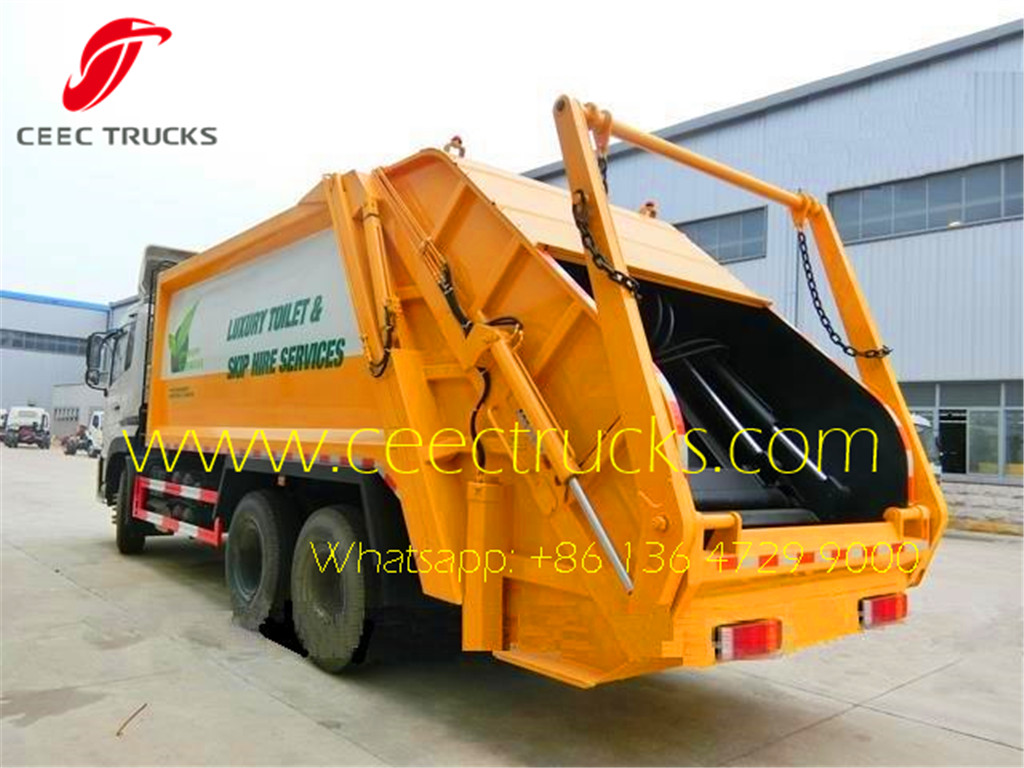

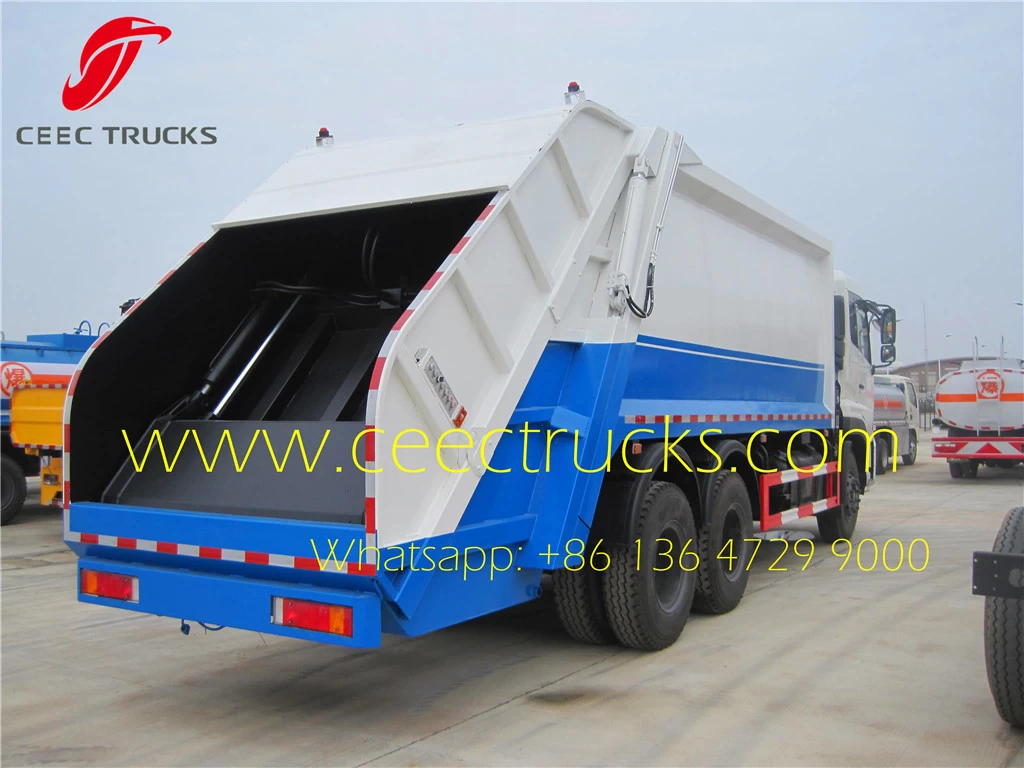

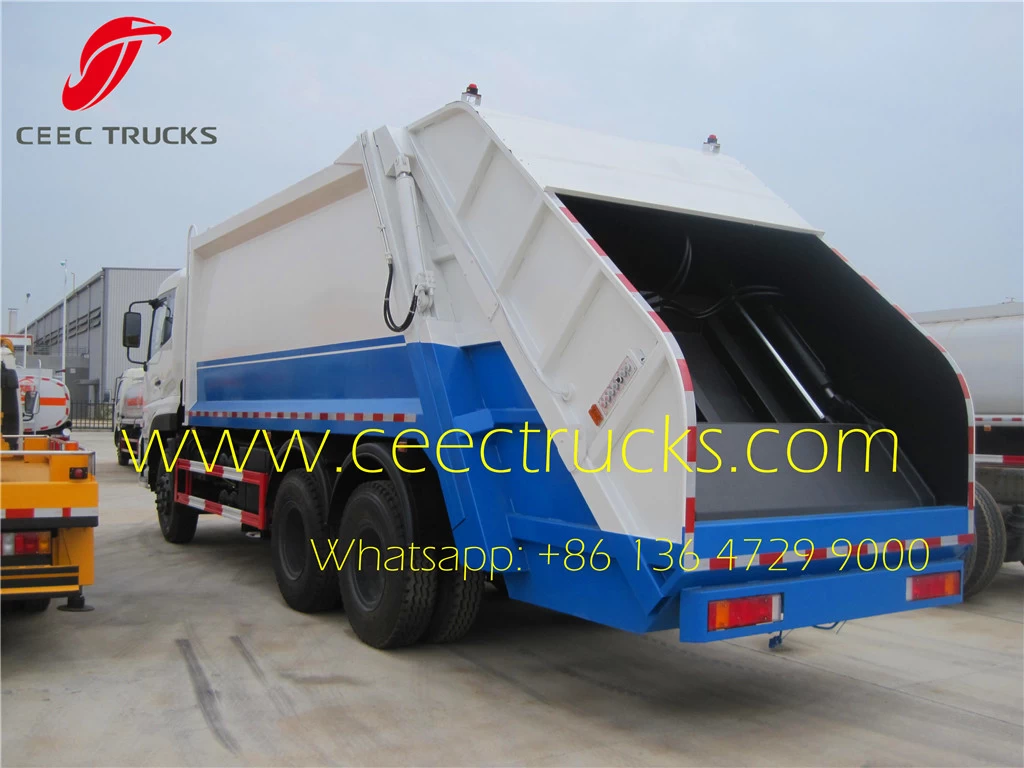

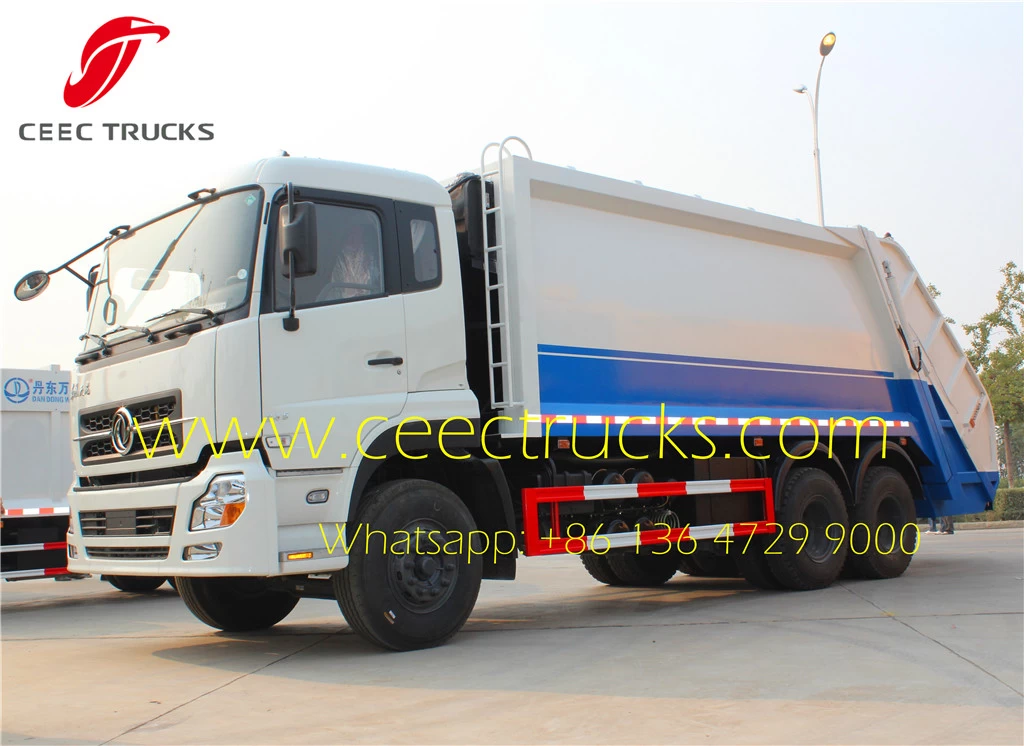

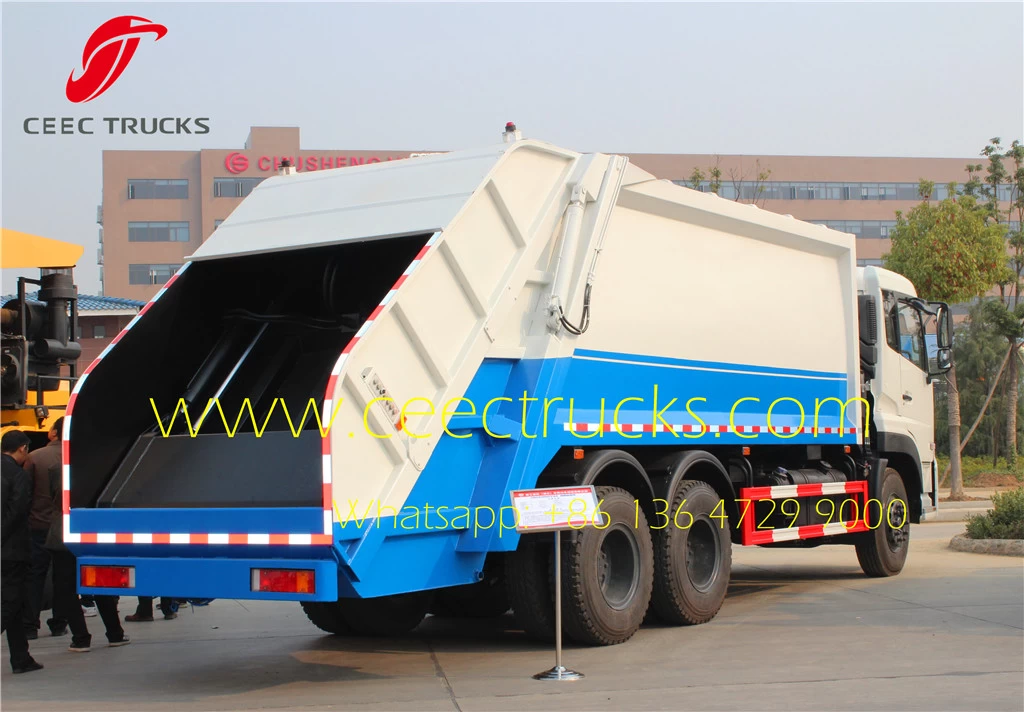

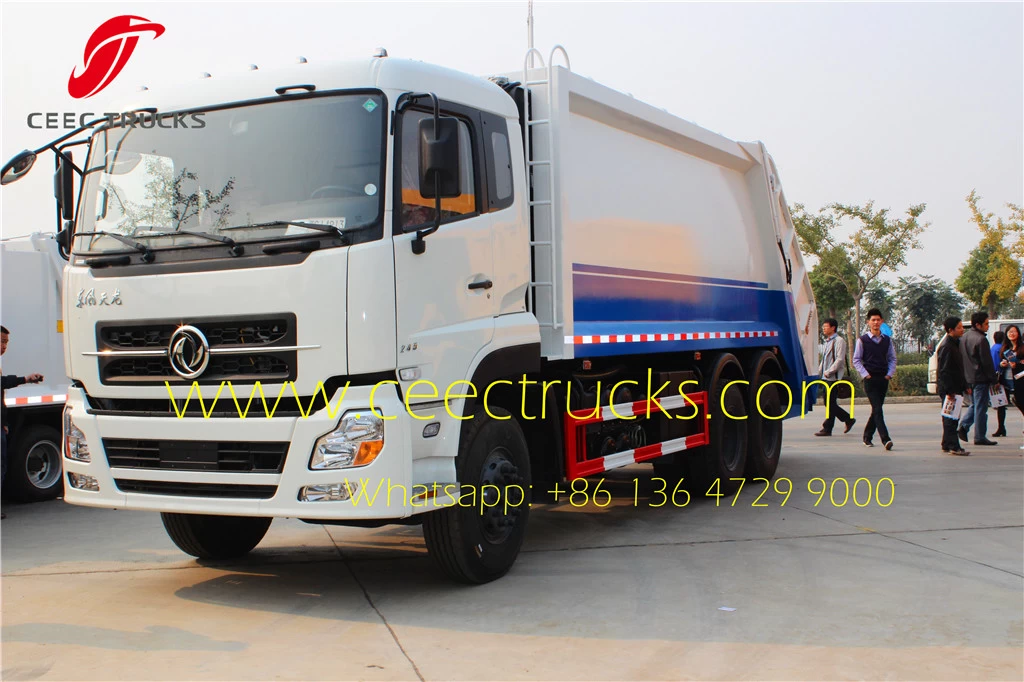

China Dongfeng 20 CBM compressed garbage truck
Description:
The new generation BEIBEN 20 CBM Refuse Garbage Compactor is mainly used in collecting and transporting the scattering refuse of the urban area, community, factory, schoolyard.
The refined appearance, the fully sealed truck body,the sealed door of the beiben 6*4 drive garbage compactor truck body is able to prevent the sewage from leakingduring transporting so that secondary pollution is avoided. The imported hydraulicunits are of the best quality with convenience and reliability. Automaticreverse unloading, clean and quickly.

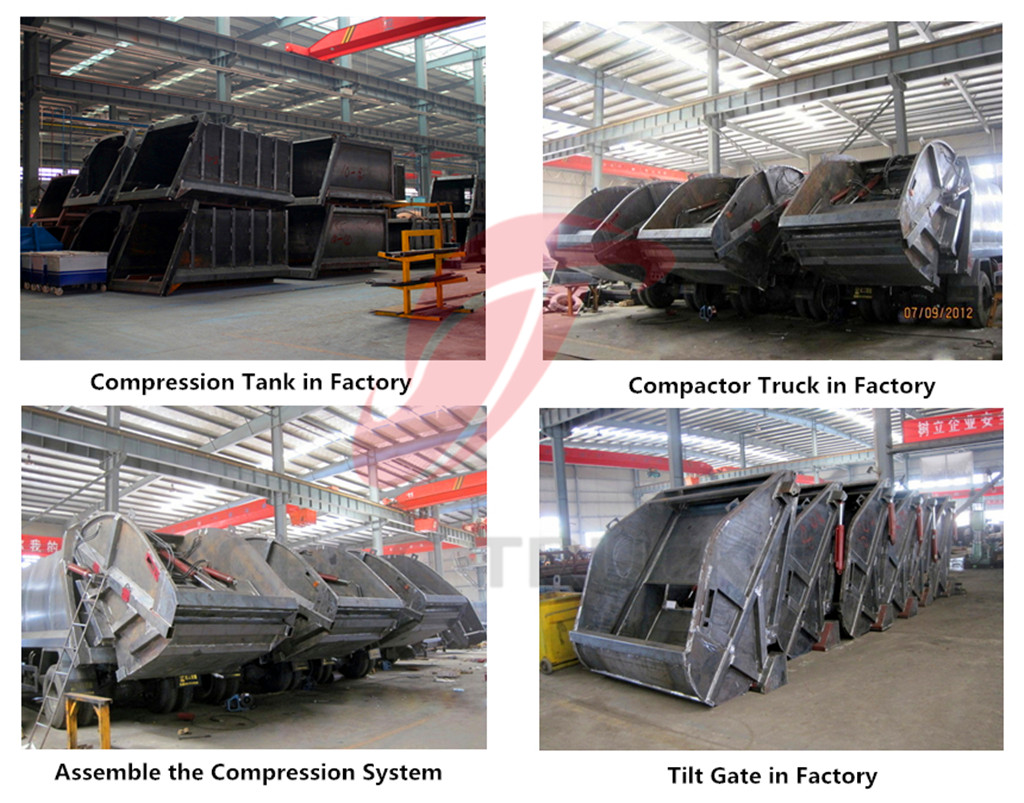

As professional Dongfeng 6*4 trash compressor trucks manufacturer in China, we CEEC TRUCKS produced 20000 L garbage compactor trucks are famous for high quality and short delivery time. Below is our waste management equipment plant for reference:
Key Features:
◆ Easy operation and easy maintenance!
◆ With imported PLC (programmable logic controller) for integrated control
◆ Collecting refuse in sealed condition, equipping with wastewater tank, preventing re-pollution.
◆ Substantial truss structure, payload distributed appropriately in hopper lip, nodeformation.
◆ Automatic controlled throttle and hydraulic safety valves, avoiding power wastage, loweroil consumption.
◆ Automaticand manual operating control, improving operation reliability
◆ The engine power output control, namely the throttle control, can realize fullyautomatic control through the electronic throttle controller, so the enginewill automatically change to a higher speed or idle speed under differentoperating modes, thus avoiding power loss and system heat to reduce fuel consumption and realize good economical efficiency.
◆ Both automatic and manual control modes are available. Two operation boxes mountedin the cab and at the rear side of the vehicle respectively can facilitate theoperation.
◆ Different bin (hopper) tipping mechanisms are provided for different users to select in accordancewith different garbage collecting
Similar Key Words: Beiben 20 CBM garbage compactor truck, isuzu 20CBM trash compactor truck, dongfeng compression garbage truck, 20cbm refuse compactor truck, waste management truck, North benz rubbish compactor trucks
|
Garbage Compactor Truck Dongfeng
Kinland (20㎥)
|
|
General
|
Vehicle Brand
|
CEEC TRUCKS
|
|
Chassis Brand
|
Dongfeng Kinland
|
|
Overall Dimension
|
10010X2496X3450 mm
|
|
GVW / Kerb Weight
|
25,000 kg / 14,505 kg
|
|
Cab
|
Cab Capacity
|
3 persons allowed
|
|
Air Conditioner
|
Air conditioner equipped
|
|
Engine
|
Fuel
Type
|
Diesel
|
|
Engine Brand
|
Cummins engine
|
|
Power
|
260 Hp (191 KW)
|
|
Displacement
|
8300 ml
|
|
Emission Standard
|
Euro Ⅲ
|
|
Chassis
|
Drive Type
|
6X4, Right hand drive
|
|
Transmission
|
9
front and 1 reverse
|
|
Wheelbase/No. of axle
|
4350+1300 mm / 3
|
|
Tyre Specification
|
10.00-20
|
|
Tyre Number
|
10 tyres and 1 spare tyre
|
|
Max Speed
|
80 km/h
|
|
Paint
|
Metallic paint
|
|
Superstructure and the main characteristic
|
Garbage box Capacity
|
20㎥ ( 5,284gallons)
|
|
Garbage box Material
|
Carbon steel
|
|
1: Can choose 240L（single bin、double bins）or 360L、660L、1100L standard bin lifting and turnover mechanism，can also choose ground hopper and other kinds of
loading mechanism.

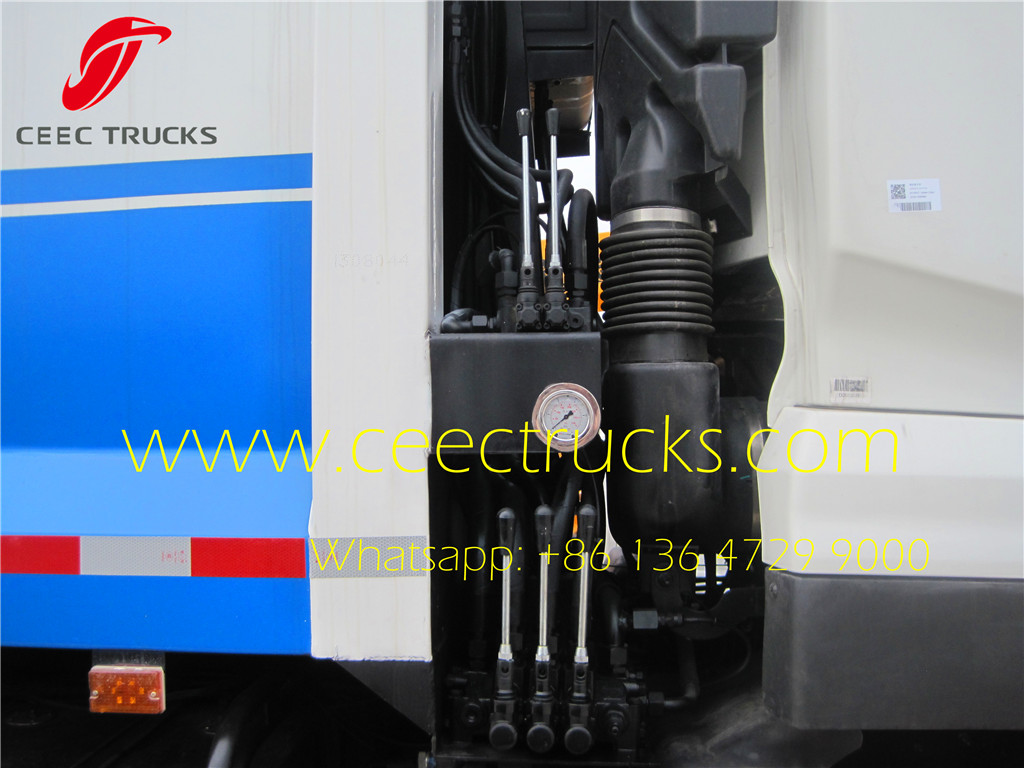

2: With manual and automatic two sets of control
method, the operator can control in the cabin, in the middle side or the back
of the truck , very convenient and efficient.
3: With working device of emergency braking stop
button.
4: Garbage body use frame design, elegant, strong
structure, large effective capacity.
5: Equipped with special collection box, sewage
directly into the sewage tank in the process of compression, that is
effectively prevent second pollution caused by sewage leaks.

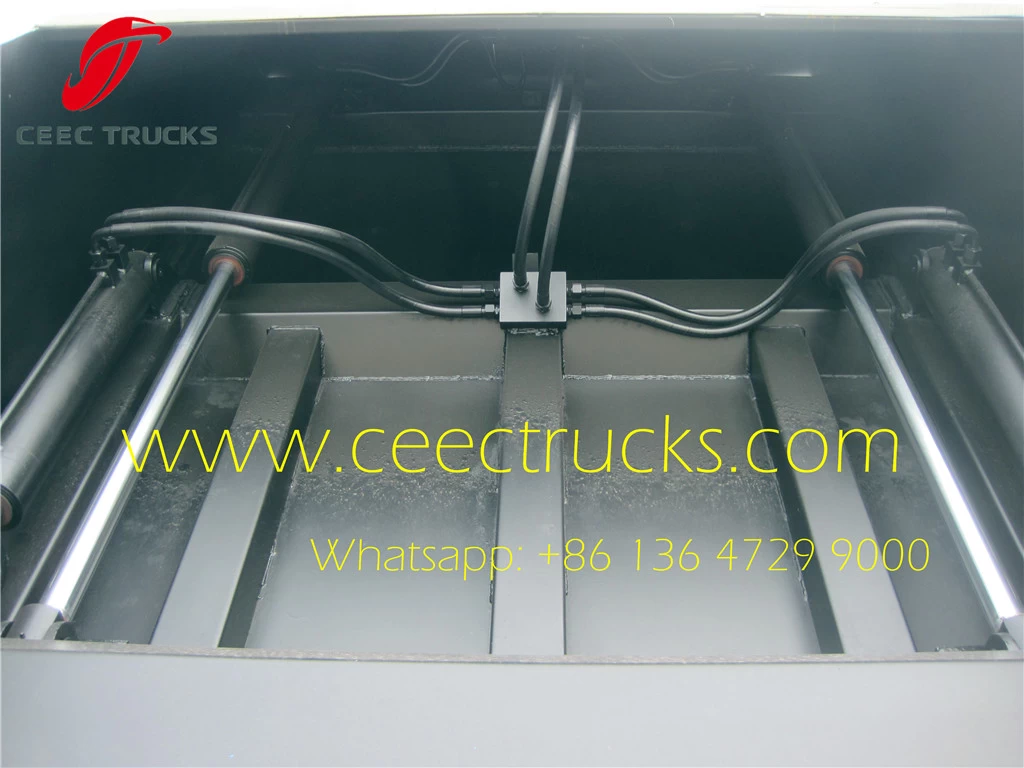

6: Through hydraulic system design, the truck
achieve the function of two-way garbage compression, that is improve the
compressibility ,make the compression ratio up to 1:2.5,the garbage can reach
more then 600～800kg／m3 after compression.
7: All other standard accessories: Tool kit, English Version
Owner Manual
|

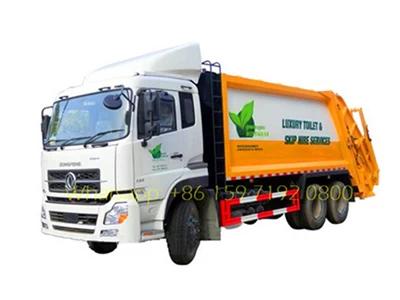

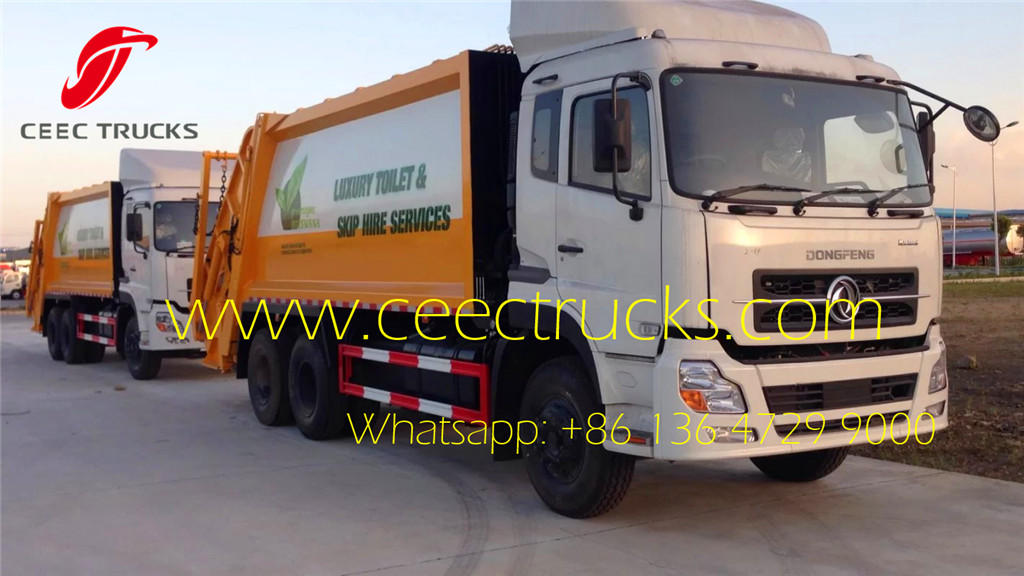

Garbage compactor trucks on sale
