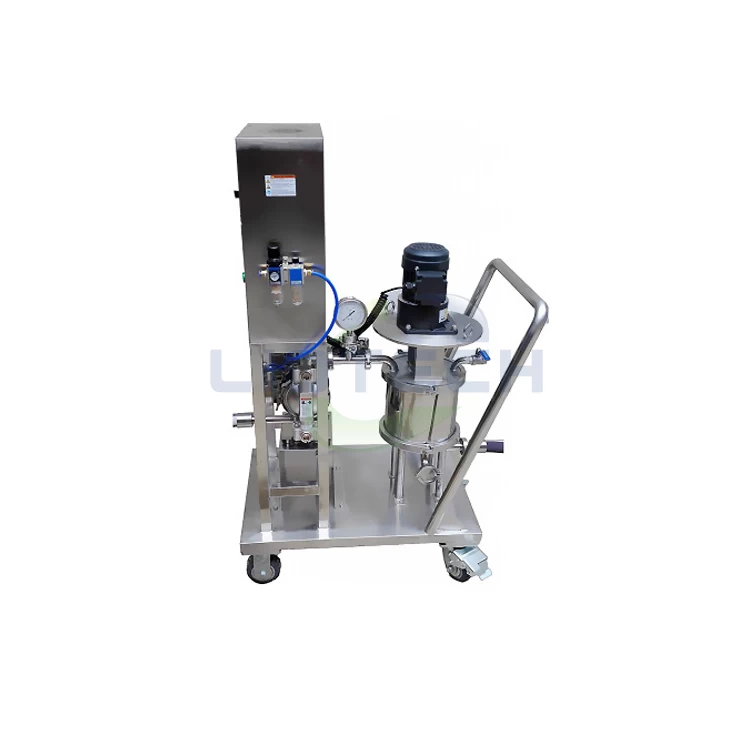

20 Liter Planetary Vacuum Battery Paste Mixer

Modle

LIO-IRFT-20L

Lower barrel parts

Design total volume

28L

Effective volume

8-20L

Container inner diameter

350mm

Container inside depth

300mm

Container material

the parts in connect with materials is 304 stainless steel

Tempering jacket form

button and barrel body through circulating water for cooling, insulation and heating.

Tempering jacket port

G1/2",with quick opening movable joint,jacket withstand pressure≤0.4MPa

Tempering jacket circulation system

 prepared by customer,jacket water inlet temperature≤8℃,cooling water flow>10L/min

Discharge form

 bottom of a G1-1/2" three-piece discharge ball valve, equipped with 1"standard ISO quick connect clamp connector

Design environment temperature

-10~+120°C

Move mode

Casters move

Mixing parts

Working frequency

5-50hz

Mixing power

2.2kw one set

Mixing rotate speed

7-79rpm

Planetary box speed

1. 4-49rpm

 Mixing blade diameter

 194mm

Mixing model

Precision casting and Machining of Spiral Mould to ensure 90 °Spiral

Mixing plate material

304

Mixing line speed

0.08-0.8m/s

Mixing blade number

2pcs

Quantity of impellers

2

Distance between paddle and paddle

11 ±2mm

Distance between paddle and bucket wall

3 ±1.5mm

Distance between paddle and bucket bottom

 3 ±1mm

Dispersing parts

Working frequency

5-50hz

Dispersing power

3kw

 Dispersing rotate speed

600-6000rpm

 Dispersing plate diameter

70mm

 Dispersing model

Serrated

 Dispersing plate material

 304 stainless steel

Dispersing line speed

 1.6 -16m/s

 Dispersing number

 2pcs

Dispersing shaft number

 1pcs

Scratch the wall parts

1. Scratch wall bracket material: 304 stainless steel

2. Scratch wall material: Teflon

3. Scratch wall rotate speed: Consistent with planetary box rotate speed

4. Removable or not:Removable design (Need to remove when scraping the wall on high viscosity process)

Base and lifting parts

1. Parts materials:High rigidity structural carbon steel

2. Lifting way:  Electric lift

3. Lifting guide:High-precision linear guide

4. Lifting itinerary:≤450mm

Upper barrel parts

1. Upper barrel material:304 stainless steel

2. Power feed port: quick opening interface DN70 1pcs DN50 mirror 1 pcs

3. Liquid feed port:ISO standard 1" quick interface 1pcs

4. Mirror port: DN50 tempered glass sight glass 1pcs

5. Vacuumize port:G 3/4 " 1pcs

6. Exhaust port:G1/2"  1pcs

7. Digital vacuum gauge port:M14×1.5 Internal thread metric tooth interface 1pcs

Control system

1. Electrical cabinet:Used to install low-voltage electrical components such as inverter

2. Manual operation panel:For placement buttons, knobs, gauges etc

3. Power supply:AC 3×380V±5%,50Hz

4. Control mode:electronic control+hydraulic control

5. Power control and speed adjustment mode: Inverter start and control

6. Cooling mode:Air-cooled and liquid-cooled

7. Operation mode:operate the corresponding button + knob on the cabinet panel

8. Digital temperature display gauge:material temperature

9. Emergency stop button:1pcs

10. Alarm system:Over-temperature alarm, over-temperature alarm shutdown, alarm shutdown

11. Speed display: panel gauge shows the speed

12. Power instructions: 1pcs

13. Timer: 1pcs, controlling dispersion and mixing

14. Note:If choose the man-machine contact surface system disposition, the control system related content integrated to the touch screen control

Safety Chain system

1. Emergency stop: press the emergency stop switch, the device immediately stop, and can not do anything

2. Start low-speed mixing: can lift the barrel and turning at the same time

3. High-speed dispersion: barrel up in place before turning

4. Safe lock in operation: When the machine is running, the mixing barrel can not be lowered, can not open the mixing barrel.

5. Prevent vacuum tube backflow: special vacuum buffer tank design, can effectively prevent the vacuum pump oil back to the mixing drum phenomenon

6. Stop running fault: Inverter comes with overload, overcurrent, overvoltage, leakage, lack of equal protection

7. Mixing barrel lift: stirring barrel in place to rise

8. Mixing barrel did not return to normal pressure can not be dropped.

9. After mixing barrel rises in place and high-speed dispersion, then can be started.

10. After mixing barrel rises in place, with locking protection system, to prevent while the mixing barrel rises to high place abnormal fall.

11. Dry mixing stage, while the barrel rising, the stirring paddle need to rotate at the same time.

Other description

1. Temperature probe:Pt100

2. Temperature measurement: Located at the bottom of the barrel wall 100, the direct detection of internal material temperature

3. Transmission parts bearings:High-speed components for imported bearings, low-speed components for domestic bearings

4. Oil seal:Domestic brands,O-ring for Static seal,dynamic seal using mechanical seals or skeleton oil seal

5. Grease:Domestic brands

6. Mechanical seal lubricants:Imported brand

7. Petrol cylinder:Domestic brands

8. Petrol station:Domestic brands

9. Valve:Domestic brands

10. Vacuum design quantity demand:vacuum system prepared by customer own, air exhaust volume 4L/S(2X-4)

11. Vacuum hold:-0.098Mpa,holding pressure for 24 hours>-0.085Mpa,do not leak to the barrel

12. Total host power:>5.2kw

13. Total weight: about 950kg

14. Dimensions:L1670mm×W1058mm×H1907mm

15. Appearance color:off-white

16. Ground bearing:900kg/2
