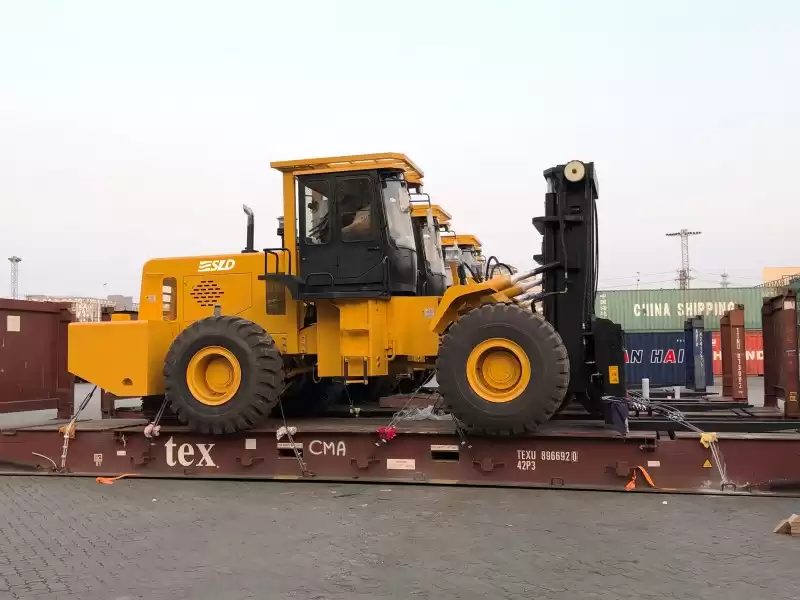

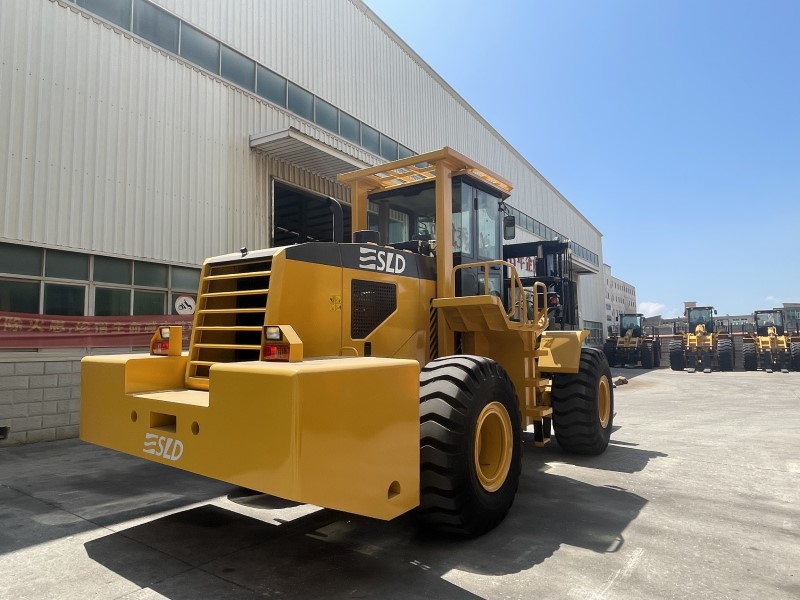

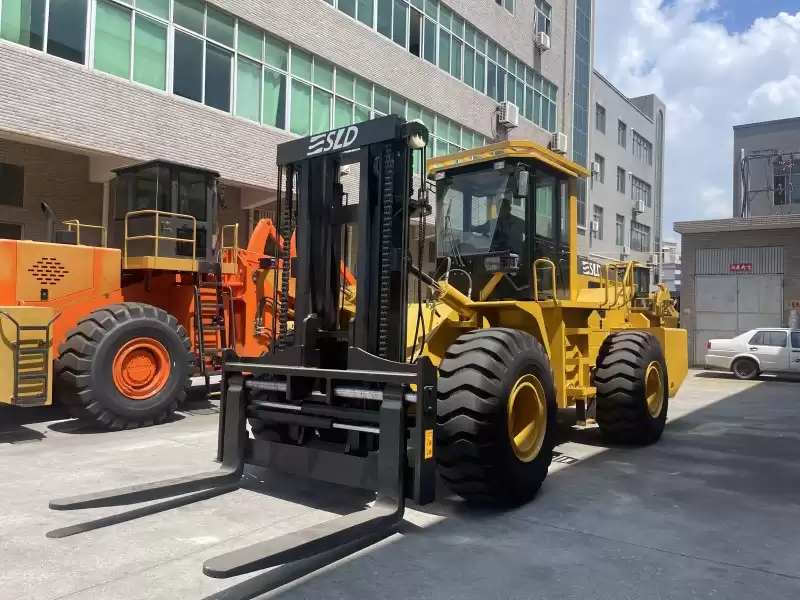

Main Features of 20 ton Rough terrain Forklift
1, Engine: Weichai WD10G220E11engine, 162KW, strong power, energy conservation and environmental protection.
2, Transmission& torque converter: brand Sanchi hydraulic Transmission ZL50, 2F/1R. It is special for heavy-duty forklift, imported technology, reliable performance, convenient maintenance, smooth transmission and convenient operation.
3, Driven axle: Self-made reinforced driven axle, hub reduction, high strength axle case, large load capacity, excellent stability and reliability.
4, Steering system: Adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable.
5, Braking system: caliper disc brakes, heat dissipation faster, light, simple structure and easy to adjust. Especially have very good thermostability performance when heavy loaded, braking effect stable.
6, Control system: Pilot valve control device to make the work efficiency and reduce drivers’ labor intensity.
Hydraulic system: Double pump confluence, small system flow, low power consumption, reliable performance, excellent operating performance.
7, Cooling system: Adopt independent transmission oil and hydraulic oil cooling, increasing system stability.
8, Tyre: Resistant to wear and sting, high strength tyres, bear heavy loaded - safe and reliable.
9, Mast: Box-type internal-external mast, special all-round roller bearings, increase lifting performance.
10, Cabin: With cooling air-conditioning ,damping luxury cab with sunroof, wide view and comfortable seats, flexible control.
|
Specifications
|
|
General
|
Manufacturer
|
|
SLD
|
|
Model
|
|
FDM8200
|
|
Power type
|
|
Diesel
|
|
Rated loading capacity
|
Kg
|
20000
|
|
Load center
|
mm
|
800
|
|
Dimensions
|
Lifting height
|
mm
|
3000
|
|
Free lift height
|
mm
|
195
|
|
Fork size
|
mm
|
1600×200×100
|
|
Fork distance
|
Min./Max.
|
mm
|
400/1480
|
|
Mast tilt angle
|
Front/Rear
|
deg
|
8/12
|
|
Front overhang
|
mm
|
950
|
|
Overall dimensions
|
Overall length
|
mm
|
8550
|
|
Overall width
|
mm
|
3160
|
|
Mast lowered height
|
mm
|
3450
|
|
Mast extended height
|
mm
|
4380
|
|
Overhead guard height
|
mm
|
3200
|
|
Turning radius
|
mm
|
5500
|
|
Min.right angle aisle width
|
mm
|
3500
|
|
Performance
|
No load/Full load
|
Traveling Speed
|
km/h
|
25/24
|
|
Lifting spead
|
mm/sec
|
320/270
|
|
Max.gradeability
|
%
|
25
|
|
Max. Pull force(full load)
|
KN
|
95
|
|
Self weight
|
kg
|
25000
|
|
Chassis
|
Wheel size
|
Front
|
|
26.5-25
|
|
Rear
|
|
26.5-25
|
|
Tread
|
Front
|
mm
|
1500
|
|
Rear
|
mm
|
1550
|
|
Wheelbase
|
mm
|
3900
|
|
Min.Ground clearance (No load/Full
load)
|
Mast
|
mm
|
230/220
|
|
Frame
|
mm
|
245/240
|
|
Drive unit&control
|
Battery
|
V/AH
|
24/100×2
|
|
Engine
|
Model
|
|
WD10G220E11
|
|
Manufacturer
|
|
WEICHAI
|
|
Rated power
|
Kw/rpm
|
162/2300
|
|
Rated torque
|
N.m/rpm
|
1460/2400
|
|
NO.of cylinder
|
|
6
|
|
Bore×Stroke
|
mm
|
126×130
|
|
Displacement
|
L
|
9.726
|
|
Fule tank capacity
|
L
|
200
|
|
Transmissions
|
Type
|
L
|
Hydraulic
|
|
Forwarder / Rear
|
|
2/1
|
