200*200mm Size Hot Press Machine For Lithium Battery Core After Winding Process
SPECIFICATIONS
TOB-RY200Hot press machineis mainly used for battery corehot press shaping after winding process, easy for battery core into the pouch or shell.
Using thehot press shaping machineafter battery Winding On the template by pressure and heat to reduce batteries thickness with finalize design, reducing the battery core short circuit rate and ensure the consistency of the thickness of the finished batteries.
|
Model
|
Hot Press Machine TOB-RY200
|
|
Source voltage
|
AC 220V/110V, 50/50HZ
|
|
Power
|
2000W
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Structure
|
The LCD display shows Temperature
Using light curtain protection device, guarantee security
With abnormal temperature alarm function
Hot-pressing time, temperature, pressure can be adjusted
Use automatic and semi-automatic control, easy to operate
|
|
Air source
|
0.5-0.8MPa
|
|
Hot press area
|
200*200mm
|
|
Heating TEM
|
RT-250℃, adjustable
|
|
TEM accuracy
|
±2℃
|
|
Pressure
|
1T adjustable
|
|
Dimension(L*W*H)
|
350*320*550mm
|
|
Weight
|
About 90kg
|

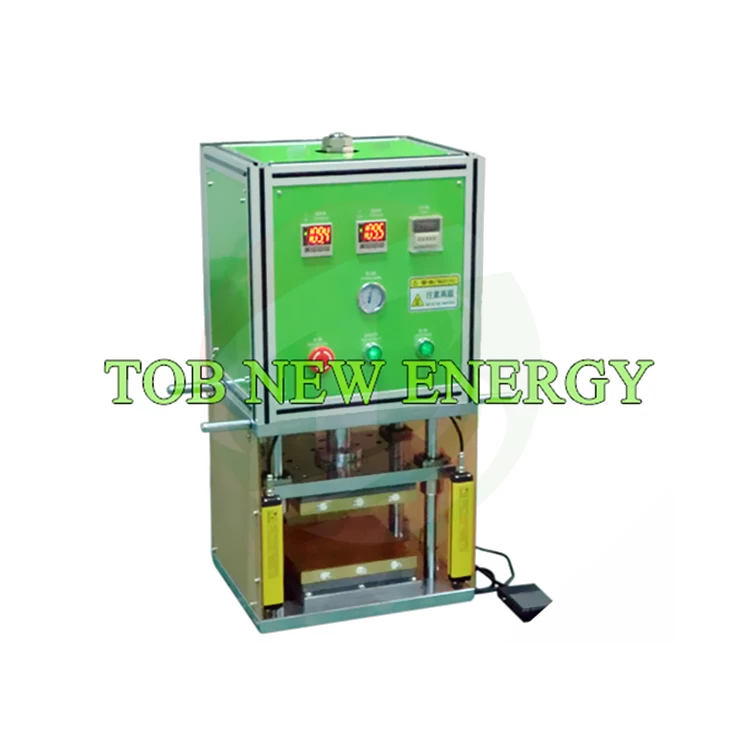

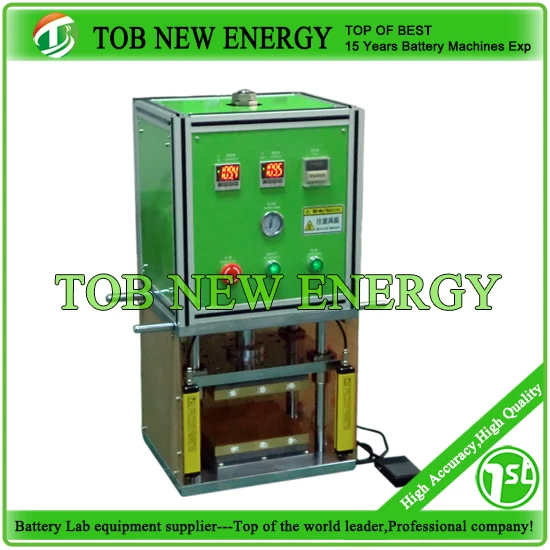

PRODUCT DISPLAY
PACKAGE AND SHIPPING
|
1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
|
SERVICES
|
1 We supply machines with battery technology support.
2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.
3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.
4 We can also supply a full set of battery technology for battery design, research and producing.
|
