Water Tanker Isuzu FVZ watering vehicle

Water Tanker Isuzu watering vehicle 20cbm


Water Tanker Isuzu watering vehicle 20cbm

Function:

Water tanker vehicle Isuzu (also called water truck tank, water trucks, water tank lorry, Japanese water tank truck, truck mounted water tank, water sprinkler truck, water spray truck, water transport tanker truck, tanker truck, water carrier trucks.) is produced for transportation and distrubition of industrial and drinking water, spraying and washing of streets and tunnels,  dust and environmental control and  fire-fighting purposes. In order to achieve those different operations , each water tanker truck is equipped with various features and it’s designed according to capacity of the carrier vehicle.

Areas of Application and Use

  • Transportation and distrubition of drinking water
  • Transportation and distrubition of industrial water
  • Pressurized street and road cleaning
  • Pressurized tunnel cleaning
  • Dust and environmental control
  • Fire fighting service
Features:

---- ISUZU 6HK1 engine, super powerful; reliable performance.
---- Nice shape, rational structure
---- Special fire pump, super powerful, efficient pump in and out
---- Strong, durable, perfect performance
---- Prolonged service life



Specification:



Water Tanker Vehicle ISUZU (20,000 litres)
General Vehicle Brand POWRESTAR
Chassis Brand ISUZU FVZ
Overall Dimension 9900 * 2500 * 3400 mm
GVW / Kerb Weight 25,000 kg / 12,030 kg
Cab Cab Capacity 3 persons allowed
Air Conditioner W/ air conditioner
Engine Fuel Type Diesel
Engine Brand ISUZU  engine
Power 390 Hp (206 KW)
Displacement 7790 ml
Emission Standard Euro IV
Chassis Drive Type 6X4, left hand drive
Transmission 9-speed front, 1 reverse
Wheelbase/No. of axle 5100+1000 mm / 3
Tyre Specification 11.00-20
Tyre Number 10 tyres and 1 spare tyre
Max Speed 95 km/h
Paint Metallic paint
Superstructure Tank Capacity 20,000 Litres ( About 5,300gallons)
Tank Material & Structure Carbon steel, Inner baffles inside tank for prevention of longitudinal surge during moving.
Water Pump A separate HONDA gasoline engine pump equipped for overhead delivery, flow capacity 35m3/hour, delivery head 21m.
Tank Interior Treatment Anti-corrosion treatment
Hose High quality strengthened hoses, 6 m X 2 pcs, with aluminum coupling.
Optional ** Tank material could be stainless steel or carbon steel with non-toxic treatment for potable water, safe for human body.

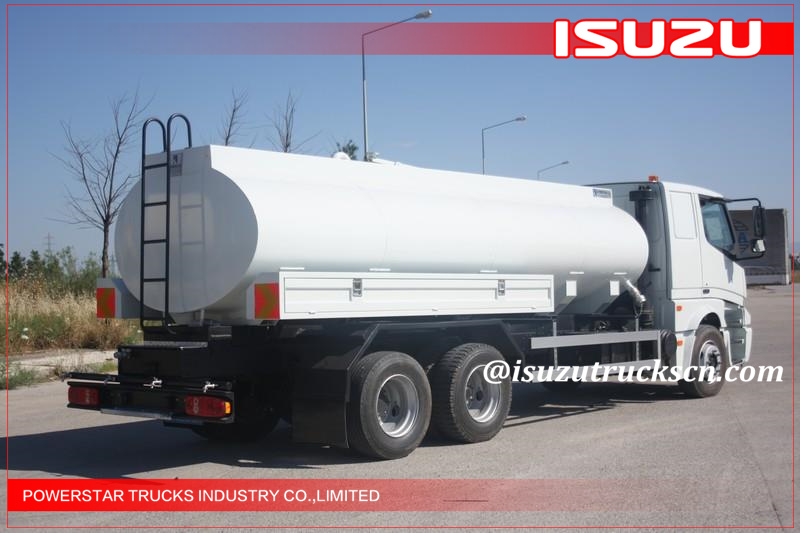

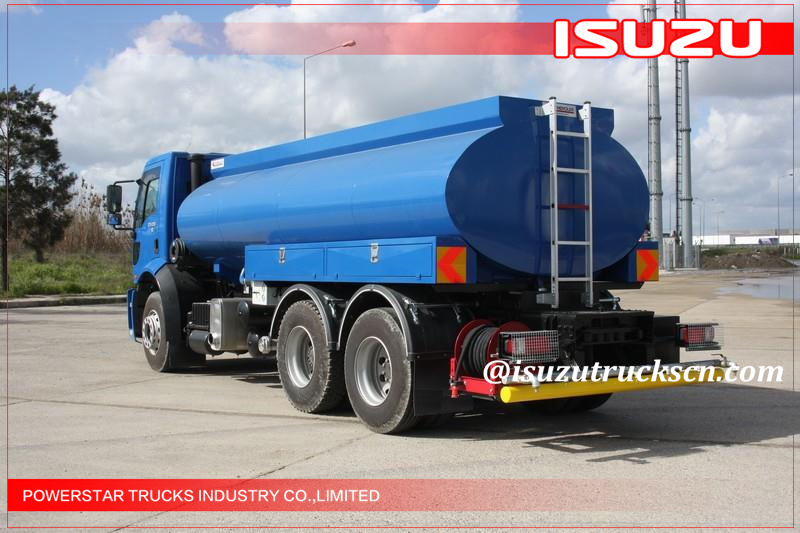

Recently Built Water Tank Truck:

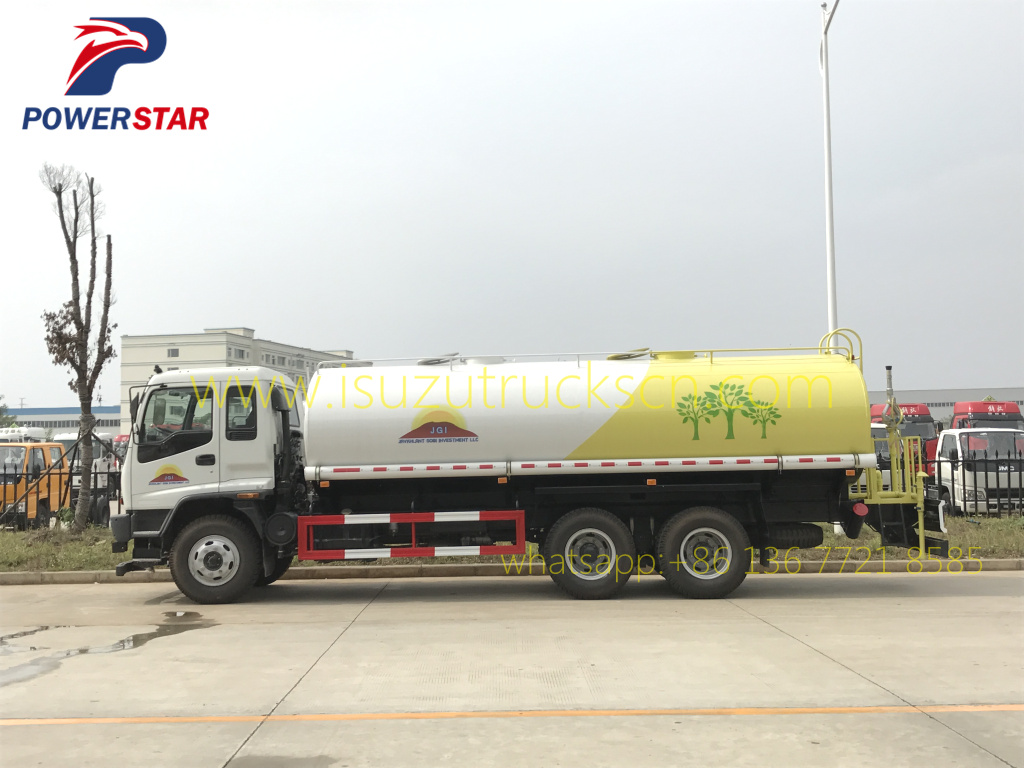

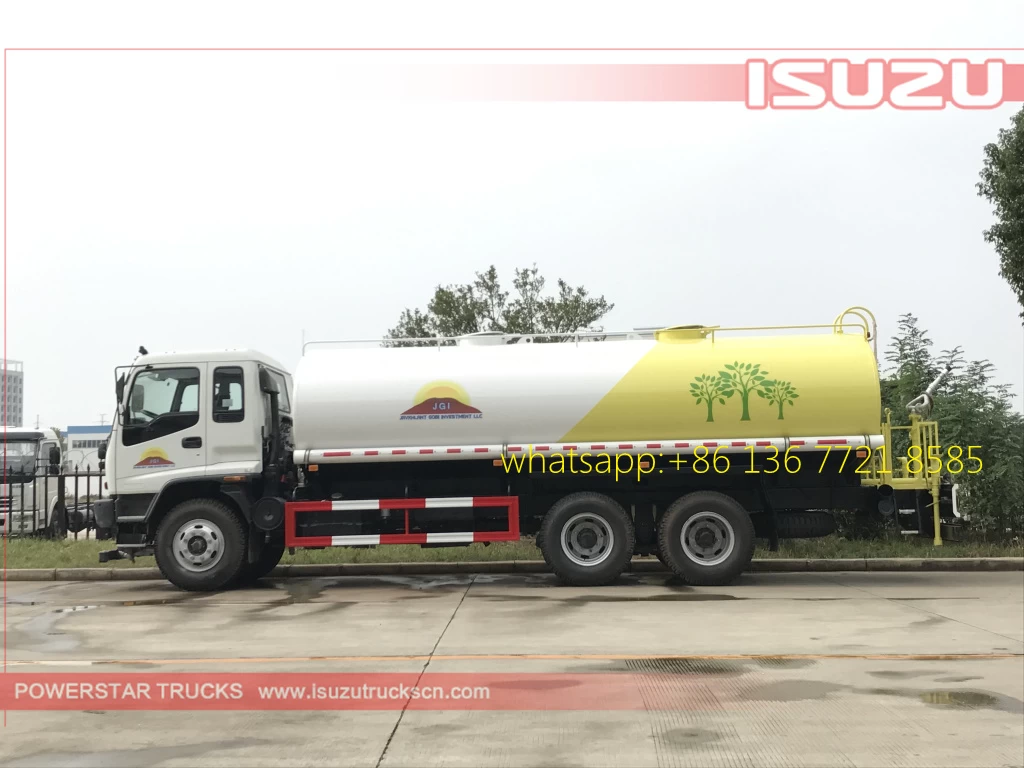

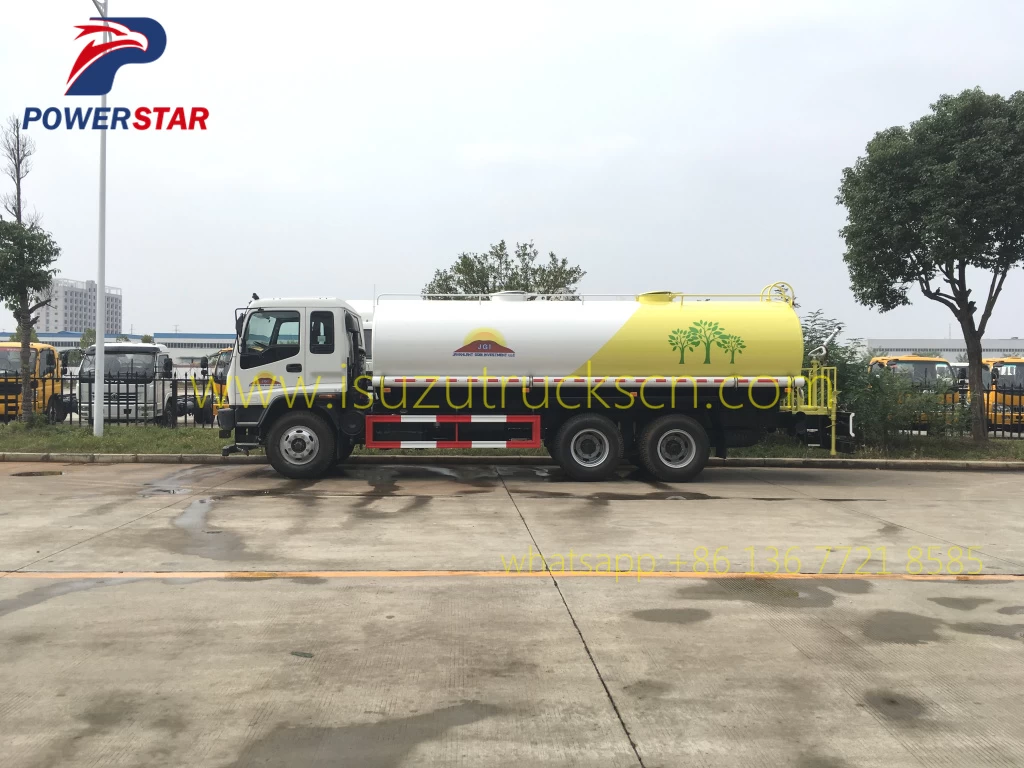

left pictures of 20cbm Water Tanker Isuzu FVZ watering vehicle

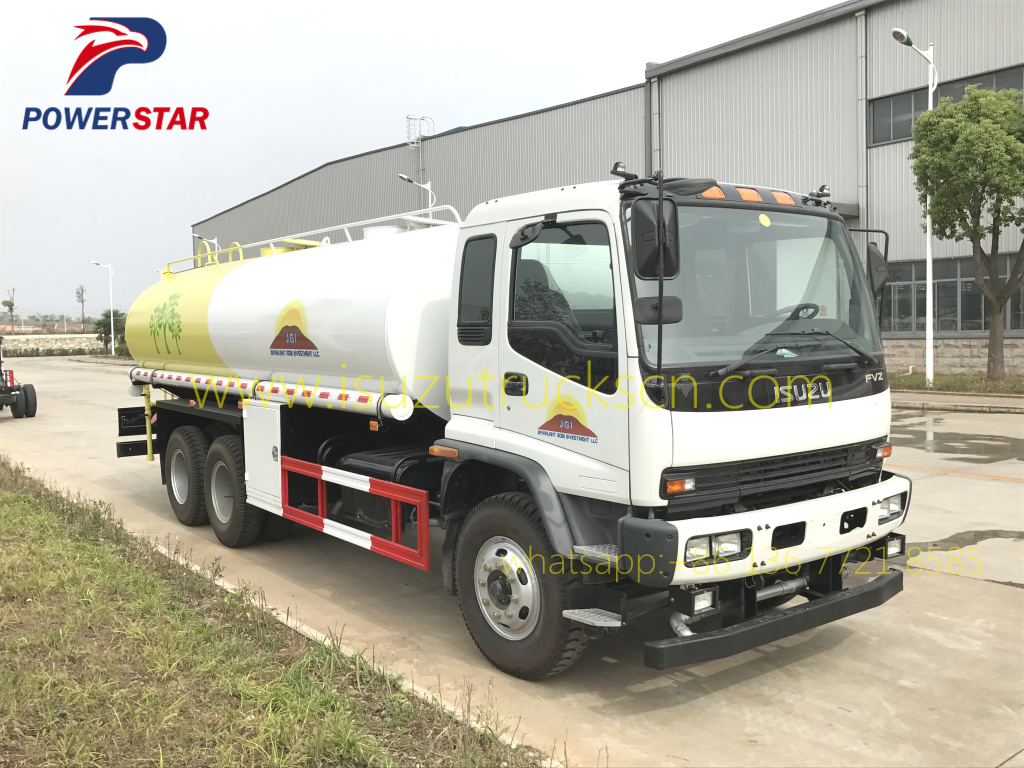

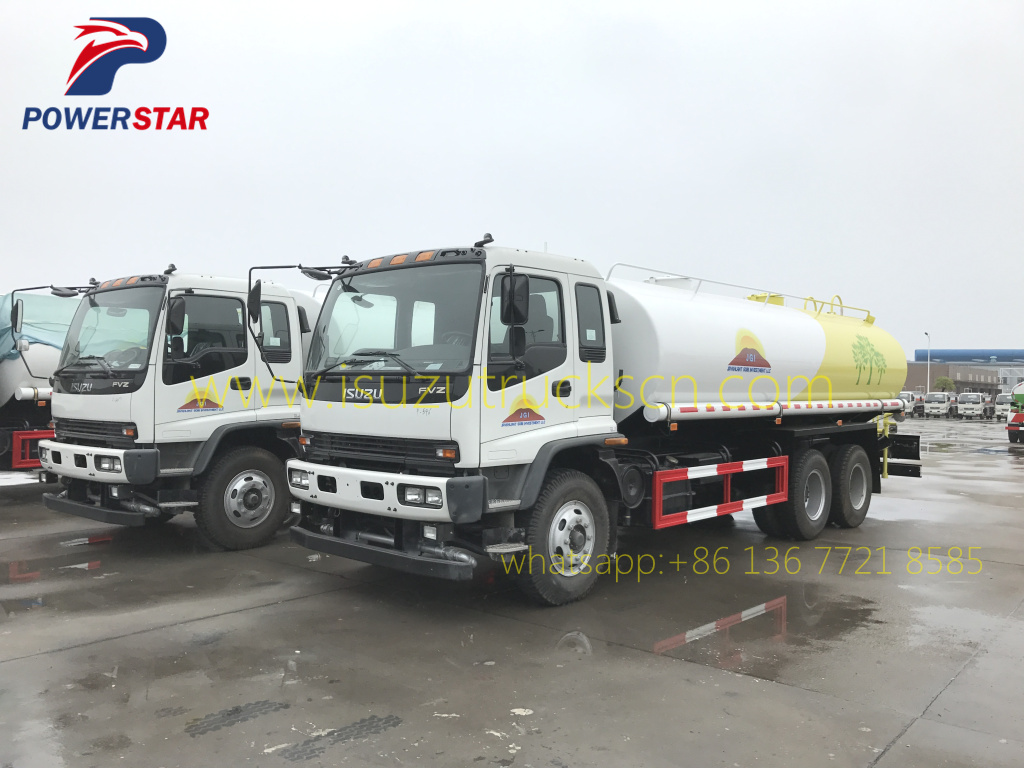

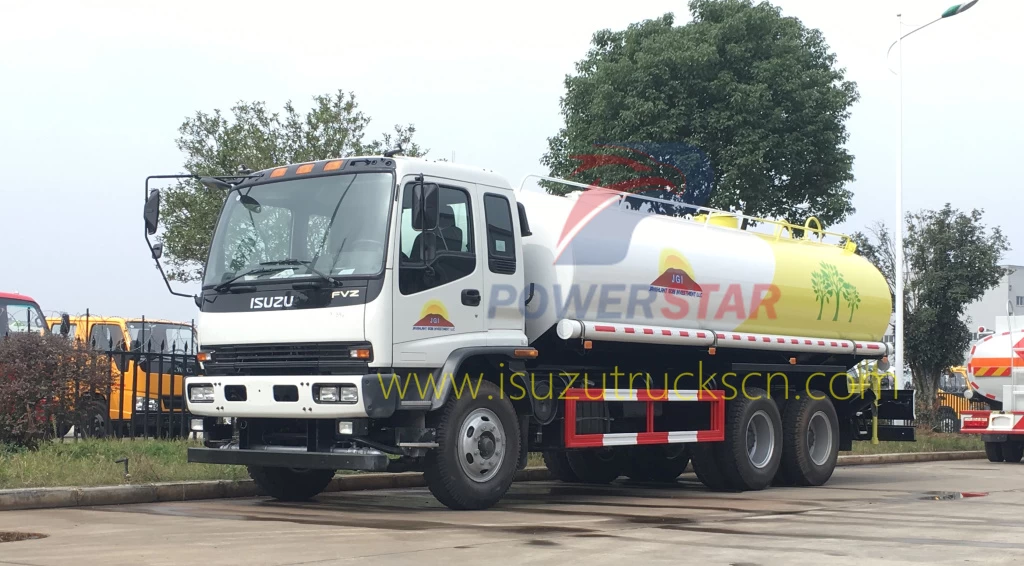

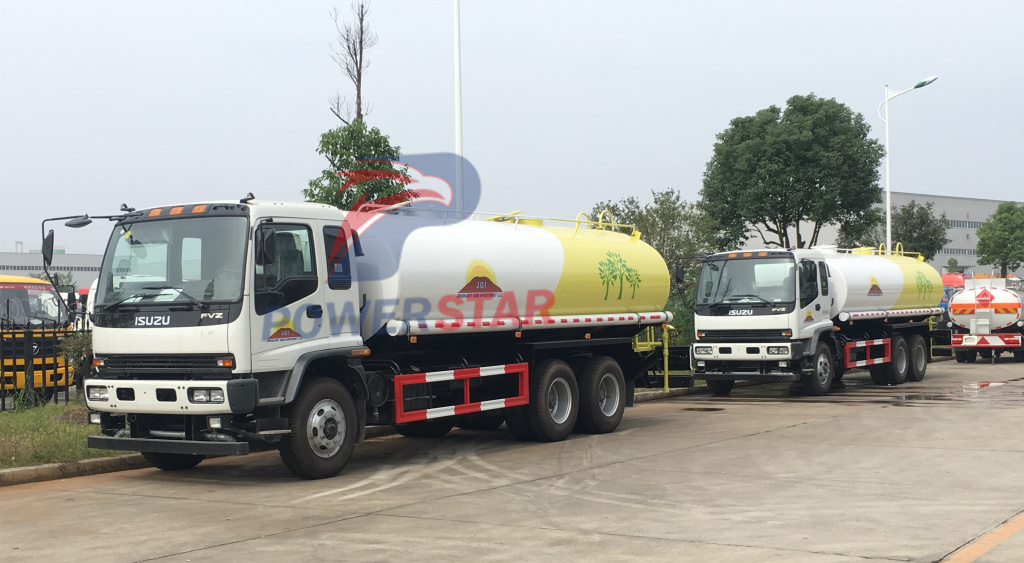

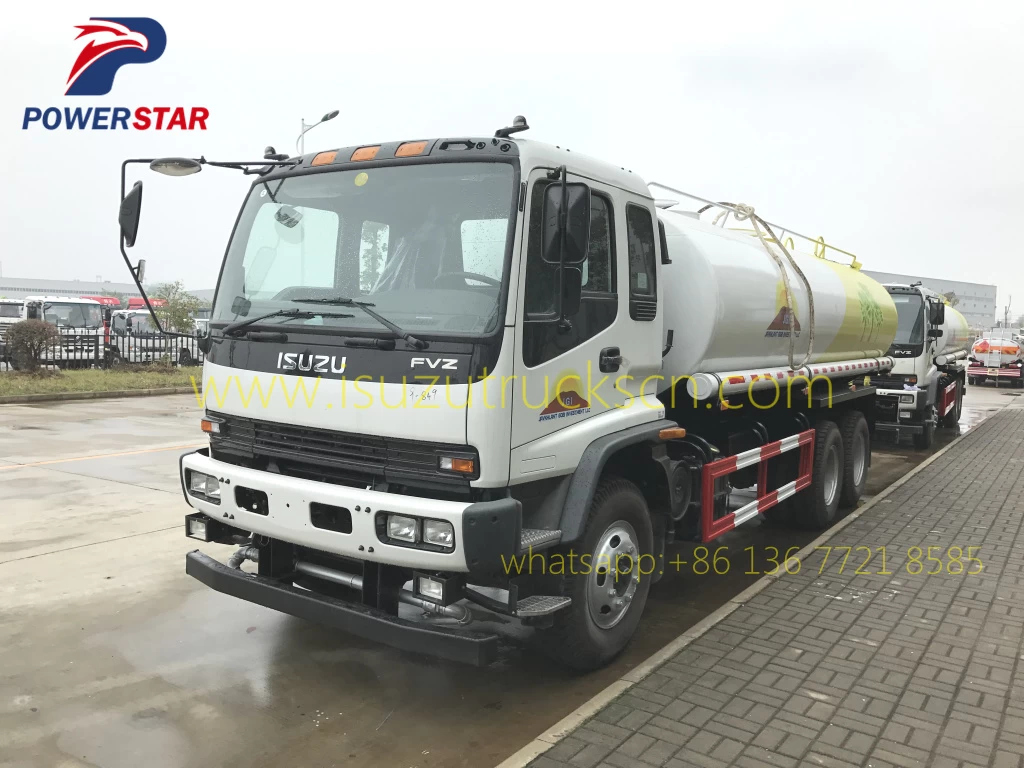

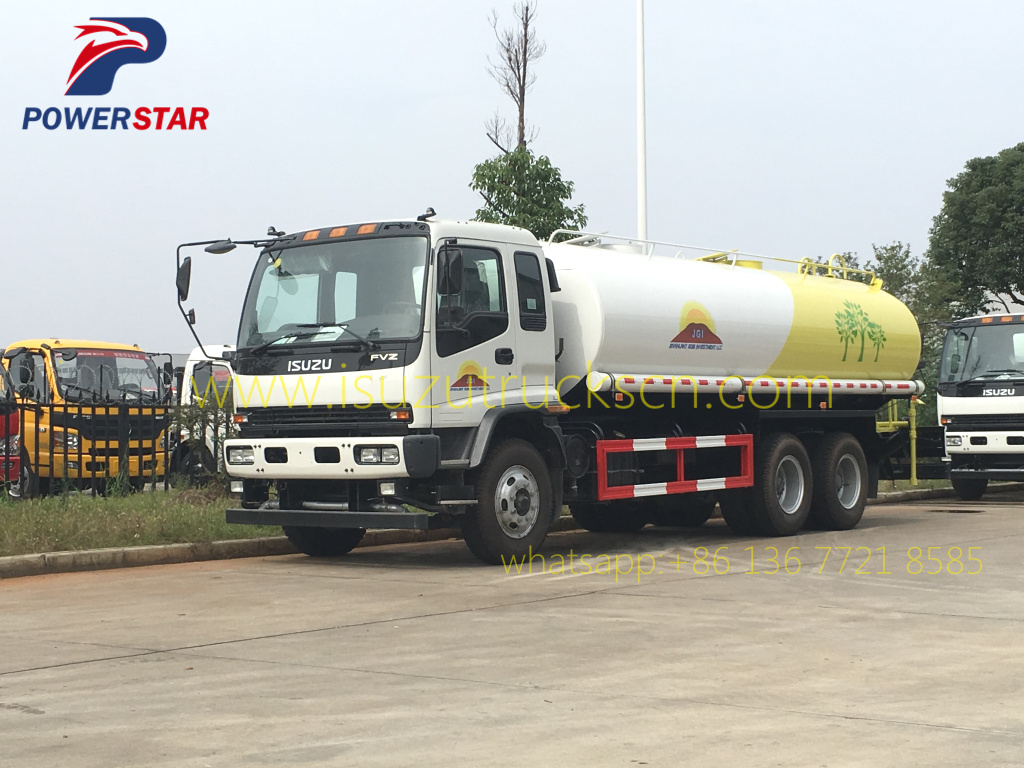

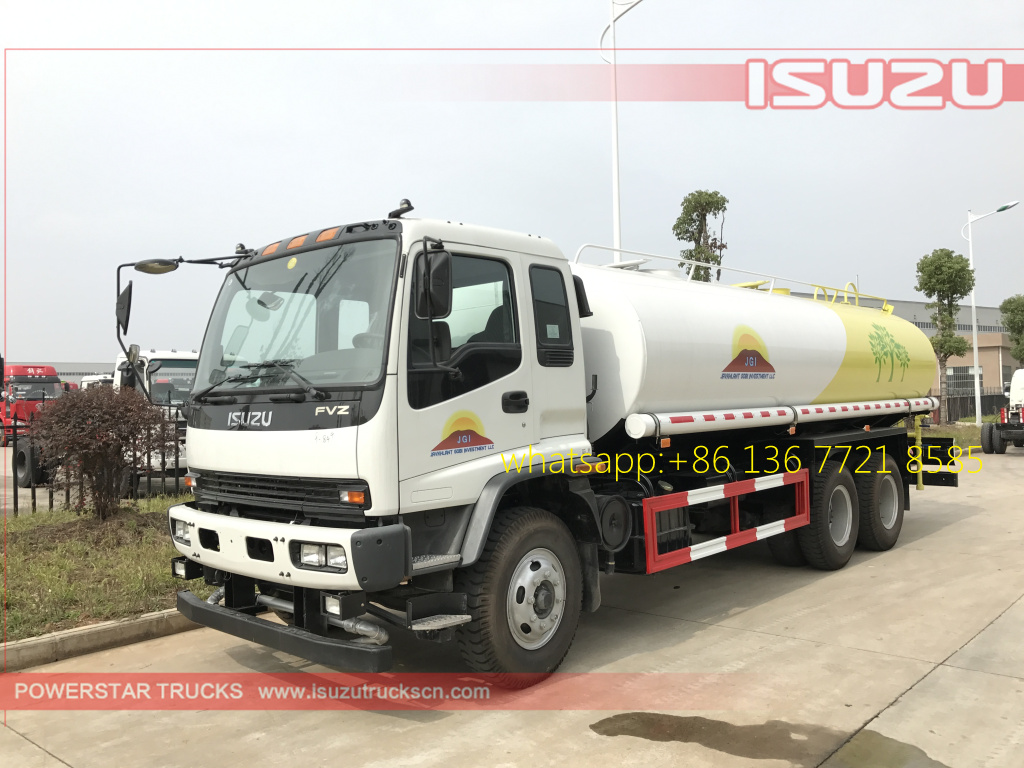

 front left pictures of 20cbm Water Tanker Isuzu FVZ watering vehicle

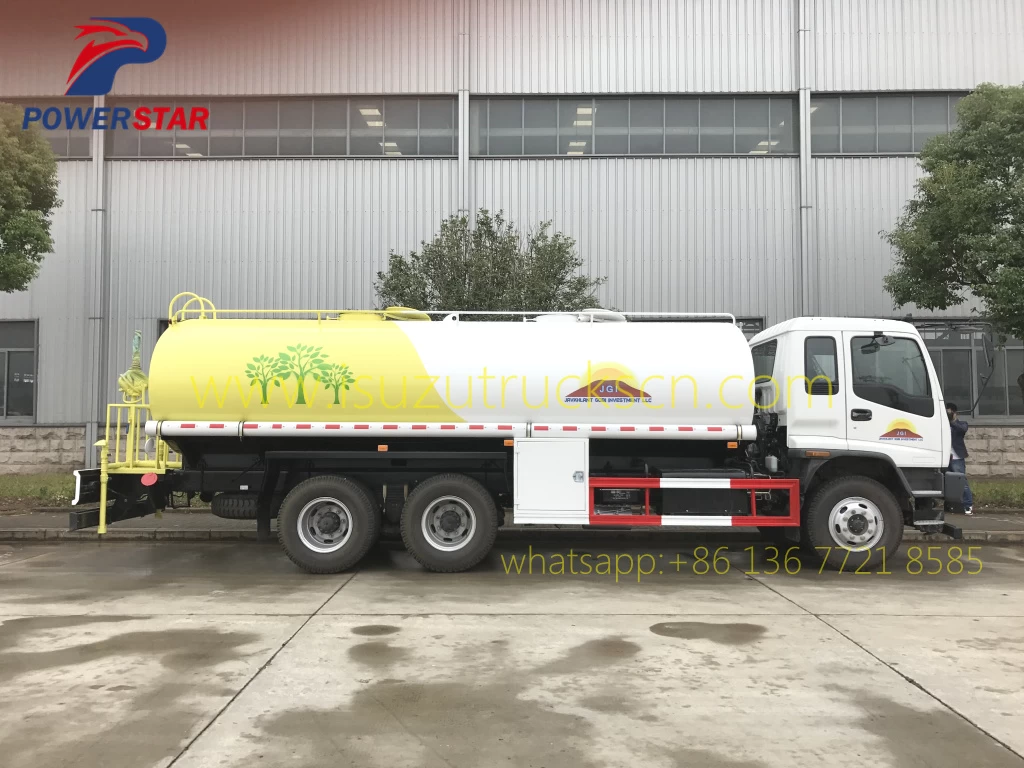

Right pictures of 20cbm Water Tanker Isuzu FVZ watering vehicle

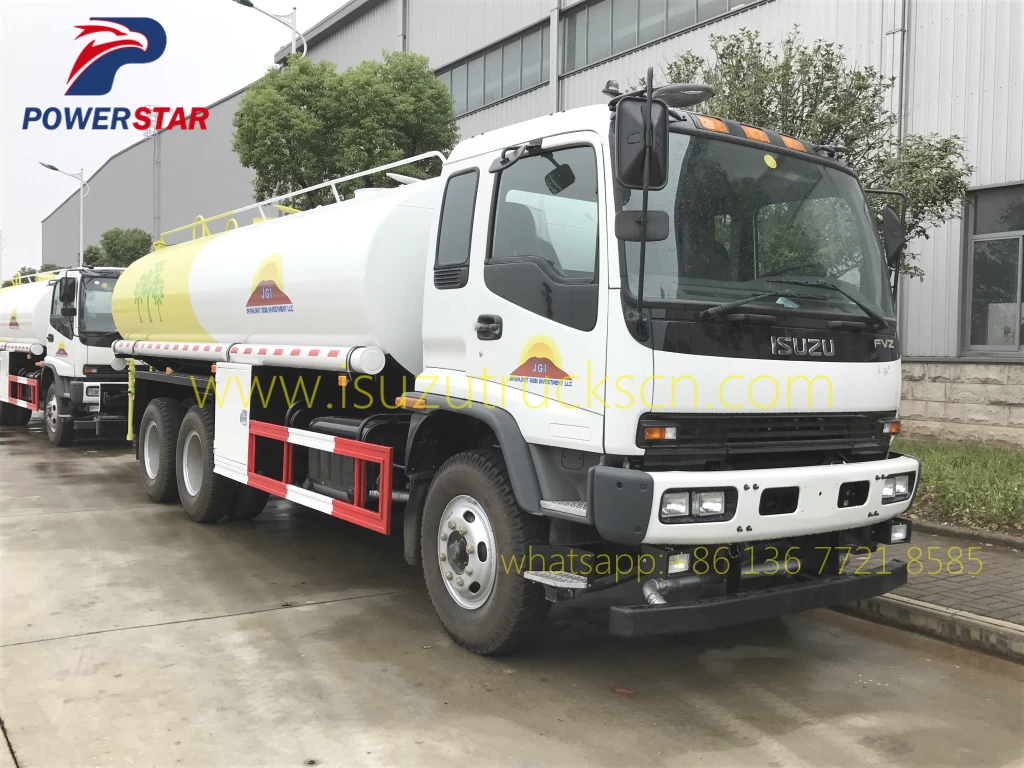

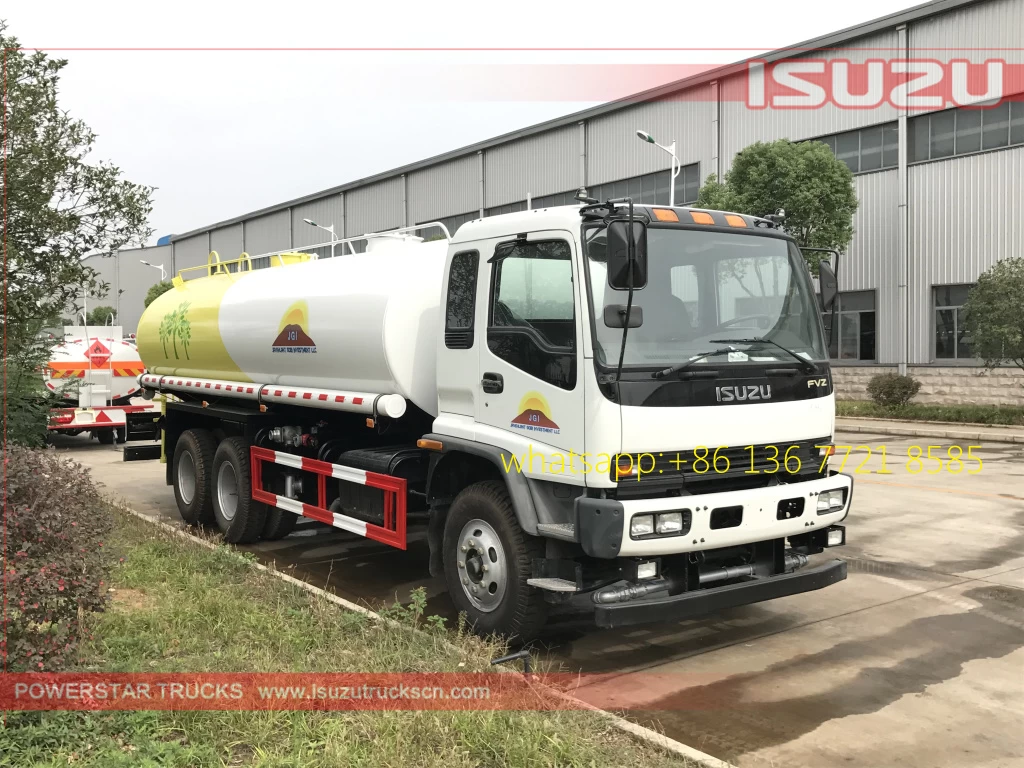

front right pictures of 20cbm Water Tanker Isuzu FVZ watering vehicle

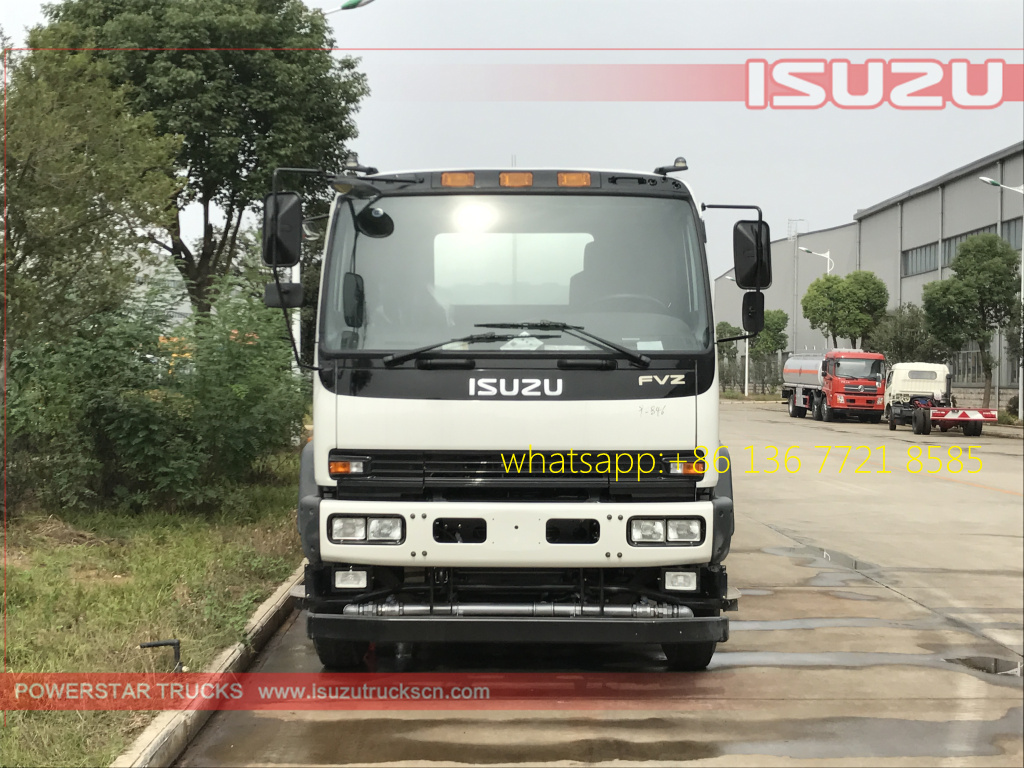

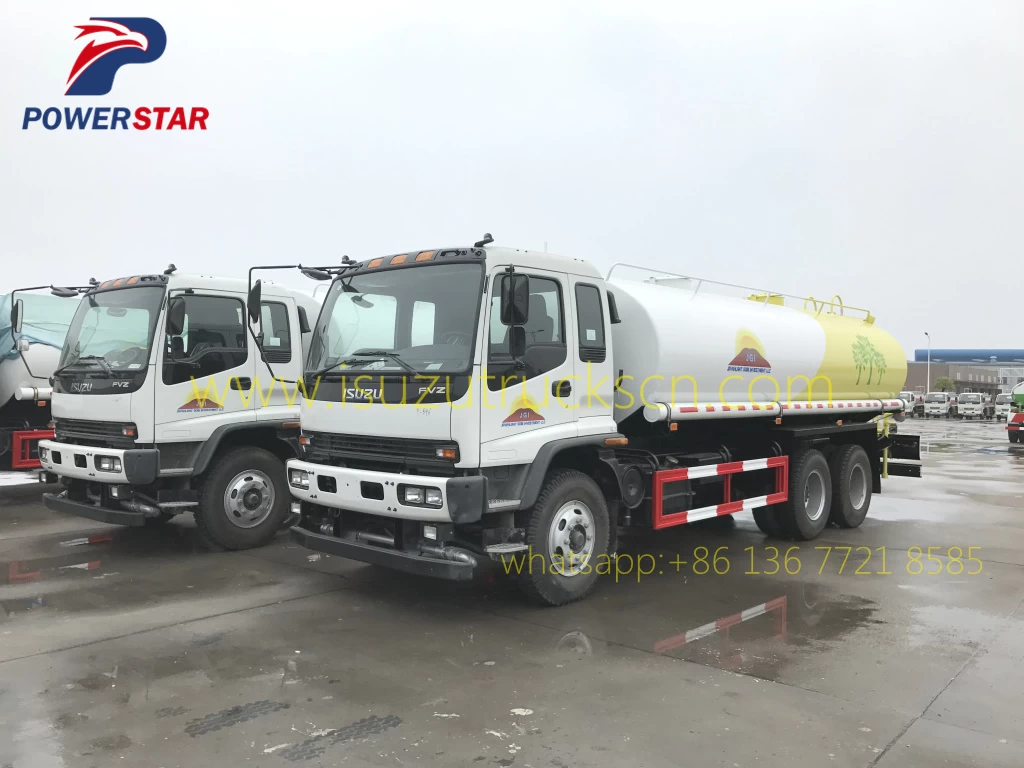

front pictures of 20cbm Water Tanker Isuzu FVZ watering vehicle

front pictures of 20cbm Water Tanker Isuzu FVZ watering vehicle

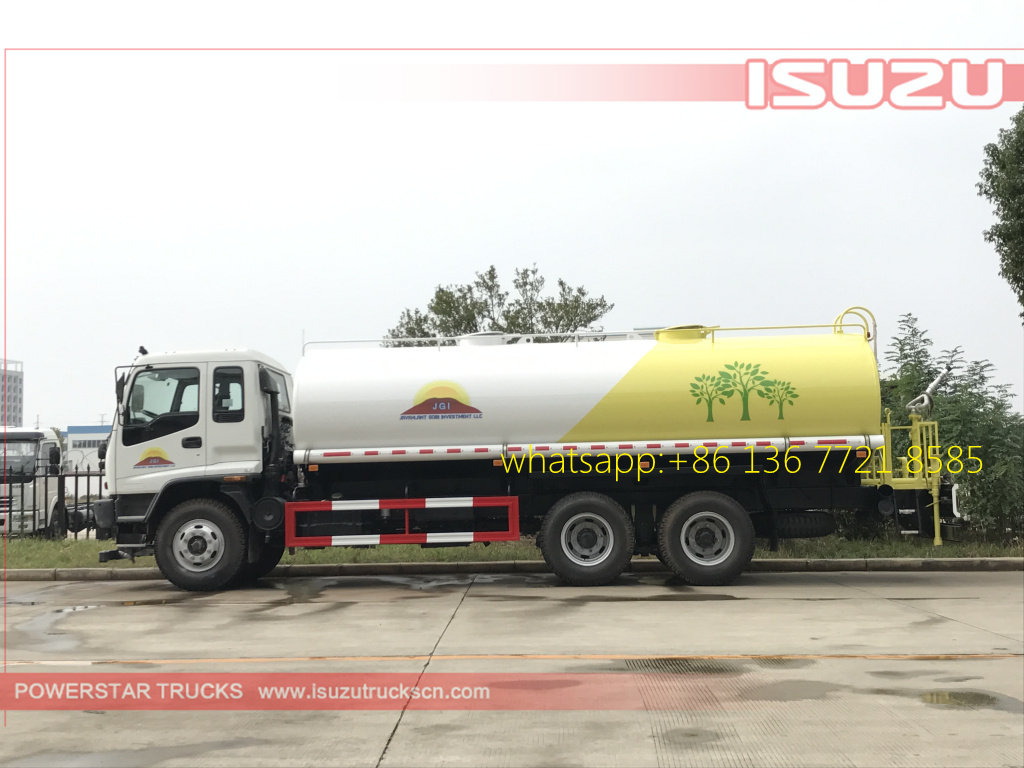

side pictures of 20cbm Water Tanker Isuzu FVZ watering vehicle

Side pictures of 20cbm Water Tanker Isuzu FVZ watering vehicle

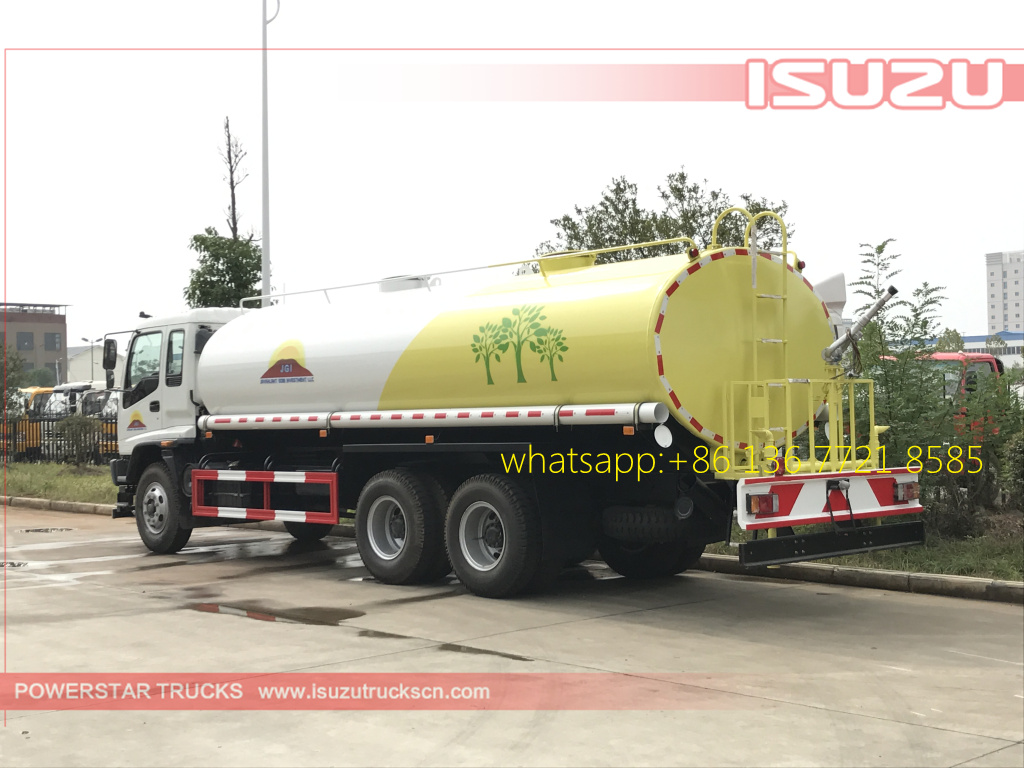

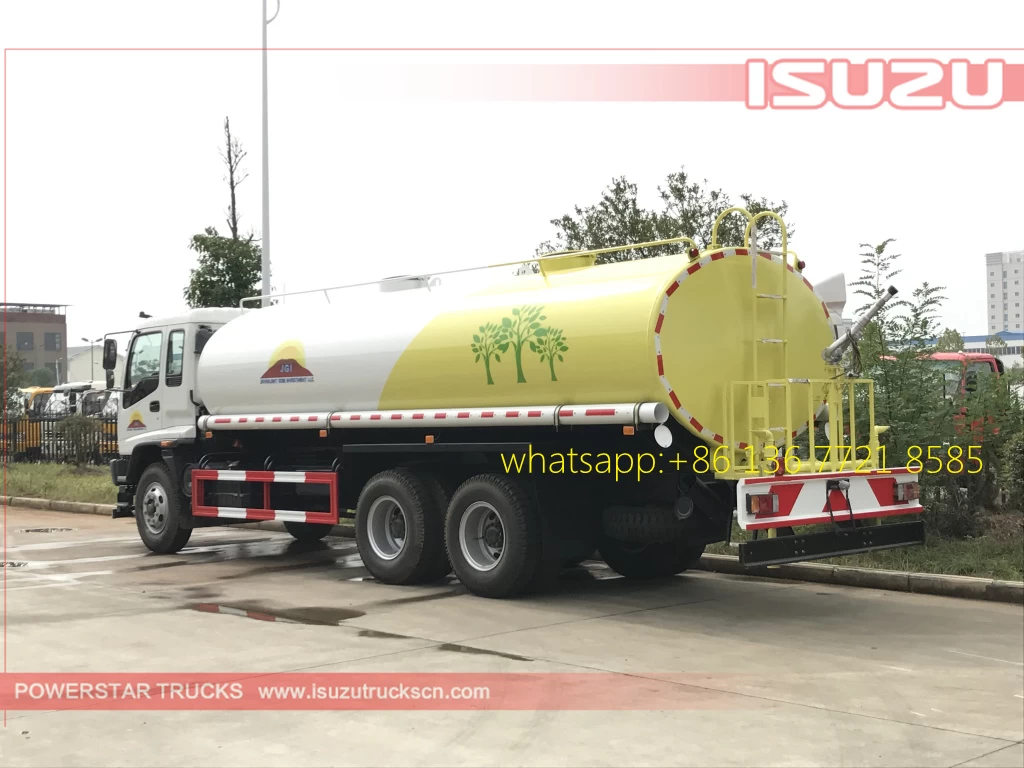

Rear right pictures of 20cbm Water Tanker Isuzu FVZ watering vehicle

rear right pictures of 20cbm Water Tanker Isuzu FVZ watering vehicle

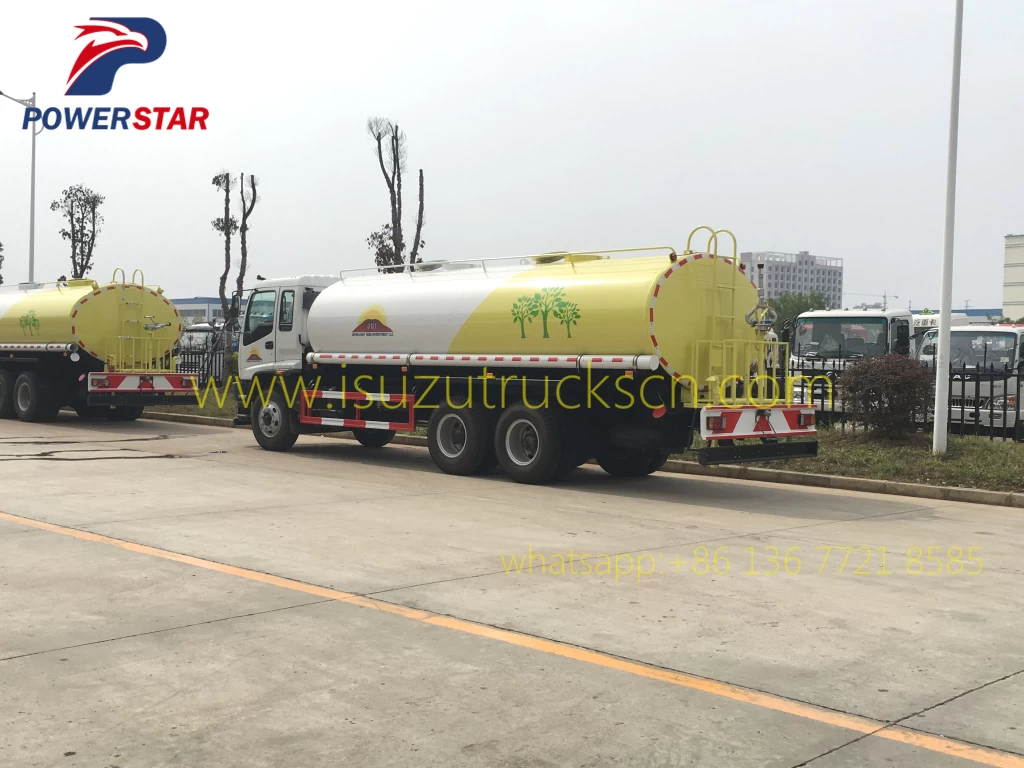

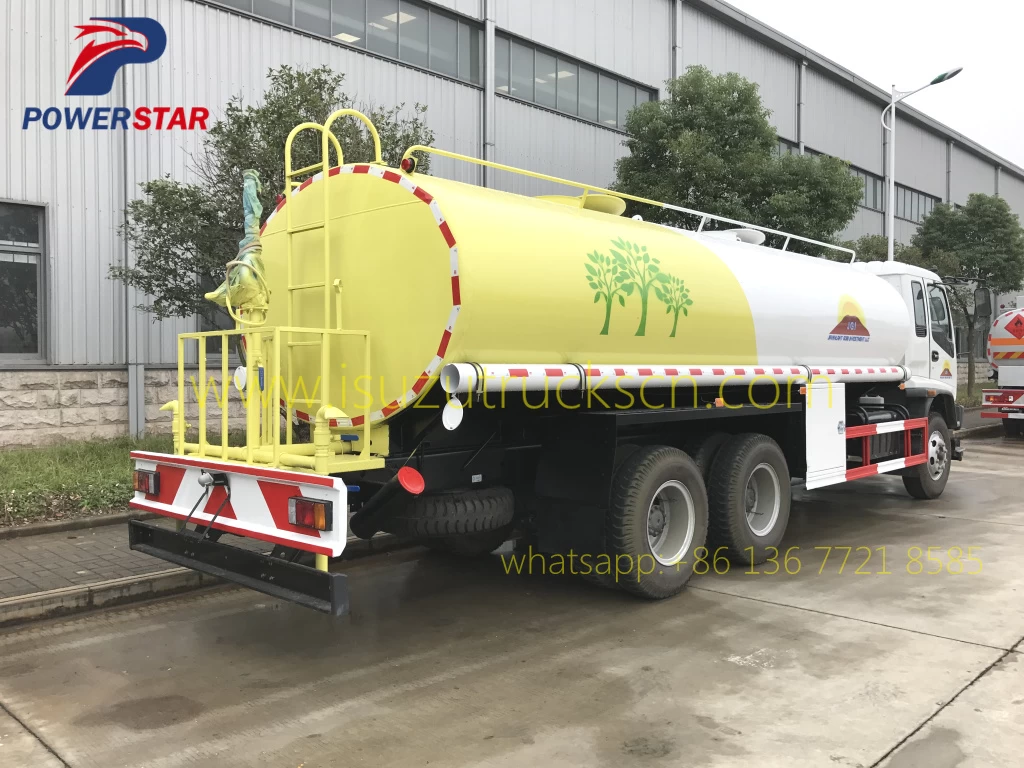

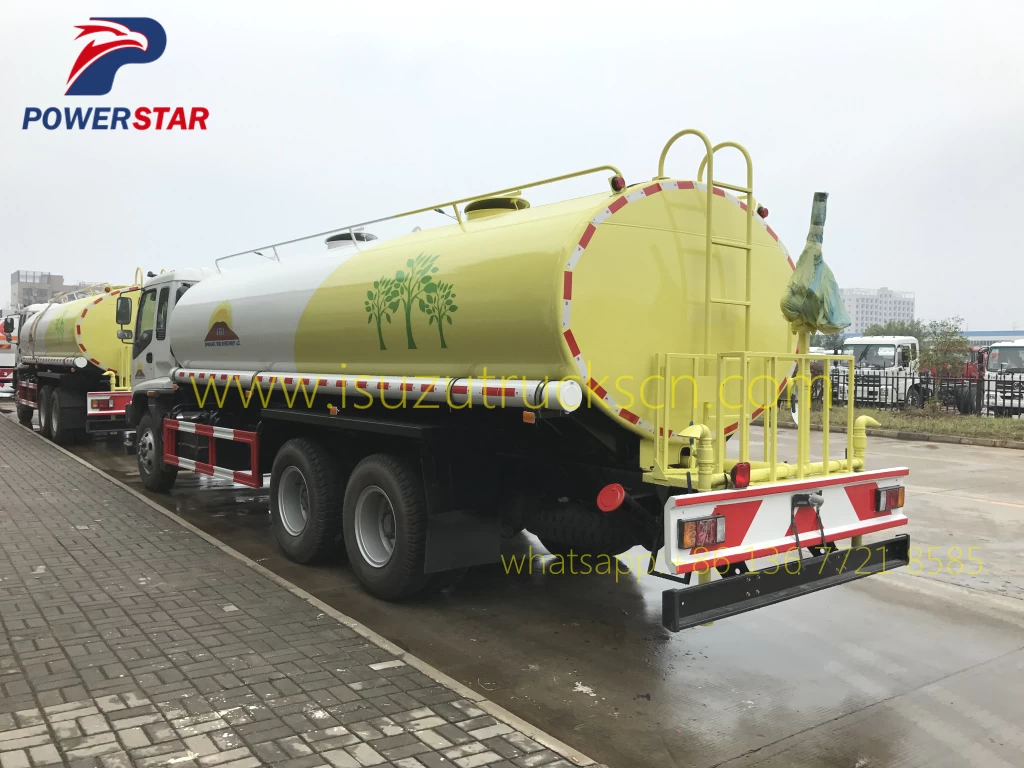

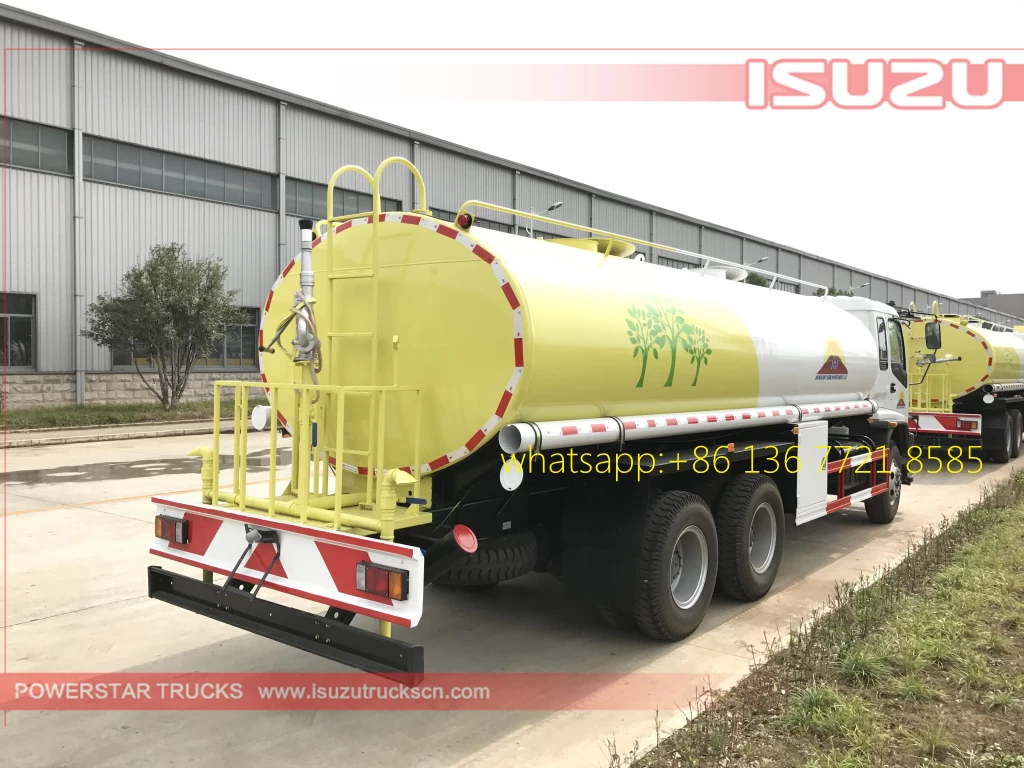

rear left pictures of 20cbm Water Tanker Isuzu FVZ watering vehicle

rear left pictures of 20cbm Water Tanker Isuzu FVZ watering vehicle

water tank capacity of the water trucks

Tank capacity
20,000 Liters
(Anti-corrosion treatment)
Material
Carbon Steel
5mm
rollback truck rollback truck
Tank shape
Ellipse
Water Pump
WEILONG gear pump
Manhole Cover
500 mm

Discharge Hose  &

Hose Box

Standard
rollback truck rollback truck
water pump for Isuzu water trucks tanker

water leverl gauge for isuzu water bowser

Valve Control Station

tow truck hydraulic tow truck hydraulic tow truck hydraulic



Float Ball Liquid Level Indicator

tow truck hydraulic tow truck hydraulic tow truck hydraulic

Discharge hose and hose box for water tanker Isuzu 5000L

Warning lights for water truck isuzu tanker

Hose & Hose box

tow truck hydraulic tow truck hydraulic tow truck hydraulic



Roating light with Music

Powerstar Water Tank Trucks Isuzu Water Bowsers 5,000L detail pictures

Water Bowsers Isuzu ELF tanker trucks 5,000Liters specification and pictures
