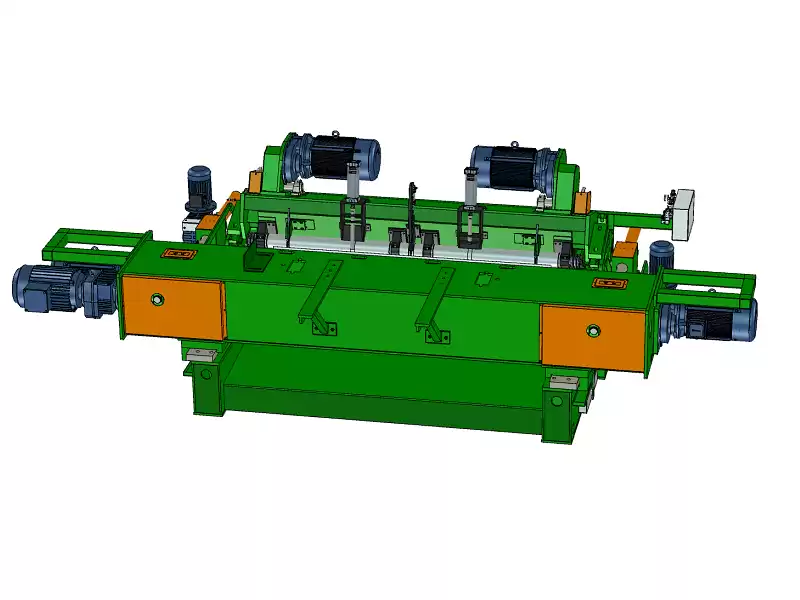

Product Name:2000mm Spindleless veneer lathe machine cutting machine
Major Technical Parameters
|
DESCRIPTION
|
UNIT
|
BQ1820/G4GS-JD
|
|
Length
of log
|
mm
|
1400~2000
|
|
Diameter
of log
|
mm
|
Φ28-Φ450
|
|
Length of blade
|
mm
|
2150
|
|
Thickness
of veneer
|
mm
|
0.4~3.6
|
|
Width
of cut veneer
|
mm
|
620~1300
|
|
Linear
speed of host machine
|
m/min
|
40m/min
60m/min
80m/min
|
|
Diameter of driving roller
|
mm
|
102
|
|
Diameter of pressurebar roller
|
mm
|
116
|
|
Diameter of rubber roller
|
mm
|
280
|
|
Power of pressurebar roller
|
KW
|
11*2
15*2
|
|
Power of double roller
|
KW
|
11*2
15*2
|
|
Power
of cutting feed
|
KW
|
11
15
|
|
Power of shear
|
KW
|
4
|
|
Power of PU roller/ output converyor
|
KW
|
4
|
|
Total power
|
KW
|
63
83
|
|
Total
weight
|
kg
|
10000
|
|
Overall dimensions
|
mm
|
5500*2700*1600
|
Main Features:
1. CNC Spindle less Veneer Peeling Lathe, with hydraulic system for knife installation which makes easy to change knife when need to grind and save time.
2. Servo motor and Shanghai Motors, Precision hardened gear reducer
3. Japanese Mitsubishi CNC system .
