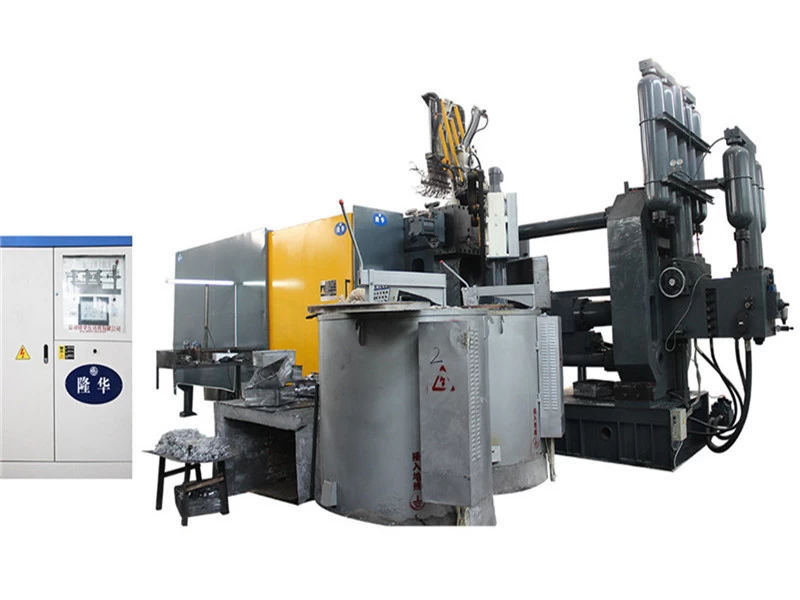

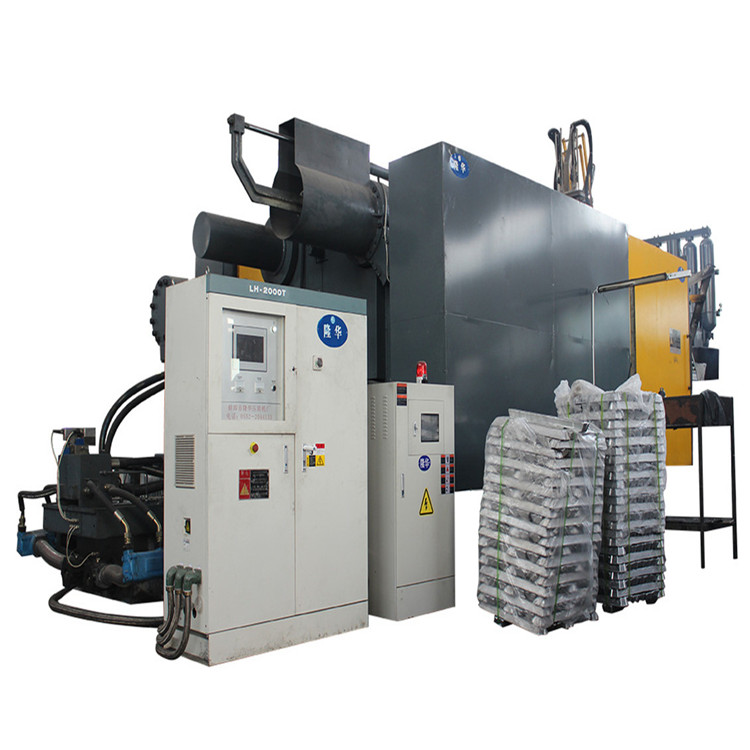

2000T high pressure die casting machine aluminium alloy parts casting machine
LH series of standard parameter table (2000T)
|
Items
|
Unit
|
Specification
|
|
Hydraulic Working Pressure
|
MPa
|
16
|
|
Clamping Force
|
KN
|
20000
|
|
Space Between Tie Bars
|
mm
|
1350*1350
|
|
Tie Bar Diameter
|
mm
|
￠280
|
|
Die Opening Stroke
|
mm
|
1400
|
|
Injecction Force(intensify)
|
KN
|
1500
|
|
Plunger launch distance
|
mm
|
400
|
|
Injection position
|
mm
|
--175 --350
|
|
Plunger Diameter
|
mm
|
￠130----￠170
|
|
Injection Stroke
|
mm
|
1000
|
|
Casting pressure (intensify)
|
MPa
|
113---66
|
|
Casting Fiange Protrusion
|
mm
|
30
|
|
Casting Fiange Diameter
|
mm
|
260
|
|
(40Mpa) Max Casting Area Under 40Mpa
|
CM2
|
5000
|
|
lnjection Weight(Al)
|
Kg
|
41
|
|
Die Height(Min--Max)
|
mm
|
650～1600
|
|
Ejector Force
|
KN
|
650
|
|
Ejector Steoke
|
mm
|
300
|
|
Motor Capacity
|
Kw
|
55*2
|
|
Machine Dimensions (L*W*H)
|
m
|
13*4.7*4.8
|
|
Referential Machine Weight For Uplifting
|
T
|
135
|
|
Oil Tank Capacity
|
L
|
3300
|
WE reserve the right to make any technical improvement without further notice
Company Files
1.Bengbu Longhua Die Casting Machine Co.,Ltd is a high-tech enterprise integrating scientific research and sales, adopting the new generation of Japanese die casting technology, specializing in the production of computer precision control cold chamber die casting machine and its peripheral equipment.
2. Longhua series cold chamber die casting machine mainly includes: LH125T-LH3500T and more than 20 types of models, suitable for aluminum alloy, magnesium alloy, zinc alloy, copper alloy, using all imported famous hydraulic, electrical, sealing parts, high standard design and precision processing.Any of the models produced can be configured according to customer preference.
3. Longhua die casting machine is reasonable in design and safe in use.Widely used in automobile, motorcycle, home appliances, communications, gifts, toys, hardware, kitchen, IT and other industries, fully meet the requirements of various types of die-casting production technology.
4. Longhua technology has been carrying out the spirit of "treating customers with integrity", with the enterprise management style of "realistic, refined, innovative and progressive", and striving to create a newer and more perfect die casting machine to serve our customers.
