MPPT Solar Charge Controller:
|
|
Multifunctional protection
Pure sine wave output, full power
100% uninterrupted power
|
|
Default battery system voltage (VDC)
|
12VDC/24VDC/48VDC
|
|
|
Inverter Output
|
Rated power
|
2000W
|
|
Surge rating (20ms)
|
6000W
|
|
Capable of starting electric Motor
|
1HP
|
|
Wave form
|
Pure sine wave/ Same as input (AC mode)
|
|
Nominal output voltage RMS
|
110/120VAC 220/230/240VAC(±10RMS)
|
|
Output frequency
|
50Hz60Hz±0.3Hz
|
|
Inverter efficiency(Peak)
|
>85%
|
|
Line mode efficiency
|
>95%
|
|
Typical transfer time
|
8ms(Max)
|
|
Solar Charge Controller
|
Max solar charging current
|
30A,40A,50A,60A,80A
|
|
Voltage
|
12V,24V,48V,96V
|
|
Max PV input power
|
12V-30A:360W,12V-50A:600W,12V-60A:720W,12V-80A:960W,12V-100A:1200W,12V-120A:1440W
|
|
24V-30A:720W,24V-50A:1200W,24V-60A:1440W,24V-80A:1920W,24V-100A:2400W,24V-120A:2880W
|
|
48V-30A:1440W,48V-50A:2400W,48V-60A:2880W,48V-80A3840W,48V-100A:4800W,48V-120A:5760W
|
|
96V-80A:7680W,96V-100A:9600W,96V-120A:11520W
|
|
PV array MPPT voltage range
|
12V:18V-100V,24V:36V-130V,48V:72V-160V,96V:144V-280V
|
|
Peak conversion efficiency
|
>99%
|
|
Other
|
Mounting
|
Wall mount
|
|
Display
|
LCD+LED
|
|
Cooling fan
|
Intelligent fan cooling system
|
|
Audible noise
|
<60dB
|
|
Coommunications
|
RS-232,SNMP,WI-FI,Dry Contact(Optional）
|
|
Operation temperature range
|
-10℃~50℃
|
|
Storage temperature
|
-10℃~60℃
|
|
Protection
|
Over load protection
|
Rated power over 110%,shut down automatically
|
|
Temperature protection
|
Built-in temperature sensor real-time induction, ,≥85 alarm, ,≥85 shut down the whole machine
|
|
Short circuit protection
|
Automatic Shutdown
|
|

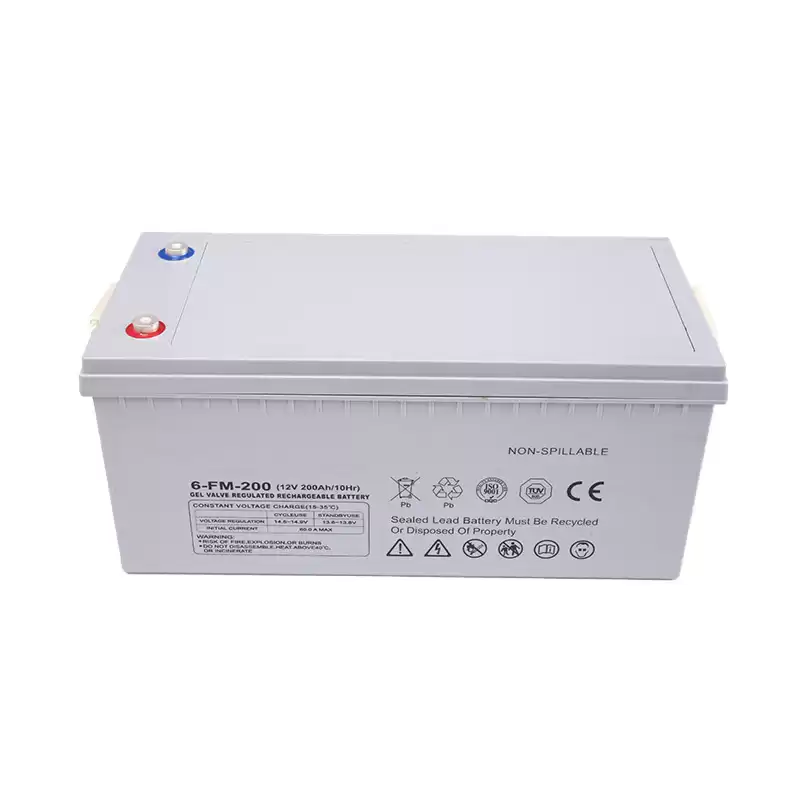

Battery
|
Low battery protection
|
10VDC±0.3V (12VDC),20VDC±0.3V (24VDC),40 VDC±0.3V (48VDC),80 VDC±0.3V (96VDC)
|
|
Low battery cutoff
|
10.5VDC±0.3V (12VDC),21VDC±0.3V (24VDC),42 VDC±0.3V (48VDC),84VDC±0.3V (96VDC)
|
|
High Battery alarm
|
15VDC±0.3V (12VDC),30VDC±0.3V (24VDC),60 VDC±0.3V (48VDC),120 VDC±0.3V (96VDC)
|
|
High Battery protection
|
16.5VDC±0.3V (12VDC),33VDC±0.3V (24VDC),66VDC±0.3V (48VDC),132VDC±0.3V (96VDC)
|
