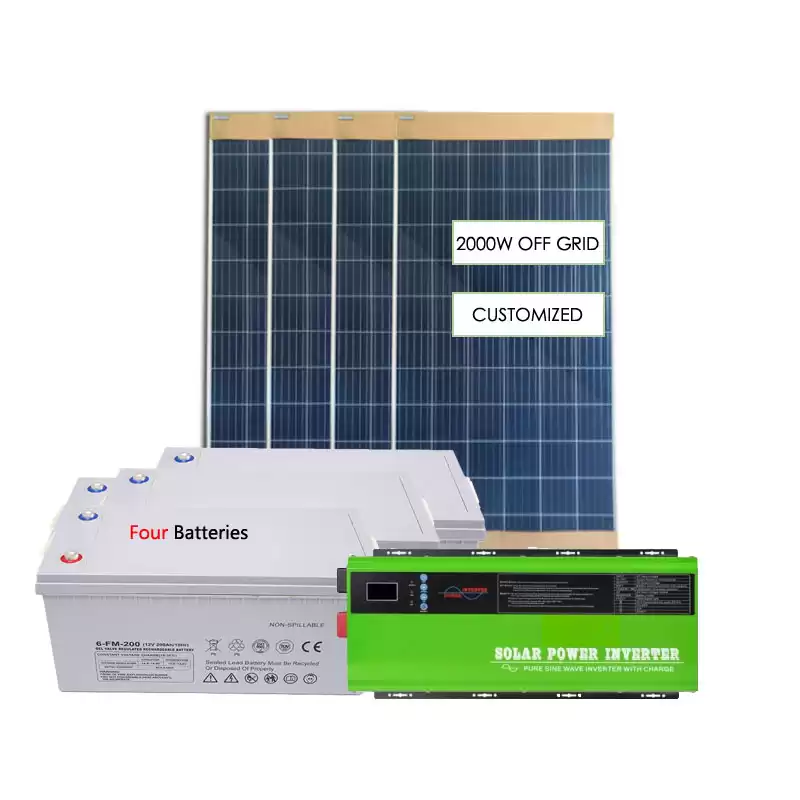

2000W AC DC Residential Solar Power Solutions
This home solar power solution is equipped with our best quality products, fine craftsmanship, exquisite appearance:
-
Four polysilicon solar panels
-
Inverter-a smart combination of high-efficiency solar controllers
-
Pure sine wave inverters
-
4 storage batteries, and is integrated in one unit.
This 2000W off-grid solar power system is usually used to power common household appliances, such as high-efficiency refrigerators, mobile phones, tablets and laptops, lights, TVs, fans, washing machines, other machines, etc..
Besides used for household it is also used for outdoor farm, greenhouse, wedding scene in a fixed outdoor place, etc.
2000w Solar Power System Specifications:
MPPT Solar Charge Controller:
|
|
-
Multifunctional protection
-
Sine wave output
-
Built-in MPPT solar controller 30A-100A (optional)
-
With UPS automatic switching function, mains charging function, AVR voltage stabilization function (three-stage voltage stabilization)
-
Specific overload, high voltage, low voltage, short circuit and other perfect protection functions
-
DSP intelligent chip control, excellent performance
-
Strong inverter capacity, one-time soft start, triple output peak power, can carry all inductive loads
-
Fully personalized LCD display, at the same time display solar controller, inverter related information
-
Mains power priority, energy saving mode, solar power priority can be set freely to meet different occasions
-
Battery type, charging voltage, mains charging current (0-35A) can be set freely to meet different types
-
Battery charge management
|
|
Default battery system voltage (VDC)
|
12VDC/24VDC/48VDC
|
|
|
Inverter Output
|
Rated power
|
2000W
|
|
Surge rating (20ms)
|
6000W
|
|
Capable of starting electric Motor
|
1HP
|
|
Wave form
|
Pure sine wave/ Same as input (AC mode)
|
|
Nominal output voltage RMS
|
110/120VAC 220/230/240VAC(±10RMS)
|
|
Output frequency
|
50Hz60Hz±0.3Hz
|
|
Inverter efficiency(Peak)
|
>85%
|
|
Line mode efficiency
|
>95%
|
|
Typical transfer time
|
8ms(Max)
|
|
Solar Charge Controller
|
Max solar charging current
|
30A,40A,50A,60A,80A
|
|
Voltage
|
12V,24V,48V,96V
|
|
Max PV input power
|
12V-30A:360W,12V-50A:600W,12V-60A:720W,12V-80A:960W,12V-100A:1200W,12V-120A:1440W
|
|
24V-30A:720W,24V-50A:1200W,24V-60A:1440W,24V-80A:1920W,24V-100A:2400W,24V-120A:2880W
|
|
48V-30A:1440W,48V-50A:2400W,48V-60A:2880W,48V-80A3840W,48V-100A:4800W,48V-120A:5760W
|
|
96V-80A:7680W,96V-100A:9600W,96V-120A:11520W
|
|
PV array MPPT voltage range
|
12V:18V-100V,24V:36V-130V,48V:72V-160V,96V:144V-280V
|
|
Peak conversion efficiency
|
>99%
|
|
Other
|
Mounting
|
Wall mount
|
|
Display
|
LCD+LED
|
|
Cooling fan
|
Intelligent fan cooling system
|
|
Audible noise
|
<60dB
|
|
Coommunications
|
RS-232,SNMP,WI-FI,Dry Contact(Optional）
|
|
Operation temperature range
|
-10℃~50℃
|
|
Storage temperature
|
-10℃~60℃
|
|
Protection
|
Over load protection
|
Rated power over 110%,shut down automatically
|
|
Temperature protection
|
Built-in temperature sensor real-time induction, ,≥85 alarm, ,≥85 shut down the whole machine
|
|
Short circuit protection
|
Automatic Shutdown
|
|
Battery
|
Low battery protection
|
10VDC±0.3V (12VDC),20VDC±0.3V (24VDC),40 VDC±0.3V (48VDC),80 VDC±0.3V (96VDC)
|
|
Low battery cutoff
|
10.5VDC±0.3V (12VDC),21VDC±0.3V (24VDC),42 VDC±0.3V (48VDC),84VDC±0.3V (96VDC)
|
|
High Battery alarm
|
15VDC±0.3V (12VDC),30VDC±0.3V (24VDC),60 VDC±0.3V (48VDC),120 VDC±0.3V (96VDC)
|
|
High Battery protection
|
16.5VDC±0.3V (12VDC),33VDC±0.3V (24VDC),66VDC±0.3V (48VDC),132VDC±0.3V (96VDC)
|
Solar panels:
|
Polycrystalline Solar panels *4
|
Maximum output power (Pm)
|
330W
|
|
Best working voltage (Vmp)
|
37.8V
|
|
Best working current (Imp)
|
8.74A
|
|
Open circuit voltage (Voc)
|
46.9V
|
|
Short circuit current (Isc)
|
9.14A
|
|
Maximum rated fuse current
|
20A
|
|
Maximum system voltage
|
1000VDC
|
|
Size
|
1956*992*40mm
|
|
Weight
|
About 22.5KG
|
|
Conversion efficiency
|
18%
|
|
Power deviation
|
3%
|
|
Cell
|
Polysilicon
|
|
Service life
|
More than 25 years
|
Batteries:
|
Maintenance-free battery *4
|
Battery Type
|
Valve-controlled maintenance-free gel battery
|
|
Voltage
|
12V
|
|
Capacity
|
200AH
|
|
Size
|
520*240*220mm
|
|
Weight
|
About 56KG
|
Accessories:
|
Solar Panel Parallel Head
|
1 pair
|
|
Anti-reverse diode
|
2 pcs
|
|
Bracket
|
Custom
|
|
Battery series line
|
Custom
|
|
Solar panel connection line
|
Custom
|
|
Host connection line
|
Custom
|
Supportable household appliances:
-- Water heater (1000W): Use alone for about 9.6 hours
-- Rice cooker (800W): Use alone for about 12 hours
-- Microwave oven (700W): Use alone for about 13 hours
-- TV (300W): Use alone for about 32 hours
-- Water pump (800W): Use alone for about 12 hours
-- Electric kettle (1500W): Use alone for about 6 hours
Applications
Factory & workshop
Mailely, as a professional solar power system manufacturer and supplier, we value user experience, product quality, and customer satisfaction is our pursuit.
If you want to wholesale or customize solar power systems, you can rest assured to contact us, the price is favorable, and the quality is guaranteed.
