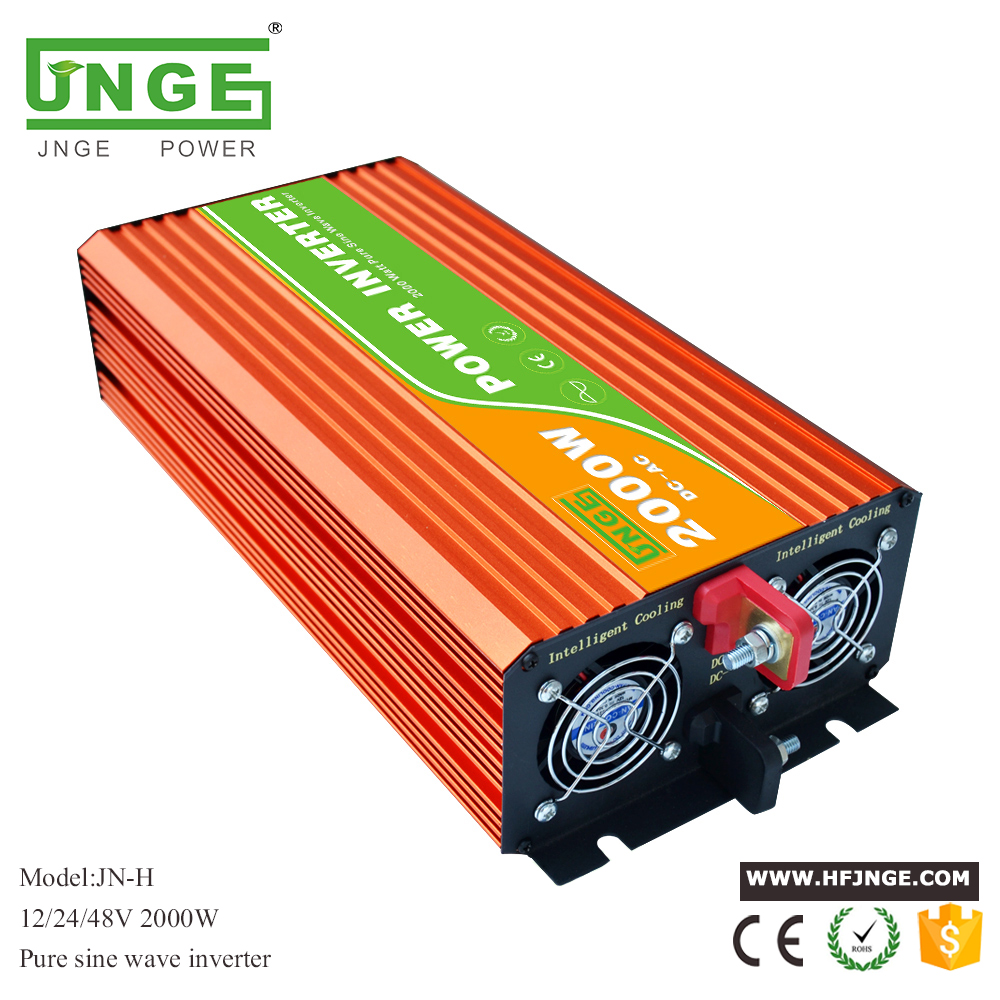

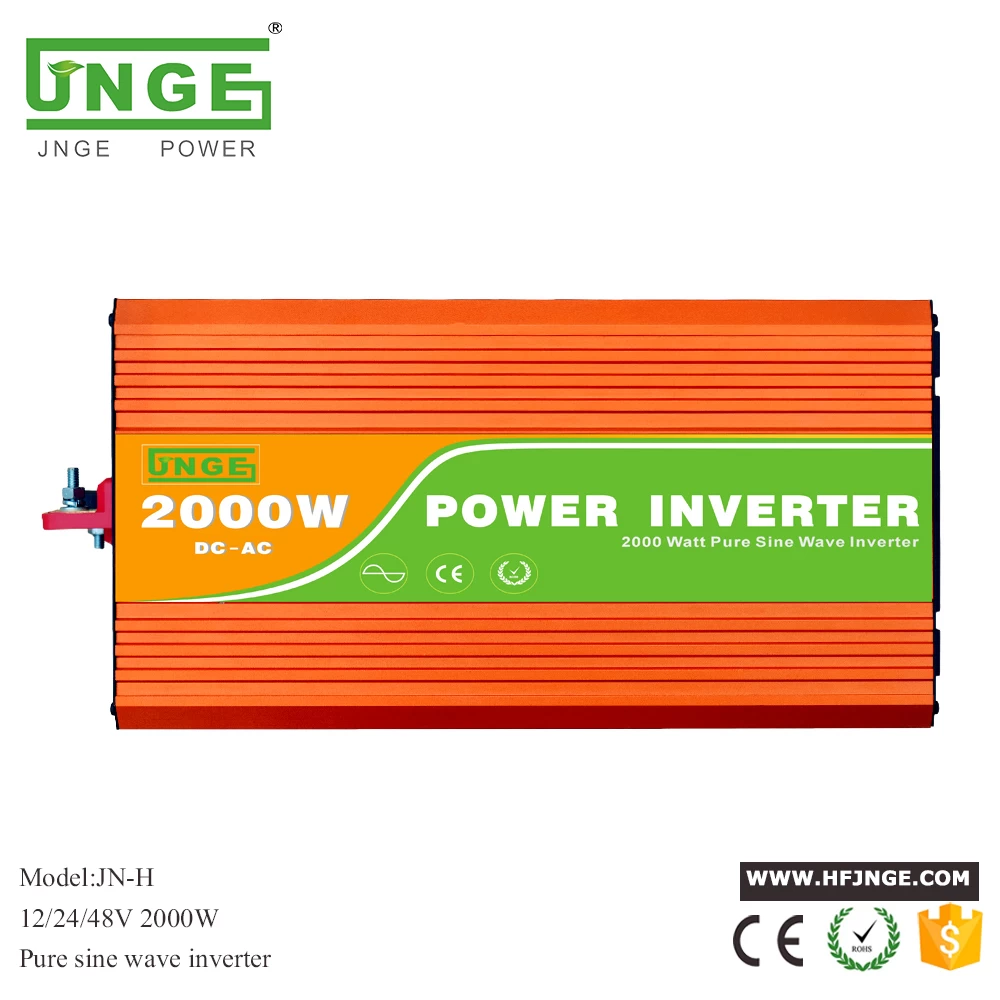

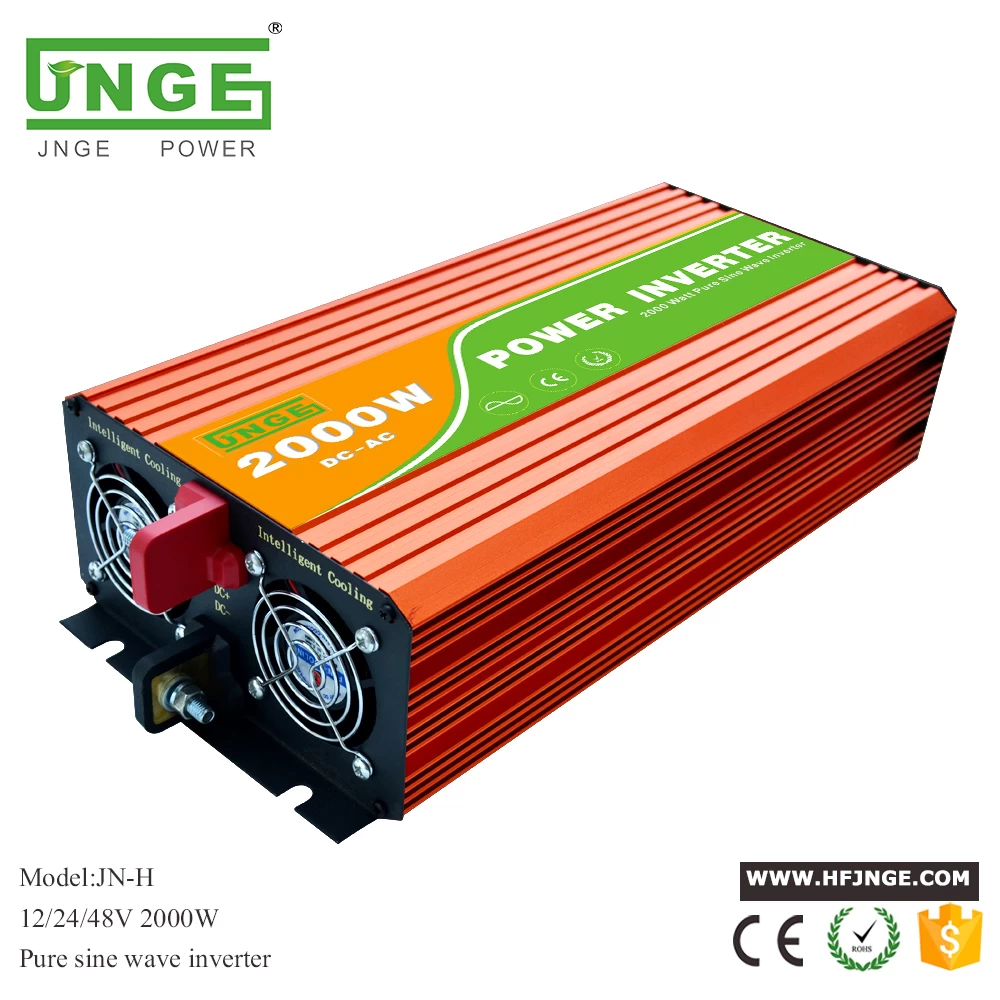

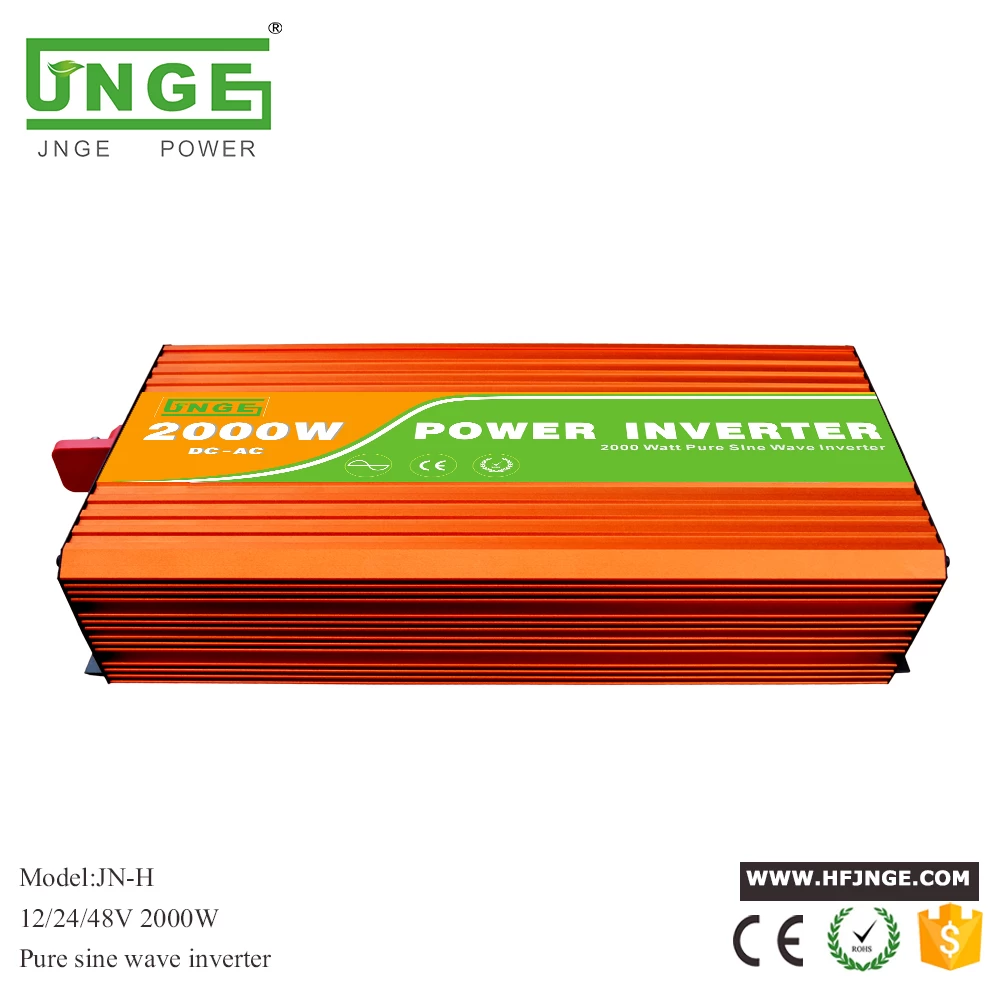

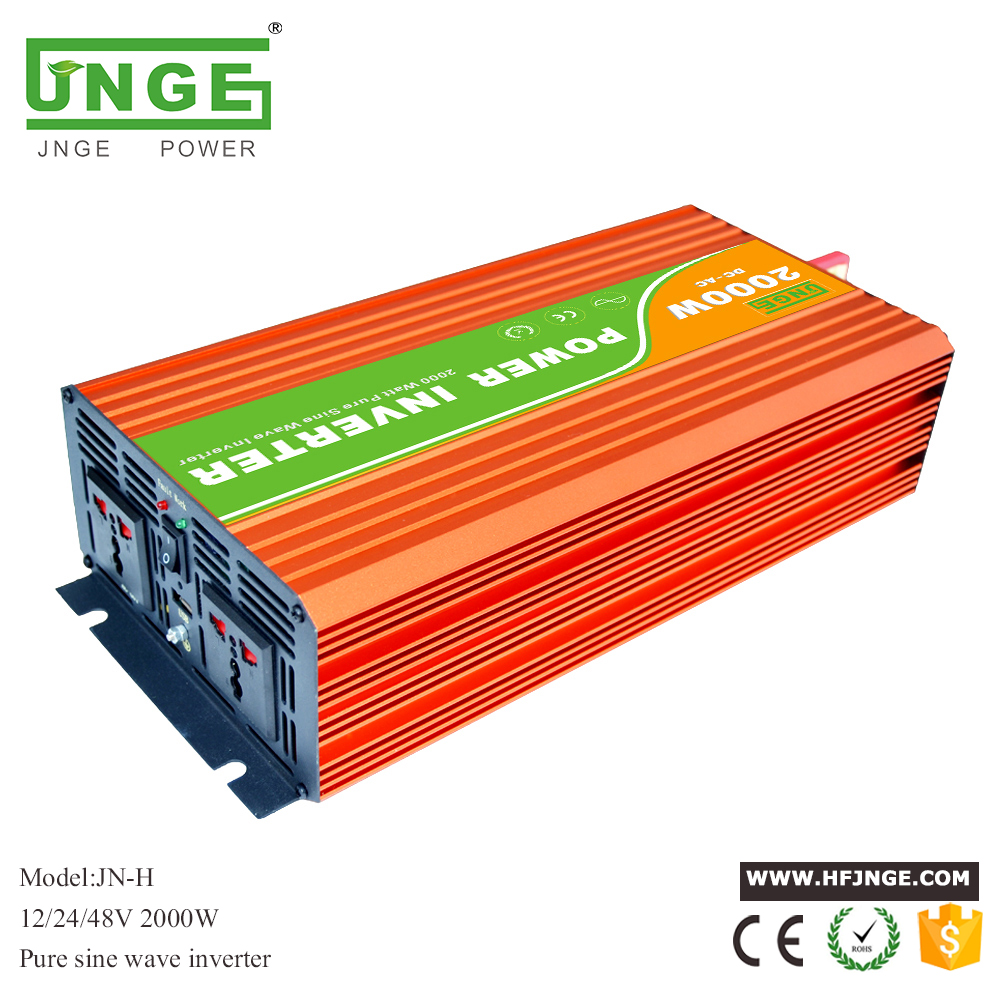

This is a 2000watt off grid pure sine wave inverter which converts battery output (DC, or direct current) into 110 or 230V AC mains electricity (alternating current). 110 or 230V AC is the type of electricity supplied by utility companies to run standard domestic appliances such as a TV, fridge, radio, lights or to charge a laptop / mobile phone etc. If you have a battery, connecting a power inverter will enable you to power household appliances in areas with no access to mains electricity; such as in a motorhome, caravan, boat, farm or any other remote location. Inverters are also perfect for off-grid and back up systems for accidental power cuts.
This is a pure sine wave type of inverter, which means that the 110 or 230V AC output harmonically follows a smooth sine wave and is almost identical to normal mains electricity. Pure sine wave output is far superior than square sine wave or modified sine wave output for running appliances. This is because:
It is suitable for a broader range of appliances (for example, appliances with electric motors can not be powered by modified sine wave inverters). It is more efficient compared to modified sine wave inverters.
This product comes with important protection and safety features, such as over-discharge, overload, overheating and short-circuit automatic shutdown.
The inverter also features a powerful USB port for faster charging of mobile phones, MP3 players and others mobile loads.
Technical Parameters
|
OUTPUT
|
OUTPUT VOLT
|
100/110/120/220/230/240VAC
|
|
CONTINUOUS POWER
|
2000W
|
|
SURGE POWER
|
4000W
|
|
WAVEFORM
|
PURE SINE WAVE
|
|
FREQUENCY
|
50Hz/60Hz
|
|
AC REGULATION
|
LOW & HIGH 10%
|
|
Non-load Consumption
|
<12W
|
|
EFFICEINCY
|
>90%
|
|
INPUT
|
USB OUTPUTt
|
5V
|
|
DC VOLTAGE
|
LED DISPLAY POWER
& FAIL STATUS
|
|
INPUT RANGE
|
10-15VDC 21-30VDC 40-60VDC
|
|
PROTECTION
|
WORKING INPUT
|
12VDC 24VDC 48VDC
|
|
FUSE
|
35A 20A 15A
|
|
Low battery alarm
|
10.5+0.3V 21+0.5V 42+0.5V
|
|
Low battery shut down
|
10+0.5V 20+0.5V 40+0.5V
|
|
Over voltage shut down
|
15.5+0.5V 30.5+0.5V 60+0.5V
|
|
Over load shut down
|
120W OVER 10 SECOND
|
|
Over heating
shut down
|
>75℃
|
|
Over
Thermal
|
shut down the output
|
|
Working
Temperature
|
BETWEEN -10℃ and +50℃
|
|
soft start
|
|
OTHER
|
DIMENSION(L*W*H)
|
390*180*90mm
|
|
INNER BOX
DIMENSION
|
430*223*160mm
|
|
CARTON DIMENSION
|
540*530*210mm
|
|
NET WEIGHT
|
5.0±0.2KG
|
|
GROSS WEIGHT
|
12±1KG
|
|
PACKING
|
2PCS/CTN
|
|
OUTPUT
|
OUTPUT VOLT
|
100/110/120/220/230/240VAC
|
|
CONTINUOUS POWER
|
2000W
|
|
SURGE POWER
|
4000W
|
|
WAVEFORM
|
PURE SINE WAVE
|
|
FREQUENCY
|
50Hz/60Hz
|
|
AC REGULATION
|
LOW & HIGH 10%
|
|
Non-load Consumption
|
<12W
|
|
EFFICEINCY
|
>90%
|
|
INPUT
|
USB OUTPUT
|
5V
|
|
DC VOLTAGE
|
LED DISPLAY POWER
& FAIL STATUS
|
|
INPUT RANGE
|
21-30VDC
|
|
PROTECTION
|
WORKING INPUT
|
24VDC
|
|
FUSE
|
20A
|
|
Low battery alarm
|
21+0.5V
|
|
Low battery shut down
|
20+0.5V
|
|
Over voltage shut down
|
30.5+0.5V
|
|
Over load shut down
|
2400W over 10 seconds
|
|
Over heating
shut down
|
>75℃
|
|
Over
Thermal
|
shut down the output
|
|
Working
Temperature
|
BETWEEN -10℃ and +50℃
|
|
soft start
|
|
OTHER
|
DIMENSION(L*W*H)
|
390*180*90mm
|
|
INNER BOX
DIMENSION
|
430*223*160mm
|
|
CARTON DIMENSION
|
540*530*210mm
|
|
NET WEIGHT
|
5.0±0.2KG
|
|
GROSS WEIGHT
|
12±1KG
|
|
PACKING
|
2PCS/CTN
|
