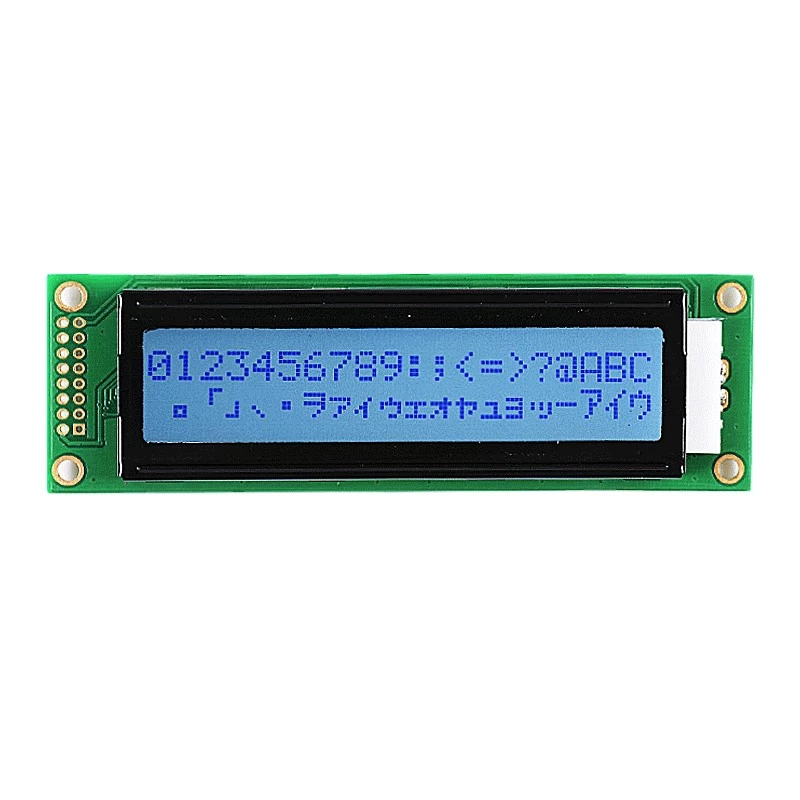

2002 Character LCD display STN Negative BLUE

SC2002001-V01 is a Character LCD Display with 20*2 resolution, it built in with AIP31066 IC, 16 PIN, 6 o'clock View direction.


  • Driver ICAIP31066
  • Interface8bit MPU interface
  • Viewing Area (mm)85*18.6
  • Outline Dimension (mm)116*37*13.2
  • Resolution20*2
  • BacklightWhite
  • PIN16
Facebook Twitter Pinterest LinkedIn 分享


Basic Information


LCD Type:                     STN Negative BLUE TRANSFLECTIVE

Resolution:                   20*2

Outline Dimension:       116*37*13.2

View area:                     85*18.6

View Direction:              6 o'clock

PIN:                                16

Backlight:                      White LED




General Specification


Item Standard Value Unit
Display Type 20 Characters x 2 Lines Mm
LCD Type STN,NEGATIVE(BLUE),TRANSMISSIVE Mm
Driver Condition LCD Module : 1/16 Duty , 1/5 Bias Mm
Viewing Direction 6 O'Clock Mm
Backlight Type SIDE WHITE Mm
Interface 8-bit MPU interface -
Driver IC AIP31066 -
Outline Dimension 116(L) * 37(W) * Max 13.2(T) mm
Viewing Area 85(L) * 18.6( W) mm
Dot size 0.61(W) ´ 0.63(H) mm
Dot pitch 0.66(W) ´ 0.69 (H) mm
Character size 3.25(W) ´ 5.39(H) mm



Interface Definition


No. Symbol Function
1 VSS Ground (0V)
2 VDD Supply Voltage for Logic (+5.0V )
3 VO Contrast Adjustment
4 RS Data/Instruction Select
5 R/W Read/Write Select
6 E Enable Signal
7--14 DB0-DB7 Data Bus
15 LED_A LED Power Supply + (5.0V)
16 LED_K LED Power Supply - (0V)
