2004 Character LCD screen with STN Negative BLUE

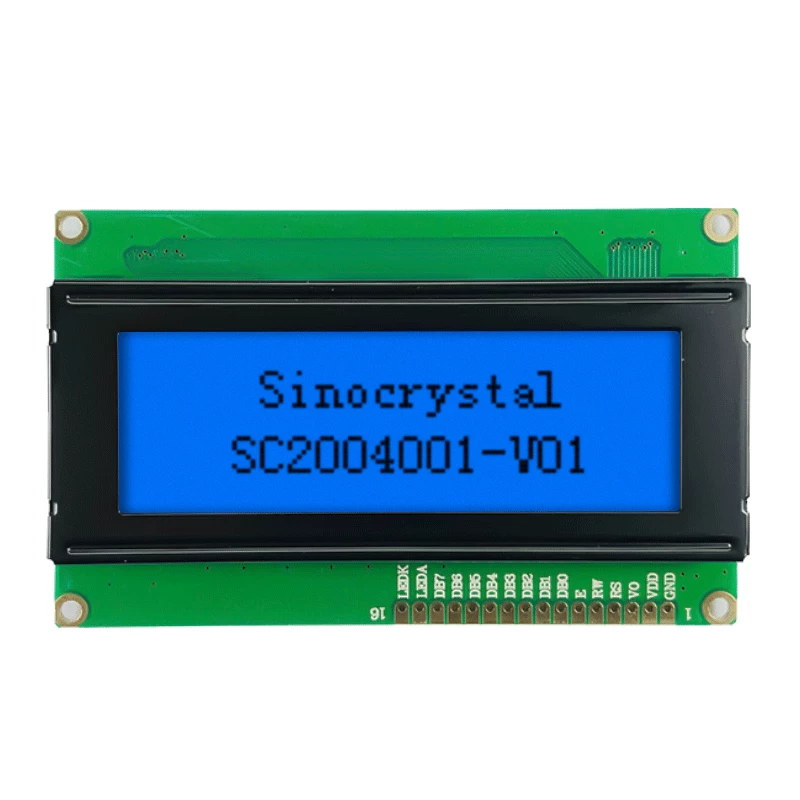

SC2004002-V01 is a Character LCD Display with 20*4 resolution, it built in with AIP31066 IC, 16 PIN, 6 o'clock View direction.

  • Interface8bit MPU interface
  • Viewing Area (mm)123*42.6
  • Outline Dimension (mm)146* 62.5* 14
  • Resolution20*4
  • Driver ICAIP31066
  • BacklightWhite
  • PIN16
Facebook Twitter Pinterest LinkedIn 分享


Basic Information


LCD Type:                    STN POSITIVE Y-G ,TRANSFLECTIVE

Resolution:                   20*4

Outline Dimension:       118 *43*13.1

View area:                     77*25.2

Interface:                      8bit MPU interface

Driver IC:                      AIP31066

View Direction:              6 o'clock

PIN:                              16

Backlight:                      SIDE Y G





General Specification


Item Standard Value Unit
 Display Type 20 Characters x 4 Lines Mm
 LCD Type STN,POSITIVE(Y-G),TRANSFLECTIVE Mm
 Driver Condition LCD Module : 1/16 Duty , 1/5 Bias Mm
 Viewing Direction 6 O'Clock Mm
 Backlight Type SIDE Y-G Mm
 Interface 8-bit MPU interface -
 Driver IC AIP31066 -
 Outline Dimension 118(L) *43(W) * 13.1(T) mm
 Viewing Area 77(L) * 25.2( W) mm
 Dot size 0.56(W) ´ 0.56(H) mm
 Dot pitch 0.6(W) ´ 0.6 (H) mm
 Character size 4.76(W) ´ 2.96(H) mm



Interface Definition


No. Symbol Function
1 VSS Ground (0V)
2 VDD Supply Voltage for Logic (+5.0V )
3 VO Contrast Adjustment
4 RS Data/Instruction Select
5 R/W Read/Write Select
6 E Enable Signal
7--14 DB0-DB7 Data Bus
15 LED_A LED Power Supply + (5.0V)
16 LED_K LED Power Supply - (0V)
