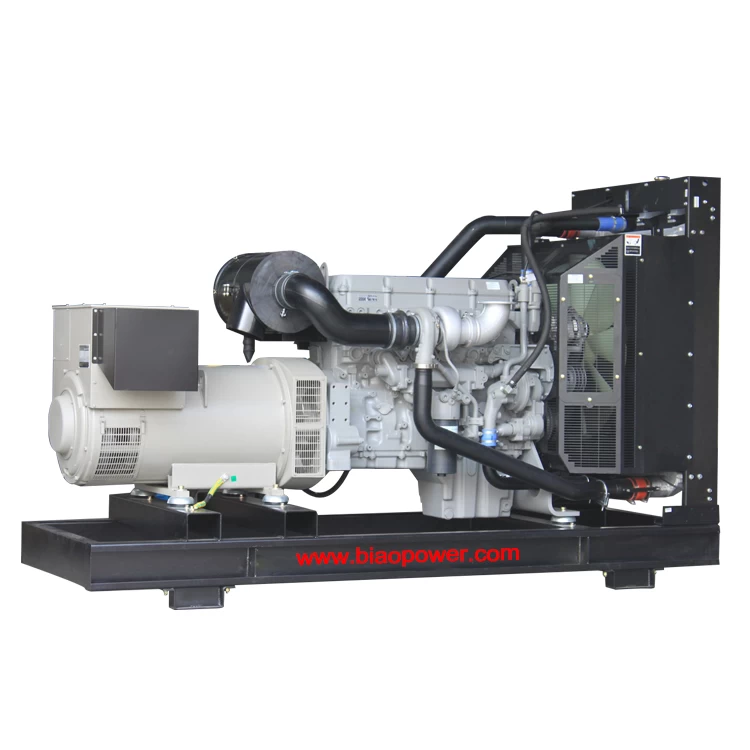

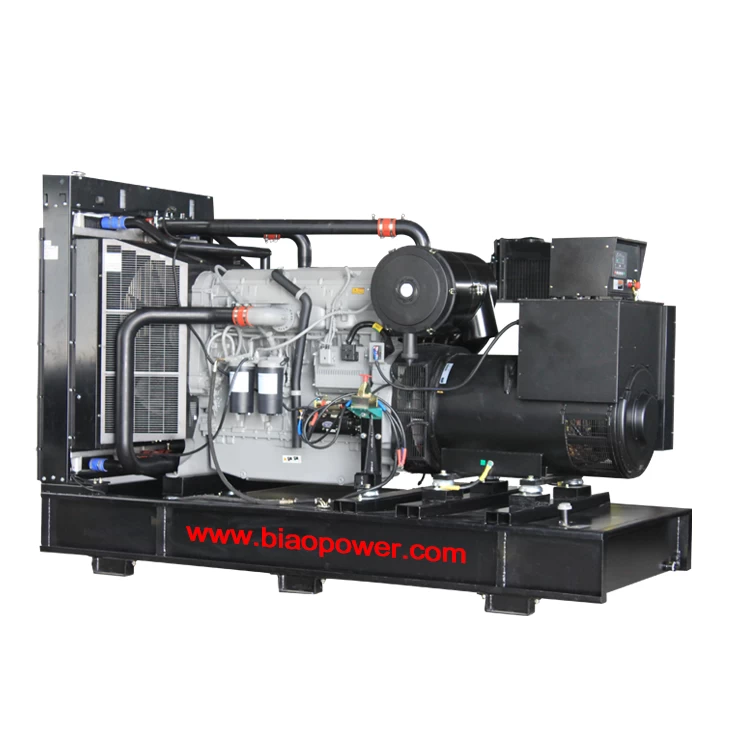

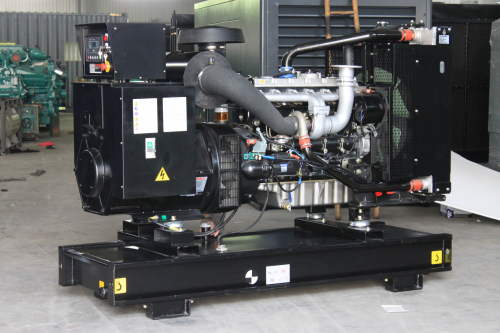

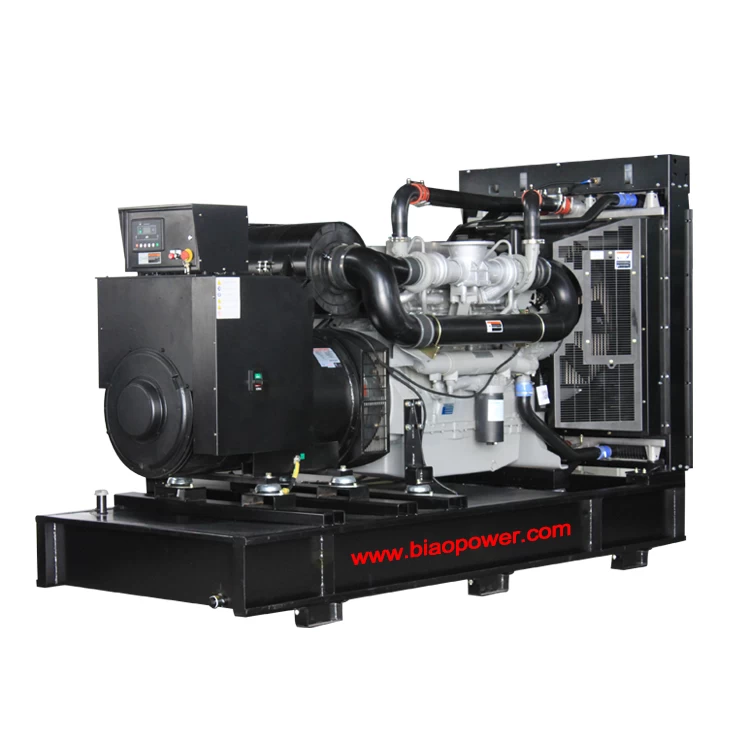

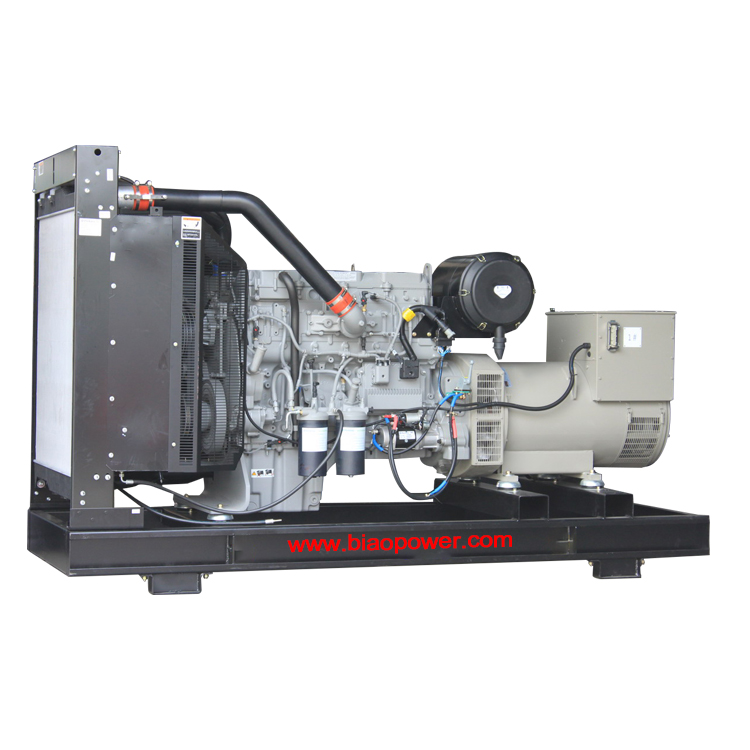

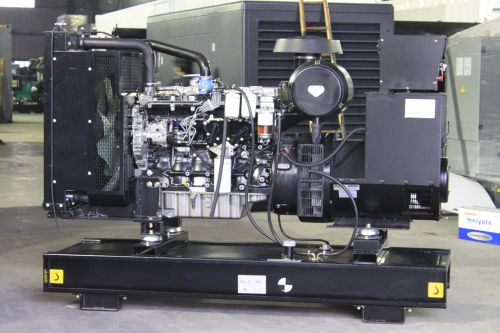

Perkns Series Power Generators
BA Power use High Efficiency Diesel Generator and Stamford brand alternator.
Power by Perkins Diesel Engine Specs
perkins diesel generator
Type: 4 stroke cycle , Verticle In-line, 6-cylinder
Aspiration : Turbocharged,air-to-air charge cooled
Bore * Stroke : 130*157 mm
Displacement : 12.5 litres
Direction of rotation: Anti-clockwise, viewed on flywheel
Total coolant capacity: 51.4 litres
provides the full year 365/24 hours service with rapid and effective response.
Basic technical data
Number of cylinders .. .. ... .. ... .. ... .. ... .. ... .. ... .. ... .. ... .. ... .. ... .. ..6
Cylinder arrangement.. .. ... .. ... .. ... .. ... .. ... .. ... .. ... .. ... .. ... .. In-line
Cycle .. .. ... .. ... .. ... .. ... .. ... .. ... .. ... .. ... .. ... .. ... .. ... .. ... ..4 stroke
Induction system .. .. ... .. ... .. ... .. . Turbocharged and air charge cooled
Combustion system .. .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . Direct injection diesel
Compression ratio .. .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . ..16:1
Bore .. .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. 105 mm
Stroke .. .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . 135 mm
Cubic capacity .. .. ... .. ... .. ... .. ... .. ... .. ... .. ... .. ... .. ... .. ... 7.01 litres
Direction of rotation .. .. ... .. ..Anticlockwise when viewed from flywheel
Firing order .. .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. .1, 5, 3, 6, 2, 4
Estimated total weight (dry) .. .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. 743 kg
Estimated total weight (wet) .. .. ... .. ... .. ... .. ... .. ... .. ... .. ... .. .777 kg
Fuel consumption
Load Type of operation and application g/kWh litres/hr
110% Prime power 207.3 45.1
100%Prime power 209.2 41.4
75% Prime power 211.3 32.0
50% Prime power 200.2 20.2
25% Prime power 214.8 11.0
Lubrication system
Maximum total system oil capacity.. .. .. . .. .. . .. .. . .. .. . .. .. . .. .18.0 litres
Minimum oil capacity in sump .. .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .12.5 litres
Maximum oil capacity in sump .. .. ... .. ... .. ... .. ... .. ... .. ... .. 16.1 litres
Maximum engine operating angles -
Front up, front down, right side, left side.. .. ... .. ... .. ... .. ... .. ... .. ... 25°
Sump drain plug tapping size.. .. ... .. ... .. ... .. ... .. ... .. ... .3/4 - 16 UNF
Shutdown switch setting (where fitted)
FAQ :
What is Generator Set Standard Temperature and Altitude:
Operation At Elevated Temperature And Altitude:
The engine may be operated at:
1800RPM up to 5,000 ft.(1500m) and 104°F (40℃) without power deration.
1500RPM up to 5,000 ft.(1500m) and 104°F (40℃) without power deration.
For sustained operation above these conditions, derate by 4% per 1,000ft.
(300m), and 1% per 10°F (2% per 11℃).
This is available on perkins generator, Cummins Generator and all generator set.
