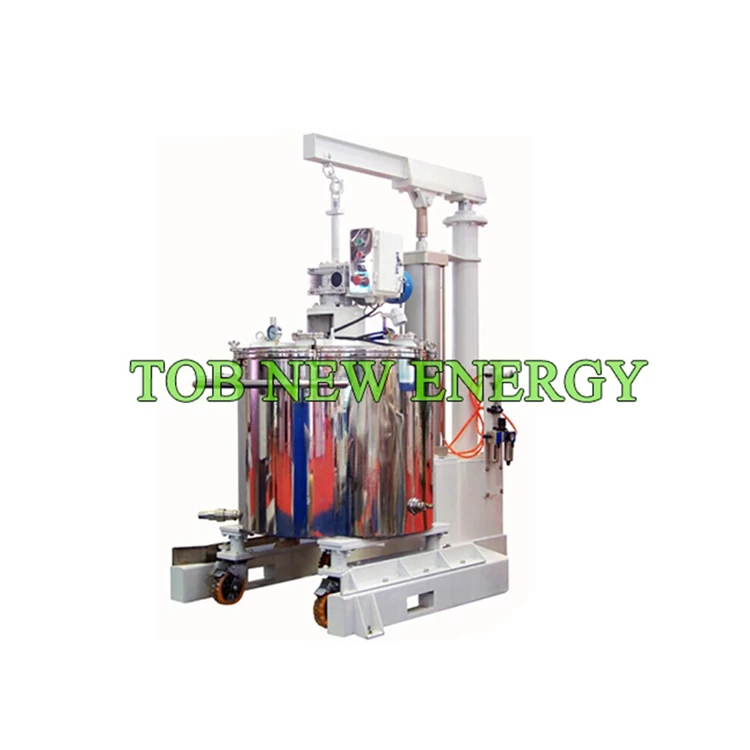

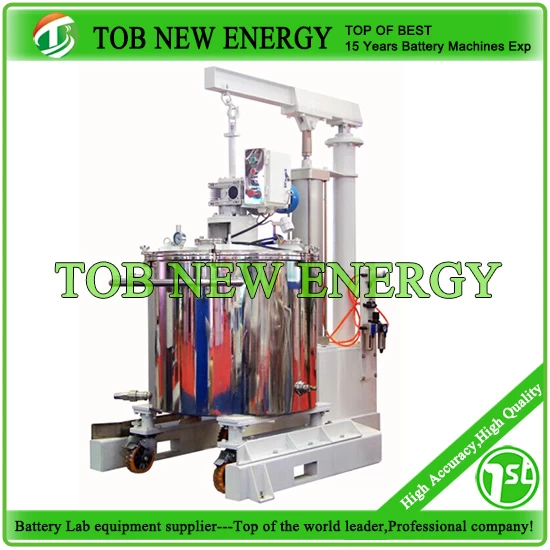

200L Vacuum Transfer Tank For Li ion Battery Slurry/Paste Transfer
SPECIFICATIONS
TOB-JBT-200Vacuum Storage Tankwith effective volume 200L, it is alower speed vacuum mixerequipment mainly used for battery anode/cathode paste and other electronic, chemical industry materials vacuum storage. It is with lower and fixed vacuum mixing speed witch can mix the battery slurry toensure that the material is not deposit before coating. The vacuum tank is equipped with Four moving wheels, which can transfer the battery paste/slurry to coating machine from mixing machine.
|
Model
|
Vacuum Transfer Tank For Battery Slurry TOB-JBT-200
|
|
Design volume/
Effective volume
|
287Litre/200Litre
|
|
Mixing jar Inner material
|
304 stainless steel
|
|
Dimension
|
Ф750×650mm；Can be used for vacuum mixer TOB-XFZH-200 as mixing jar
|
|
Structure
|
1 Discharging valve : G1-1/2 "(DN38);
2 Barrel with push handle, barrel bottom with four move wheels, easy for transfer.
3 Cooling/heat preservation : Bottom and side with cooling jacket
|
|
Top cover
|
With two small vision Windows, a shoot light, DN40 feeding tube,
vacuum interface, vacuum pressure gauge and other spare interface.
|
|
Mixing speed
|
35rpm without adjusting, 304 stainless steel Stirring shaft
|
|
Mixing power
|
1.5kw/4P
|
|
Mixing theory
|
Combined impeller rotation do over type, make the material/week to cycle up and down,
to ensure that the material is not deposit.
|
|
Vacuum degree
|
≤-0.098Mpa, can Keep 24 hours is not lower than 0.085 Mpa
|
|
Warranty
|
One year limited warranty with lifetime support
|
