Compact Vacuum Sealer for Preparing Pouch Cell After Electrolyte Filled
SPECIFICATIONS
TOB-YF200compact vacuum sealeris mainly used for sealing aluminum-laminated case in glove box after injection of electrolyte into pouch Li-ion cell or after formation for final seal (polymer Li-Ion cell). Heatable sealer blade is built into the chamber, automatically sealing the aluminum film pouch case for polymer battery.
|
Model
|
Compact Vacuum Sealer TOB-YF200
|
|
Source voltage
|
AC 220V/110V, 50/60HZ
|
|
Power
|
600W
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Advantages
|
1 Sealing Head adopts copper material, good heat transfer effect,
2 With adjust plate, Can apply to different specifications battery, and the adjusting easily
|
|
Vacuum degree
|
-95Kpa - 0
|
|
Sealing head TEM
|
RT-250℃, adjustable
|
|
TEM accuracy
|
±1.5℃
|
|
Sealing pressure
|
0-7Kg/cm2, adjustable
|
|
Sealing time
|
0-99s, adjustable
|
|
Sealing Blade
|
Hard type (without rubber, only for Al case sealing,
not suitable for sealing case with tab in between)
|
|
Sealing width
|
5mm, customized
|
|
Sealing head length
|
200mm
|
|
Suitable battery size
(Inner size)
|
180*120*10mm
|
|
Air source
|
0.5-0.7MPa (72.5-102psi)
|
|
Dimension(L*W*H)
|
Sealing Unit with Chamber Closed: 470*430*480mm
Sealing Unit with Chamber opened: 470*430*559mm
Control Unit: 420*320*220mm
|
|
Weight
|
About 50kg
|

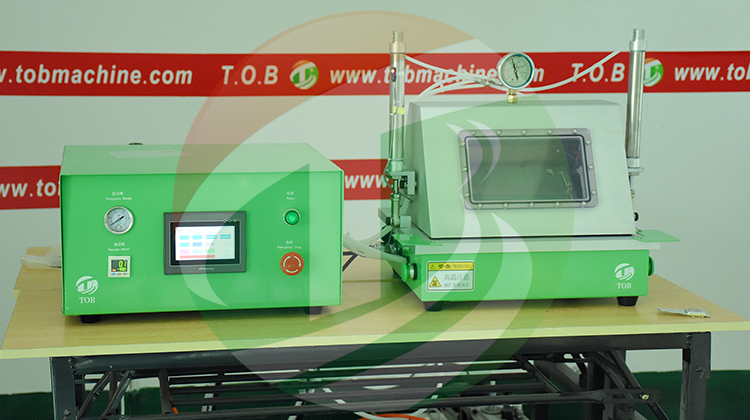

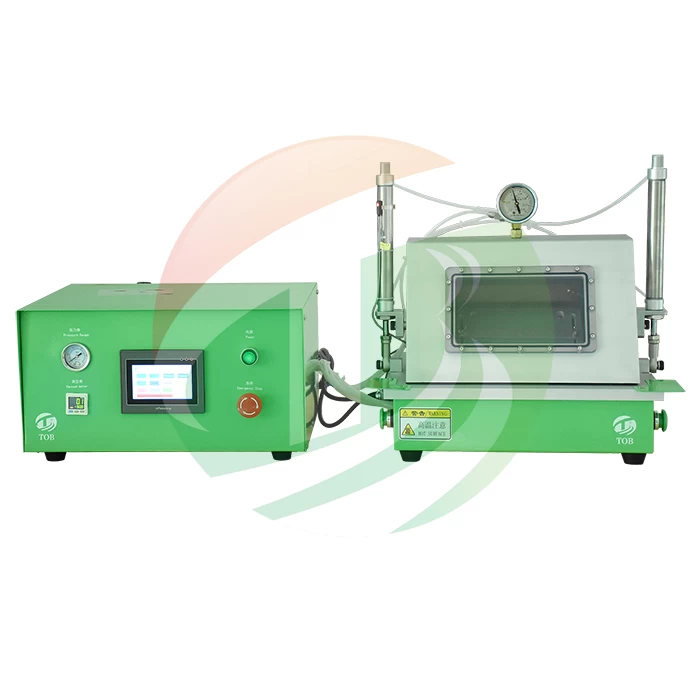

PRODUCT DISPLAY
The compact vacuum sealer needs work in the glove box, it has pipes to let the controller box outside the glove box and just sealing box in glove box, first, it can save some space, second, it can also protect the controller box without electrolyte corrosion.

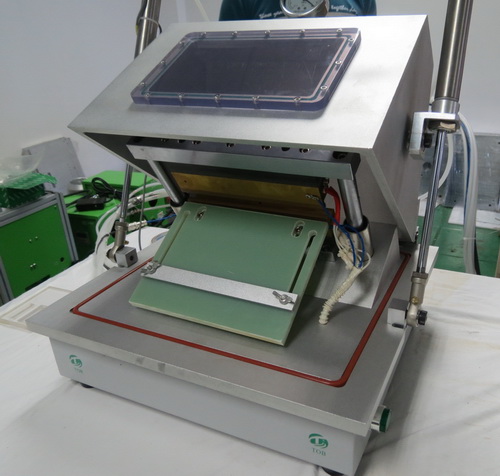

The sealing box is with adjust sealing plate, we can adjust the two screws according to different battery size to fit it and get the good sealing effect.
PACKAGE
