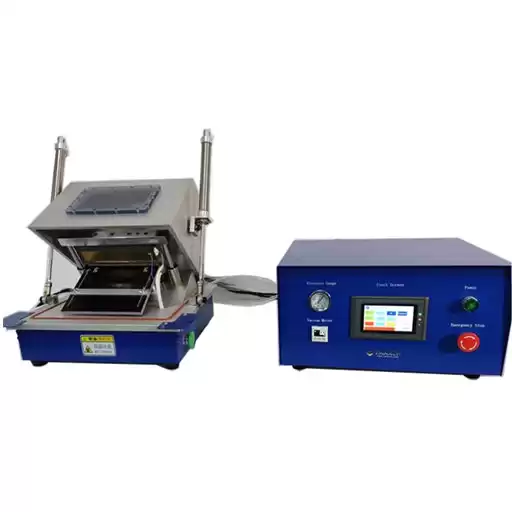

200mm Length Compact Vacuum Sealer Machine for Vacuum Pre-Sealing

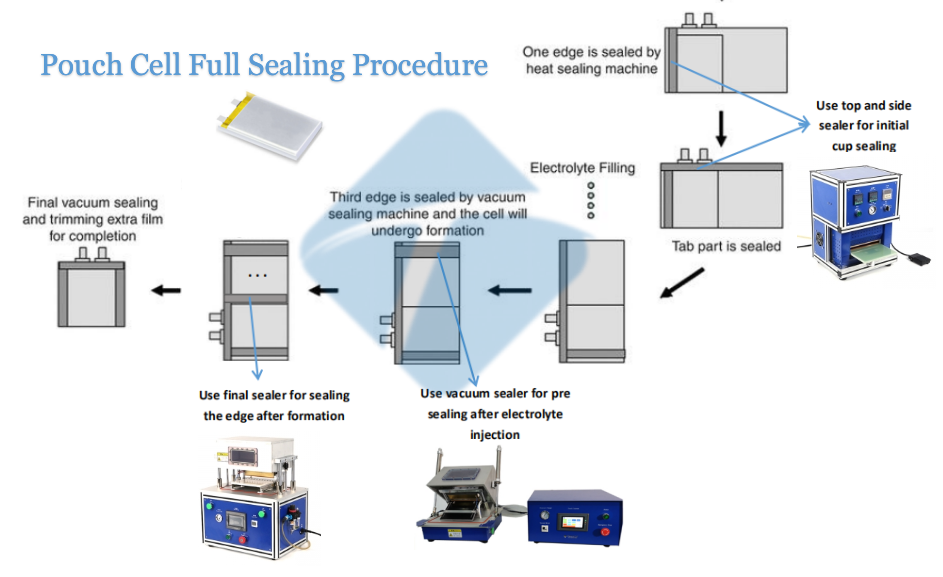

TMAX-YF200compact vacuum sealeris mainly used for sealing aluminum-laminated case in glove box after injection of electrolyte into pouch Li-ion cell or after formation for final seal (polymer Li-Ion cell). Heatable sealer blade is built into the chamber, automatically sealing the aluminum film pouch case for polymer battery.
|
Model
|
Compact Vacuum Sealer TMAX-YF200
|
|
Source voltage
|
AC 220V/110V, 50/60HZ
|
|
Power
|
600W
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Advantages
|
1 Sealing Head adopts copper material, good heat transfer effect,
2 With adjust plate, Can apply to different specifications battery, and the adjusting easily
|
|
Vacuum degree
|
-95Kpa - 0
|
|
Sealing head TEM
|
RT-250℃, adjustable
|
|
TEM accuracy
|
±1.5℃
|
|
Sealing pressure
|
0-7Kg/cm2, adjustable
|
|
Sealing time
|
0-99s, adjustable
|
|
Sealing Blade
|
Hard type (without rubber, only for Al case sealing,
not suitable for sealing case with tab in between)
|
|
Sealing width
|
5mm, customized
|
|
Sealing head length
|
200mm
|
|
Suitable battery size
(Inner size)
|
180*120*10mm
|
|
Air source
|
0.5-0.7MPa (72.5-102psi)
|
|
Dimension(L*W*H)
|
Sealing Unit with Chamber Closed: 470*430*480mm
Sealing Unit with Chamber opened: 470*430*559mm
Control Unit: 420*320*220mm
|
|
Weight
|
About 50kg
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
