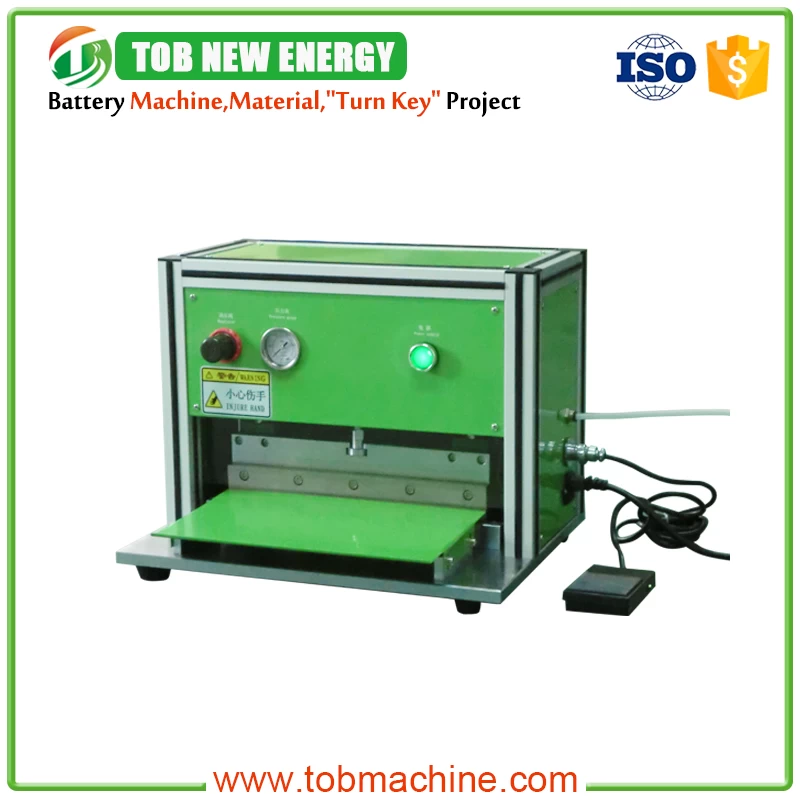

200mm Pneumatic Battery Edge Cutting Machine For Lab Pouch Cell
Thisbattery edge cutting machineis mainly used for lithium polymer battery aluminum-plastic film trimming molding, and it can also be used for cutting off other soft materials.
Main Features:
1.It uses the silver linear slide group for guidance, high precision to ensure that the upper and lower cutting between the zero gap and long service life;
2.It uses plexiglass protective cover to prevent cut hand and cut the battery;
3.Cutting knife from top to bottom use of high-speed steel, with sharp blade;
4.Built-in pressure gauge, from which you can observe and accurately control the size of the trimming pressure
5.Cylinder control cutting edge of the battery edge cutting, easy to form automation, trimming width can be adjusted;
6. Air pressure and speed can be set to adjusted;
7.A product positioning tray, adjustable from top to bottom to facilitate the positioning of the battery;
8.Using foot switch, reliable, convenient and fast;
SPECIFICATIONS
|
Model
|
Battery Edge Cutting Machine TOB-LB-QB200
|
|
Trimming length
|
200mm
|
|
Trimming width
|
3～8mm adjustable
|
|
Cutter life
|
1 million/grinding
|
|
Speed
|
600 times / hour
|
|
Voltage
|
AC220V / 50 hz
|
|
Air pressure
|
0.5-0.8 Mpa
|
|
Power
|
100 w
|
|
Dimensions (L*W*H)
|
320*180* 340mm
|
|
Weight
|
35kg
|
STANDARD PACKAGE LIST
|
Item
|
Qty
|
|
Battery edge cutter machine
|
1 set
|
|
Power line (according to your requirements )
|
1 pcs
|
|
Foot pedal
|
1 pcs
|
|
socket head wrench
|
1 set
|
|
Operating manual (English)
|
1 book
|

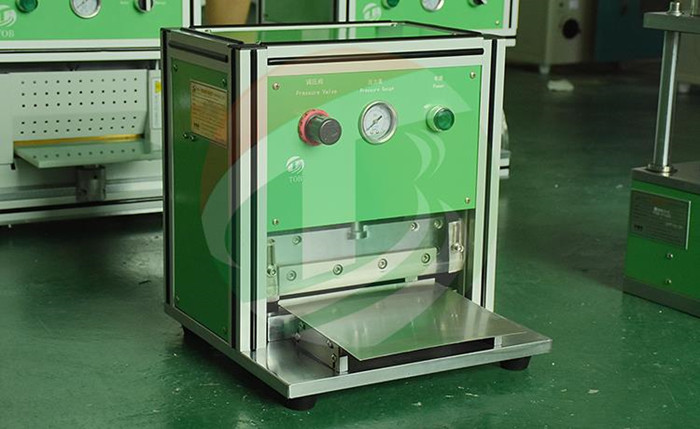

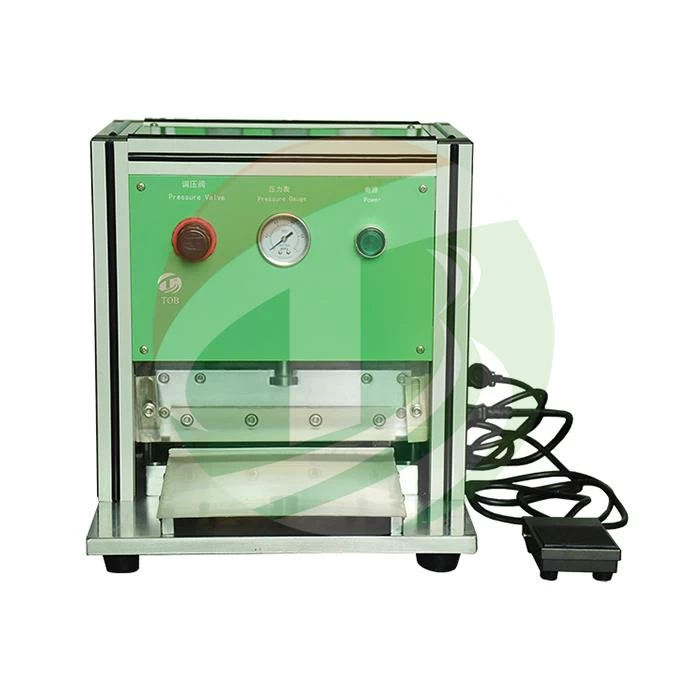

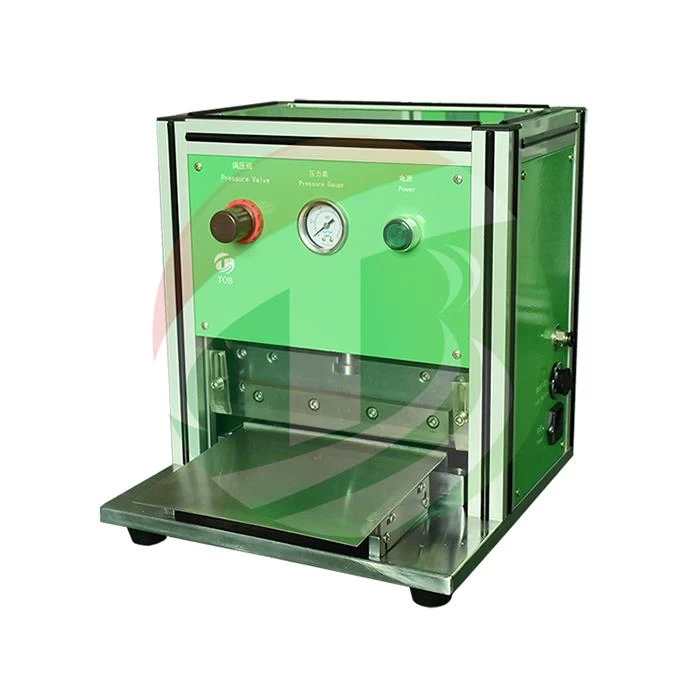

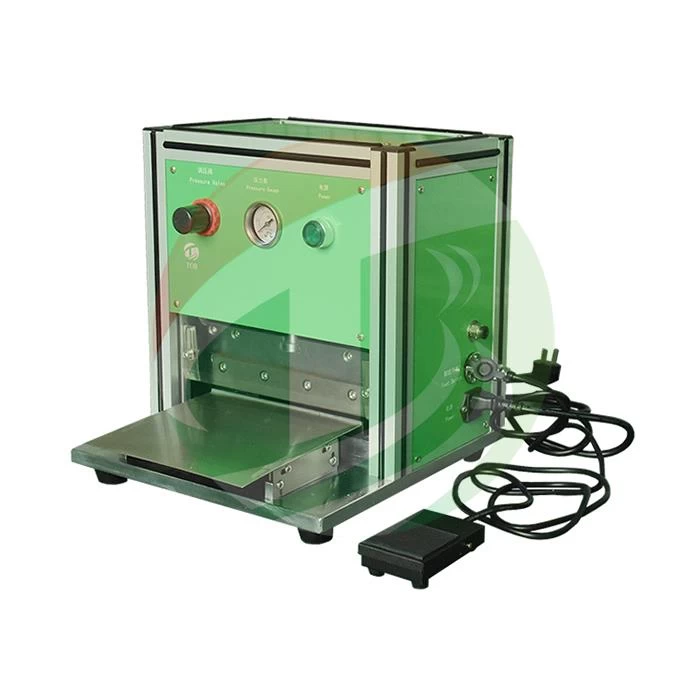

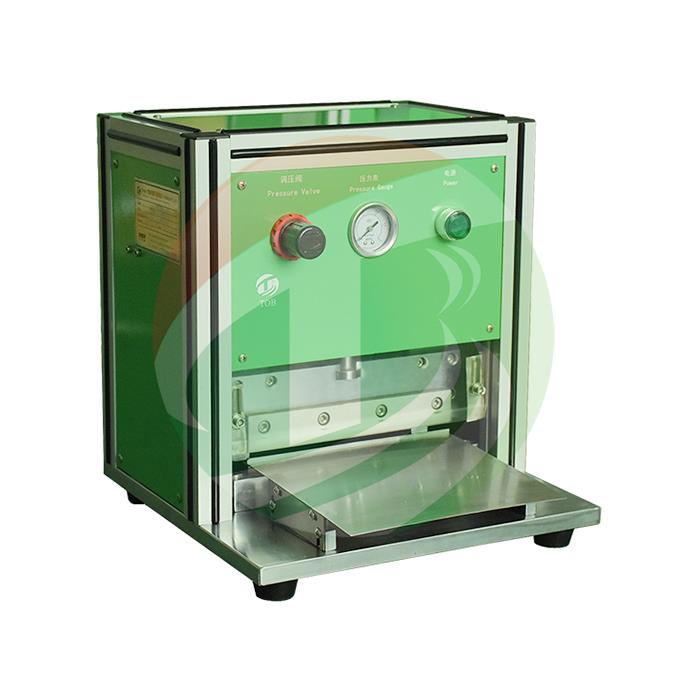

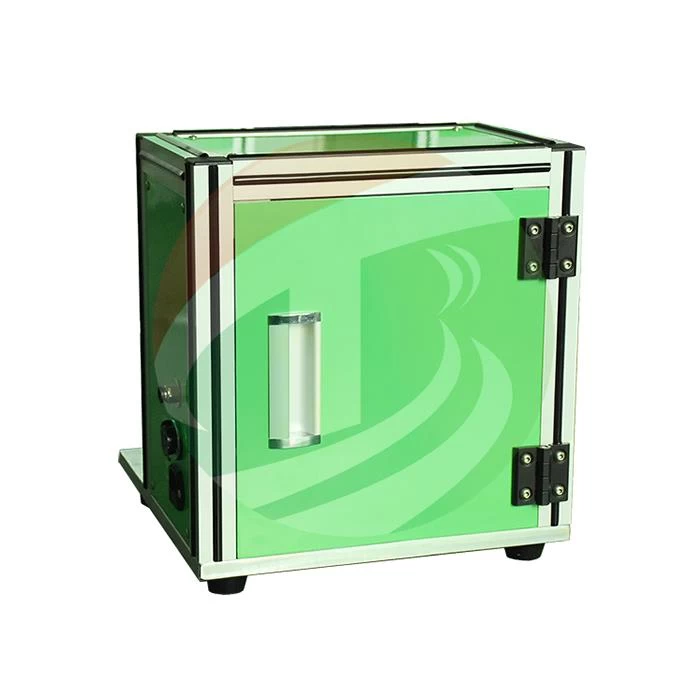

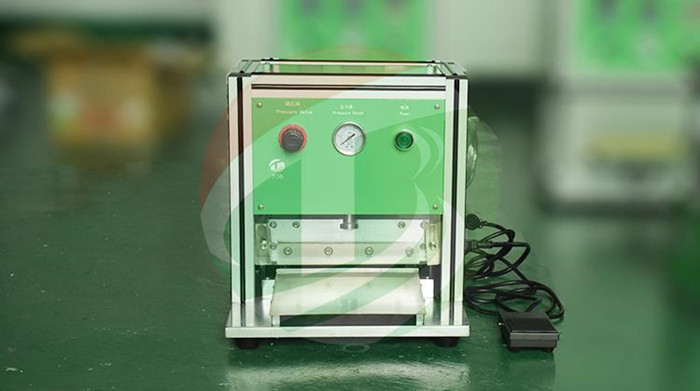

Product Display

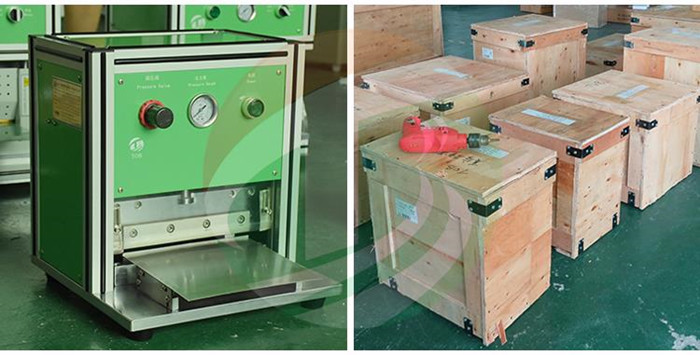

Package
