200V 20 Ohm Portable Battery Tester For Battery Voltage and Resistance Testing
SPECIFICATIONS
TOB-SM8124Resistance Voltage Testeris aportable battery testerused forbattery voltage and internal resistance test, it is Suitable for lithium-ion battery, nickel-metal hydride, lithium manganese, lead-acid battery and other single battery or battery pack with voltage no more than 200V.
|
Model
|
Portable Battery Resistance Voltage Tester TOB-SM8124
|
|
Voltage testing range
|
0-1.999V, 2-19.99V, 20-199.9V
|
|
Voltage resolution ratio
|
1mV, 10mV, 100mV
|
|
Inner resistance testing range
|
0-199.9mΩ, 200-1999mΩ, 2000-20000mΩ
|
|
Accuracy
|
0.1mΩ, 1mΩ, 10mΩ
|
|
Operating temperature
|
-10-40℃
|
|
Suitable battery
|
Lithium battery, lithium pouch cell(Lithium polymer battery),
Nickel metal hydride, nickel cadmium battery, lead-acid battery and so on.
|
|
Structure
|
LCD display testing results
Simple operation with Button press
|
|
Notice
|
This machine can not test battery with voltage more than 200V,
Please don’t test battery more than 200V. It will damage the machine.
Guarantee that the battery positive and negative connection is right.
|
|
Dimension(L*W*H)
|
130*72*30mm
|
|
Weight
|
200g
|
REFERENCE PICTURE

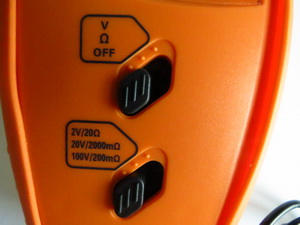

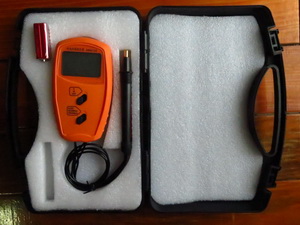

Battery tester operation button Battery tester package

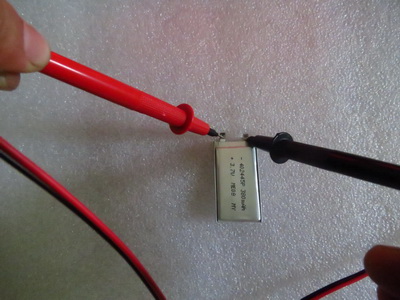

Test polymer battery
PACKAGE AND SHIPPING
|
1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
|
SERVICES
|
1 We supply machines with battery technology support.
2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.
3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.
4 We can also supply a full set of battery technology for battery design, research and producing.
|
