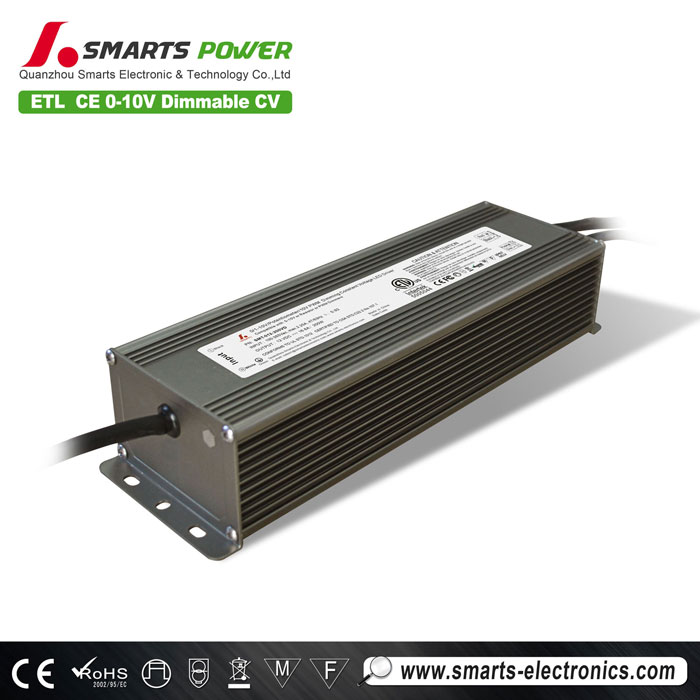

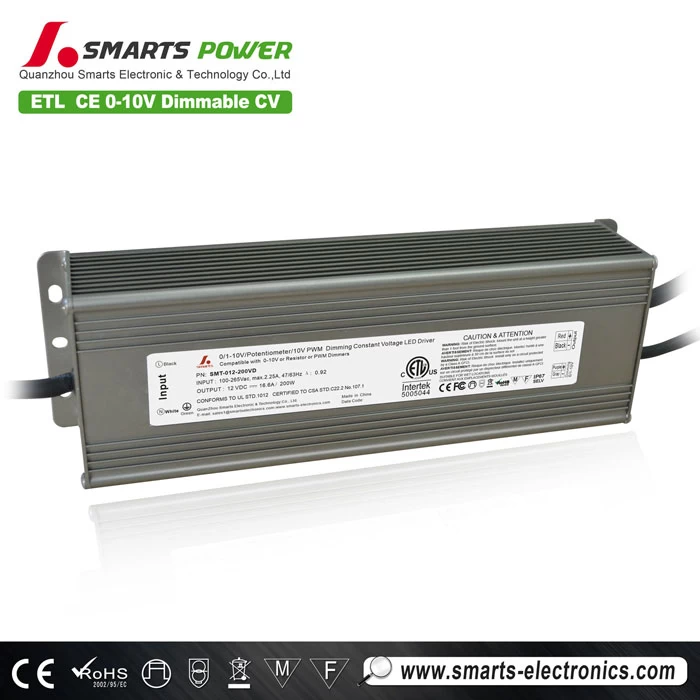

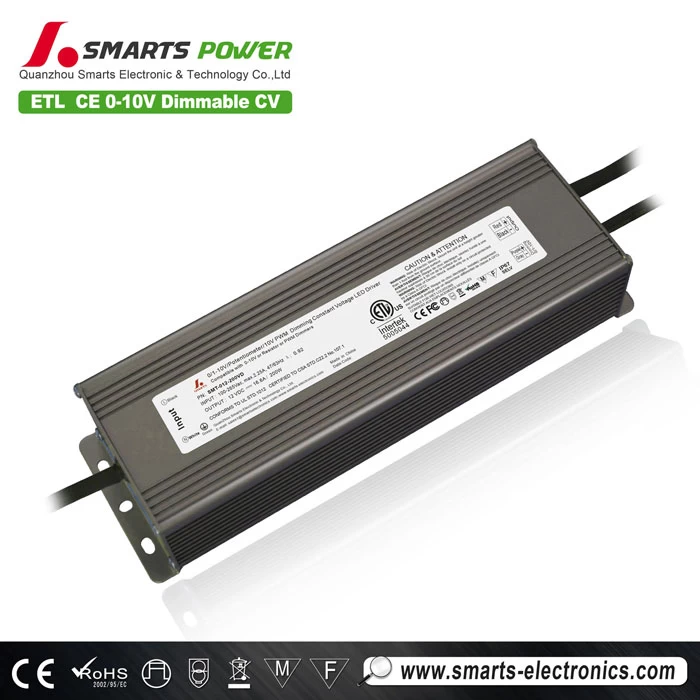

200W 0-10V dimmable led driver PF0.92

200W 0-10V dimmable led driver;12v 200W 0-10V dimmable led driver;200W dimmable led driver


  • Working ModeConstant Voltage
  • Output Current16.67A
  • Output Voltage200w
  • Input Voltage100-265V
  • CertificationCE ROHS
  • Warranty3 years

200W 0-10V dimmable led driver PF>0.92 passed


 Specifications


Model

SMT-012-200VD

SMT-024-200VD

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

Rated current

016.67A

08.33A

Rated power

200W

200W

Input

Voltage Range

100-265VAC

Frequency Range

4763HZ

Power Factor ( Typ.

PF0.90/120V / PF0.90/220V

Full Load EfficiencyTyp.

>88%(120V)/  >88%(220V)

>88%(120V) / >88%(220V)

AC CurrentTyp.

     2.104A@120V

       1.148A@220V

Leakage current

0.9mA/120VAC / 0.7mA/220VAC

Protection

Short Circuit

Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over voltage

150VAC / 280VAC

Over temperature

100±10 shut down o/p voltage, re-power on to recover

Environment

Working TEMP.

-40+50

Working Humidity

2095%RH,non-condensing

Storage TEM.,Humidity

-40+801095%RH

TEMP.coefficient

±0.03%/050

Vibration

10500Hz5G 12min./1 cycleperiod for 72min.each along X,Y,Z

axes

Safety&EMC

Safety standards

EN61347-1 EN61347-2-13  IP67

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG100MΩ/500VDC/25/70%RH

EMC EMISSION

Compliance toEN55015,EN61000-3-2 (50%load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry

level

Others

Weight

1.8Kg

Size

255*80*53mmL*W*H

packing

440*295*145mm/8pcs/CTN    265*98*55 mm for inner box

Notes

1. All parameters NOT specially mentioned are measured at 220VAC input , rated load and 25of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3. Tolerance:includes set us tolerance,line regulation and load regulation .

  Label

 0-10V dimmable led driver

 0-10V dimmable led driver

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top



 Features


  • High efficiency,save energy ,protected environment.
  • High stability and low ripple, increase light efficiency and decrease light attenuation.
  • Meet to safety standard and EMC
  • Assure LED stability long lift and light efficiency by constant voltage.
  • Integrity protection,over loading, over voltage ,over current.
  • 8Hrs and 100% full load burn-in test.


 Environment


  • Working Temperature : -25 ~ +50°C
  • Working Humidity : 20 ~ 90% RH non-condensing
  • Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
  • TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
  • Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes


 Safety


  • Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
  • Withstand Voltage : I/P-O/P: 3000KVAC
  • Isolation Resistance : I/P-O/P:100M Ohms/500VDC



 Application


  • outdoor LED illuminating lights, LED Neon
  • LED City Decoration, LED Lighting Advertising
  • LED Display, Safety Protection Apparatus
  • Telecommunications, Networks, Vehicle Lights
  • Controller Panels






 Packaging & Shipping
200W 0-10V dimmable led driver PF>0.92 passed
 Net weight (g) Gross Weight/ctn  Qty/ctn  Carton size(mm)
1.8 g 15 kg 10 pcs 414*308*174mm
